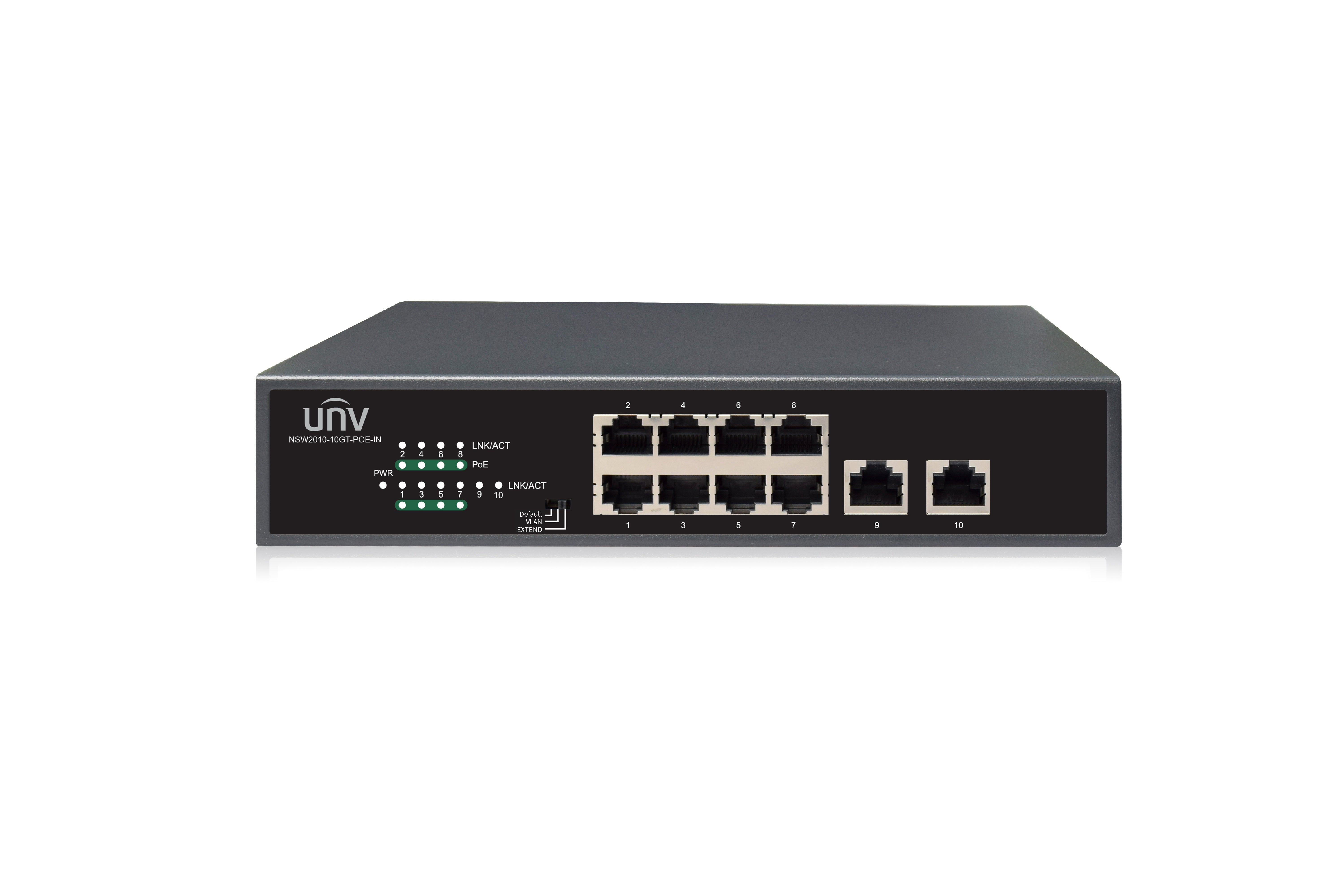

Part Number: NSW2010-10GT-POE-IN
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All metal housing, safe and reliable
|
Model |
NSW2010-10GT-POE-IN |
|
Ports |
8×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45) |
|
Standards |
IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at |
|
Switching capacity |
20Gbps |
|
Forwarding performance |
13.4Mpps |
|
Packet Buffer |
2Mbit |
|
MAC |
2K |
|
Dimensions (W×D×H) |
220mm x 150mm x 44mm (8.7"×5.9"×1.7") |
|
Weight |
<1.24kg |
|
Input Voltage |
AC: 100-240V, 50/60Hz |
|
MAX. Power |
130W |
|
PoE |
802.3at/af |
|
Max. PoE Power |
Max capacity: 120W Max capacity for single port: 30W |
|
Cooling Fans |
1 |
|
Operating Temperature |
0°C ~ 40 °C |
|
Storage Temperature |
-40 °C ~ 70 °C |
|
Operating Humidity |
10% ~ 90% non-condensing |
|
Storage Humidity |
5% ~ 90% non-condensing |
|
Indicator |
PWR(Green), LNK/ACT(Green), PoE(Orange) |
|
Working Mode |
Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. EXTEND(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. |
