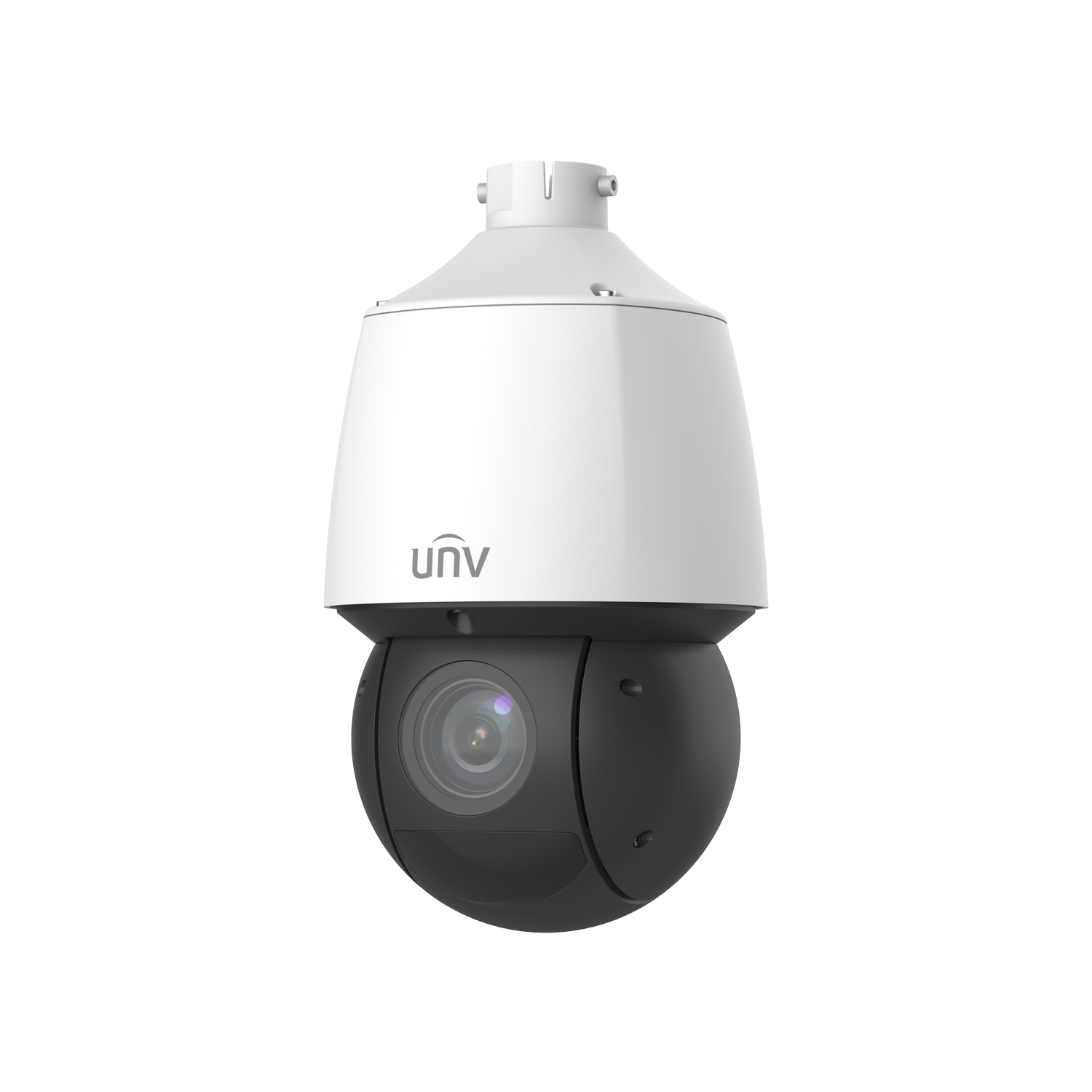

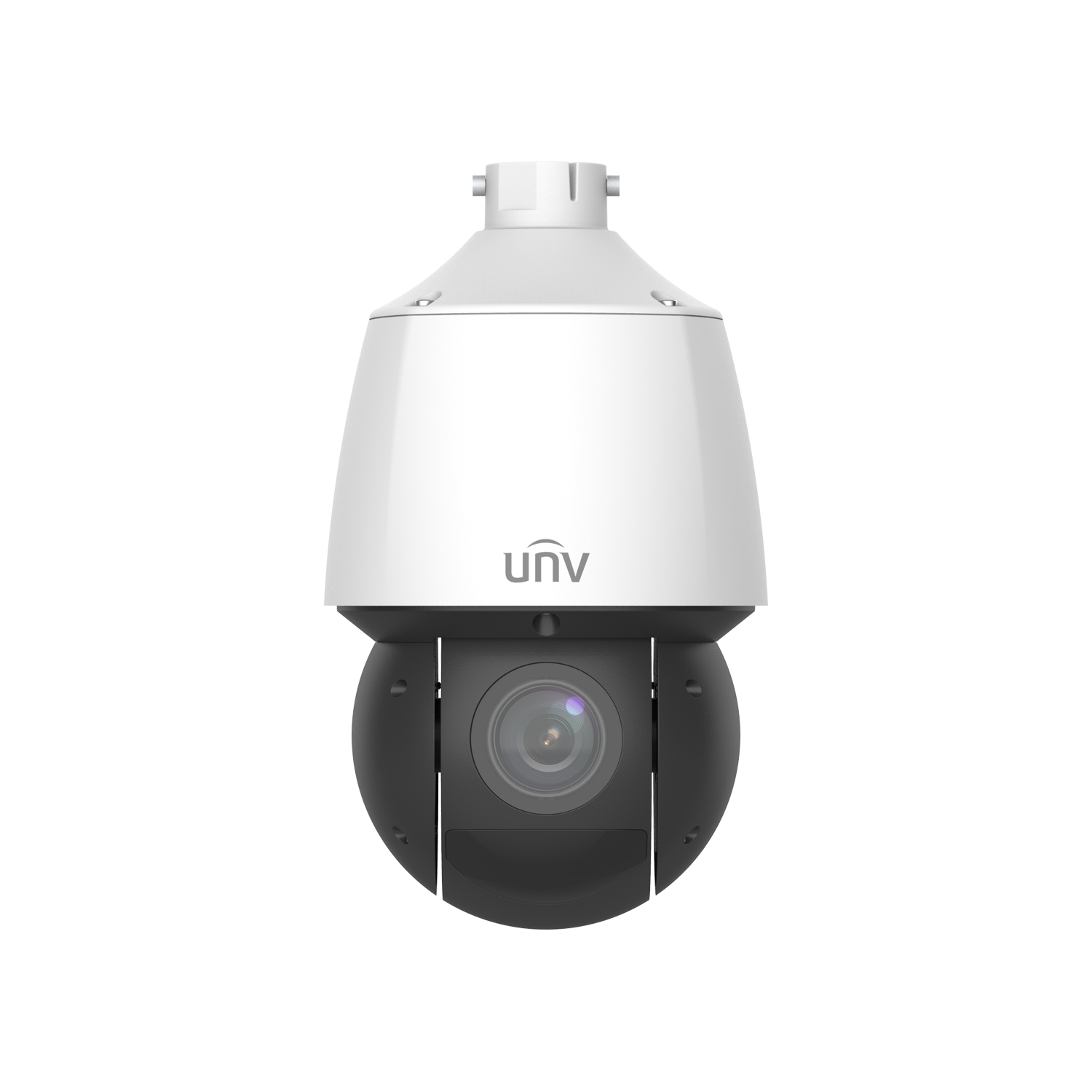

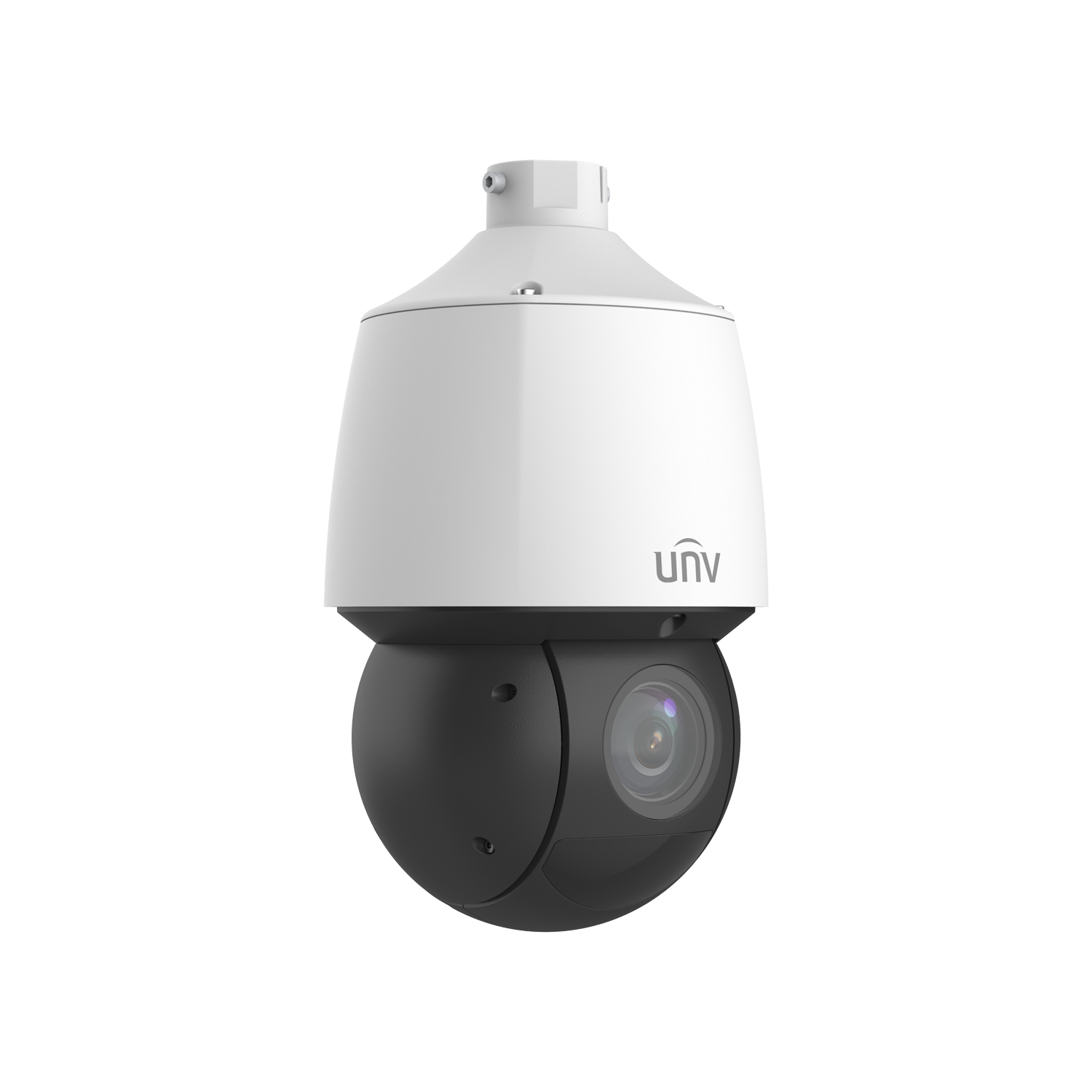

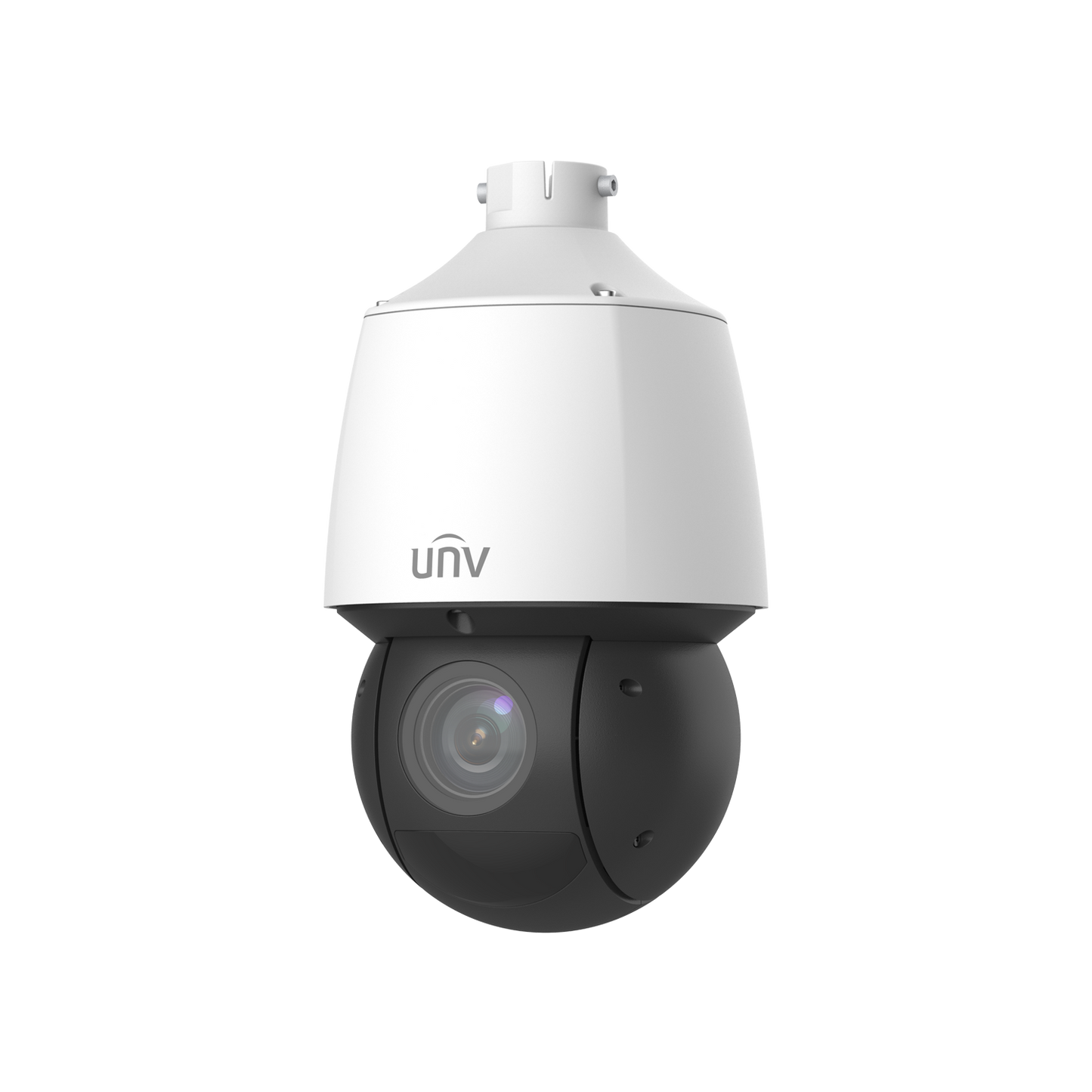

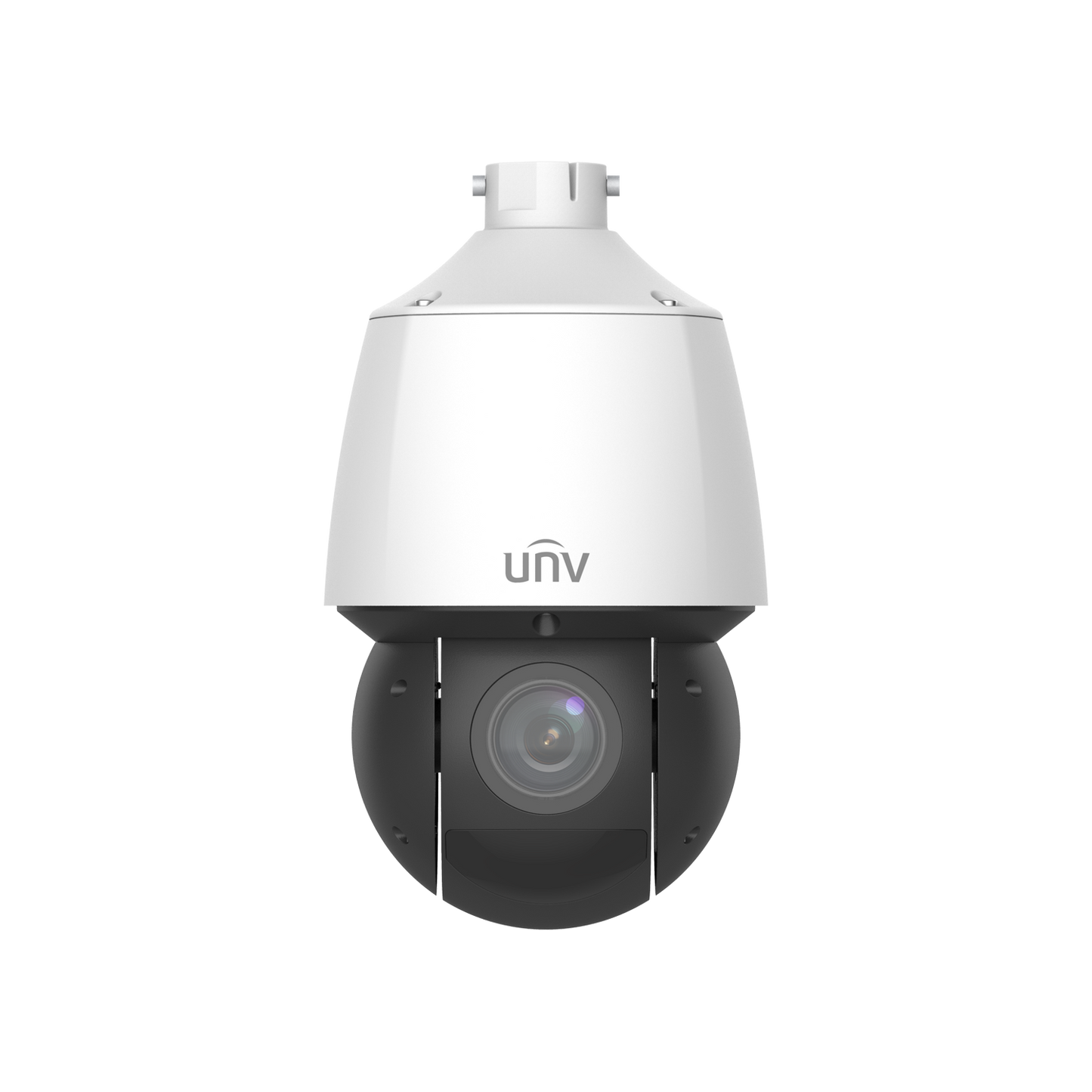

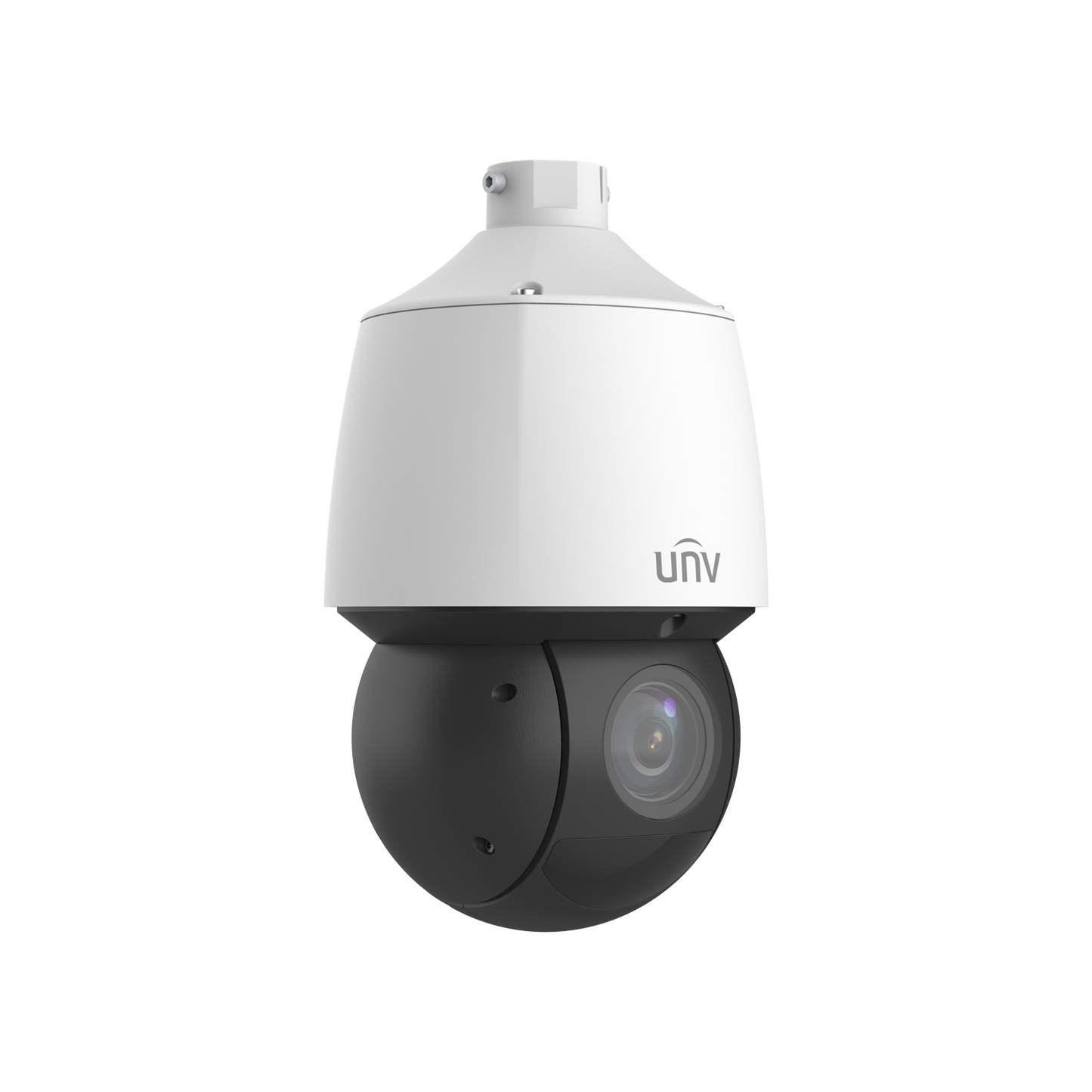

Part Number: IPC6424SR-X25-VF
Lens Type: 4.8-120mm (Auto Iris: F1.5-F3.8)
Max Resolution/Frame Rate: 4MP(2688x1520)@30fps
Angle of View: 52.20°-2.74° (Horizontal)
Min. Illumination: Color 0.003Lux (F1.5, AGC ON)
Night Vision Distance: 328 Feet (IR)
Corridor Mode: Yes
WDR: 120dB
Audio: Input/Output Connections
Alarm I/O: Yes
BNC Output: Yes
Pan Range: 360° (Non-stop)
Tilt Range: -15°-90° (Auto Reverse)
Special Features: Auto Tracking, Human/Vehicle Detection, Face Capture, People Counting
Power: PoE+ (IEEE 802.3at), DC12V/3A
NDAA Compliant: Yes
Warranty Period: 3 Years
|
IPC6424SR-X25-VF |
|||||
|
Camera |
|||||
|
Sensor |
1/2.8", 4.0 megapixel, progressive scan, CMOS |
||||
|
Min. Illumination |
Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR |
||||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
||||
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
||||
|
WDR |
120dB |
||||
|
S/N |
>56dB |
||||
|
Lens |
|||||
|
Lens type |
4.8 ~ 120mm, AF automatic focusing and motorized zoom lens |
||||
|
Digital Zoom |
16 |
||||
|
Optical Zoom |
25 |
||||
|
Iris |
Auto; F1.5 ~ F3.8 |
||||
|
Angle of View (H) |
52.20°~2.74° |
||||
|
Angle of View (V) |
30.81°~1.54° |
||||
|
Angle of View (O) |
64.20°~3.23° |
||||
|
DORI |
|||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|
4.8 |
119.3(391.2ft) |
47.7(156.5ft) |
23.9(78.2ft) |
11.9(39.1ft) |
|
|
120 |
2475.0(8120.1ft) |
990.0(3248.0ft) |
495.0(1624.0ft) |
247.5(812.0ft) |
|
|
Illuminator |
|||||
|
IR Range |
Up to 100m (328 ft) IR range |
||||
|
Wavelength |
850nm |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
Video |
|||||
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
||||
|
Frame Rate |
Main Stream: 4MP(2688*1520),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; |
||||
|
Video Bit Rate |
128 Kbps~16 Mbps |
||||
|
U-code |
Support |
||||
|
ROI |
Support |
||||
|
Video Stream |
Triple streams |
||||
|
OSD |
Up to 8 OSDs |
||||
|
Privacy Mask |
24 areas, up to 4 areas per scene |
||||
|
Image |
|||||
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||
|
Digital Noise Reduction |
2D/3D DNR |
||||
|
Smart IR |
Support |
||||
|
Flip |
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
||||
|
HLC |
Support |
||||
|
BLC |
Support |
||||
|
Defog |
Digital Defog |
||||
|
Intelligent |
|||||
|
Smart Intrusion Prevention |
Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area detection, Leave Area detection |
||||
|
Face Capture |
Support, Face attributes: Gender, Age range, Glasses, Mask |
||||
|
People Counting |
Support people flow counting and crowd density monitoring |
||||
|
Events |
|||||
|
Basic Detection |
Motion detection, Audio detection, Tampering Alarm |
||||
|
Auto Tracking |
Support |
||||
|
General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
||||
|
Audio |
|||||
|
Audio Compression |
G.711U,G.711A |
||||
|
Audio Bitrate |
64 Kbps |
||||
|
Two-way Audio |
Support |
||||
|
Suppression |
Support |
||||
|
Sampling Rate |
8 kHz |
||||
|
Storage |
|||||
|
Edge Storage |
Micro SD, up to 256 GB |
||||
|
Network Storage |
ANR,NAS(NFS) |
||||
|
Network |
|||||
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS |
||||
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
||||
|
User/Host |
Up to 32 users. 2 user levels: administrator and common user |
||||
|
Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
||||
|
Client |
EZStation EZLive EZView |
||||
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
||||
|
Pan & Tilt |
|||||
|
Pan Range |
360° (endless) |
||||
|
Pan Speed |
0.1°/s ~ 200°/s |
||||
|
Preset speed: 240°/s |
|||||
|
Tilt Range |
–15° ~ 90° (auto reverse) |
||||
|
Tilt Speed |
0.1°/s ~ 120°/s |
||||
|
Preset speed: 200°/s |
|||||
|
Number of Presets |
1024 |
||||
|
Preset Patrol |
16 patrols, up to 64 presets for each patrol |
||||
|
Route Patrol |
16 patrols, up to 32 actions for each patrol |
||||
|
Recorded Patrol |
16 patrols, up to 128 actions for each patrol |
||||
|
Patrol Stay Time |
15s~1800s |
||||
|
Preset Image Freeze |
Support |
||||
|
Home Position |
Support |
||||
|
Interface |
|||||
|
Audio I/O |
1/1 |
||||
|
Alarm I/O |
2/1 |
||||
|
Serial Port |
1 RS485 |
||||
|
Built-in Mic |
N/A |
||||
|
Built-in Speaker |
N/A |
||||
|
WIFI |
N/A |
||||
|
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
||||
|
Video Output |
1 BNC |
||||
|
Certification |
|||||
|
EMC |
FCC Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
||||
|
Safety |
IEC 62368-1 EN 62368-1 UL 60950-1 |
||||
|
Environment |
CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
||||
|
General |
|||||
|
Power
|
DC12V(±25%,3A), PoE+(IEEE 802.3at) |
||||
|
Power consumption: MAX 21W |
|||||
|
Power Interface |
Ø 5.5mm coaxial power plug |
||||
|

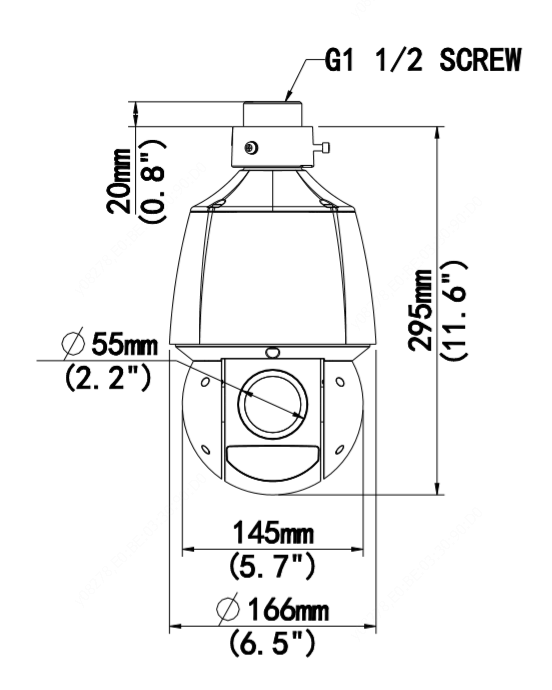

Dimensions (Ø x H) |
Ø166 x 295mm (Ø6.5” x 11.6”) |
||||
|
Weight |
3.05kg(6.72lb) |
||||
|
Working Environment |
-40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) |
||||
|
Storage Environment |
-40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) |
||||
|
Surge Protection |
6KV |
||||
|
Reset Button |
Support |
||||
|
Protection |
Ingression protection: IP67 Vandal resistant: IK10 |
||||
