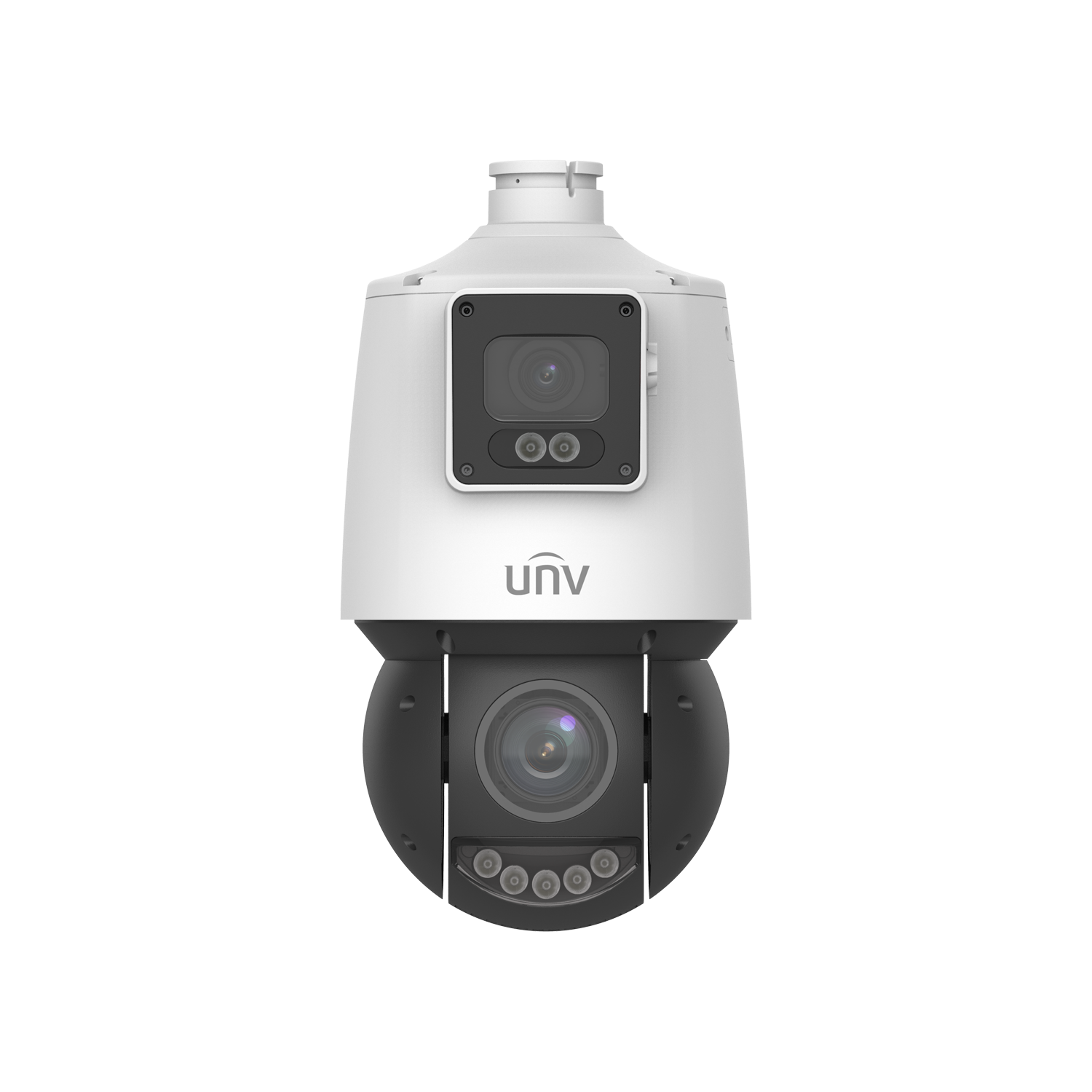

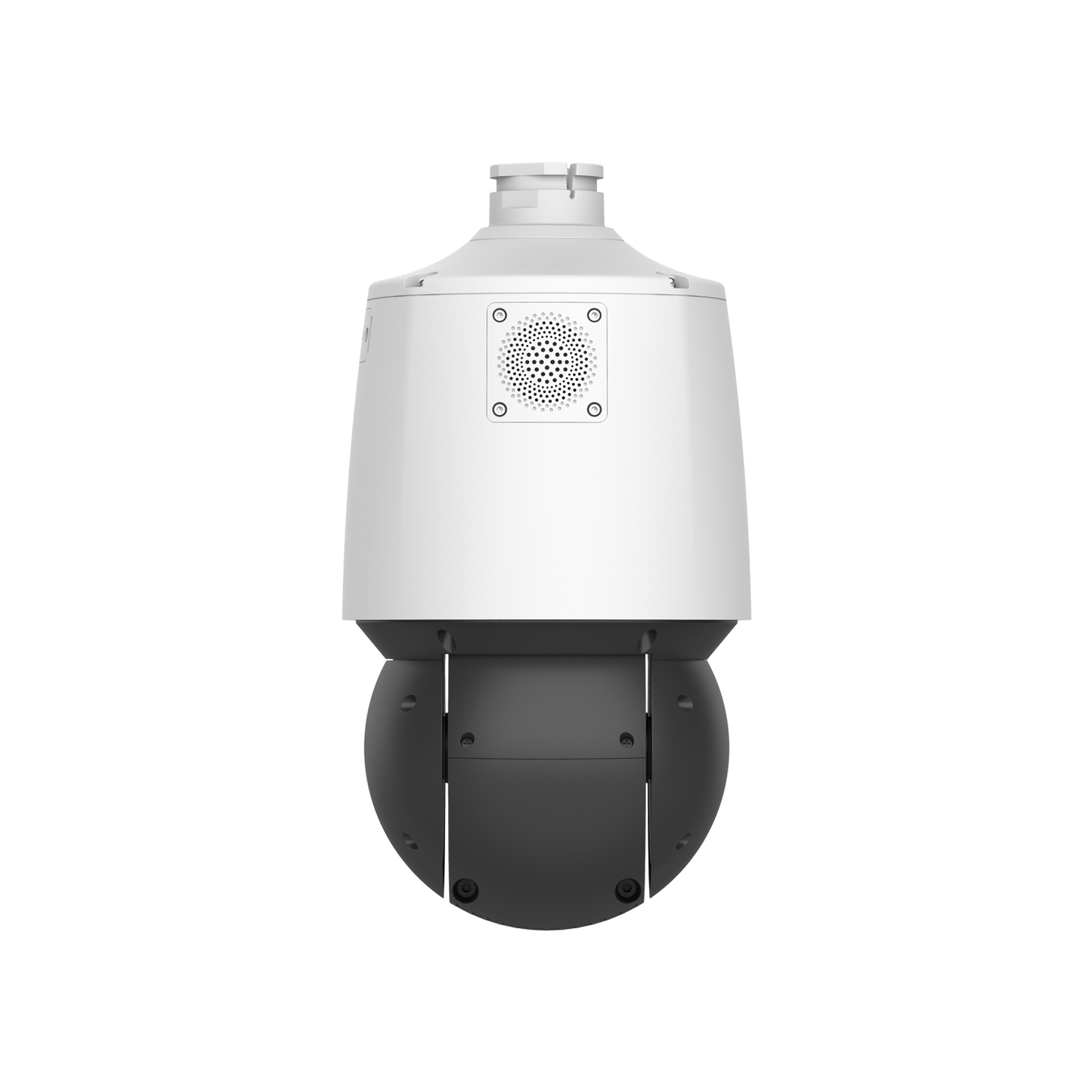

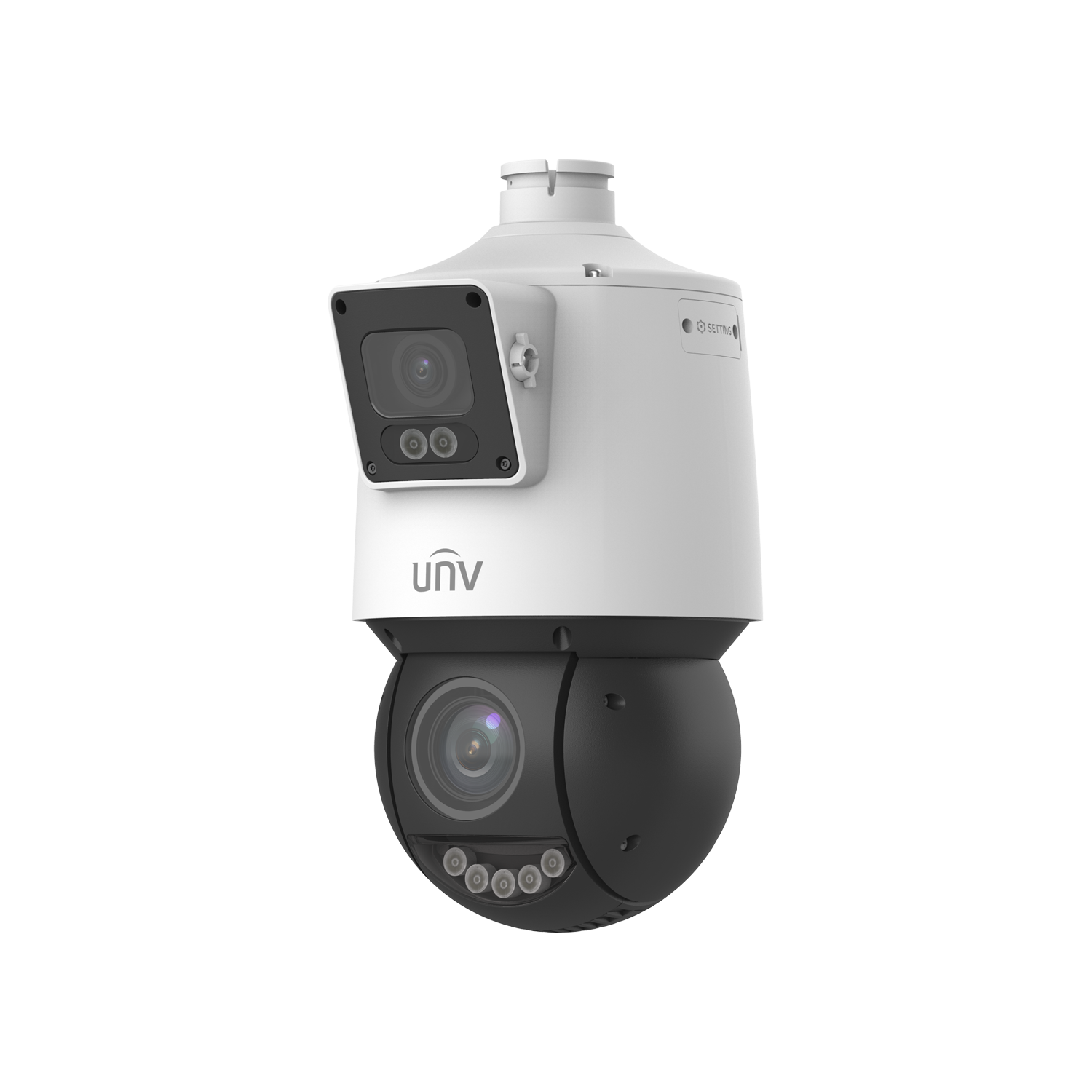

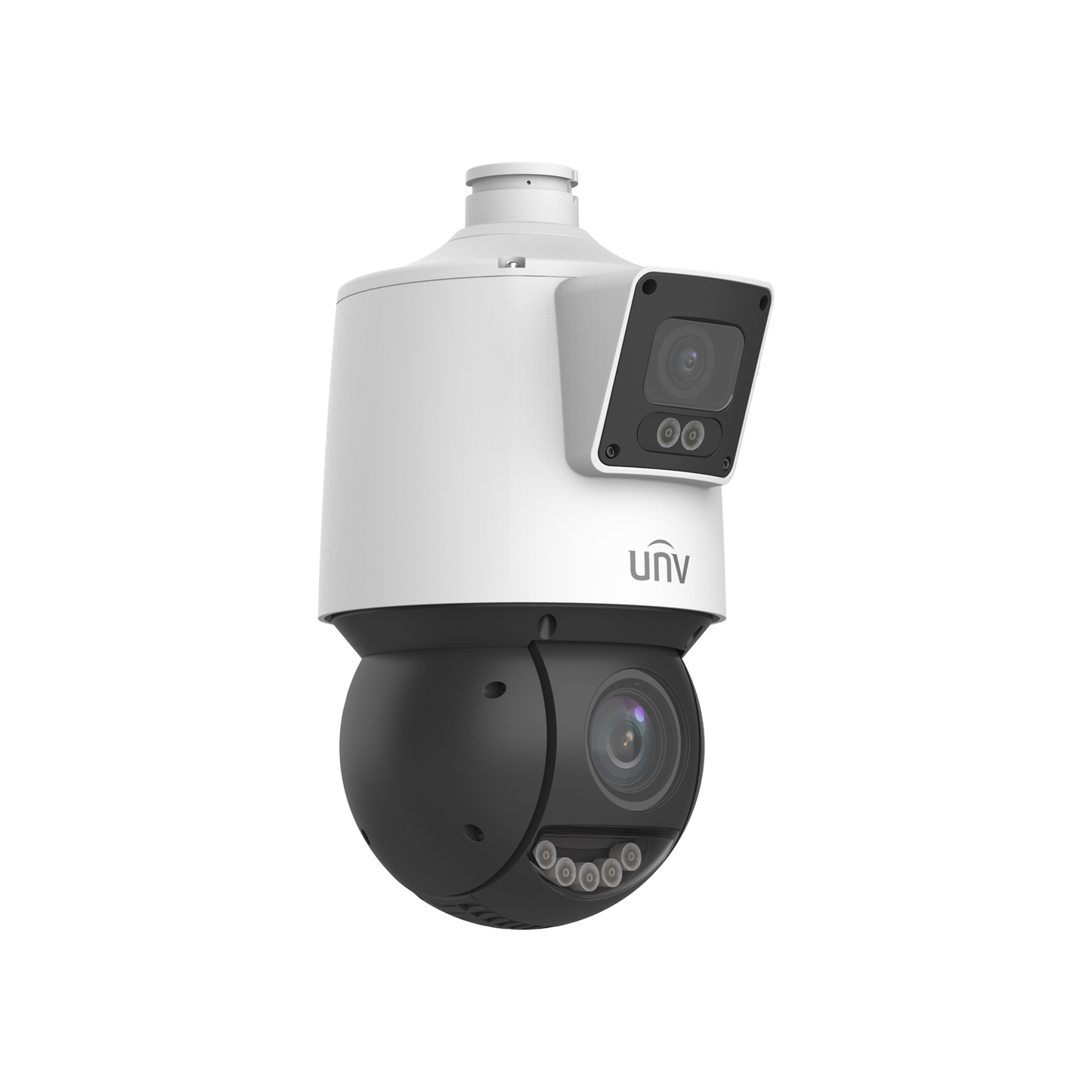

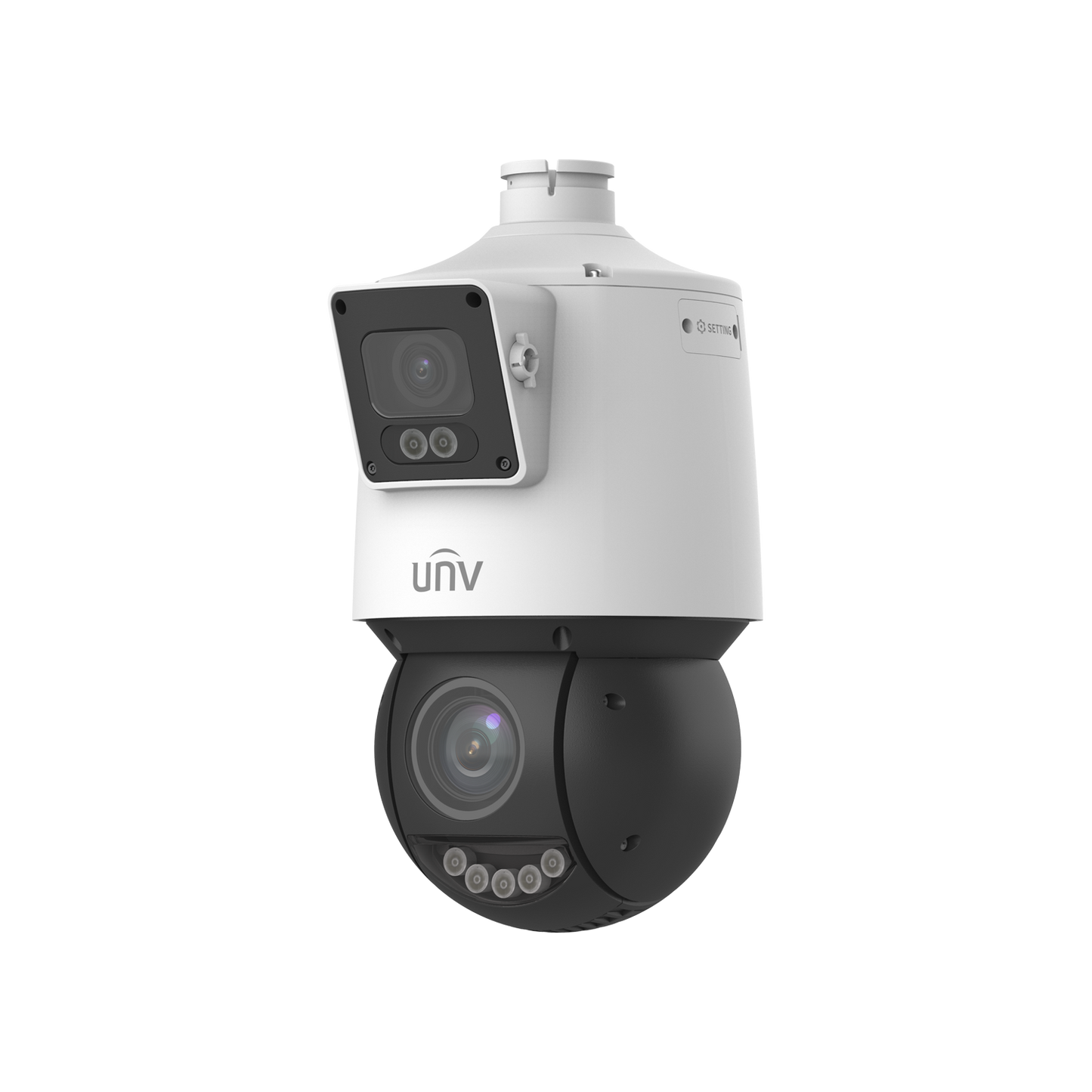

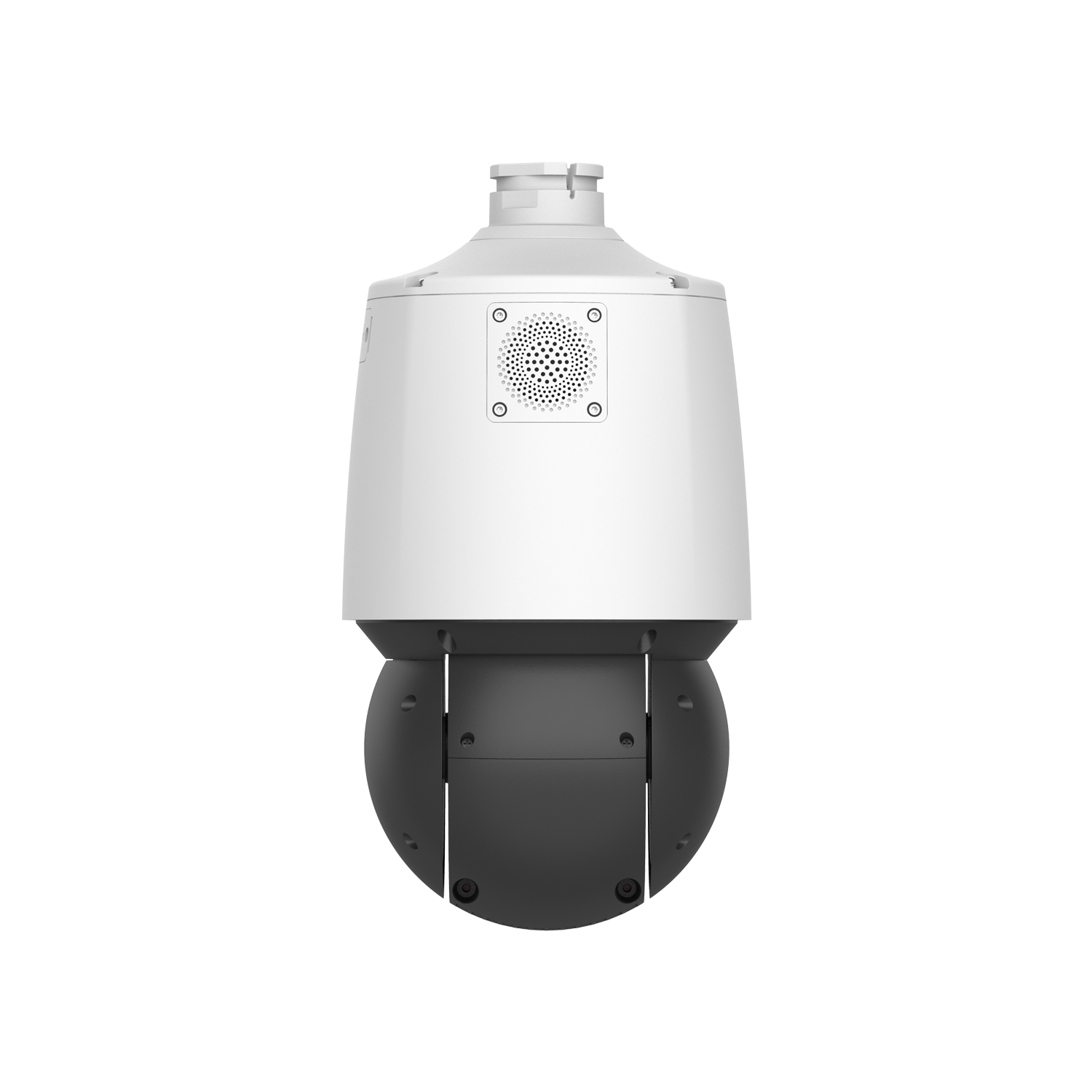

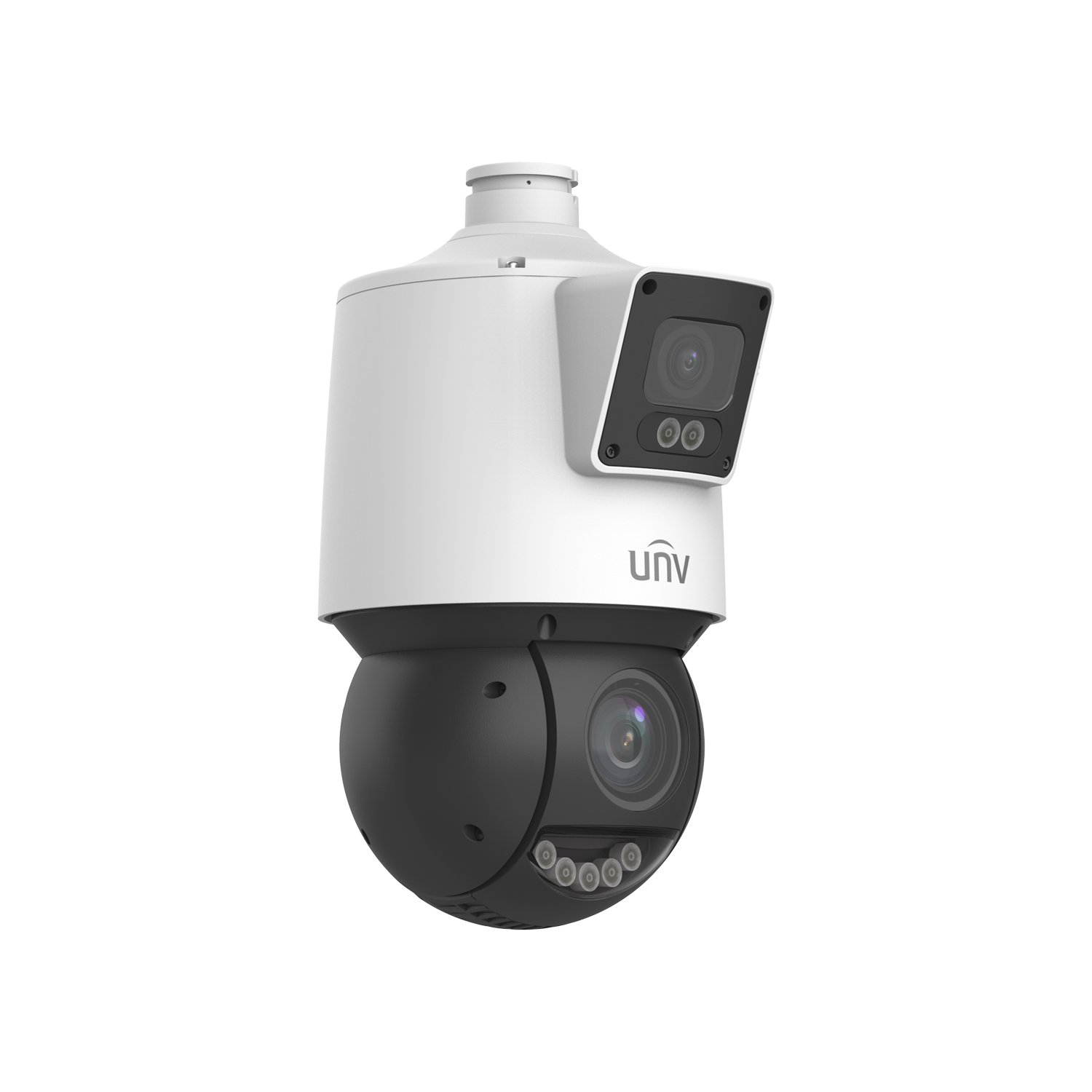

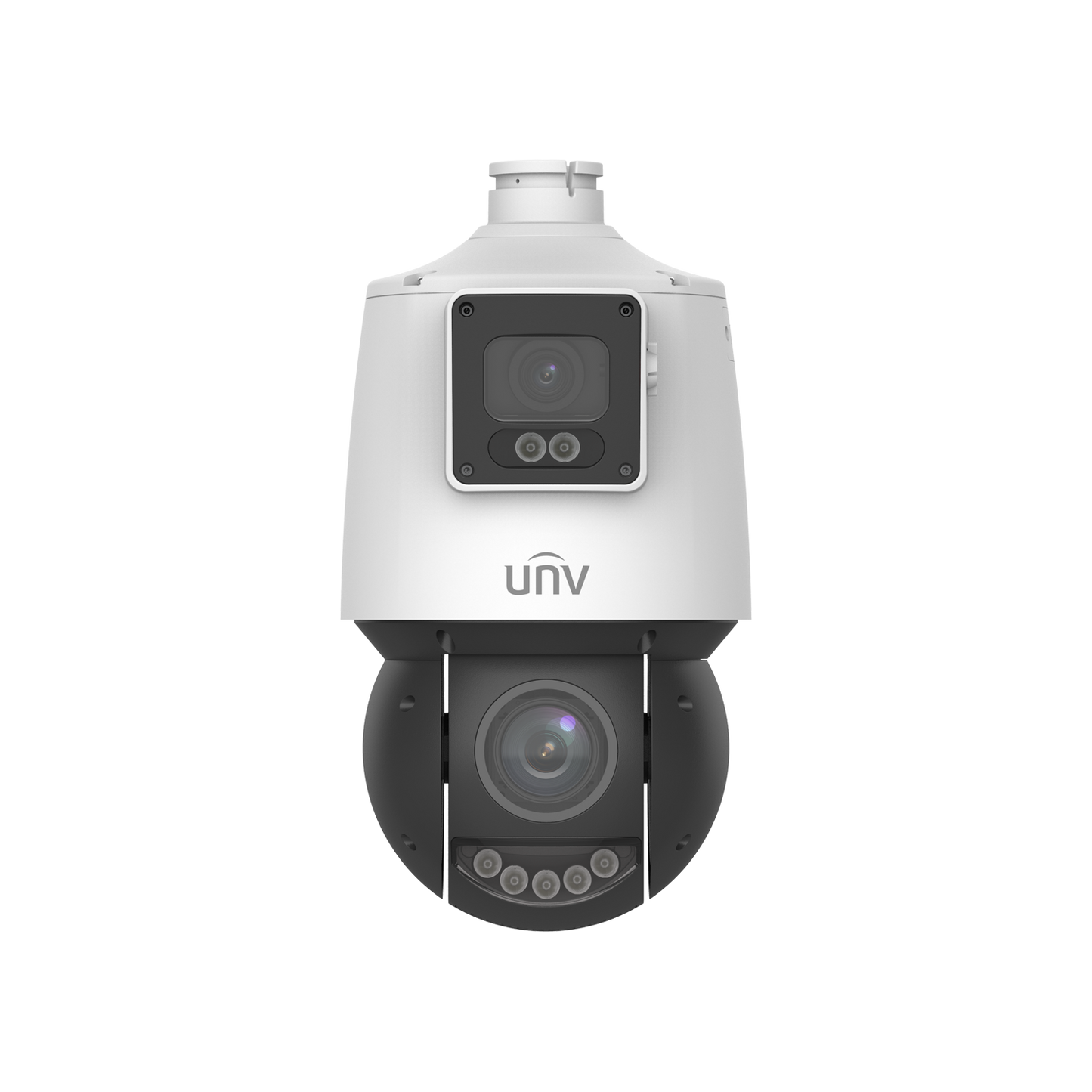

4MP Lighthunter Dual-Sensor PTZPart Number: IPC94144SFW-X25-F40C
Resolution
4MP @ 30fps
Lens & Zoom
(Fixed) 4mm@F1.0
Night Vision
(Fixed) 98.4 ft (LED); (PTZ) 328.1 ft (IR)
Power
PoE+ / DC12V
Smart Feature Highlights
Sensor Type
1/1.8" CMOS
Field of View
(Fixed) 94.9°
WDR & Imaging
120dB True WDR
I/O & Audio
Built-in Mic & Speaker, Alarm I/O
SD Card Slot
Up to 256GB
NDAA Compliant
Yes
Warranty Period
3 Years
A Plus Guard (Cloud Compatible)
Via Compatible NVR
| Optics, Storage & Hardware | |
|---|---|
| Lens | |
| Lens type | 4mm@F1.0, 4.8~120mm@F1.5, AF automatic focusing and motorized zoom lens |
| Optical Zoom | N/A, 25X |
| Iris | Fixed aperture; F1.0, Auto; F1.5(W)~F3.8(T) |
| Field of View (H) | 94.9°, 55.46° ~ 3.09° |
| Field of View (V) | 51.5°, 32.94° ~ 1.73° |
| Field of View (D) | 116.7°, 68.22° ~ 3.65° |
| DORI | |
| DORI Distance | Lens (mm), Detect (m), Observe (m), Recognize (m), Identify (m) |
| 4 (Panorama) | 62.1 (203.6 ft), 24.8 (81.5 ft), 12.4 (40.7 ft), 6.2 (20.4 ft) |
| 4.8 (Detail) | 123.8 (406.0 ft), 49.5 (162.4 ft), 24.8 (81.2 ft), 12.4 (40.6 ft) |
| 120 (Detail) | 2475.0 (8120.1 ft), 990.0 (3248.0 ft), 495.0 (1624.0 ft), 247.5 (812.0 ft) |
| Illuminator | |
| IR Range | N/A, Up to 100m (328.1 ft) |
| Warm Light Range | Up to 30m (98.4 ft), N/A |
| Wavelength | N/A, 850nm (IR) |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps;, Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas per scene, 24 areas, up to 4 areas per scene |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/Flip Horizontal/180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR |
| Interface | |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | Support |
| Wi-Fi | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
| Smart Features & General | |
|---|---|
| General | |
| Camera | Panorama, Detail |
| Sensor | 1/1.8", 4MP, CMOS, 1/2.7", 4MP, CMOS |
| Min. Illumination | Color:0.0005 lux (F1.0, AGC ON) 0 lux with warm light, Color:0.003 lux (F1.5, AGC ON) 0 lux with IR |
| Day/Night | N/A, IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | ＞56dB |
| Intelligent | |
| Smart Intrusion Prevention | Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection |
| Face Capture | Support. Face attributes: Gender, Age range, Glasses, Mask, Support |
| People Counting | Support people flow counting and crowd density monitoring |
| Linkage Function | Support. Triggered by fixed lens via smart intrusion prevention function to track target, N/A |
| Events | |
| Basic Detection | Motion detection, Audio detection, Tampering Alarm |
| Auto Tracking | N/A, Support |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user |
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZLive EZView |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan & Tilt | |
| Pan Range | N/A, 360° |
| Pan Speed | N/A, 0.1°/s ~ 80°/s |
| Preset speed: N/A | Preset speed: 80°/s |
| Tilt Range | 18° ± 5°, -15° ~ 90° |
| Tilt Speed | N/A, 0.1°/s ~ 80°/s |
| Preset speed: N/A | Preset speed: 80°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s~1800s |
| Preset Image Freeze | N/A |
| Home Position | Support |
| Certification | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | |
| Power | DC12V (±25%), PoE+(IEEE 802.3at) |
| Power | Power consumption: MAX 24W |
| Power Interface | Ø 5.5mm coaxial power plug |

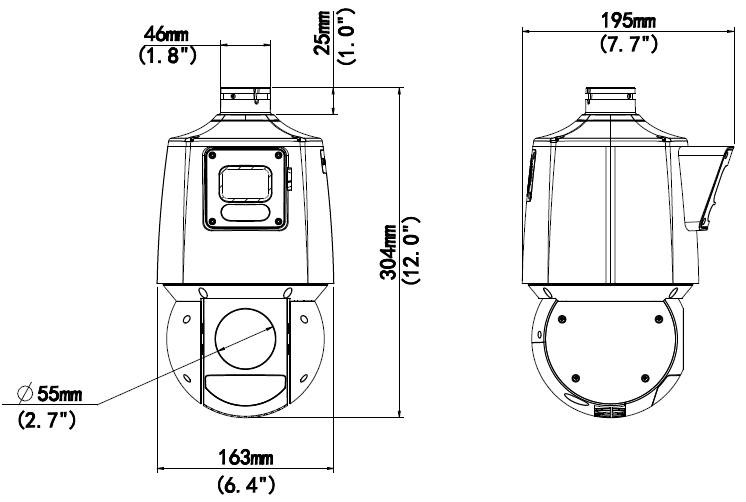

| Dimensions (Ø x H) | Φ163 x 304mm (Φ6.4” x 12.0”) |
| Weight | 2.27kg (5.00lb) |
| Working Environment | -40℃ ~ +65℃(-40°F ~ +149°F)，Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40℃ ~ +70℃(-40°F ~ +158°F)，Humidity: ≤95% RH (non-condensing) |
| Surge protection | 6KV |
| Reset button | Support |
