Available

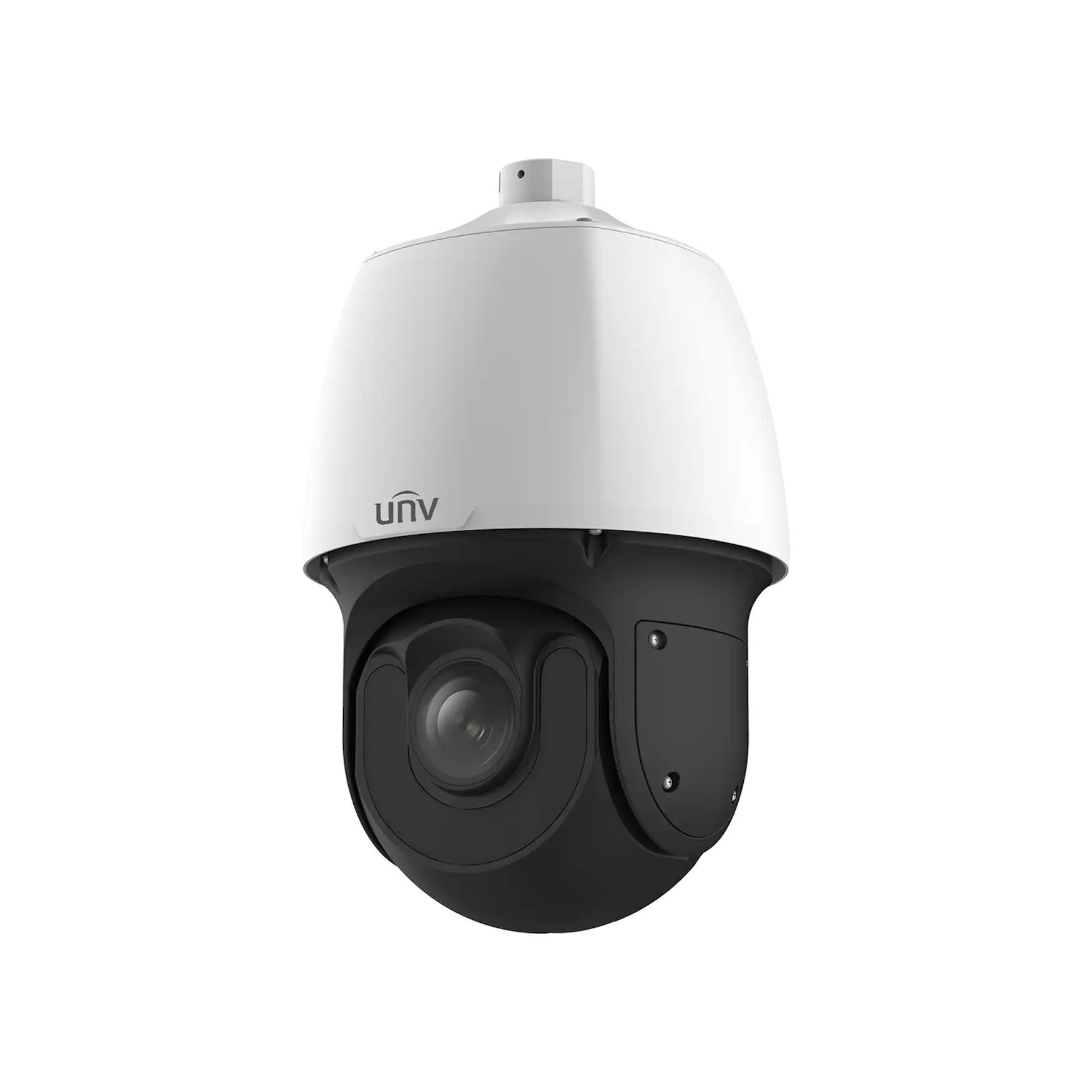

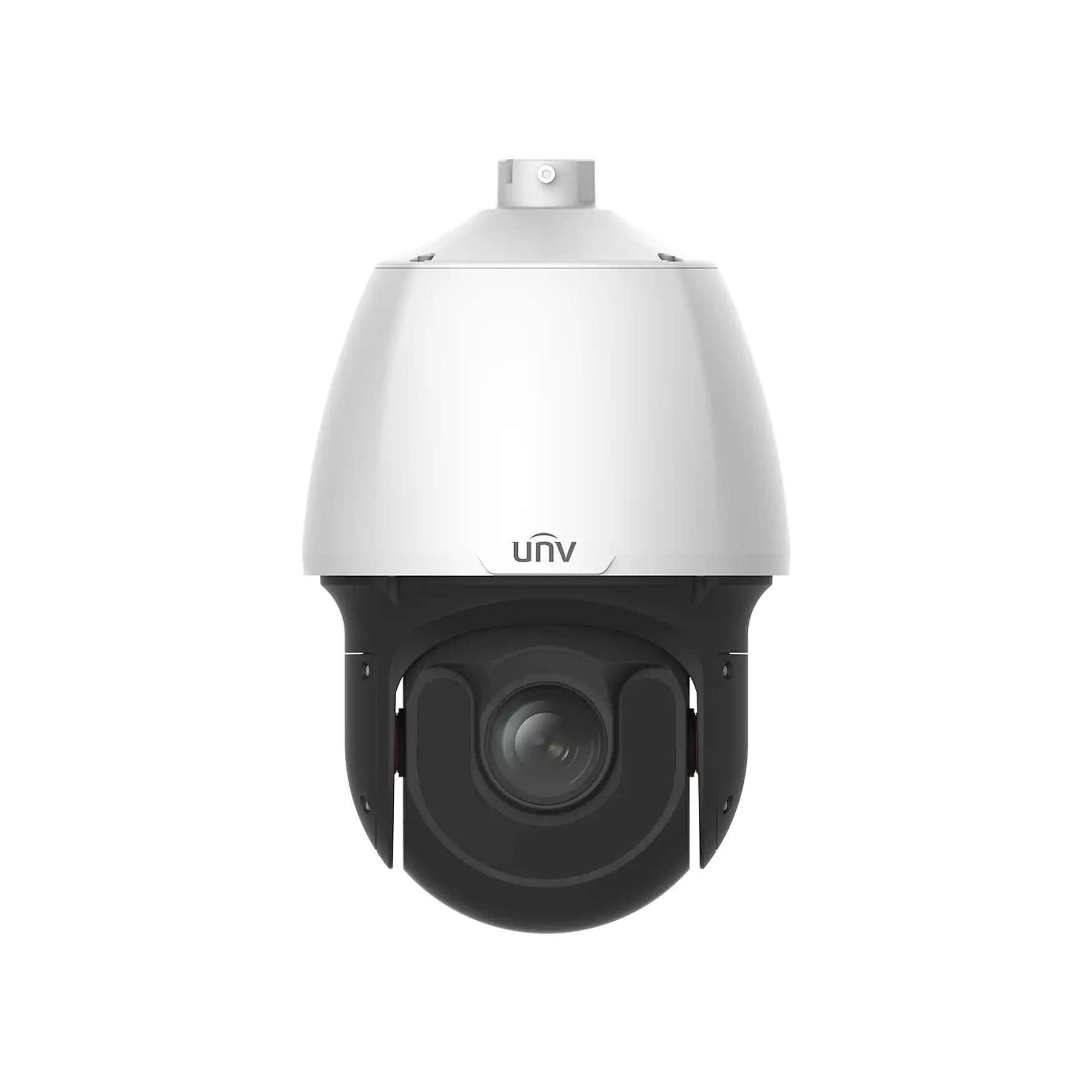

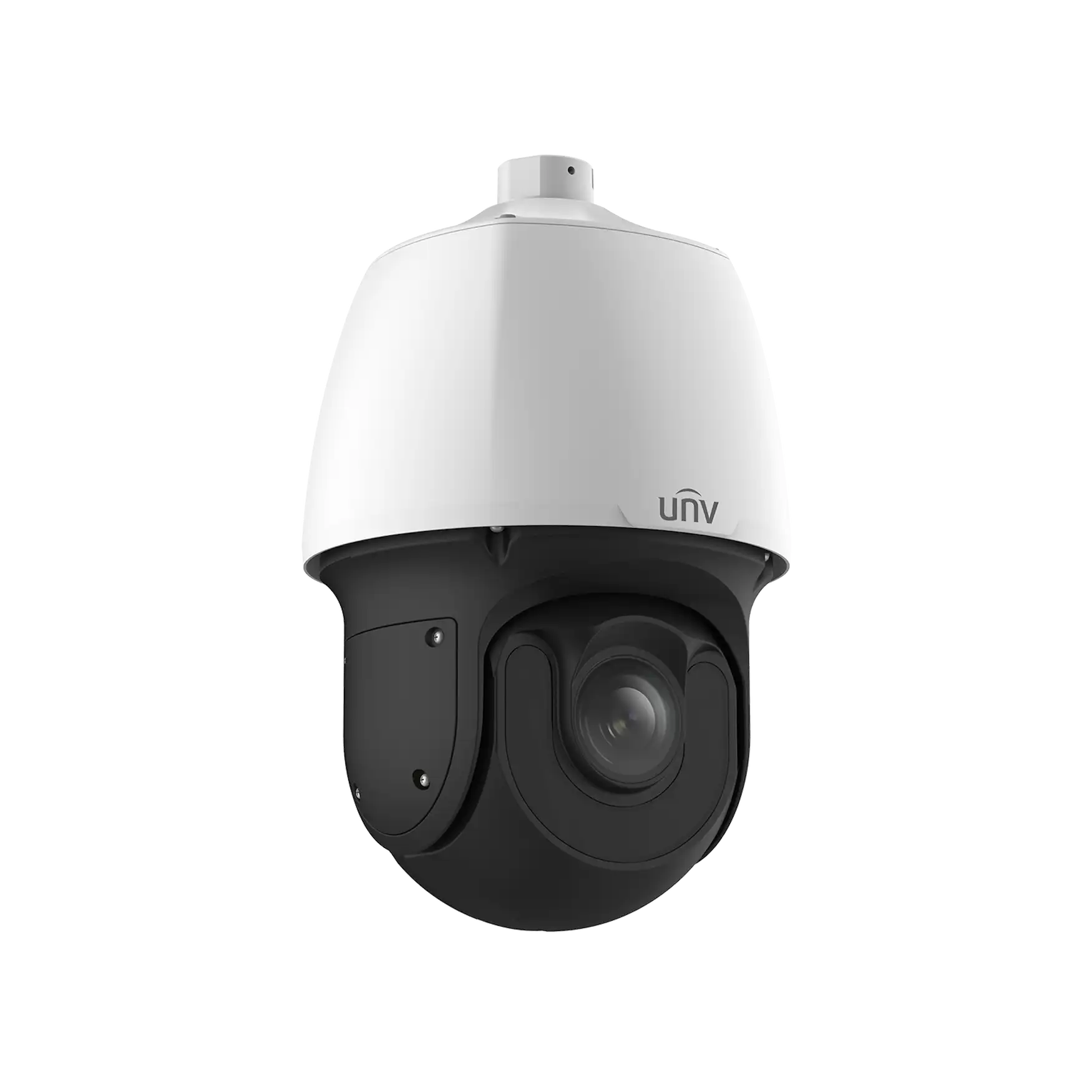

8MP LightHunter IR 25X PTZPart Number: IPC6658SR-X25-VF
Resolution
8MP @ 30fps
Lens & Zoom
6.0-150.0mm (Auto Iris: F1.5-F3.4)
Night Vision
656 ft (Laser IR)
Power
60W PoE / AC/DC 24V
Smart Feature Highlights
Sensor Type
1/1.8" CMOS (0.003Lux Low Light)
Field of View
60.5°-3.1° (Horizontal)
WDR & Imaging
DWDR (Digital WDR)
I/O & Audio
Audio In/Out, Alarm I/O
SD Card Slot
Up to 256GB
NDAA Compliant
Yes
Warranty Period
3 Years
A Plus Guard (Cloud Compatible)
Via Compatible NVR
| Optics, Storage & Hardware | |
|---|---|
| Camera | |
| Sensor | 1/1.8", 8.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | Digital wide dynamic |
| S/N | >56dB |
| Lens | |
| Lens | 6.0 ~ 150.0mm, AF automatic focusing and motorized zoom lens |
| Digital Zoom | 16 |
| Optical Zoom | 25 |
| Iris | Auto; F1.5 ~ F3.4 |
| Angle of View (H) | 60.5° ~ 3.1° |
| Angle of View (V) | 36.3° ~ 1.8° |
| Angle of View (O) | 74.3° ~ 3.7° |
| DORI | |
| DORI Distance | Lens (mm), Detect (m), Observe (m), Recognize (m), Identify (m) |
| 6.0 | 143.1(469.5ft), 57.2(187.8ft), 28.6(93.9ft), 14.3(46.9ft) |
| 150.0 | 3116.3 (10223.9ft), 1246.5(4089.6ft), 623.3(2044.8ft), 311.6(1022.4ft) |
| Illuminator | |
| Vari-focal Laser | Up to 200m(656ft) |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 8MP(3840*2160),Max 30fps(Max 20fps when AI functions enabled); Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/Flip Horizontal/180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Audio | |
| Audio Compression | G.711U,G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR,NAS(NFS) |
| Interface | |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] |
| Smart Features & General | |
|---|---|
| Intelligent | |
| Smart Intrusion Prevention | Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection |
| Face Capture | Support |
| People Counting | Support people flow counting and crowd density monitoring |
| Events | |
| Basic Detection | Motion detection, Audio detection, Tampering Alarm |
| Auto Tracking | Support |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZLive EZView |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Pan & Tilt | |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 200°/s |
| Pan Speed | Preset speed: 300°/s |
| Tilt Range | –15° ~ 90° (auto reverse) |
| Tilt Speed | 0.1°/s ~ 200°/s |
| Tilt Speed | Preset speed: 240°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s~1800s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Certification | |
| EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
| Safety | IEC 62368-1 EN 62368-1 UL 60950-1 |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
| General | |
| Power | AC 24V±25%, DC 24V±25%, PoE (PSE Required) |
| Power | Power consumption: Max 58W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions (Ø x H) | Ø227 x 384.8mm (Ø8.9” x 15.1”) |
| Weight | 5.61kg(12.36lb) |
| Working Environment | -40℃~70℃(-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40℃~70℃(-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing) |
| Surge protection | 6KV |
| Reset Button | Support |
| Protection | Ingress Protection: IP66 Vandal Resistant: N/A |
