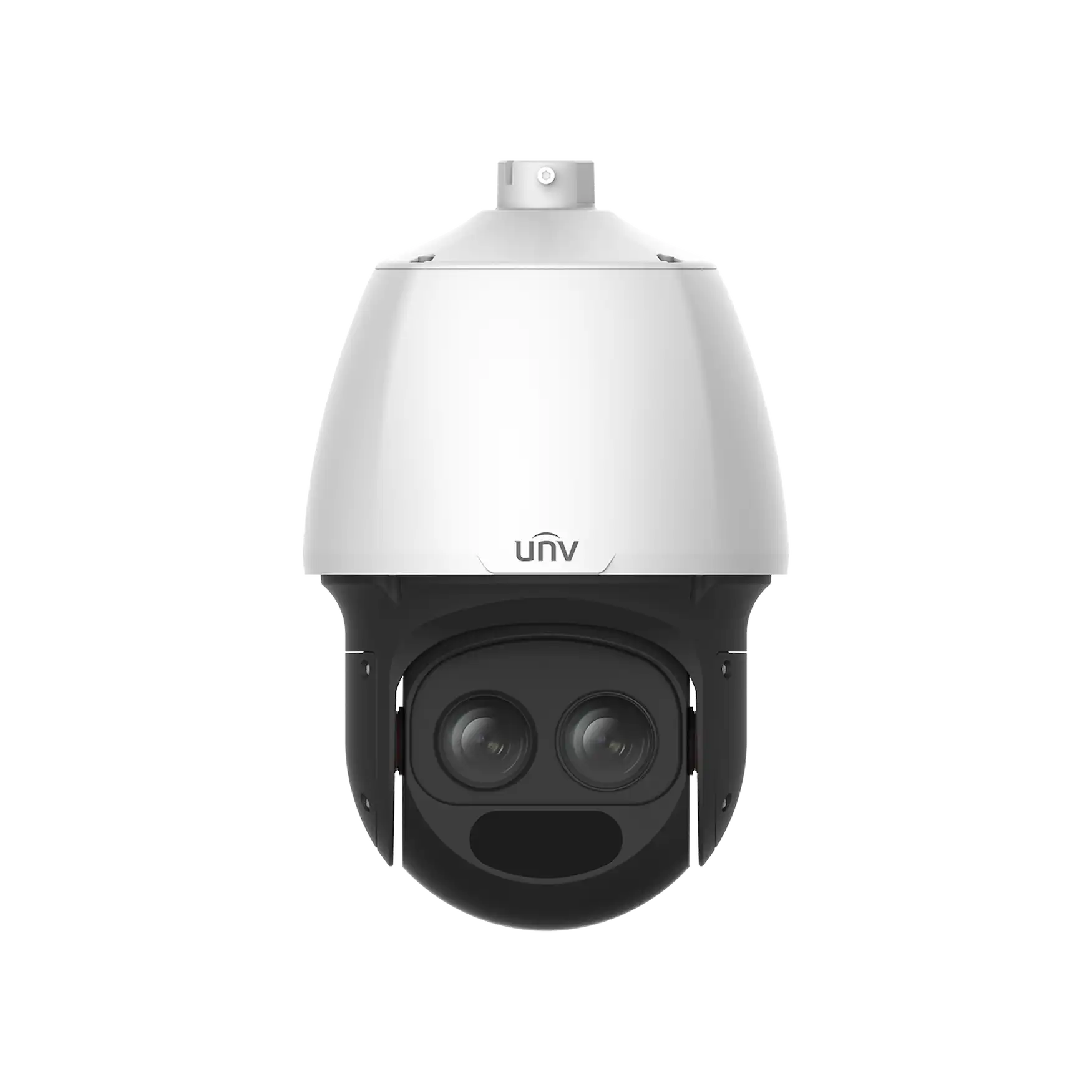

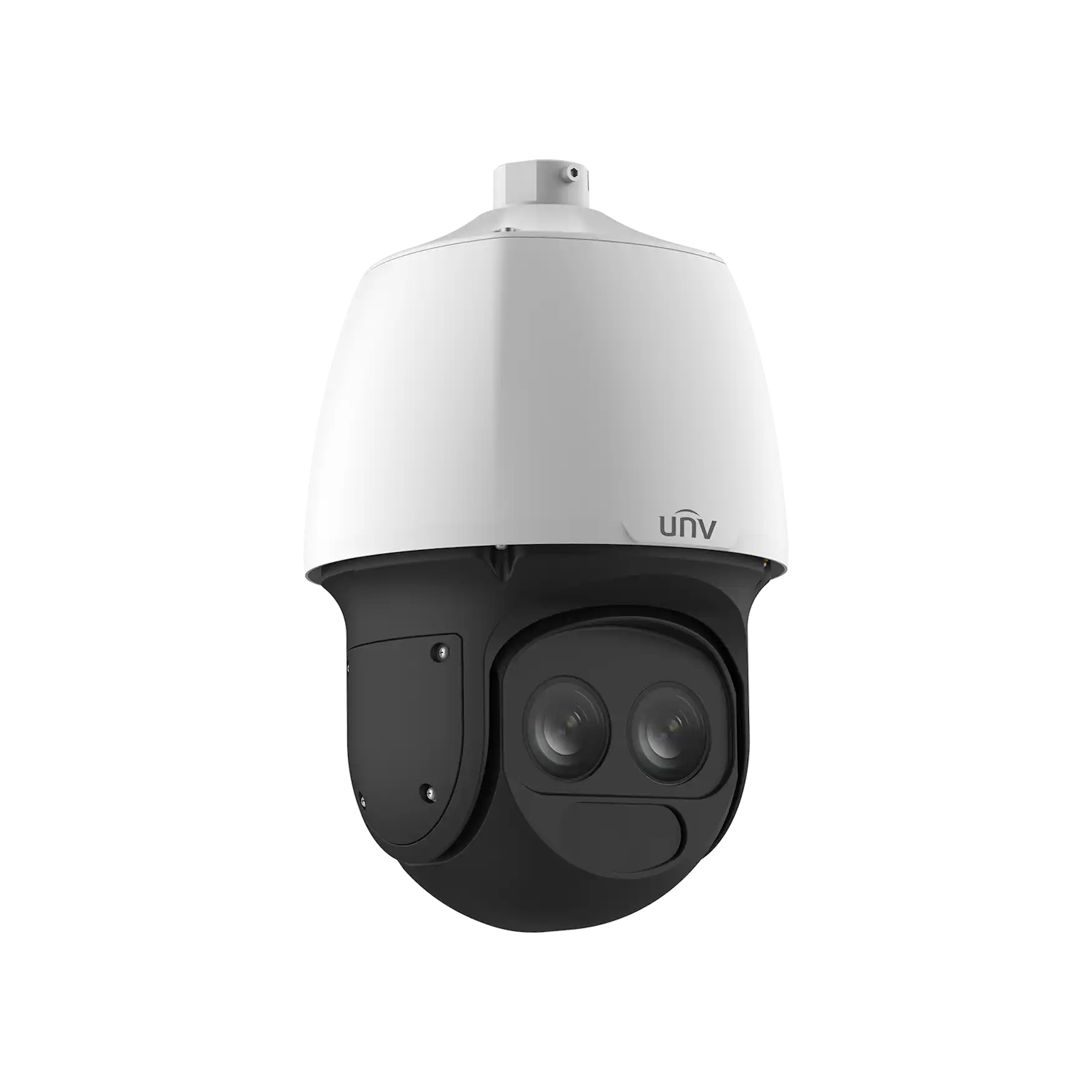

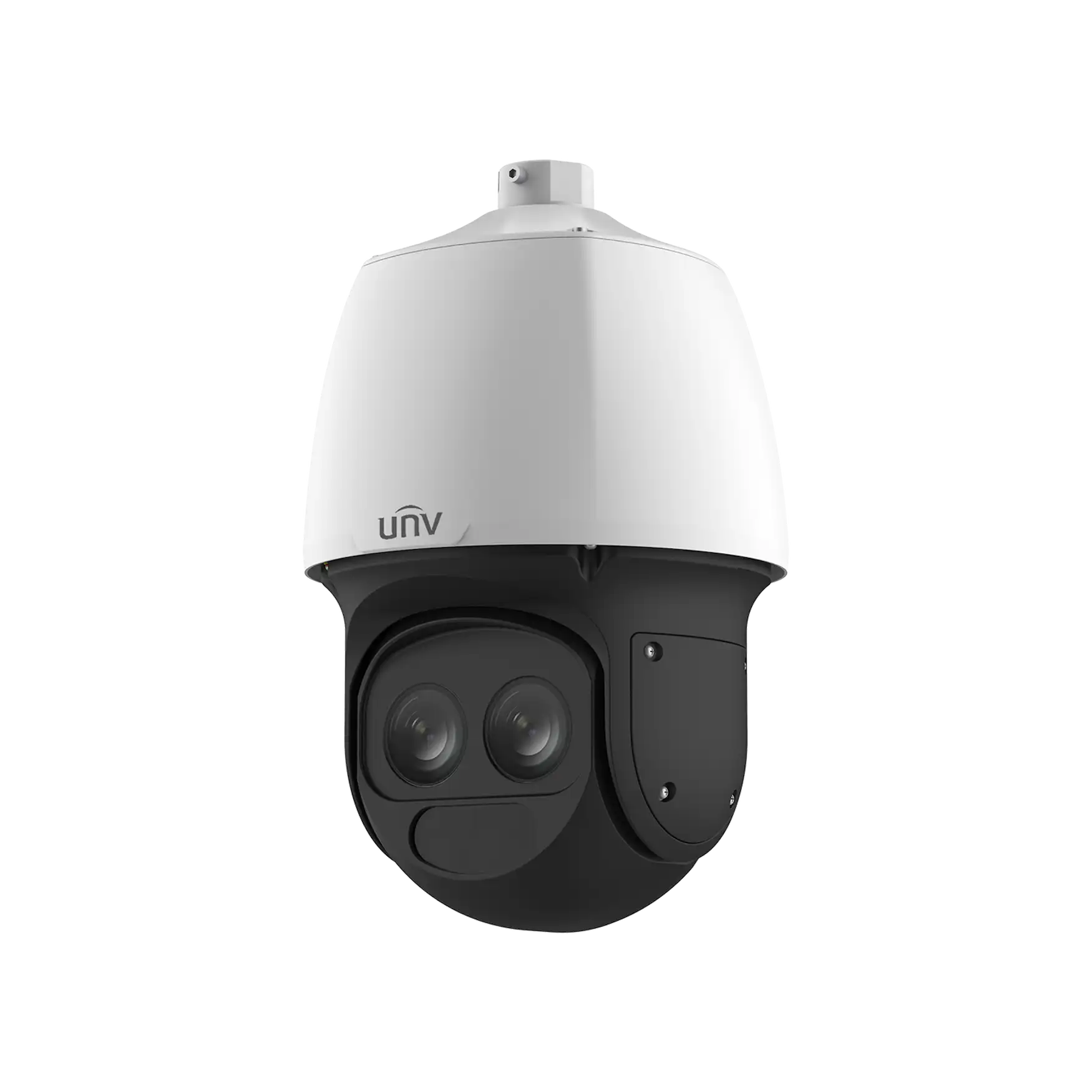

UNV 2MP LightHunter Laser IR 33X PTZ Network Camera

Part Number: IPC6652EL-X33-VF

2 Sensor Type: 1/2.8" CMOS
Lens Type: 4.5-148.5mm (Auto Iris: F1.5-F4.0)
Max Resolution/Frame Rate: 2MP(1920x1080)@60fps
Angle of View: 56.2°-2.6° (Horizontal)
Min. Illumination: Color 0.001Lux (F1.5, AGC ON)
Night Vision Distance: 1640 Feet (IR)
Corridor Mode: Yes
WDR: 120dB
Audio: Input/Output Connections
Alarm I/O: Yes
BNC Output: Yes
Pan Range: 360° (Non-stop)
Tilt Range: -15°-90° (Auto Reverse)
Special Features: Auto Tracking, Human/Vehicle Detection, Face Capture, People Counting
Power: 60W POE, AC/DC 24V
NDAA Compliant: Yes
Warranty Period: 3 Years

IPC6652EL-X33-VF

Camera

Sensor

1/2.8", 2.0 megapixel, progressive scan, CMOS

Minimum Illumination

Colour: 0.001Lux (F1.5, AGC ON)

0Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

WDR

120dB

S/N

>52dB

Lens

Lens type

4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens

Digital Zoom

16

Optical Zoom

33

Iris

Auto; F1.5 ~ F4.0

Angle of View (H)

56.2° ~ 2.6°

Angle of View (V)

33.5° ~ 1.4°

Angle of View (O)

69.2° ~ 3.0°

DORI

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

4.5

72.9(239.3ft)

29.2(95.7ft)

14.6(47.9ft)

7.3(23.9ft)

148.5

2187.9(7178.3ft)

875.2(2871.3ft)

437.6(1435.7ft)

218.8(717.8ft)

Illuminator

Vari-focal Laser

Up to 500m(1640ft)

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

Frame Rate

Main Stream: 2MP (1920*1080), Max 60fps;

Sub Stream: 2MP (1920*1080), Max 60fps;

Third Stream: D1 (720*576), Max 60fps

Video Bit Rate

128 Kbps~16 Mbps

U-code

Support

ROI

Up to 8 areas

Video stream

Triple streams

OSD

Up to 8 OSDs

Privacy Mask

24 areas, up to 4 areas per scene


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Flip

Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise

EIS

N/A

HLC

Support

BLC

Support

Defog

Digital Defog

Intelligent

Smart Intrusion Prevention

Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection

Face Capture

Support

People Counting

Support people flow counting and crowd density monitoring

Events

Basic Detection

Motion detection, Audio detection, Tampering Alarm

Auto Tracking

Support

General Function

Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711U,G.711A

Audio Bitrate

64 Kbps

Two-way audio

Support

Suppression

Support

Sampling Rate

8 kHz

Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR,NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation

EZView

EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Pan & Tilt

Pan Range

360° (endless)

Pan Speed

0.1°/s ~ 200°/s

Preset speed: 300°/s

Tilt Range

-15° ~ 90° (auto reverse)

Tilt Speed

0.1°/s ~ 200°/s

Preset speed: 240°/s

Number of Presets

1024

Preset Patrol

16 patrols, up to 64 presets for each patrol

Route Patrol

16 patrols, up to 32 actions for each patrol

Recorded Patrol

16 patrols, up to 128 actions for each patrol

Patrol Stay Time

15s~1800s

Preset Image Freeze

Support

Home Position

Support

Interface

Audio I/O

1/1

Alarm I/O

2/1

Serial Port

1 RS485

Built-in Mic

N/A

Built-in Speaker

N/A

WIFI

N/A

Network

1 RJ45 10M/100M Base-TX Ethernet

Video output

1 BNC

Certification

EMC

FCC CFR 47 Part 15

EN 55032:2015

EN 55024:2010

EN 61000-3-2:2014

EN 61000-3-3-2013

Environment

CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General

Power

AC 24V ±25%, DC 24V±25%, PoE (PSE Required)

Power consumption: Max 53W

Power Interface

Wires with cold-pressed terminal

Dimensions (Ø x H)

Ø227 x 385mm (Ø8.9" x 15.2")

Weight

5.6kg(12.35lb)

Working Environment

-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

Storage Environment

-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

6KV

· Reset Button

Support

· Protection

Ingress Protection: IP66

Vandal Resistant: N/A

IPC6652EL-X33-VF-F-EN DIMENSIONS
