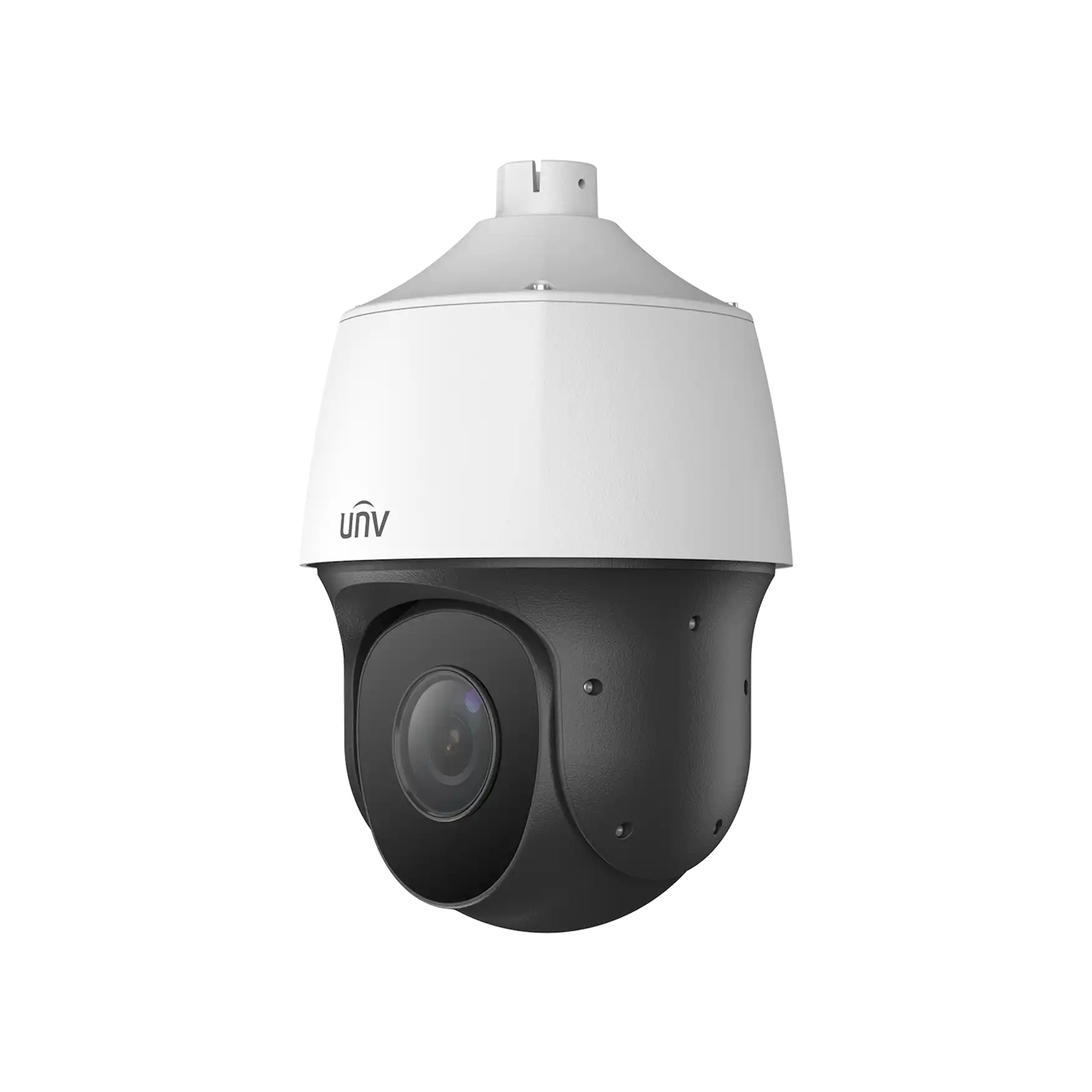

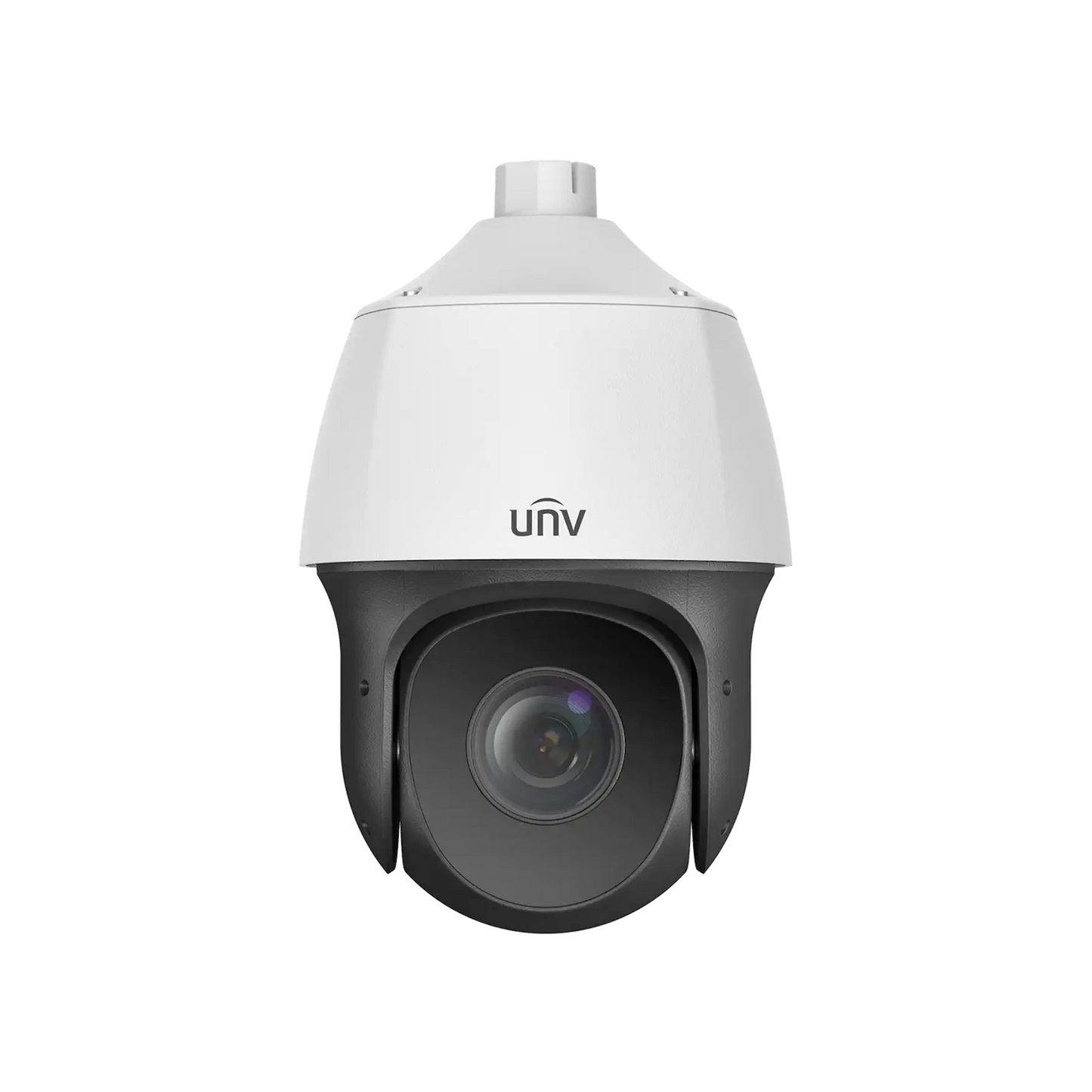

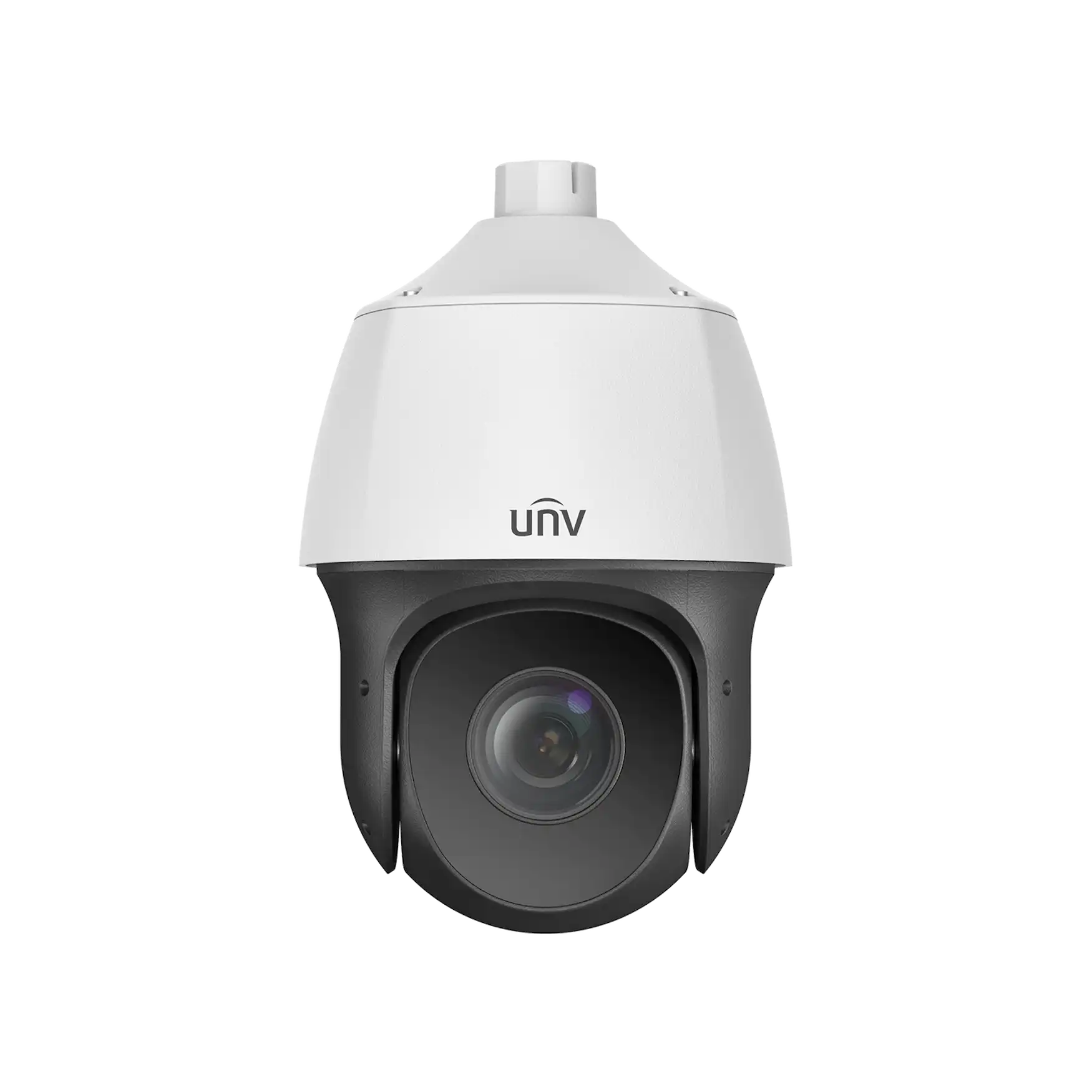

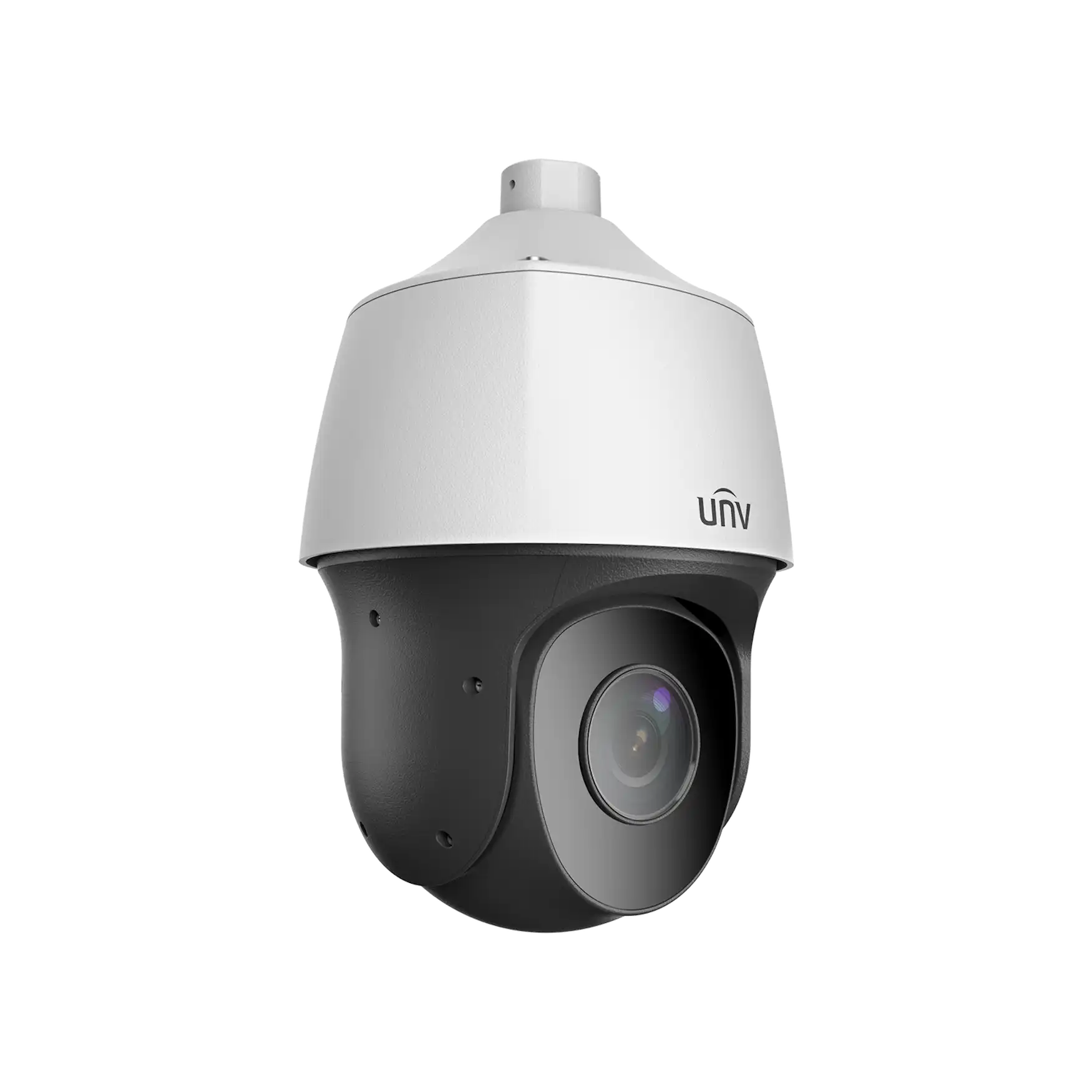

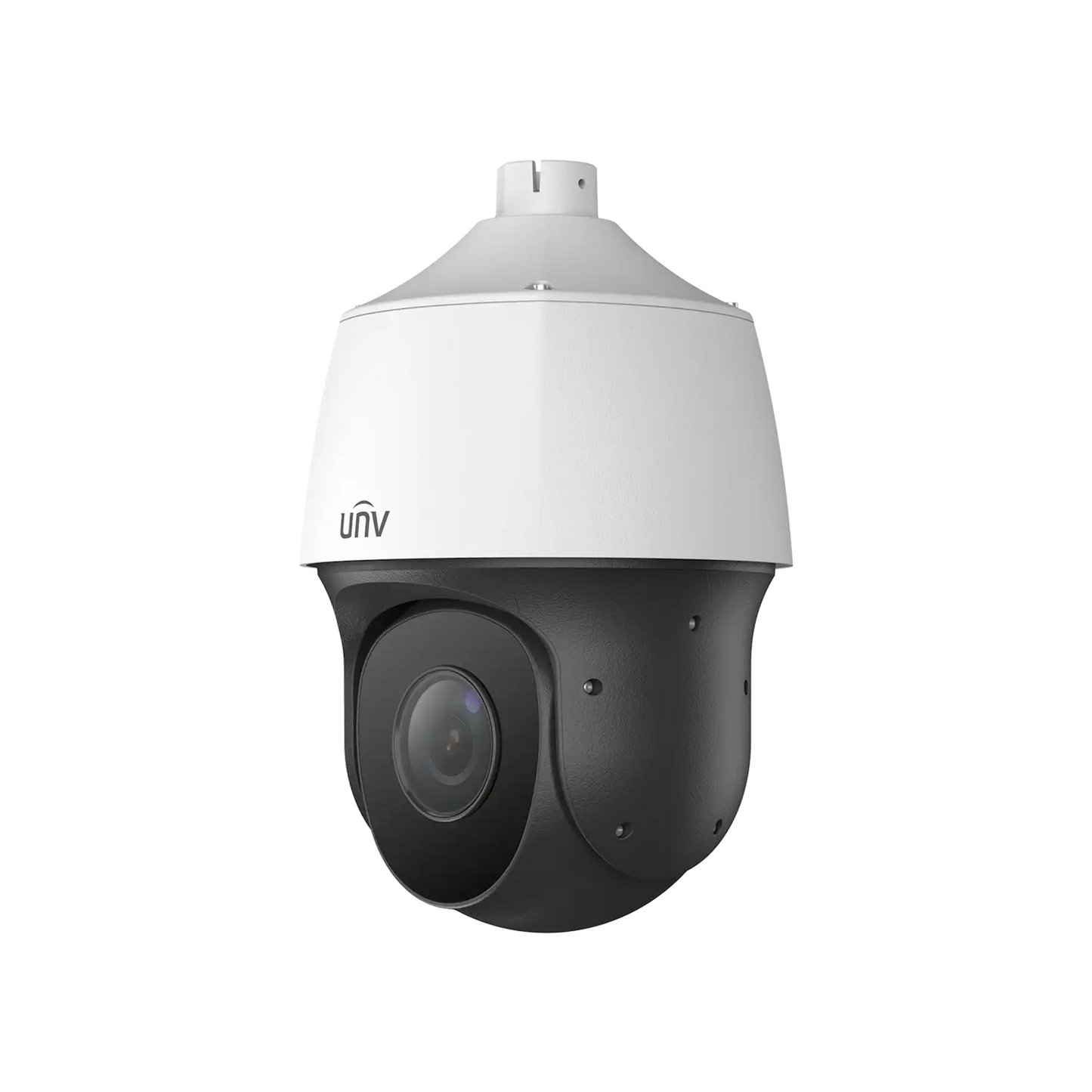

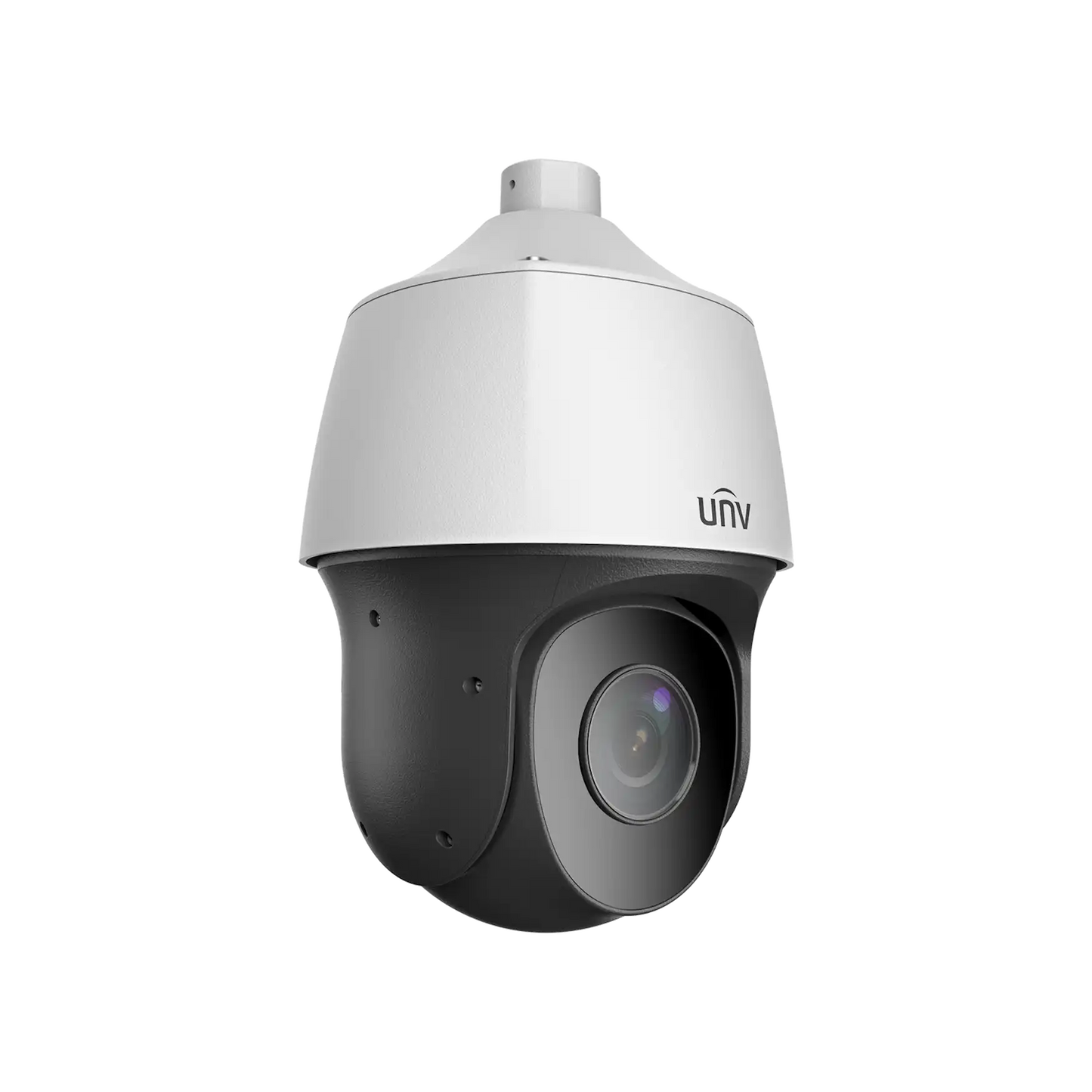

UNV 2MP LightHunter IR 33X PTZ Network Camera

Part Number: IPC6612SR-X33-VG

2 Sensor Type: 1/2.8" CMOS
Lens Type: 4.5-148.5mm (Auto Iris: F1.5-F4.0)
Max Resolution/Frame Rate: 2MP(1920x1080)@30fps
Angle of View: 56.23°-2.57° (Horizontal)
Min. Illumination: Color 0.001Lux (F1.5, AGC ON)
Night Vision Distance: 492 Feet (IR)
Corridor Mode: Yes
WDR: 120dB
Audio: Input/Output Connections
Alarm I/O: Yes
BNC Output: N/A
Pan Range: 360° (Non-stop)
Tilt Range: -15°-90° (Auto Reverse)
Special Features: Auto Tracking, Human/Vehicle Detection, Face Capture, People Counting
Power: PoE+ (IEEE 802.3at), DC12V
NDAA Compliant: Yes
Warranty Period: 3 Years

IPC6612SR-X33-VG

Camera

Sensor

1/2.8", 2.0 megapixel, progressive scan, CMOS

Min. Illumination

Colour: 0.001 Lux (F1.5, AGC ON)

0 Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto, 1 ~ 1/100000s

WDR

120dB

S/N

>52dB

Lens

Lens type

4.5~ 148.5mm, AF automatic focusing and motorized zoom lens

Optical Zoom

33

Iris

Autol; F1.5 ~ F4.0

Angle of View (H)

56.23° ~ 2.57°

Angle of View (V)

33.46° ~ 1.44°

Angle of View (O)

69.16° ~ 3.03°

DORI

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

4.5

72.9(239.3ft)

29.2(95.7ft)

14.6(47.9ft)

7.3(23.9ft)

148.5

2187.9(7178.3ft)

875.2(2871.3ft)

437.6(1435.7ft)

218.8(717.8ft)

Illuminator

IR Range

Up to 150m (492 ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

Frame Rate

Main Stream: 2MP(1920*1080),Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps;

Third Stream: D1 (720*576), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

U-code

Support

ROI

Up to 8 areas

Video stream

Triple streams

OSD

Up to 8 OSDs

Privacy Mask

24 areas, up to 4 areas per scene


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise

HLC

Support

BLC

Support

Defog

Digital Defog

Intelligent

Smart Intrusion Prevention

Support false alarm filtering:Line crossing detection, Intrusion detection, Enter Area detection, Leave Area detection

Face Capture

Support

Events

Basic Detection

Motion detection, Audio detection, Tampering Alarm

Auto Tracking

Support

General Function

Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711U,G.711A

Audio Bitrate

64 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR,NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API,SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation

EZLive

EZView

Web Browser

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Pan & Tilt

Pan Range

360° (endless)

Pan Speed

2°/s ~ 75°/s

Preset speed: 180°/s

Tilt Range

–15° ~ 90° (auto reverse)

Tilt Speed

2°/s ~ 75°/s

Preset speed: 80°/s

Number of Presets

1024

Preset Patrol

16 patrols, up to 64 presets for each patrol

Route Patrol

16 patrols, up to 32 actions for each patrol

Recorded Patrol

16 patrols, up to 128 actions for each patrol

Patrol Stay Time

15s~1800s

Preset Image Freeze

Support

Home Position

Support

Interface

Audio I/O

1/1

Alarm I/O

2/1

Serial Port

1 RS485

Built-in Mic

N/A

Built-in Speaker

N/A

WIFI

N/A

Network

1 * RJ45 10M/100M Base-TX Ethernet

Video Output

N/A

Certification

EMC

FCC CFR 47 Part 15

EN 55032:2015

EN 55024:2010

EN 61000-3-2:2014

EN 61000-3-3-2013

Safety

IEC 62368-1

EN 62368-1

UL 60950-1

Environment

CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General



Power



DC12V±10% , PoE+ (IEEE802.3 at)

Power consumption: Max 25W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions (Ø x H)

Ø220 x 370mm (Ø8.7” x 14.6”)

Weight

3.4kg(7.48lb)

Working Environment

-40℃~65℃(-40°F ~ 149°F) , Humidity: ≤95% RH (non-condensing)

Storage Environment

-40℃~70℃(-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing)

Surge protection

6KV

Reset button

Support

Protection

Ingress Protection: IP66

Vandal Resistant: N/A

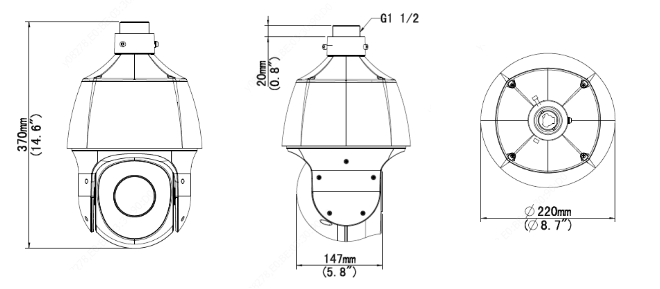

IPC6612SR-X33-VG-F-EN DIMENSIONS
