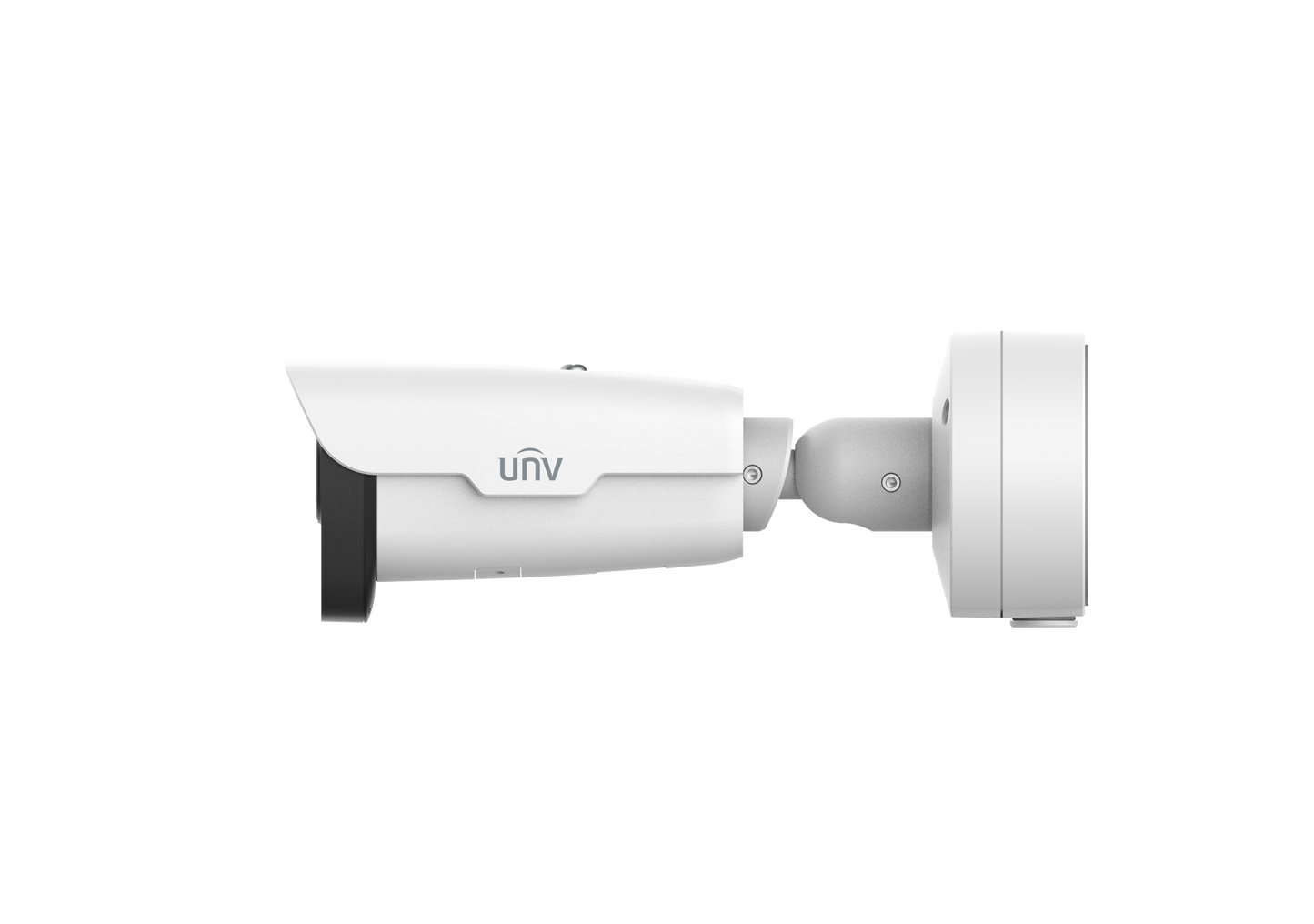

TIC2621SR-F3-4F4AC-VD

Thermal Module

Sensor type

Vanadium Oxide Uncooled Focal Plane Arrays

Original Resolution

256*192

Field of View(H*V)

57.0°~42.0°

Video Resolution

720P(1280*720), Max 30fps

Response waveband

8~14μm

Pixel size

12μm

IFOV

3.75mrad

NETD

≤55mk @f/1.0 @25°C

Lens(focal length)

3.2mm@F1.1

Palette

Up to 20 palettes of optional color, including: white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce

Detection Distance

Vehicle: 316m (target size 4mx1.4m); human: 126m (target size 1.8mx0.5m);

Recognition Distance

Vehicle: 79m (target size: 4mx1.4m); human: 32m (target size: 1.8mx0.5m);

Identification Distance

Vehicle: 45m (target size: 4mx1.4m); human: 18m (target size: 1.8mx0.5m);

Optical Module

Sensor

1/1.8", 4.0 megapixel, progressive scan, CMOS

Lens

4mm@F1.6

Iris

Fixed aperture

DORI Distance

Lens（mm）

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

4

62.1(203.6ft)

24.8(81.5ft)

12.4(40.7ft)

6.2(20.4ft)

Field of View(H*V)

89.9°~49.1°

Video Resolution

4MP(2688*1520), Max 30fps

Shutter

Auto/Manual, 1 ~ 1/100000s

Min. Illumination

Colour:0.001lux (F1.6, AGC ON)

B/W: 0.0005lux(F1.6,AGC ON)

0 lux with IR

WDR

120dB

Day/Night

IR-cut filter with auto switch (ICR)

IR Range

Up to 50m (164 ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

BLC

Supported

Smart (thermal module )

Fire Detection

Support the detection of fire point in the environment and up to 10 fire points can be detected

Smoking Detection

Support the detection of smoking in the environment and link to alarm

Temperature detection

Support area detection, and link to alarm, the temperature value can be added to the alarm picture

Support cold&hot point tracking, timely and clearly shows the abnormal point

Up to 12 rules can be set

Temperature range:  -20°C ~+150°C

Temperature accuracy:  Max (±8°C/±8%)

Smart intrusion prevention

Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area, Leave Area

Support motor vehicle and pedestrian detection capture and plan arming

Smart (optical module )

Exception Detection

Object left behind detection, Object removed detection, Scene Change Detection

Smart intrusion prevention

Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area, Leave Area

Support motor vehicle, non-motor vehicle and pedestrian detection capture and plan arming

Event

Audio and light alarm

Support audio and light warning function, with red and blue warning lights built in

Basic Detection

optical module :Motion detection, Audio detection, Tampering alarm

thermal module : Audio detection

General Function

Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Video

Compression

Ultra265, H.265, H.264, MJPEG

Video Stream

Triple streams

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas per scene

Audio

Audio Compression

G.711U,G.711A

Two-way audio

Supported, Built in mic and speaker

Sampling Rate

8kHZ

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS,

Compatible Integration

ONVIF (Profile S, Profile G, Profile T)

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Interface

Audio I/O

1/1

Alarm I/O

2/2

Serial Port

1 RS485

Network

1 x RJ45 10M/100M Base-TX Ethernet

General

Power

DC12V(±25%), PoE(IEEE802.3af)

Power consumption: Max 12W

Support reverse polarity protection, Overvoltage and overcurrent protection , Input short circuit protection

Dimensions (Ø x H)

Φ354mm x 104mm x 116mm(Φ13.9” x 4.1” x 4.6”)

Weight

1.85kg(4.08lb)

Temperature detection  working environment

-10°C ~+50°C(-14°F ~ 122°F) , Humidity: ≤95% RH (non-condensing)

Working Environment

-40℃~70℃(-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

Ingress Protection

IP67

Vandal Resistant

N/A
