Available

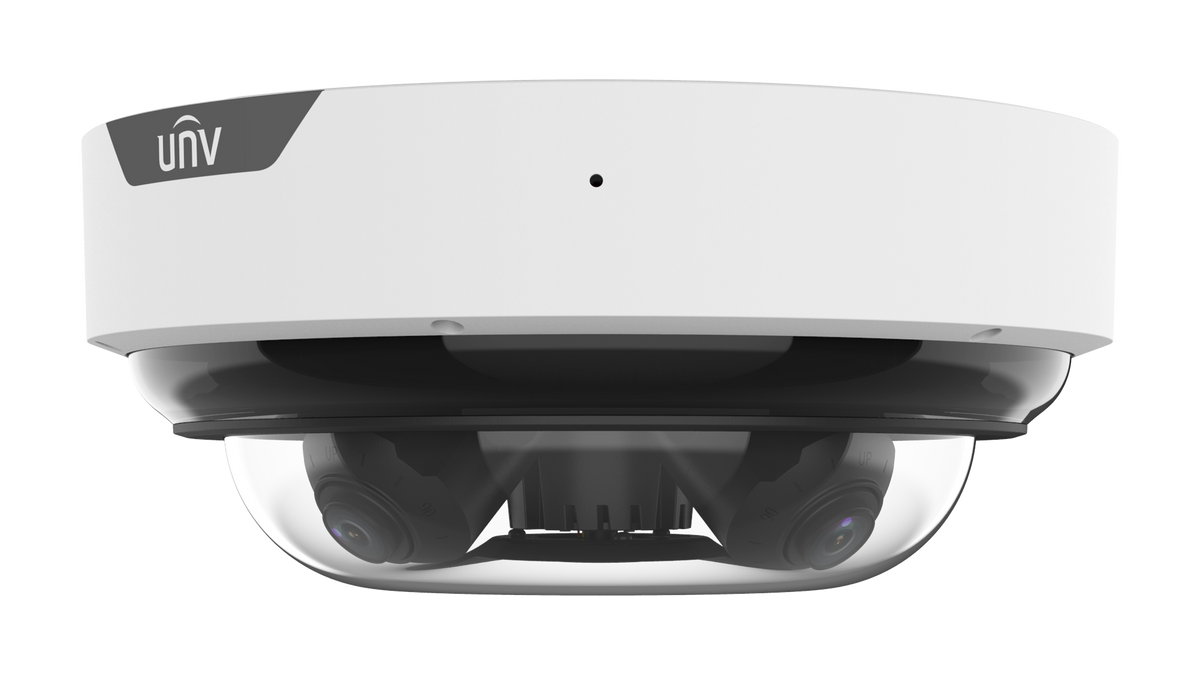

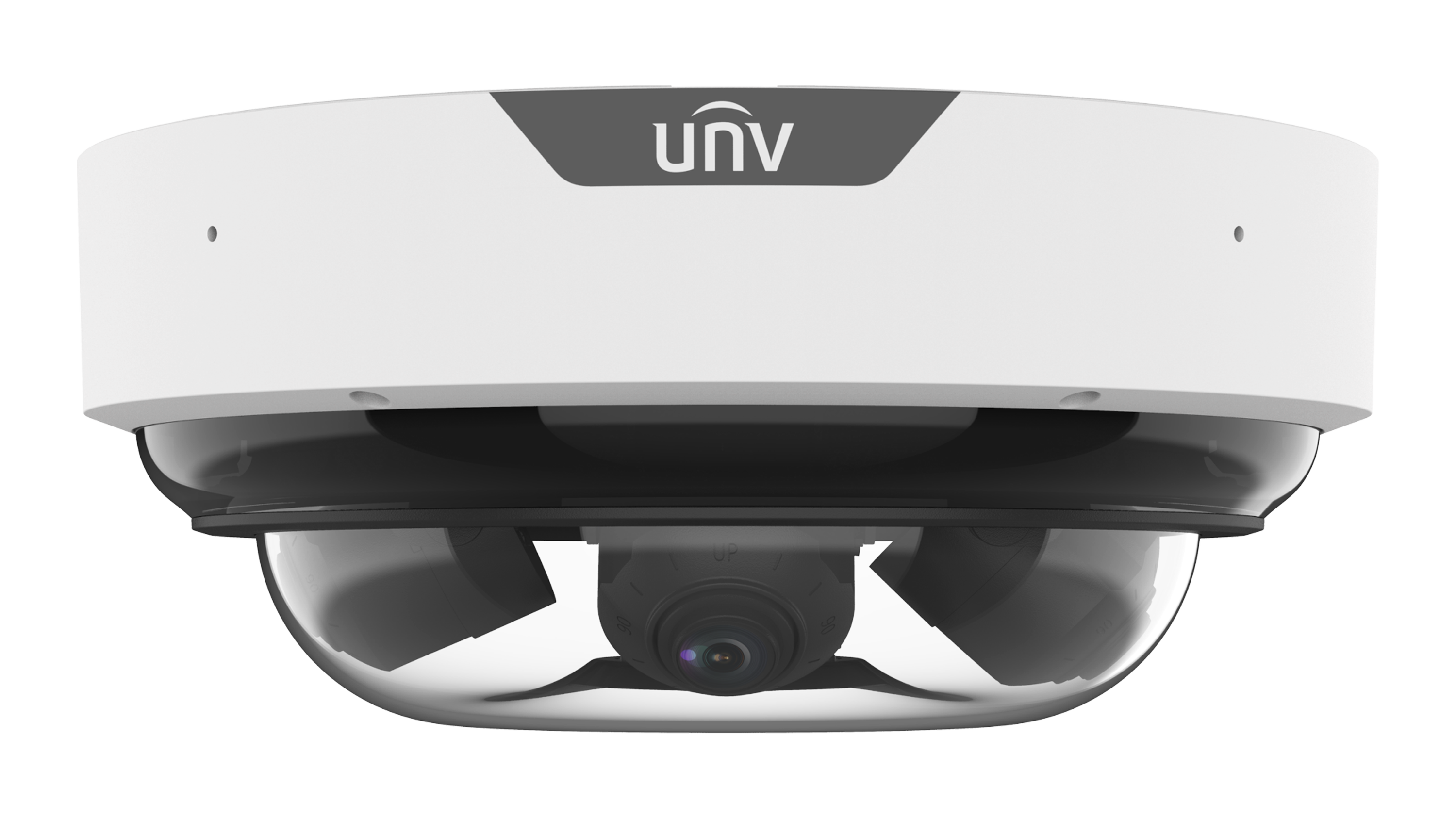

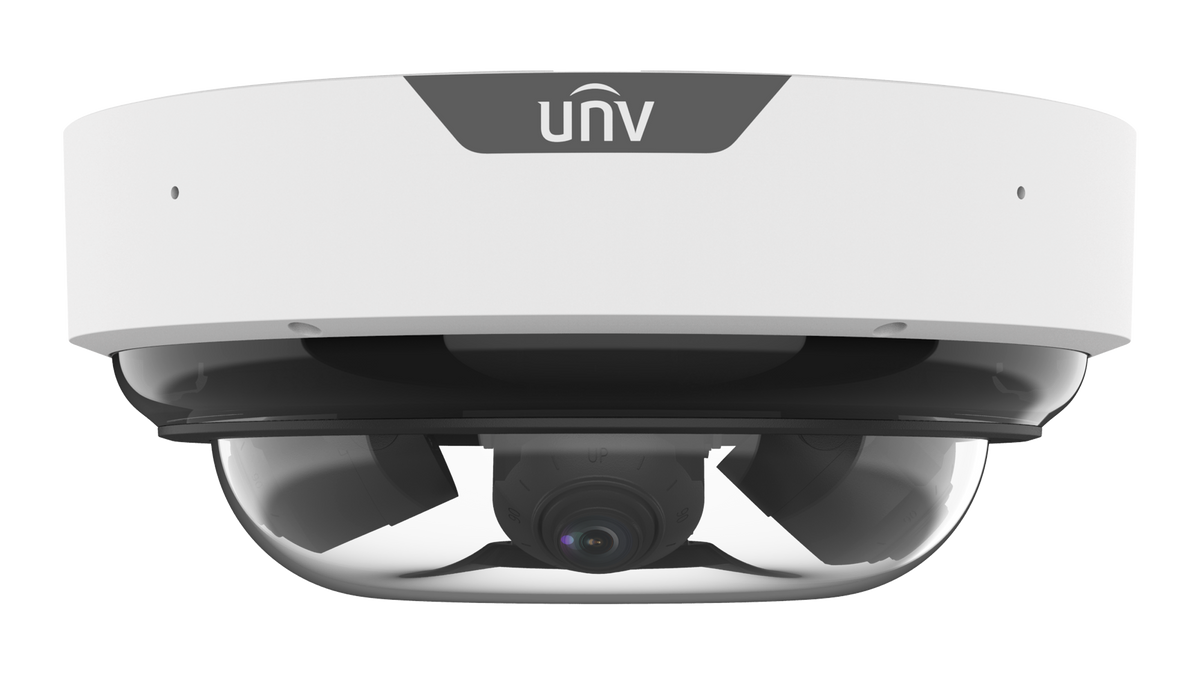

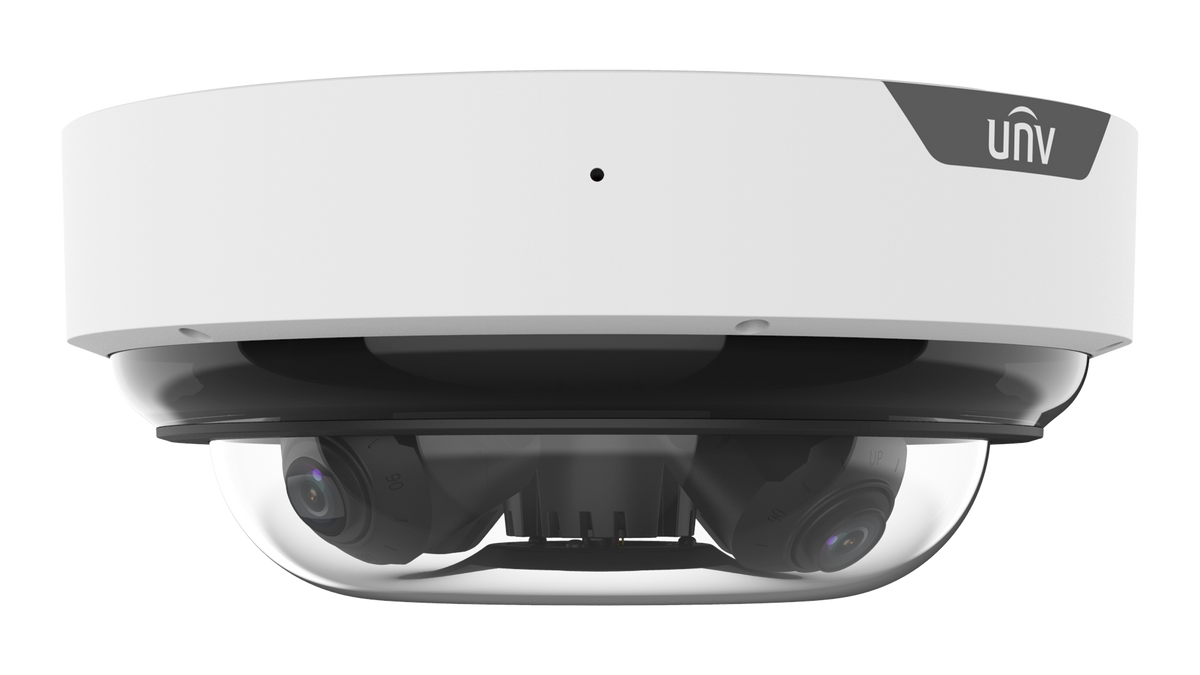

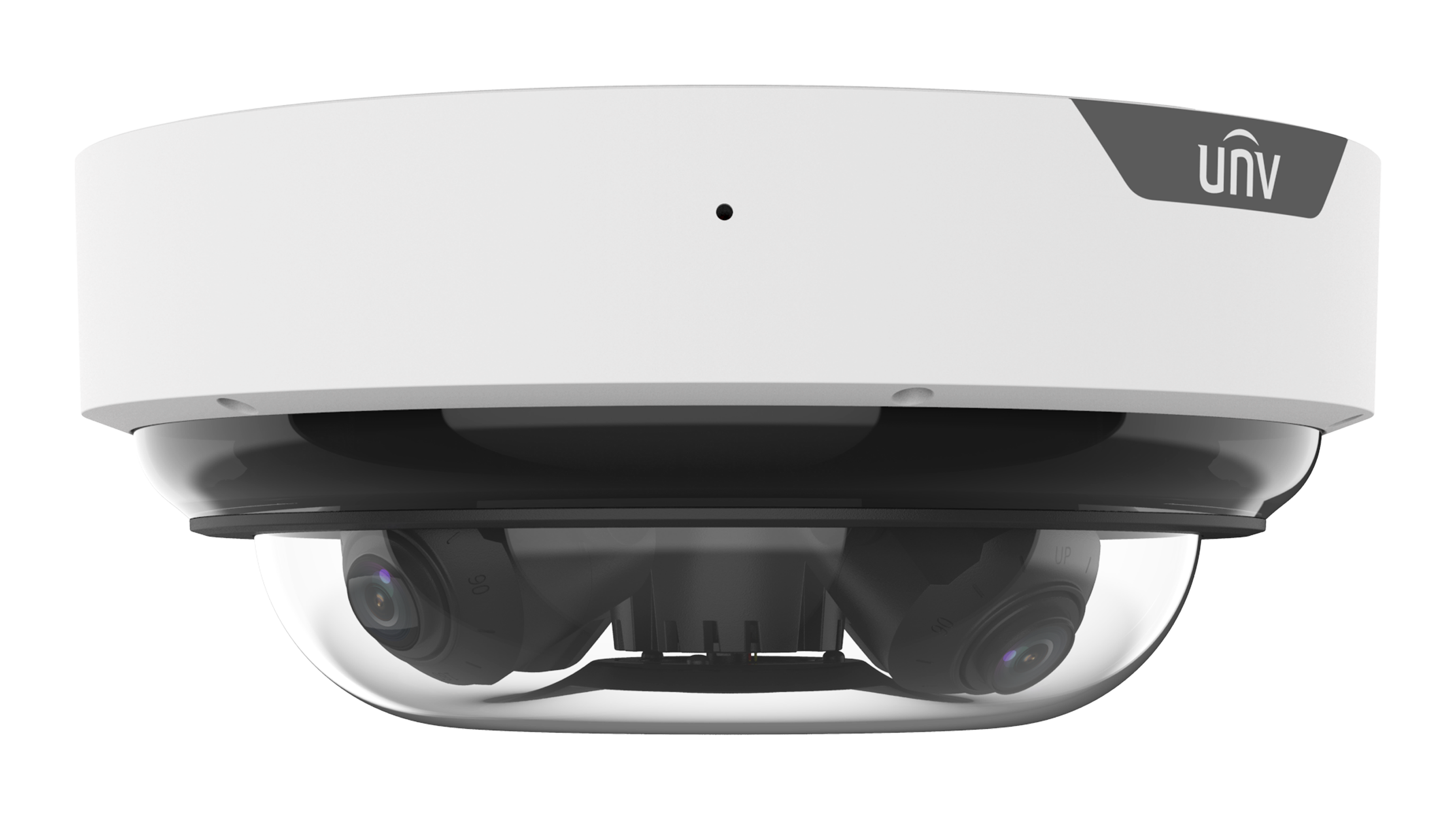

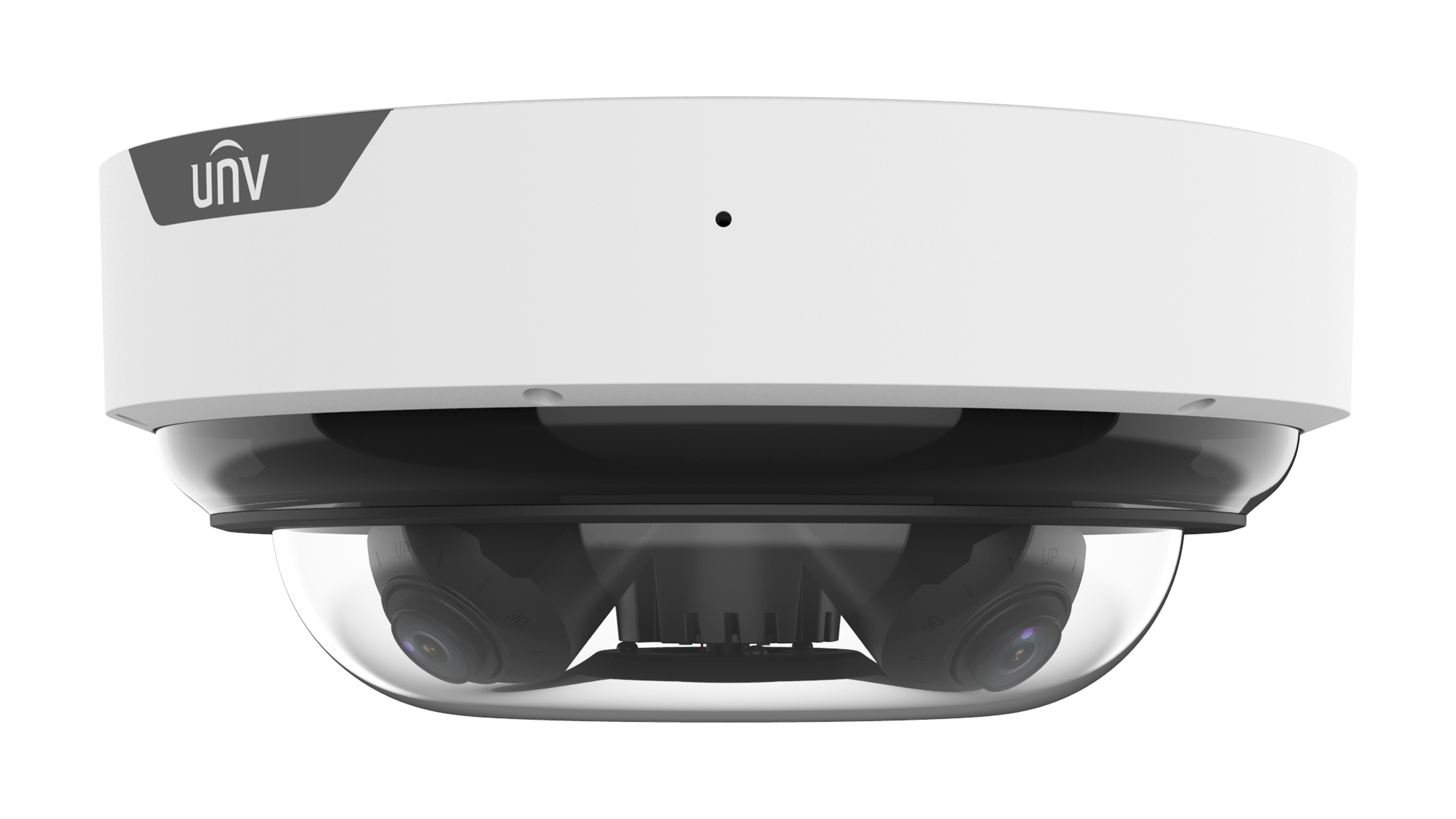

20MP Super Startlight IR 4-Directional Panoramic DomePart Number: IPC8645EA-ADZKM-I1
Resolution
4 x 5 MP @ 30fps
Lens Options
2.7 to 13.5mm Motorized 5X
Night Vision
164.0 ft (50m) IR
Power
PoE (802.3bt) / DC 24V / AC 24V (Max 31W)
Smart Feature Highlights
Sensor Type
1/2.7" CMOS (0.002 Lux F1.2)
Field of View (H)
(W) 110.3° to (T) 31°
WDR & Imaging
130dB True WDR & Wise-ISP
Audio
Built-in Microphone
SD Card Slot
MicroSD up to 512GB
Ingress & Vandal Protection
IP67 & IK10 Vandal Resistant
NDAA Compliant
Yes
A Plus Guard (Cloud Compatible)
Via Compatible NVR
| Optics, DORI & Video Specs | |
|---|---|
| Camera & Sensor | |
| Model | IPC8645EA-ADZKM-I1 |
| Max Resolution | 4 x 5 MP (2880 × 1620 @ 30 fps per channel) |
| Sensor | 1/2.7" CMOS |
| Min. Illumination | Color: 0.002 Lux (F1.2, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 65°, Rotate: 0° to 355° (Independent per lens) |
| S/N Ratio & WDR | >56 dB; 130 dB True WDR |
| Lens & FOV | |
| Focal Length & Zoom | 2.7 to 13.5 mm Motorized lens, 5X Optical Zoom |
| Field of View (Horizontal) | (W) 110.3° to (T) 31° |
| Field of View (Vertical) | (W) 57.1° to (T) 17.5° |
| Field of View (Diagonal) | (W) 143.4° to (T) 38.1° |
| DORI Distances | |
| Detect | 70.9 m to 247.5 m (232.5 ft. to 812.0 ft.) |
| Observe | 28.4 m to 99.0 m (93.2 ft. to 324.8 ft.) |
| Recognize | 14.2 m to 49.5 m (46.5 ft. to 162.4 ft.) |
| Identify | 7.1 m to 24.8 m (23.3 ft. to 81.4 ft.) |
| Illuminator & Video | |
| Supplemental Light | IR (50m / 164.0ft distance) |
| Illuminator Control | Auto/Manual |
| Video Compression & Profiles | Ultra 265, H.265, H.264, MJPEG; H.264 Profiles: Baseline, Main, High |
| Bit Rate & Streams | 128 Kbps to 16 Mbps; Triple streams per channel; U-code supported |
| Image Settings | Wise-ISP technology, 2D/3D DNR, Flip, HLC, BLC, Digital Defog, Up to 10 OSDs per channel, 8 Privacy masks per channel, ROI |
| Smart, Network & General Specs | |
|---|---|
| Smart Features (SIP) & Events | |
| Smart Intrusion Prevention | Cross line, intrusion, enter area, leave area detection with false alarm filtering (human, vehicle, non-motor vehicle) |
| Analytics & Flow Counting | People flow counting and crowd density monitoring |
| Basic Detection & Events | Motion detection, Tampering detection, Audio detection, UMD (Ultra Motion Detection), Scene change, Defocus detection, Object removed, Object Left Behind |
| General Functions | Watermark, IP address filtering, Access policy, ARP protection, RTSP/HTTP/User authentication |
| Audio, Storage & Interface | |
| Audio | G.711U, G.711A; Two-way audio, built-in microphone |
| Edge & Network Storage | MicroSD slot, up to 512 GB; ANR, NAS (NFS) |
| Network & Security | 1× RJ45 10M/100M/1000M; IPv4/IPv6, ONVIF (S/G/T/M), SSL/TLS, HTTPS, 802.1x, Up to 32 users (3 user levels) |
| Client & Browser | EZStation; Plugin required & plugin-free browser live view support |
| Interfaces & I/O | Audio I/O (1 In / 1 Out), Alarm I/O (3 In / 2 Out), Built-in Mic supported |
| General & Environment | |
| Power Supply | DC 24V±25%, AC 24V±25%, PoE (IEEE 802.3bt); Max. 31 W; Built-in DC12V Output support |

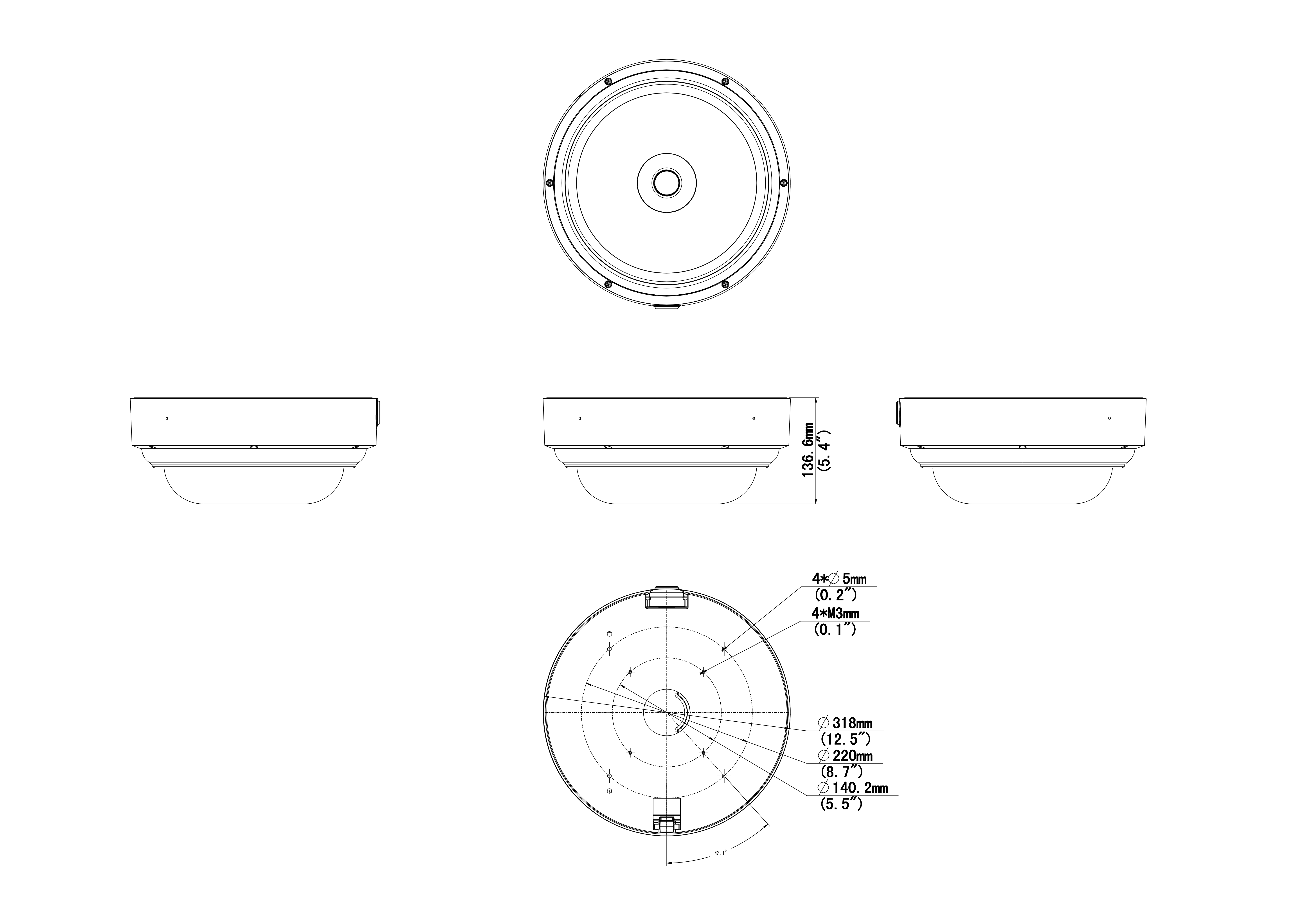

| Dimensions & Weight | Ø318 mm × 136.6 mm (Ø12.52" × 5.38"); Weight: 4.77 kg (10.52 lb.) |
| Material & Protection | Metal casing; IP67, IK10 Vandal Resistant, 6 KV Surge protection |
| Working/Storage Environment | -30°C to 60°C (-22°F to 140°F), humidity 5% to 95% RH |
| Compatible Accessories | TR-UF45-K-IN adapter, TR-CE45-IN ceiling bracket, TR-WE45-A-IN / TR-WE45-B-IN wall mounts, TR-UC08-A-IN / TR-UC08-B-IN corner mounts, TR-UP08-A-IN / TR-UP08-B-IN pole mounts |
