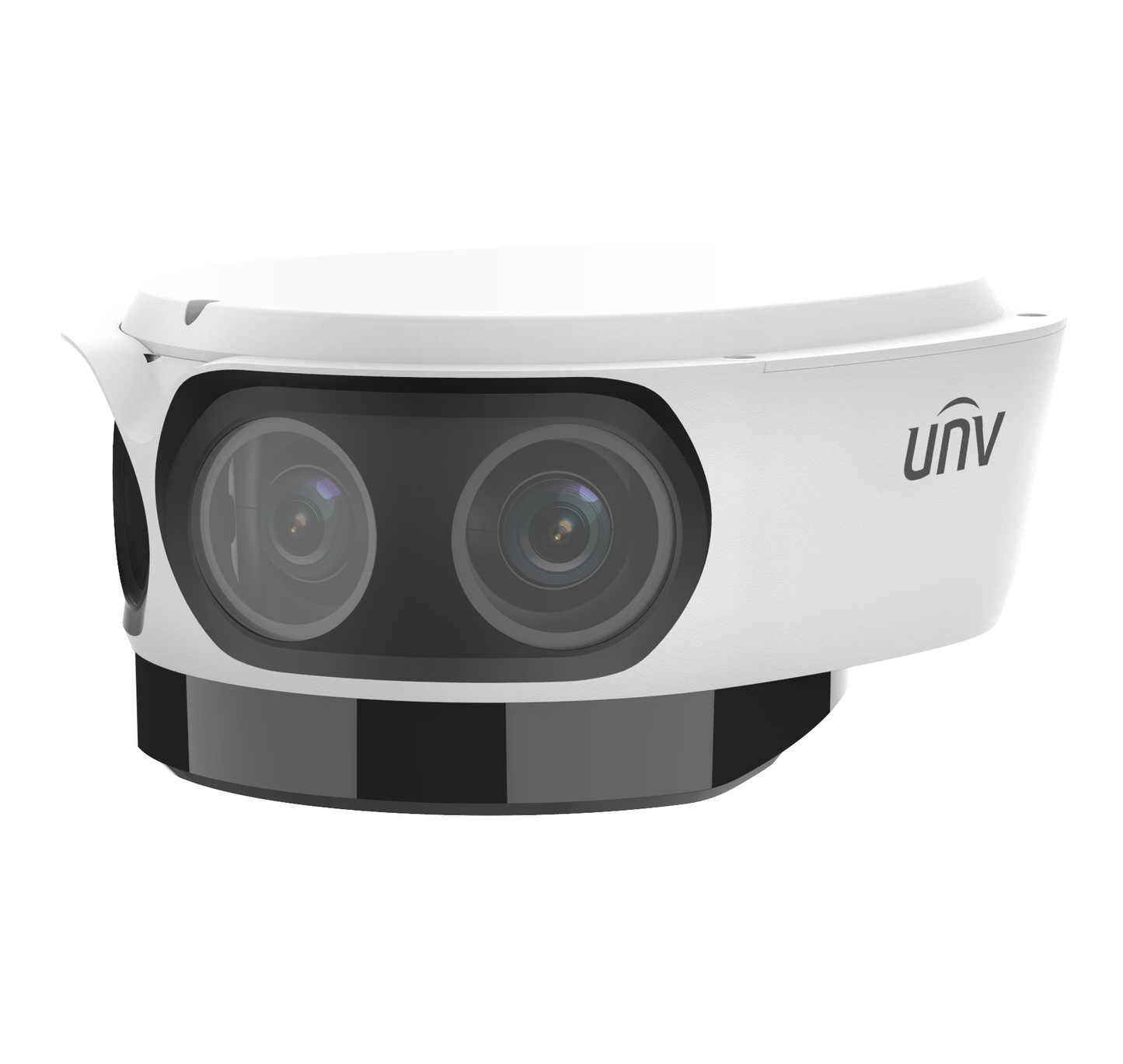

Part Number: IPC8544EA-KM-I1
Lens Type: 4x 2.8mm@F1.6
Max Resolution/Frame Rate: 16MP(4800x2688)@30fps
Angle of View: 180° (Horizontal)
Min. Illumination: Color 0.001Lux (F1.6, AGC ON)
Night Vision Distance: 164 Feet (IR)
Corridor Mode: N/A
WDR: DWDR
Audio: Input/Output Connections
Alarm I/O: Yes
BNC Output: N/A
Special Features: 180° Panoramic View in single video stream
Power: PoE+ (IEEE 802.3at), AC/DC 24V
NDAA Compliant: No
Warranty Period: 3 Years
|
IPC8544EA-KM-I1 |
|||||
|
Camera |
|||||
|
Sensor |
1/1.8" progressive scan, 4.0 megapixel, CMOS |
||||
|
Min. Illumination |
Colour: 0.001lux (F1.6,AGC ON) 0lux with IR |
||||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
||||
|
Shutter |
Auto/Manual, shutter time: 1 s ~ 1/100000 s |
||||
|
WDR |
Digital WDR |
||||
|
S/N |
>56dB |
||||
|
Lens |
|||||
|
Lens |
4×2.8mm lens |
||||
|
Iris |
F1.6 |
||||
|
Field of View (H) |
180° |
||||
|
Field of View (V) |
90° |
||||
|
Field of View (D) |
221.4° |
||||
|
DORI |
|||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|
2.8 |
63.0(206.7ft) |
25.2(82.7ft) |
12.6(41.3ft) |
6.3(20.7ft) |
|
|
Illuminator |
|||||
|
IR Range |
Up to 50m (164ft) IR range |
||||
|
Wavelength |
850nm |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
Video |
|||||
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
||||
|
Frame Rate |
Main Stream: 4800×2688:Max. 30 fps; Sub Stream: 2688×1520:Max. 30 fps; Third Stream: 1280×720: Max. 30 fps; |
||||
|
Video Bit Rate |
128 Kbps~16 Mbps |
||||
|
ROI |
Up to 8 areas |
||||
|
Video stream |
Triple streams |
||||
|
OSD |
Up to 8 OSDs |
||||
|
Privacy Mask |
Up to 8 areas(8 blacks/8 mosaics) |
||||
|
Image |
|||||
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||
|
Digital noise reduction |
2D/3D DNR |
||||
|
Smart IR |
Support |
||||
|
Flip |
Normal/Flip Vertical/Flip Horizontal/180° |
||||
|
HLC |
Support |
||||
|
BLC |
Support |
||||
|
Defog |
Digital Defog |
||||
|
Events |
|||||
|
General Function |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
||||
|
Audio |
|||||
|
Audio Compression |
G.711U, G.711A |
||||
|
Two-way Audio |
Supported |
||||
|
Suppression |
Supported |
||||
|
Sampling Rate |
8KHz |
||||
|
Storage |
|||||
|
Edge Storage |
Micro SD, up to 256 GB |
||||
|
Network Storage |
ANR,NAS(NFS) |
||||
|
Network |
|||||
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP |
||||
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
||||
|
Client |
EZStation EZLive EZView |
||||
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
||||
|
Interface |
|||||
|
Audio I/O |
Audio cable |
||||
|
1 Input: impedance 35kΩ; amplitude 2V [p-p] |
|||||
|
1 output: impedance 600Ω; amplitude 2V [p-p] |
|||||
|
Alarm I/O |
2/1 |
||||
|
Network |
10M/100M/1000M Base-TX Ethernet |
||||
|
Certification |
|||||
|
EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||
|
Safety |
CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||
|
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
||||
|
Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
||||
|
General |
|||||
|
Power
|
AC24V±25%/DC24V±25%, PoE(IEEE 802.3at) |
||||
|
Power consumption: Max 27W |
|||||
|
Dimensions (Ø x H) |
258.8mmx211.0mmx115.0mm(10.2”×8.3”×4.5”) |
||||
|
Weight |
2.271kg(5.01lb) |
||||
|
Working Environment |
–40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing) |
||||
|
Storage Environment |
–40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing) |
||||
|
surge protection |
6KV |
||||
