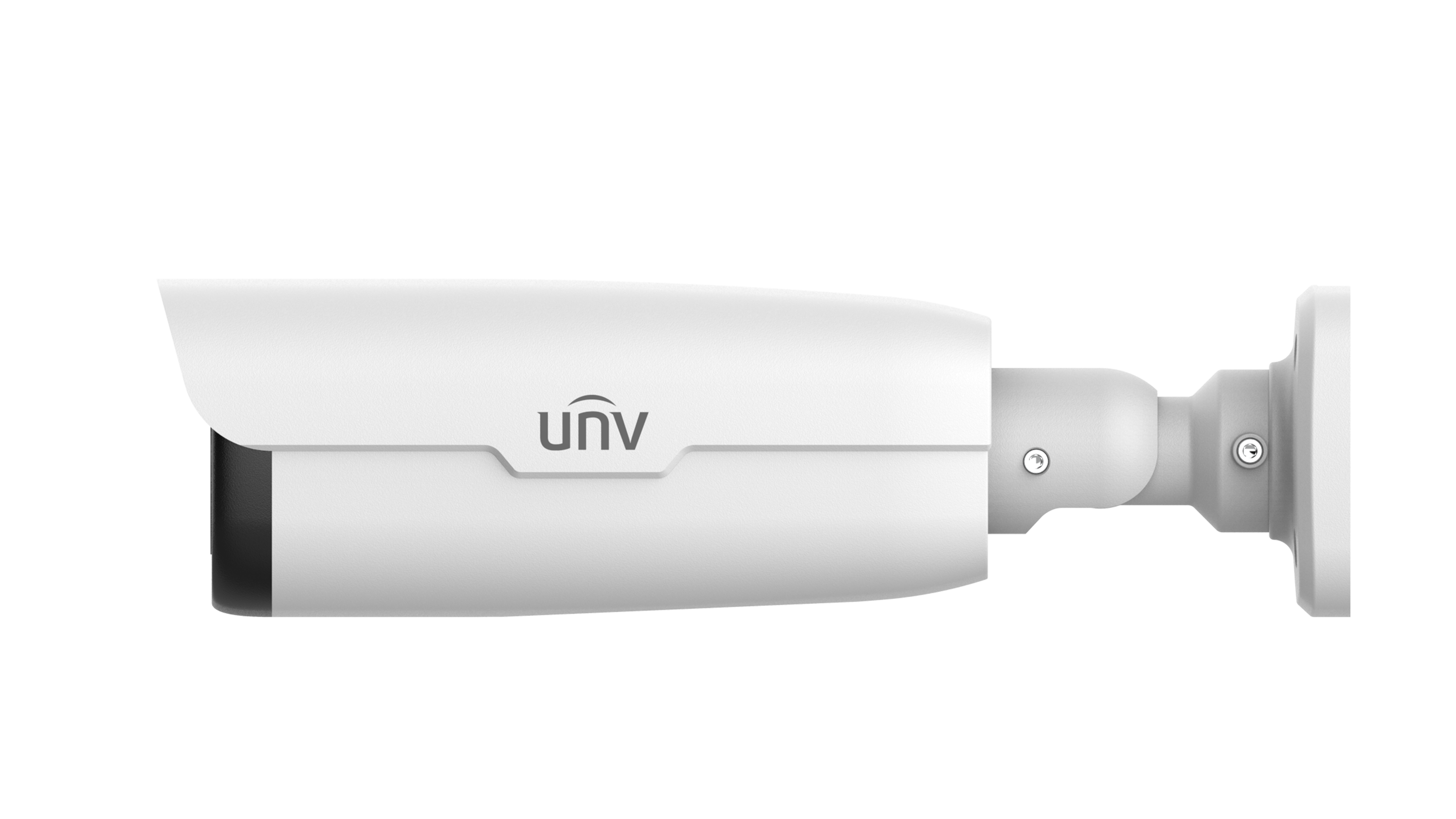

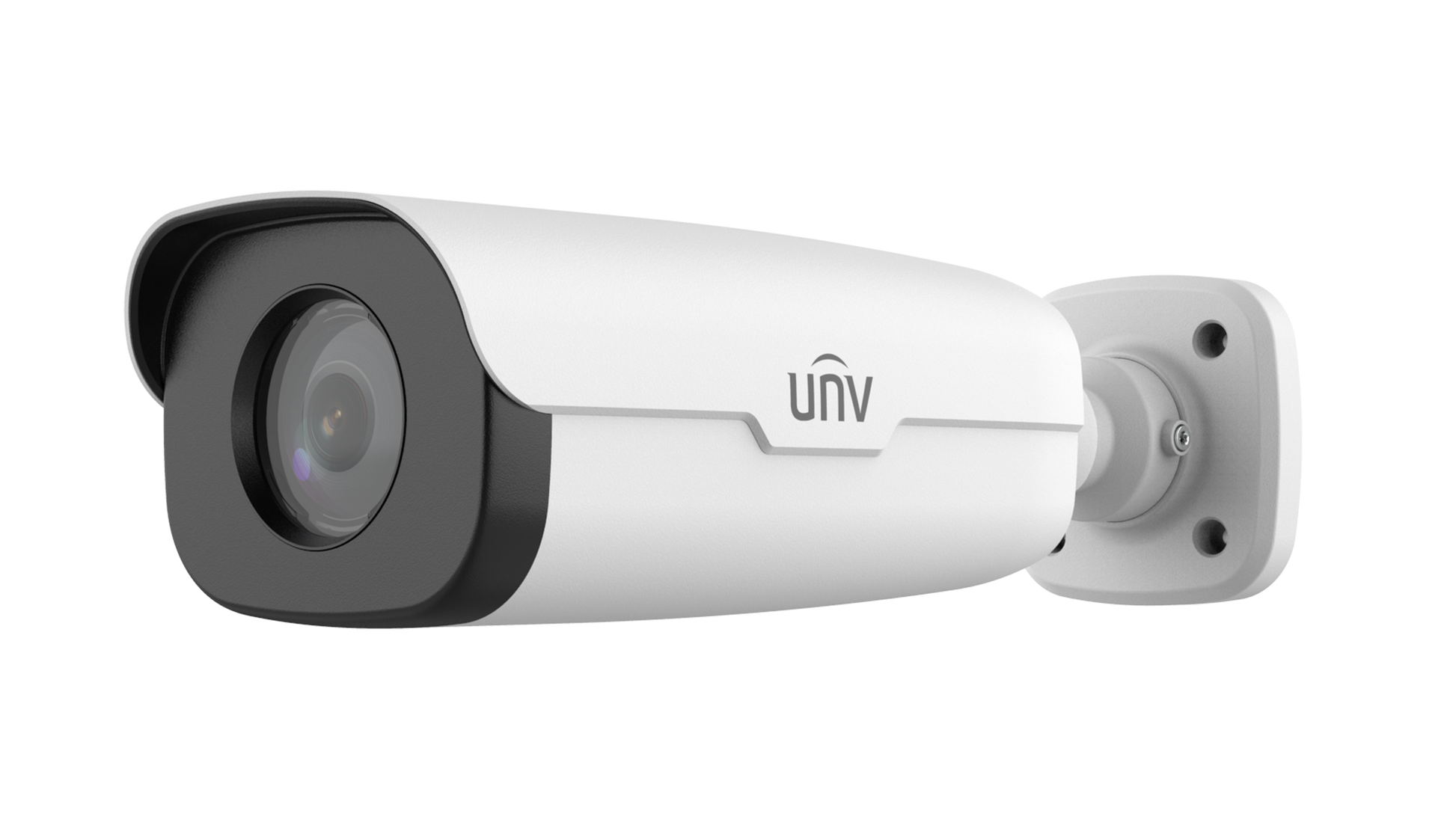

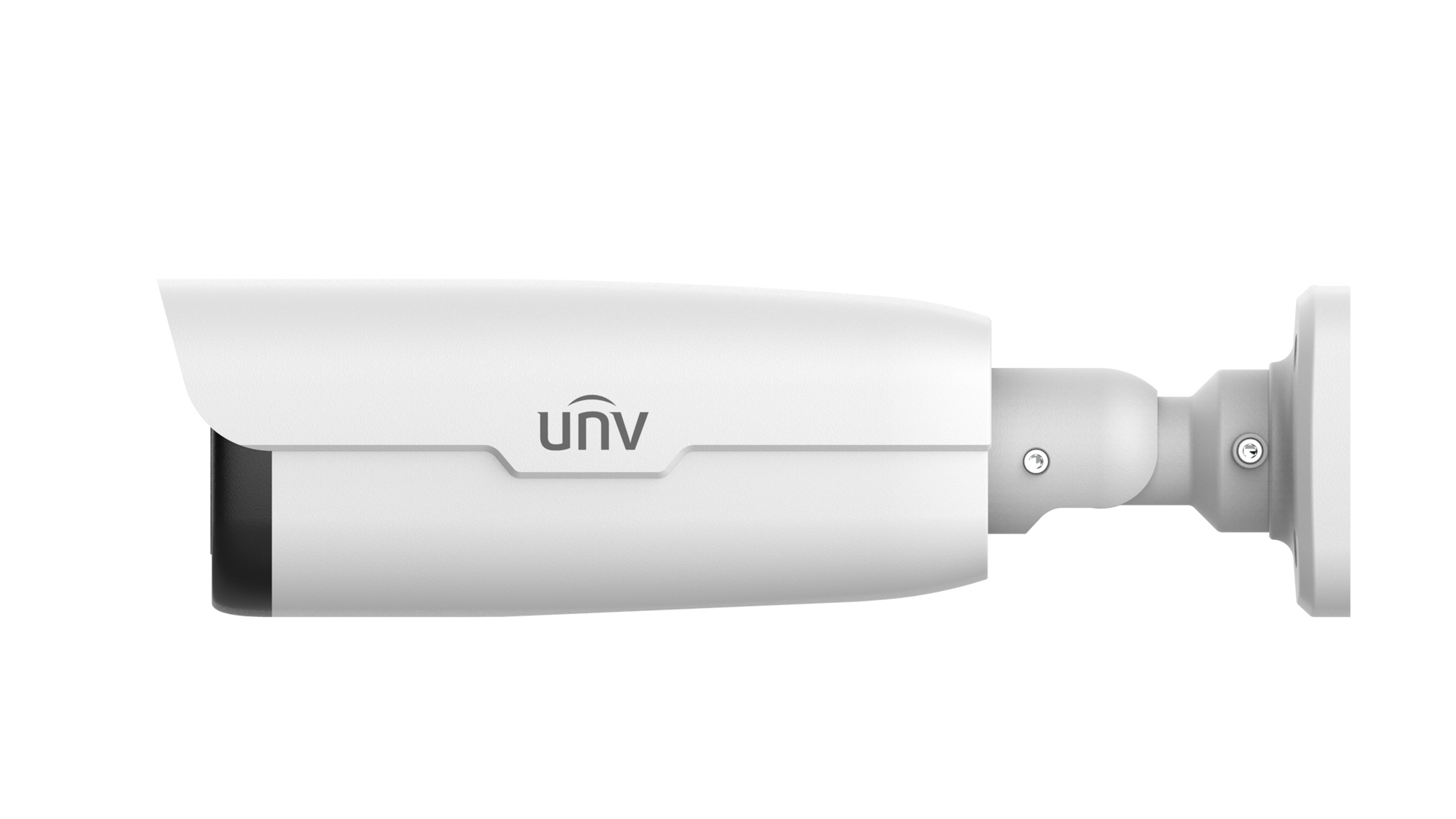

Part Number: IPC254EB-DX22GK-I0
Lens Type: 6.5-143mm@F1.5, Motorized Zoom and Auto Focus
Max Resolution/Frame Rate: 4MP (2688x1520)@30fps
Angle of View: 3.49°- 60.47° (Horizontal)
Min. Illumination: Color 0.001Lux (F1.5, AGC ON)
Night Vision Distance: 492.1 Feet (IR)
Corridor Mode: Yes
WDR: 120dB
Audio: Input/Output Connections
Alarm I/O: Yes
BNC Output: N/A
Special Features: Object Removed, Object Left Behind, Human/Vehicle Detection, Face Capture, People Counting,Face attributes,License Plate Capture
Power: PoE+ (IEEE 802.3at), DC24V
NDAA Compliant: Yes
Warranty Period: 3 Years
|
Camera |
Description |
|
Sensor |
1/1.8"CMOS |
|
Min. Illumination |
Colour:0.001 lux (F1.5, AGC ON) |
|
Day/Night |
IRcut filter with auto switch (ICR) |
|
Shutter |
Auto/Manual, |
|
Adjustment angle |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
|
WDR |
120dB |
|
S/N |
＞56dB |
|
Lens |
Description |
|
Lens type |
6.5~143mm |
|
Digital Zoom |
16X |
|
Optical Zoom |
22X |
|
Iris |
F1.5 |
|
Field of View (H) |
3.49°~60.47° |
|
Field of View (V) |
1.97°~36.30° |
|
Field of View (D) |
4.12°~74.38° |
|
DORI |
Description |
|
DORI Distance（Lens） |
6.5~143(mm) |
|
DORI Distance（Detect） |
97.5m(319.9ft)~2145.0m(7037.4ft) |
|
DORI Distance（Observe） |
39.0m(128.0ft)~858.0m(2815.0ft) |
|
DORI Distance（Recognize） |
19.5m(64.0ft)~429.0m(1407.5ft) |
|
DORI Distance（Identify） |
9.8m(32.0ft)~214.5m(703.7ft) |
|
Illuminator |
Description |
|
Illumination Distance(IR) |
150m |
|
Wavelength |
850nm |
|
IR On/Off Control |
Auto/Manual |
|
Video |
Description |
|
Video Compression |
Ultra 265; H.265; H.264; MJPEG |
|
Frame Rate—Main Stream |
4MP (2688*1520), Max 30fps |
|
Frame Rate—Sub Stream |
1080P (1920*1080), Max 30fps |
|
Frame Rate—Third Stream |
D1 (720*576), Max 30fps |
|
Video Bit Rate |
128 Kbps~16 Mbps |
|
U-code |
Support |
|
ROI |
Up to 8 areas |
|
Video stream |
Triple streams |
|
OSD |
Up to 10 OSDs |
|
Privacy Mask |
Up to 4 areas |
|
Image |
Description |
|
White Balance |
Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
|
Digital noise reduction |
2D/3D DNR |
|
Smart IR |
Support |
|
Flip |
Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anticlockwise |
|
HLC |
Support |
|
BLC |
Support |
|
Defog |
Digital Defog |
|
Heatwave Reduction |
Support |
|
Intelligent |
Description |
|
Smart intrusion prevention |
Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection |
|
People Counting |
People counting; support people flow counting and crowd density monitoring |
|
Exception Detection |
Object Removed; Object Left Behind |
|
Events |
Description |
|
Basic Detection |
Motion detection; Audio detection; Tampering alarm |
|
General Function |
Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; Alarm input; Alarm output |
|
Audio |
Description |
|
Audio Compression |
G.711U; G.711A |
|
Audio Bitrate |
128 Kbps |
|
Two-way Audio |
Support |
|
Suppression |
Support |
|
Sampling Rate |
16KHZ |
|
Storage |
Description |
|
Edge Storage |
Micro SD，up to 256 GB |
|
Network Storage |
ANR; NAS(NFS) |
|
Network |
Description |
|
Protocols |
SSH; IGMP; RTP; RTCP; SMTP; IPv4; IPv6; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTSP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; 802.1x; SNMP; QoS; SSL/TLS |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M); API; SDK |
|
User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
|
Security |
TLS1.3; Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
|
Client |
EZStation; EZLive; EZView |
|
Web Browser |
Plugin required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plugin free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
|
Interface |
Description |
|
Audio I/O |
1/1 |
|
Alarm I/O |
2/1 |
|
Serial Port |
1 channel RS485 interface |
|
Network |
1 * RJ45 10M/100M/1000M BaseTX Ethernet + 1 * 100M/1000M SFP |
|
Video Output |
1 BNC |
|
Certification |
Description |
|
EMC |
CEEMC (EN 55032: 2015+A1:2020,EN 6100033: 2013+A1: 2019,EN IEC 6100032: 2019+A1: 2021,EN 55035: 2017+A11:2020) |
|
Safety |
CE LVD (EN 623681:2014+A11:2017) |
|
Environment |
CERoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|
Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
|
General |
Description |
|
Power |
AC24V(±25%), PoE(IEEE 802.3at) |
|
Power Consumption |
Max 16W |
|
Power Interface |
Wires with coldpressed terminal |
|

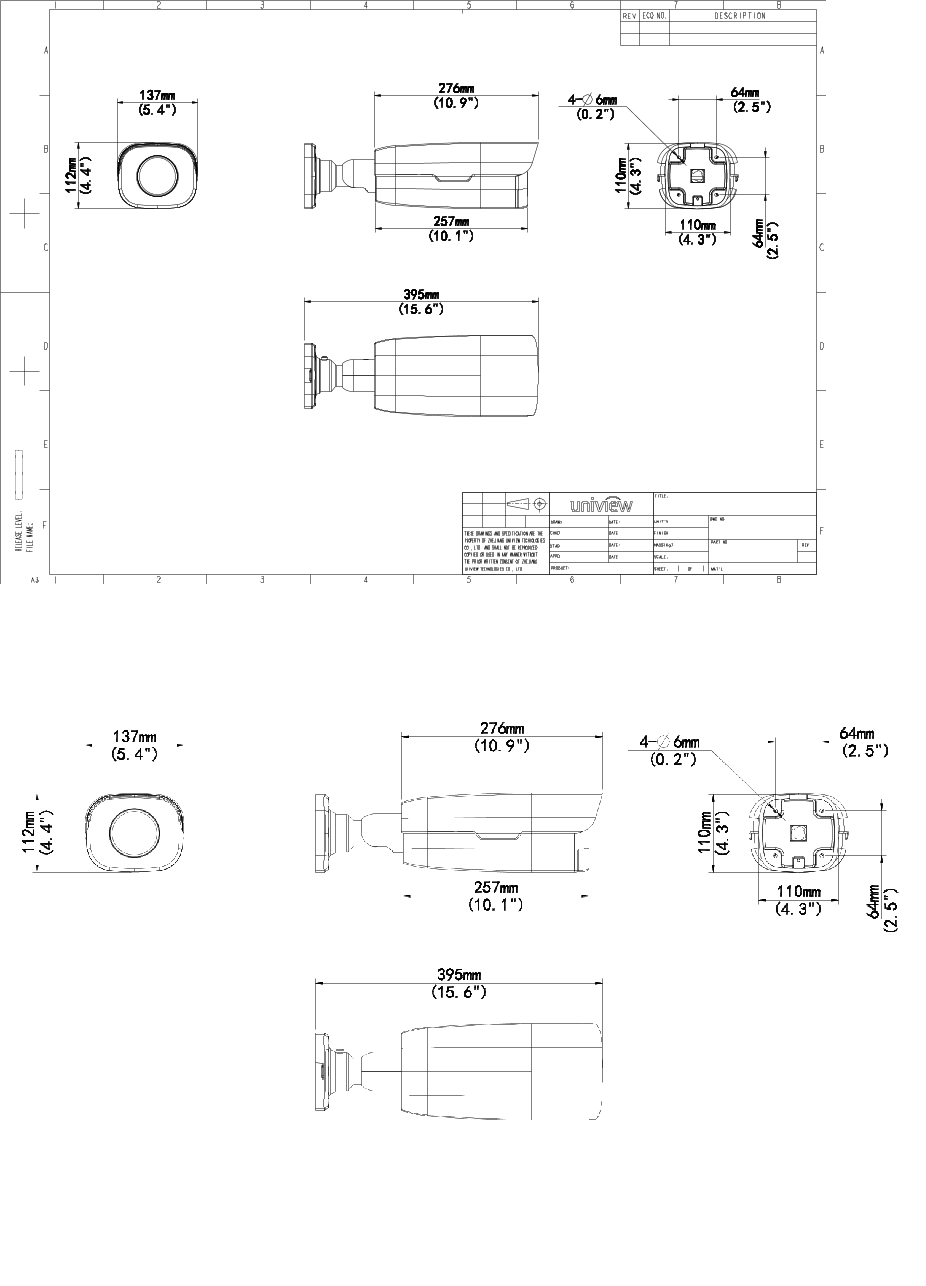

Dimensions |
395 x 137 x 112mm (15.6“ x 5.4“ x 4.4”) |
|
Weight |
3.7kg(8.16lb) |
|
Working Environment |
40 ℃ ~ 70 ℃ (40 °F ~ 158 °F), Humidity: ≤95% RH (noncondensing) |
|
Storage Environment |
40 ℃ ~ 70 ℃ (40 °F ~ 158 °F), Humidity: ≤95% RH (noncondensing) |
|
Surge protection |
6KV |
|
Reset button |
Support |
|
Web Client Language |
22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
