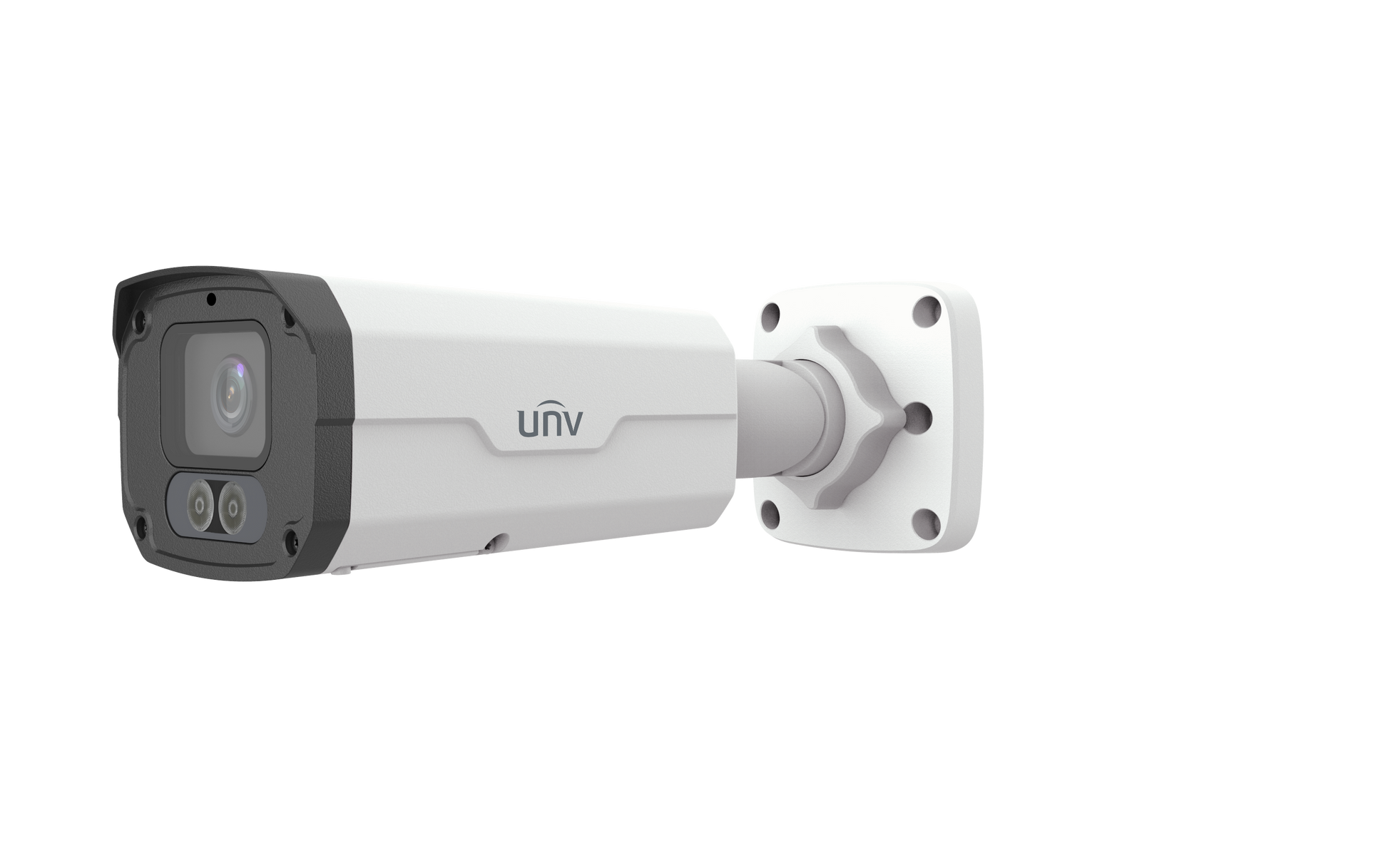

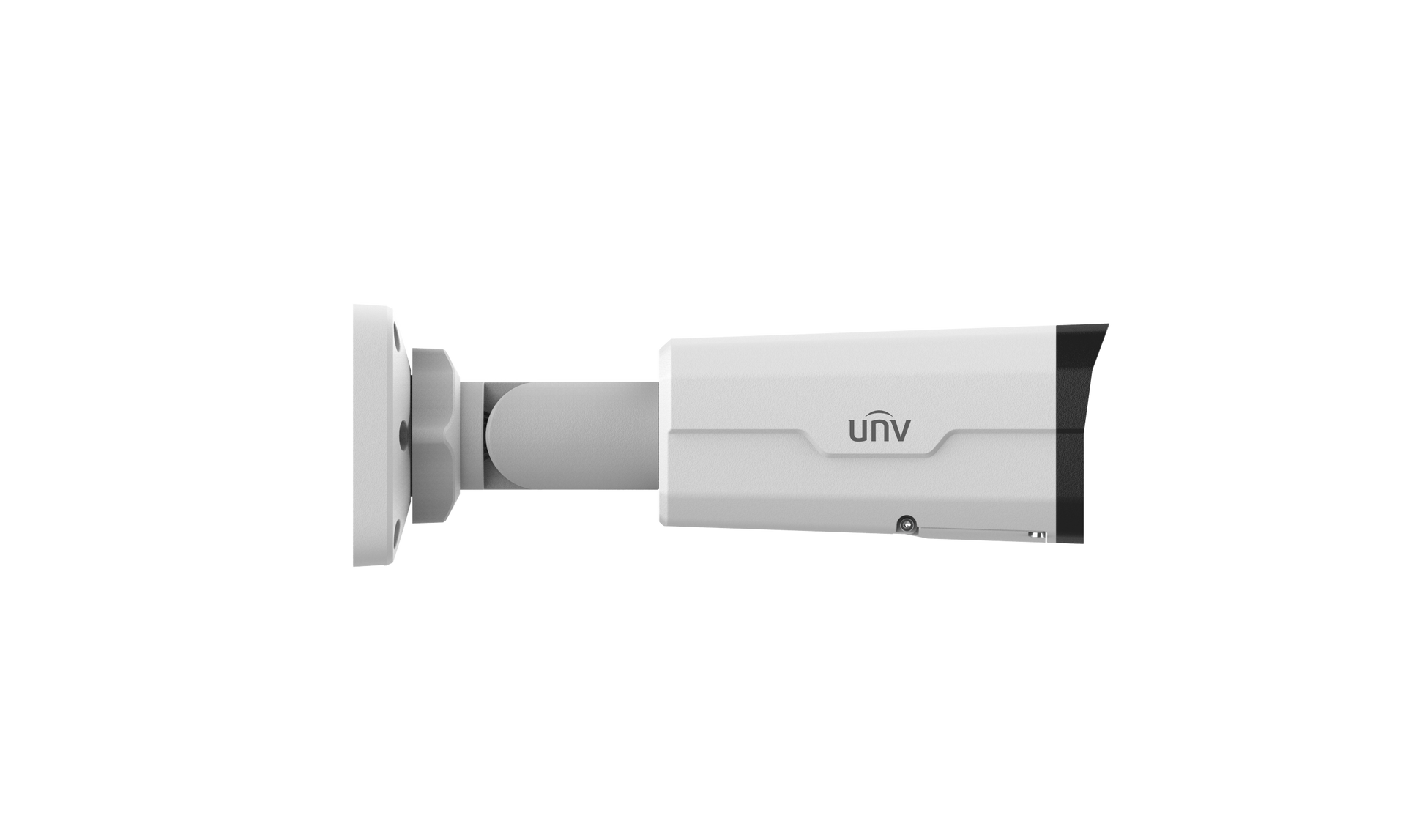

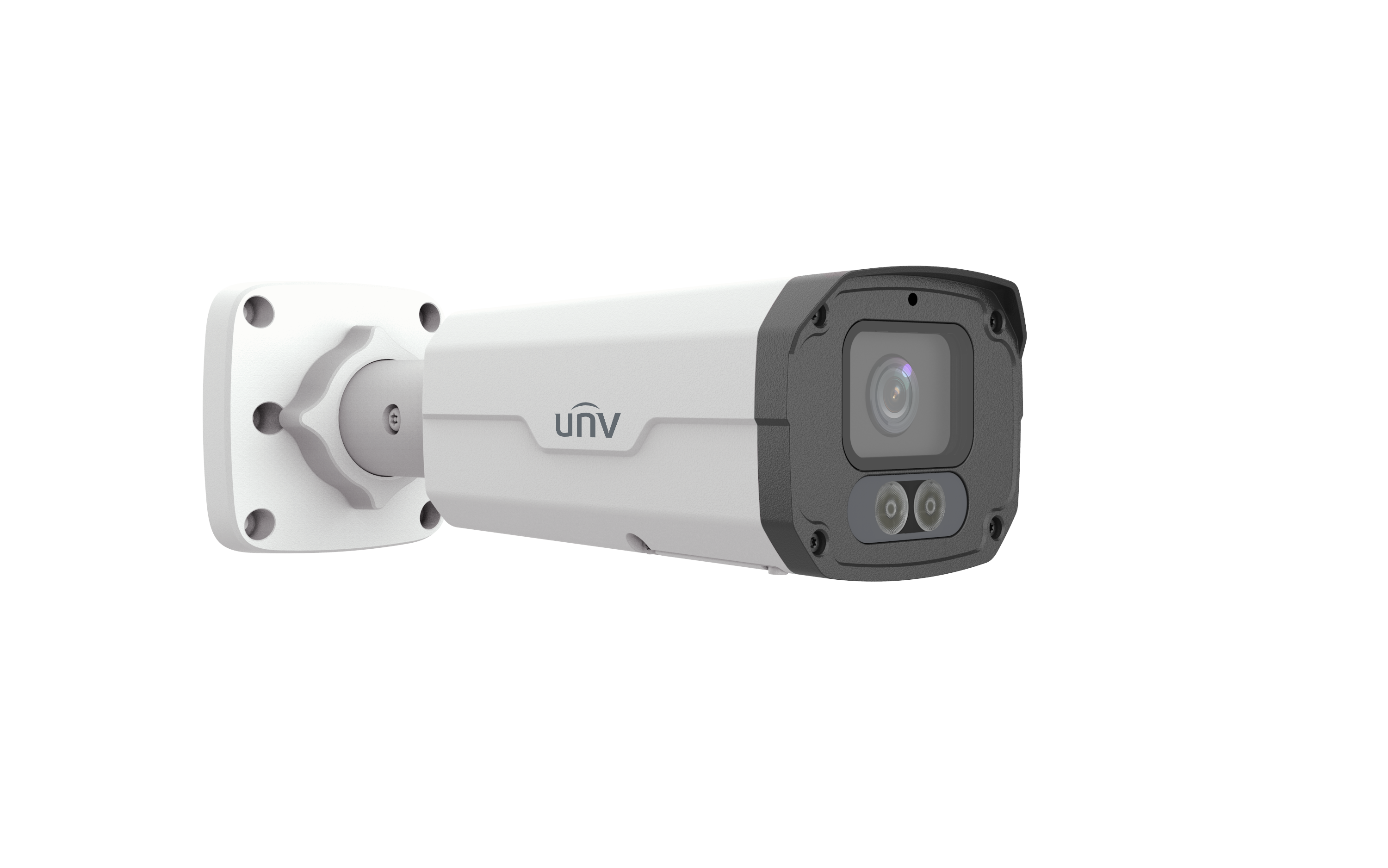

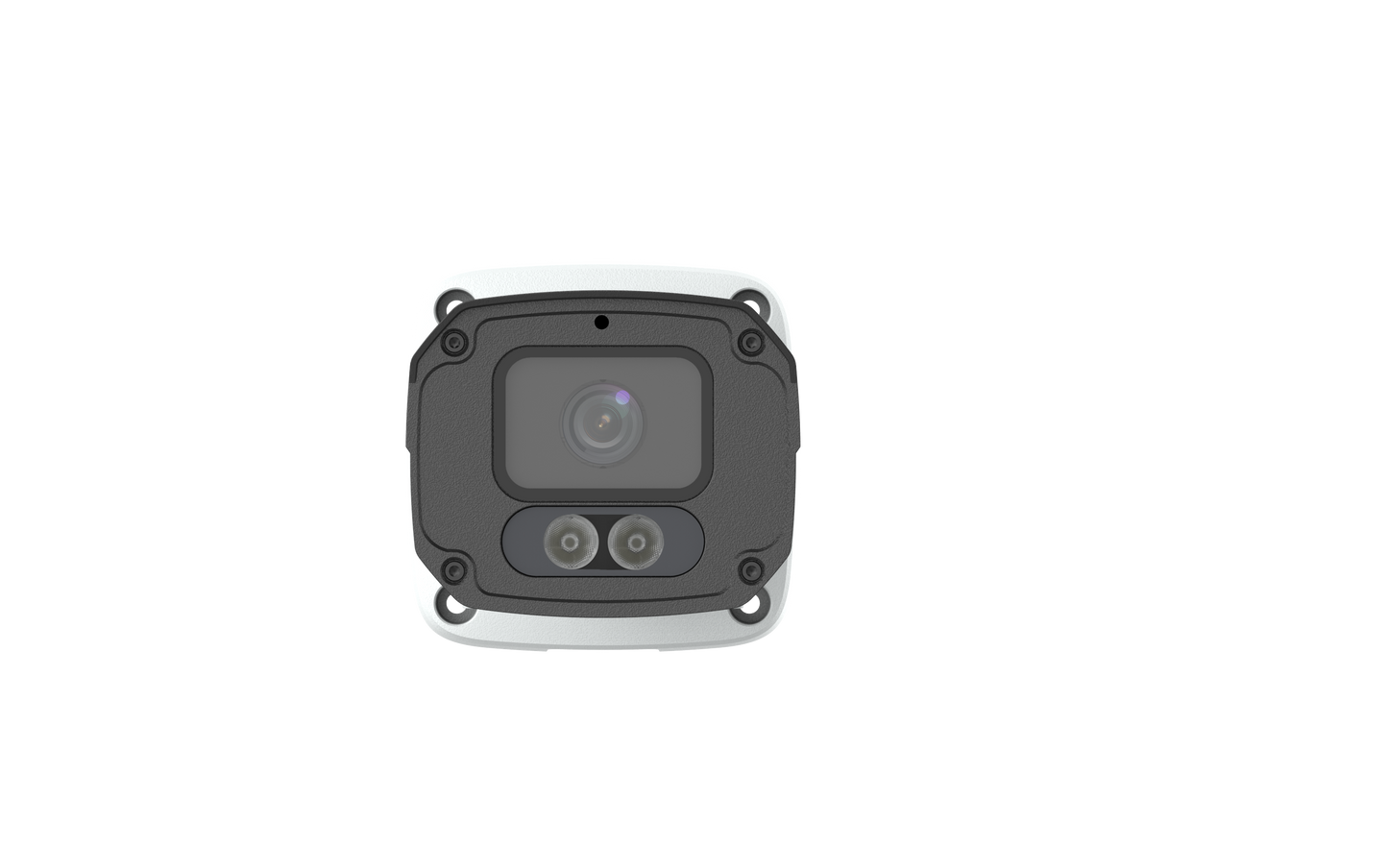

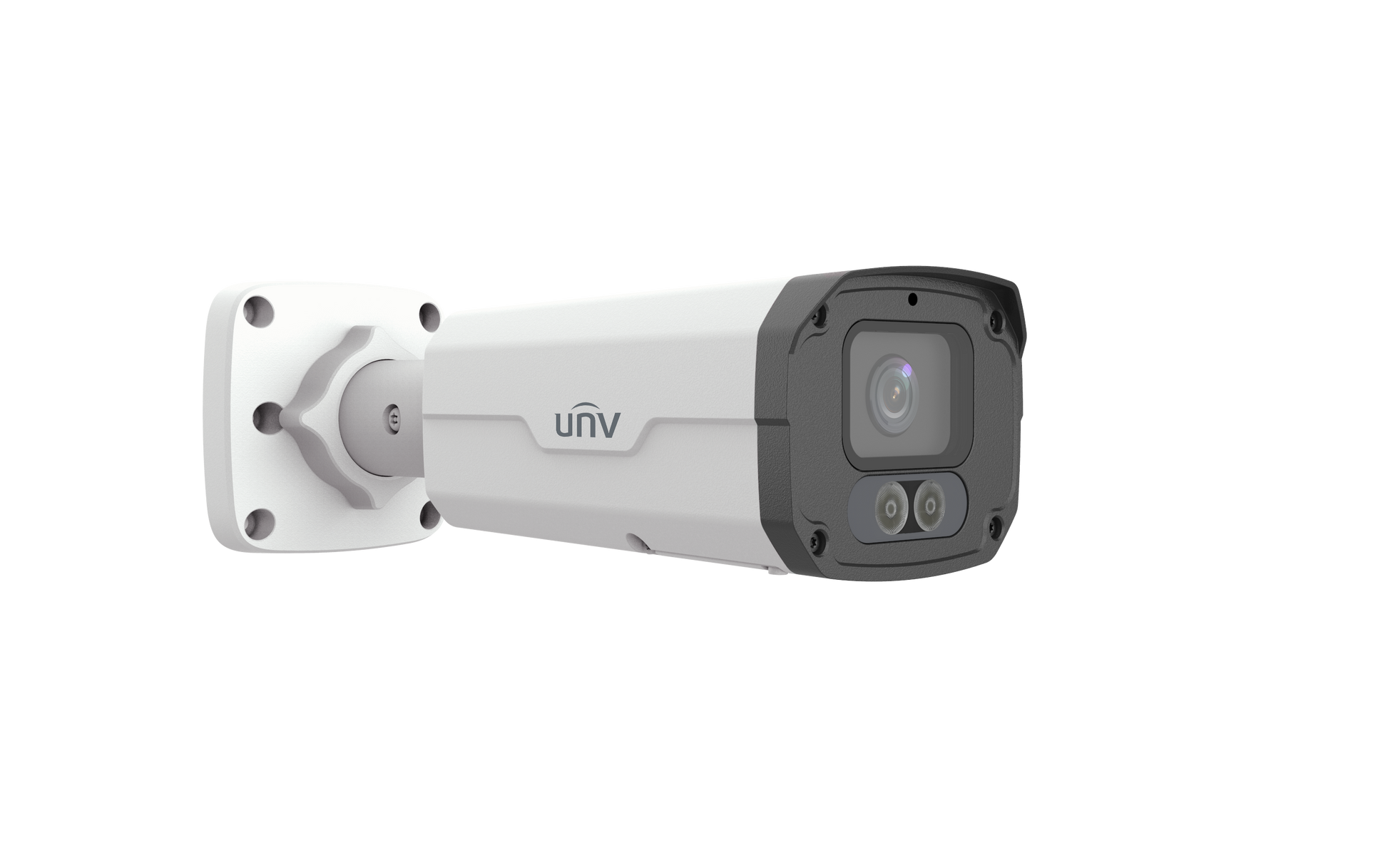

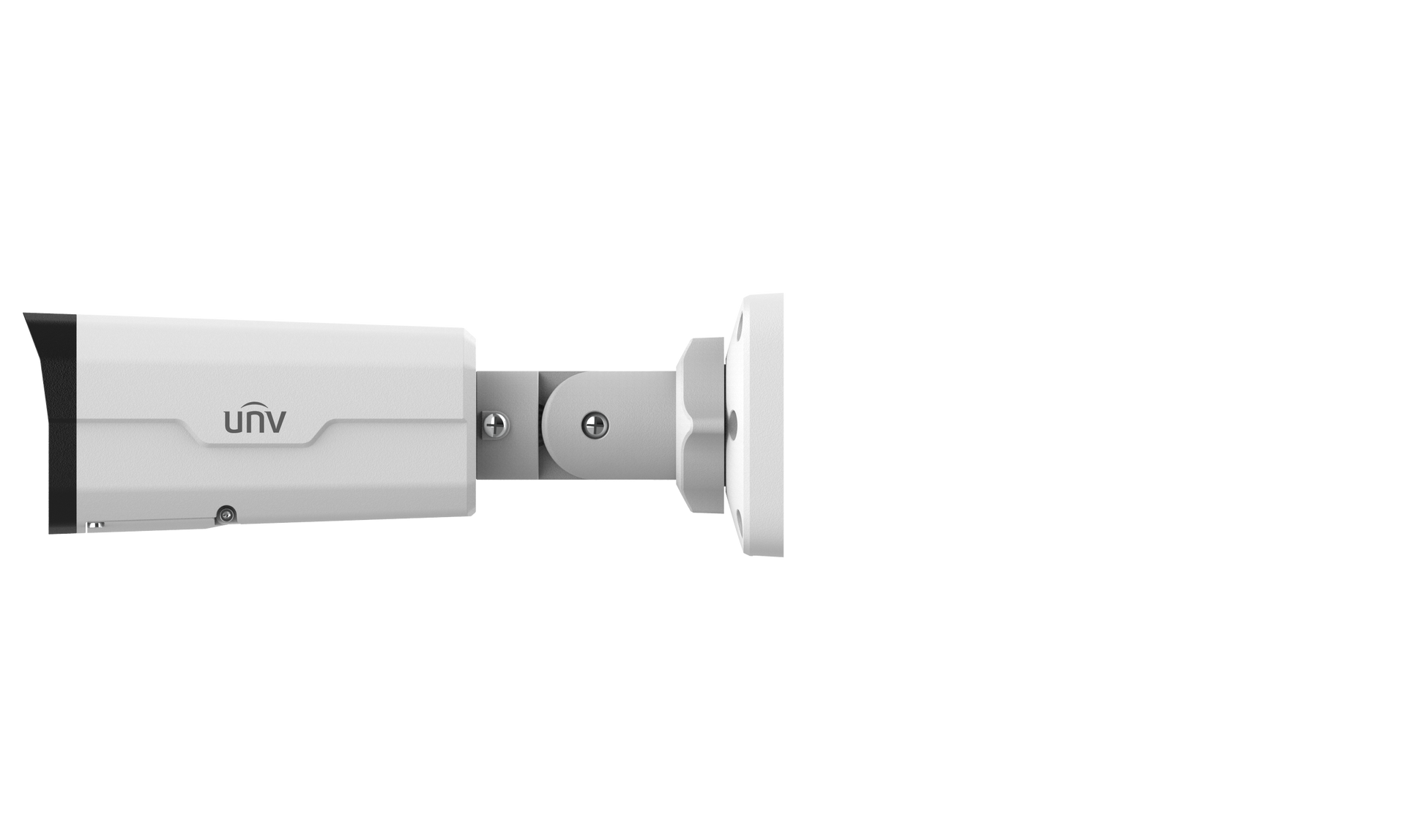

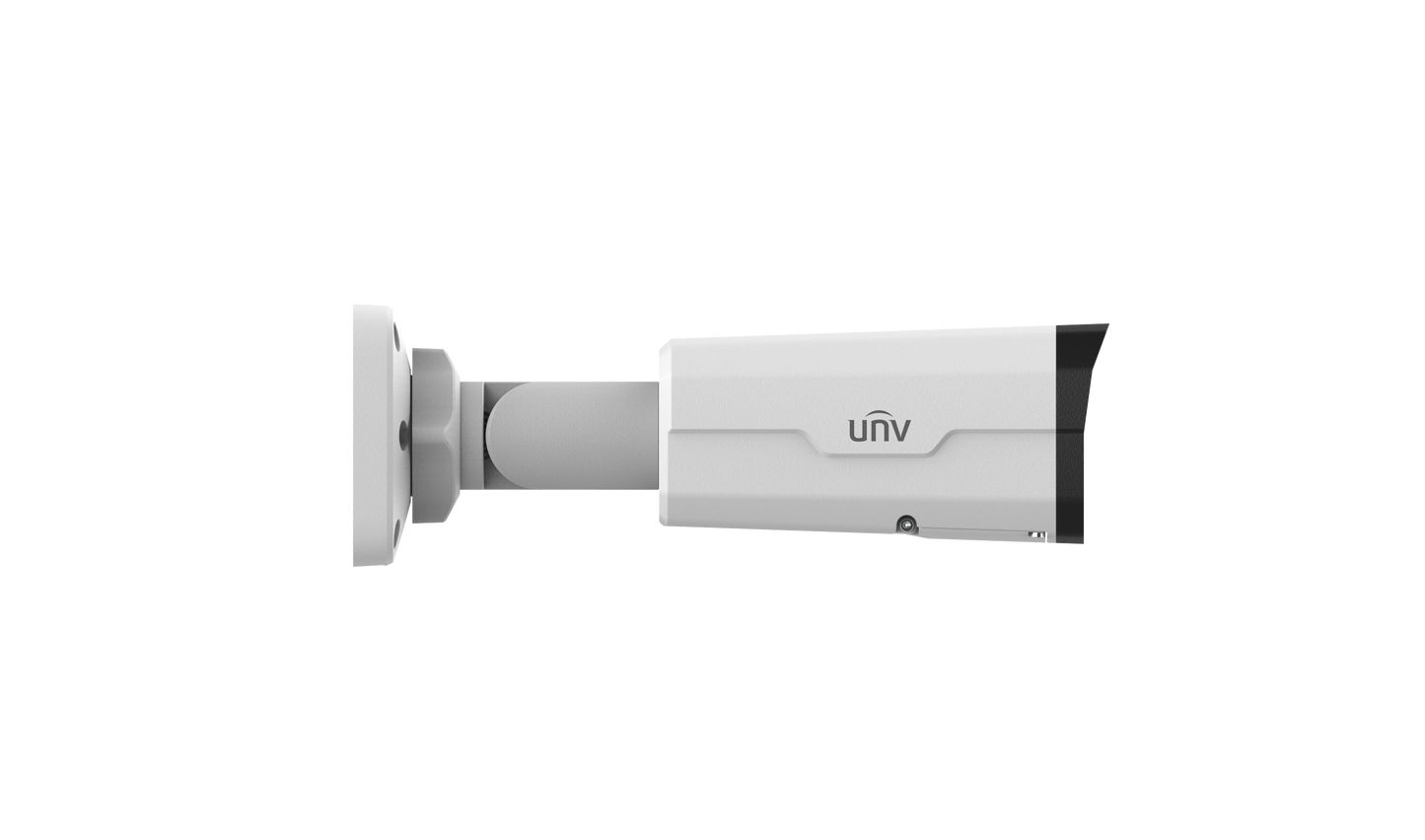

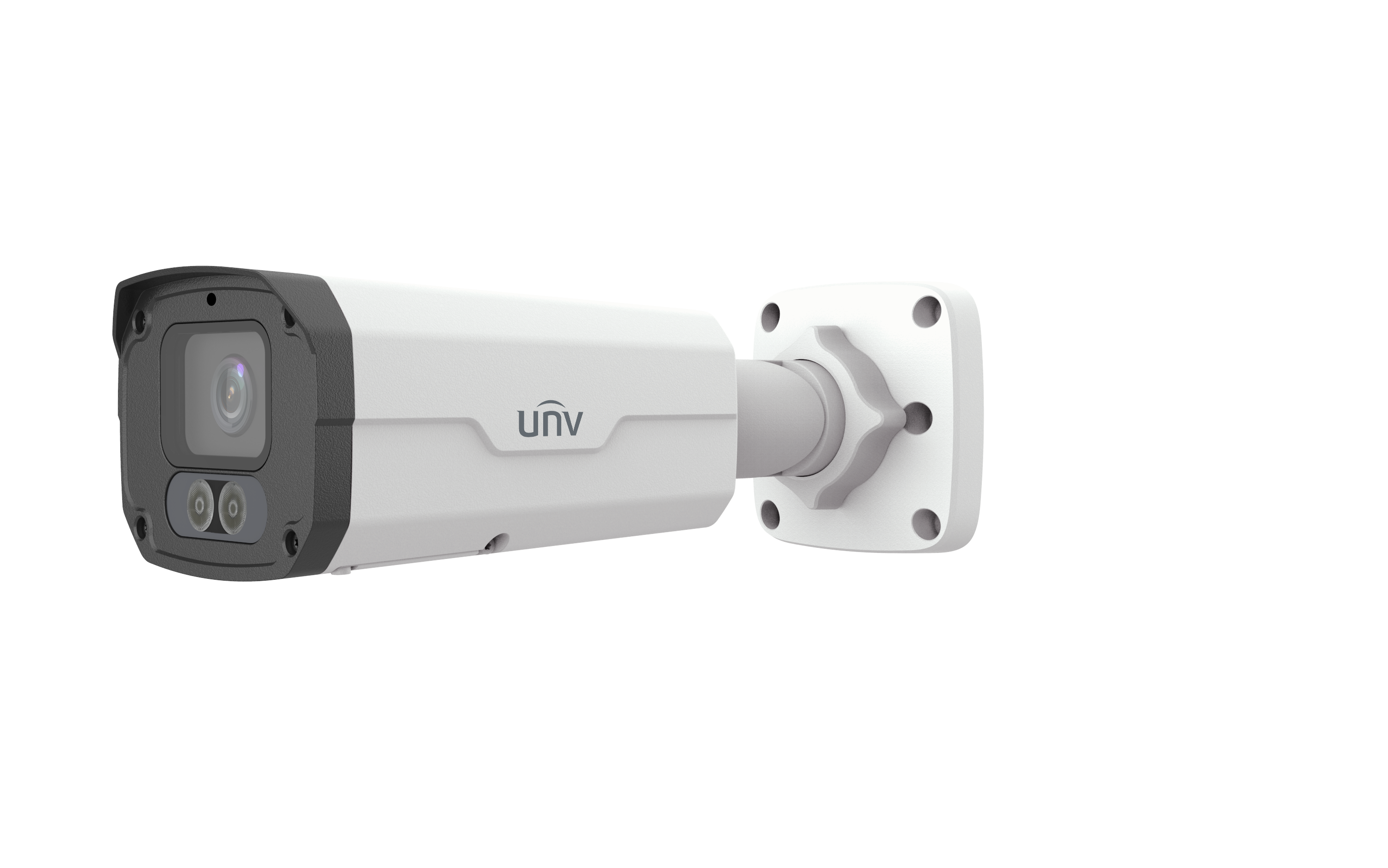

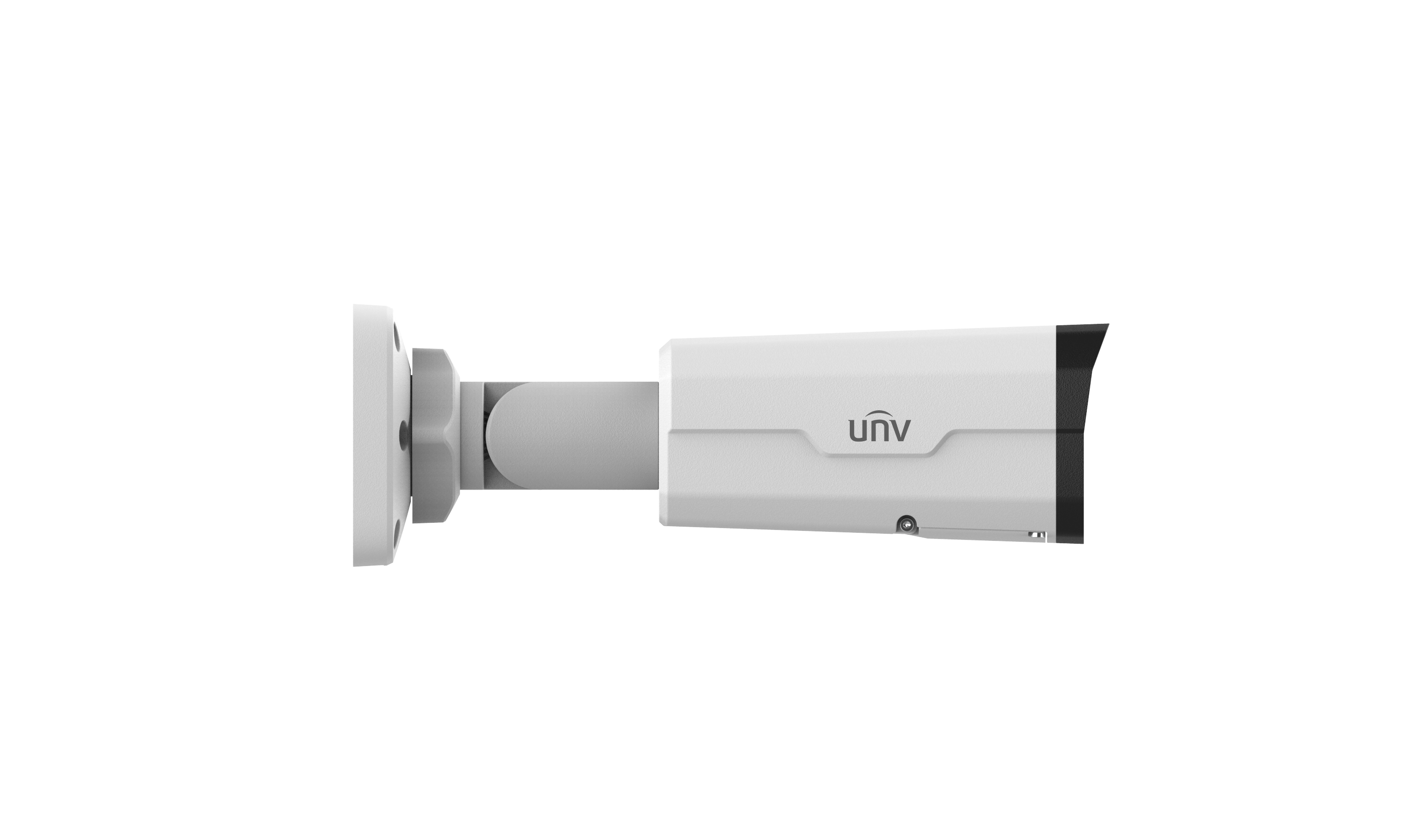

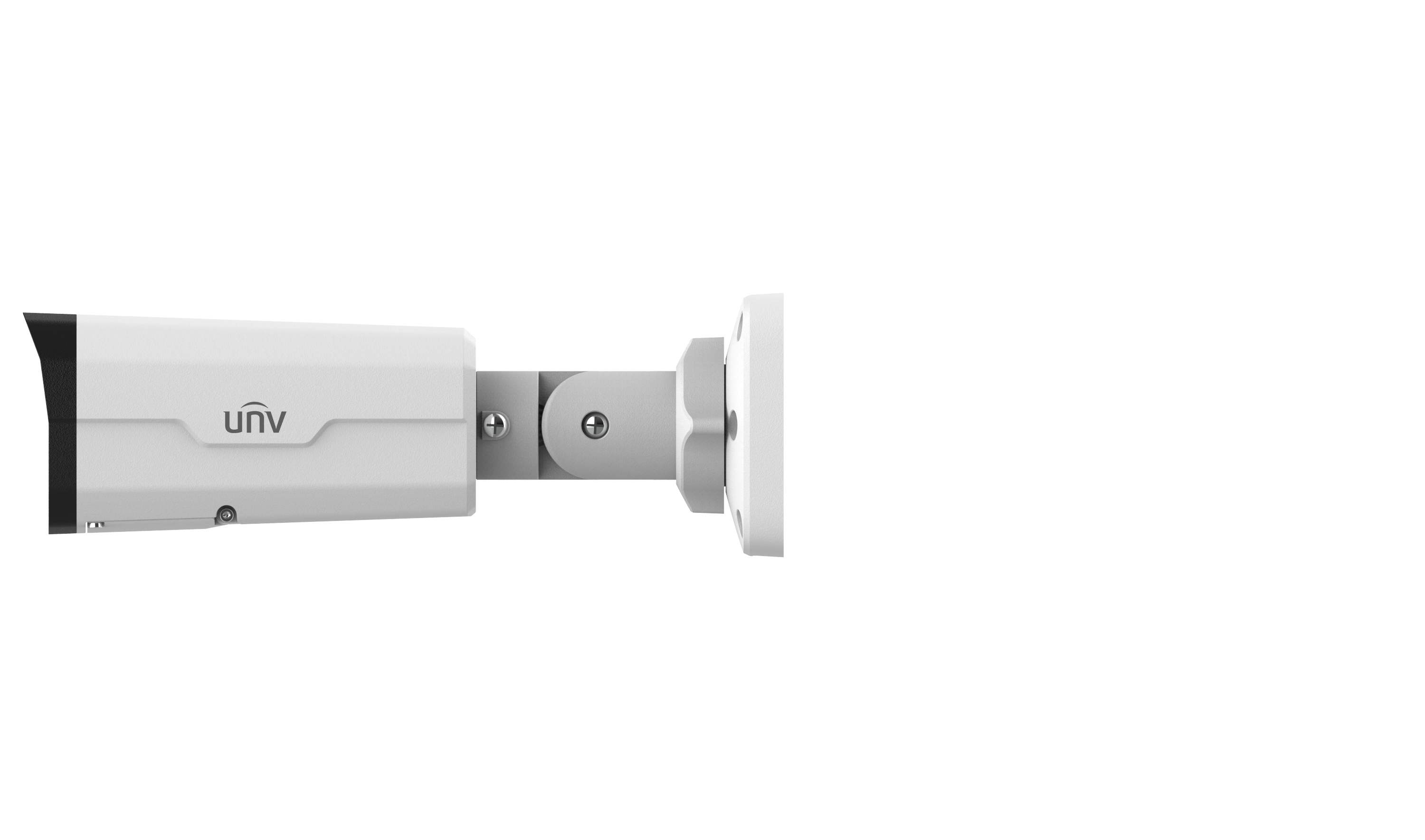

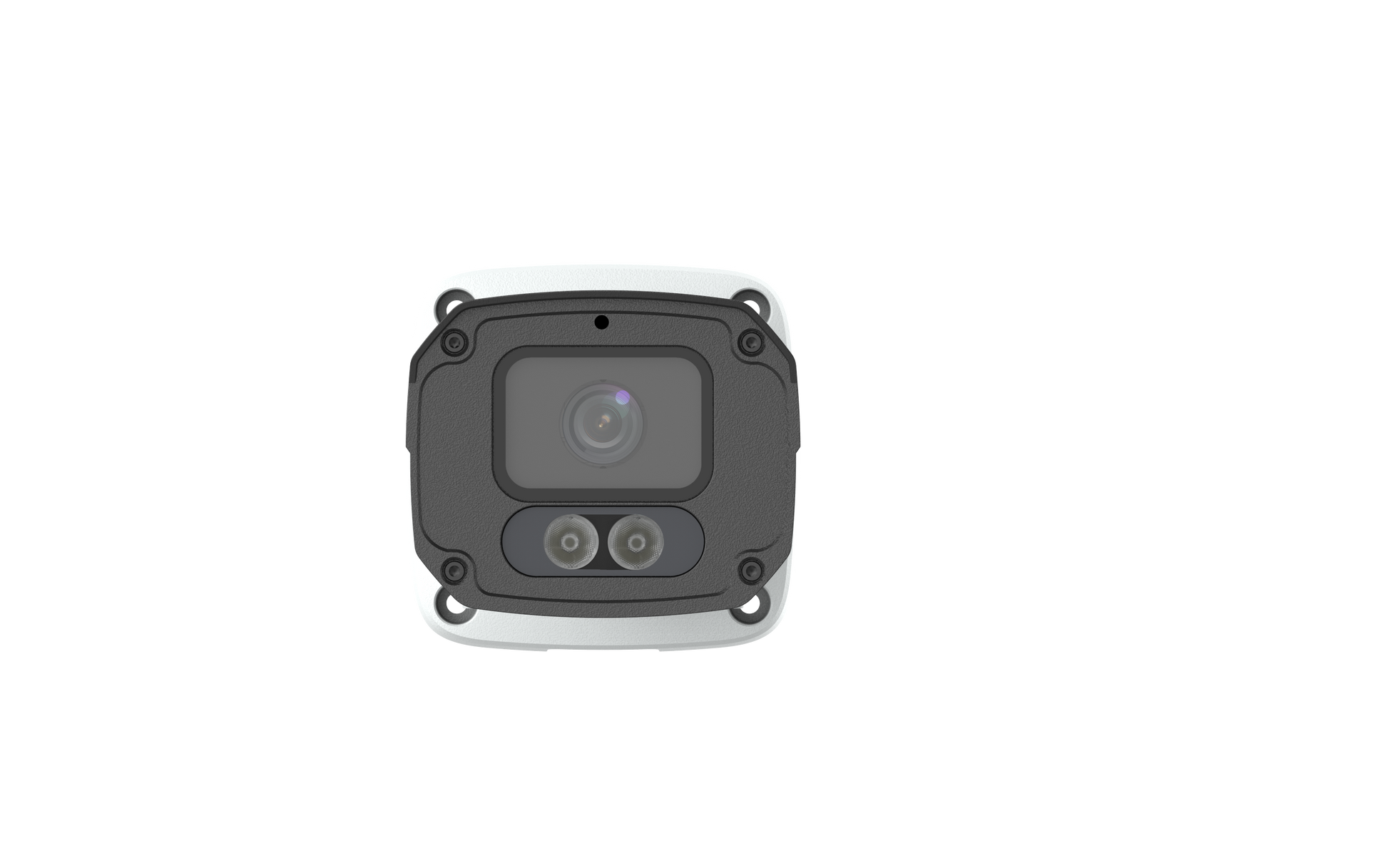

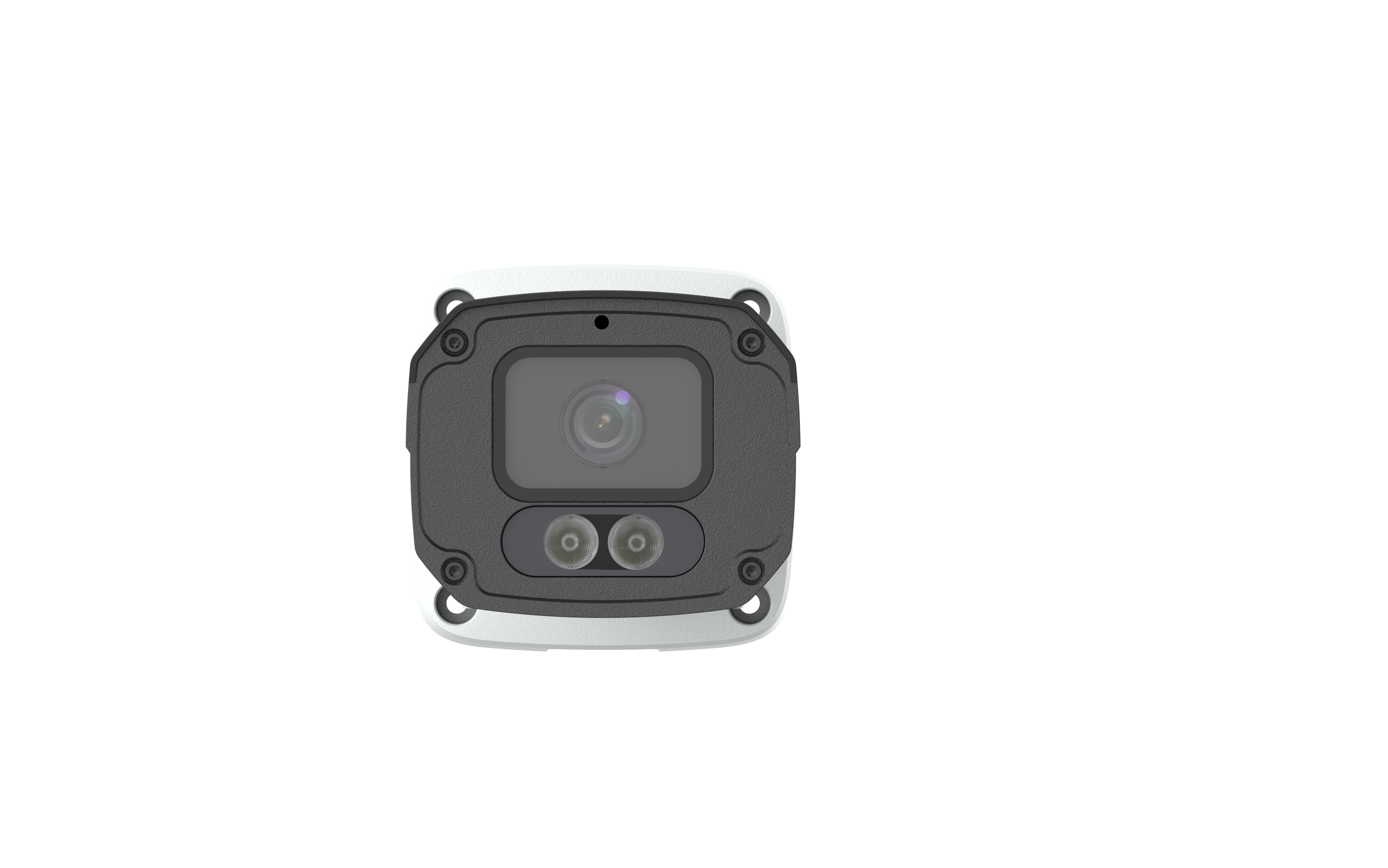

IPC2228SE-DF40K-WL-I0

Camera

Sensor

1/1.8", 8.0 megapixel, progressive scan, CMOS

Minimum Illumination

Colour: 0.001Lux (F1.0, AGC ON)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment angle

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotate: 0° ~ 360°

WDR

120dB

S/N

>56dB

Lens

Lens

4.0mm@F1.0

Angle of View (H)

94.29°

Angle of View (V)

49.73°

Angle of View (O)

115.97°

DORI

DORI Distance

Lens (mm)

Detect（m）

Observe（m）

Recognize（m）

Identify（m）

4.0

90.0

36.0

18.0

9.0

Illuminator

LED Distance

Up to 30m (98ft)

LEDs Number

2

LED On/Off Control

Auto/Manual

Video

Video Compression

Ultra265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 8MP (3840*2160), Max 30fps;5.3MP (3072*1728), Max 30fps; 3.6MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;

Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

U-code

Support

ROI

Up to 8 areas

Video Stream

Triple streams

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Image Setting

Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser

Digital noise reduction

2D/3D DNR

Smart Illumination

Support

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

N\A

HLC

Support

BLC

Support

Defog

Digital Defog

Intelligent

Smart intrusion prevention

Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection

Face capture

Support

Statistical Analysis

People counting, support tripwire people counting and area people counting

Events

Basic Detection

Motion detection, Tampering alarm, Audio Detection

General Function

Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711

Audio Bitrate

64 Kbps

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR, NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API,SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation

EZView

EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

Audio I/O

Input: impedance 35kΩ; amplitude 2V [p-p]

Output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O

1/1

RS485

N/A

Built-in Mic

Support

Built-in Speaker

N/A

WIFI

N/A

Network

1 RJ45 10M/100M Base-TX Ethernet

Video Output

N/A

Certifications

EMC

FCC CFR 47 Part 15

EN 55032:2015

EN 55024:2010

EN 61000-3-2:2014

EN 61000-3-3-2013

Safety

IEC 62368-1

EN 62368-1

UL 62368-1

Environment

CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 11W

Power Interface

Ø 5.5mm coaxial power plug

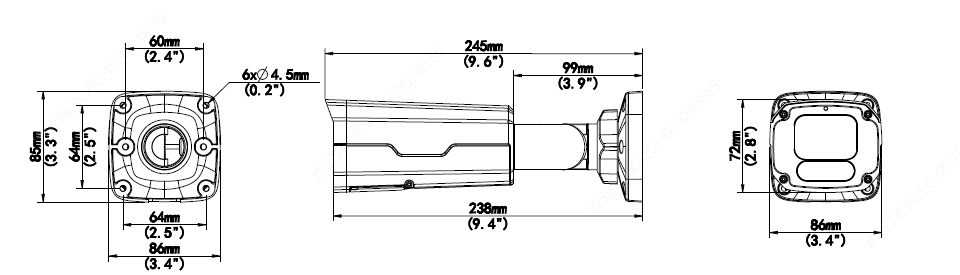

Dimensions (L × W × H)

245× 86 × 85mm (9.6” × 3.4” × 3.3”)

Weight

0.86kg (1.89lb)

Material

Metal

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

surge protection

4KV

Reset Button

Supported

Protection

Ingression protection: IP67

Vandal resistant: IK10
