Part Number: UAC-T128-ADF28MS
Lens Type: 2.8mm
Max Resolution/Frame Rate: 8MP(3840x2160)@15fps
Angle of View: 109.1° (Horizontal)
Min. Illumination: Color 0.005Lux (F1.6, AGC ON)
Night Vision Distance: 131 Feet (IR)
WDR: 120dB WDR
Audio: Built-in Microphone
Special Features: DIP Switch
Power: DC12V / Max 4.8W
NDAA Compliant: Yes
Warranty Period: 3 Years
|
Sensor |
Description |
|
Pixel |
8MP |
|
Sensor Size |
1/2.7" |
|
Min. Illumination |
0.005 lux (F1.6, AGC ON) |
|
Lens |
Description |
|
Focus |
UACT128ADF28MS:2.8mm |
|
Lens Mount |
M12 |
|
Angle of View (H) |
UACT128ADF28MS:109.1° |
|
Angle of View (V) |
UACT128ADF28MS:61.0° |
|
Angle of View (D) |
UACT128ADF28MS:126.7° |
|
Illuminator |
Description |
|
Illuminator Number |
Two IR illuminators |
|
Illumination Distance |
40m |
|
Lifetime |
≥60000 hours |
|
Video |
Description |
|
Resolution |
4K: 3840(H) × 2160(V) |
|
Frame Rate |
CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps |
|
Shutter Time |
PAL: 1/25s1/50000s， |
|
Image |
Description |
|
Exposure Mode |
Four modes: Global(default), BLC, HLC, WDR |
|
Day/Night |
Three modes: Auto (default), Day, Night |
|
Digital Noise Reduction |
2D/3D |
|
White Balance |
Two modes: Auto (default), Manual |
|
WDR |
120dB WDR |
|
Smart IR |
Support |
|
Flip |
Supports 180°horizontal flip, 180°vertical flip |
|
Digital Defog |
N/A |
|
Audio |
Description |
|
Built-in Mic |
Support |
|
Camera Audio |
CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps |
|
Interface |
Description |
|
Power Interface |
5.5mm Power Interface |
|
Video Output |
BNC, supports TVI/AHD/CVI/CVBS |
|
Operating Environment |
Description |
|
Temperature |
30 ℃ ~ 60 ℃ (22 °F ~ 140 °F) |
|
Humidity |
≤95% RH (noncondensing) |
|
Surge Protection |
4kV for power&4kV for video output interfaces |
|
General |
Description |
|
Power |
DC12V±25% |
|
Power Consumption |
MAX 4.8W |
|
Mount |
Wall Mount, Pole Mount, Corner Mount, Pendant Mount |
|

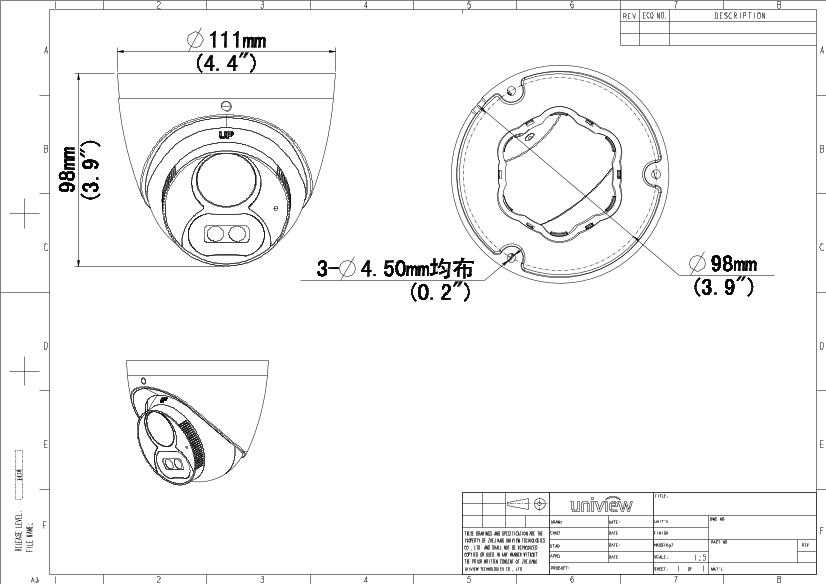

Dimensions |
Φ111mm*98mm (diameter*height) |
|
Material |
Metal |
|
Weight |
417g(0.92lb) |
|
OSD Menu Language |
11 Languages English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish |
|
Certification |
Description |
|
EMC |
CEEMC (EN 55032, EN 6100033, EN IEC 6100032, EN 55035)FCC (FCC 47 CFR part15 B) |
|
Safety |
CELVD (EN 623681) |
|
Environment |
CERoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
|
Protection |
IP67 (IEC 60529) |
