Sensor

Description

Pixel

8MP

Sensor Size

1/2.7"

Min. Illumination

0.005 lux (F1.6, AGC ON)
0 lux (IR ON)

Lens

Description

Focus

UACD128ADF28MS:2.8mm

Lens Mount

M12

Angle of View (H)

UACD128ADF28MS:109.1°

Angle of View (V)

UACD128ADF28MS:61.0°

Angle of View (D)

UACD128ADF28MS:126.7°

Illuminator

Description

Illuminator Number

One IR illuminator

Illumination Distance

30m

Lifetime

≥60000 hours

Video

Description

Resolution

4K: 3840(H) × 2160(V)
5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
4MP: 2560(H)×1440(V)

Frame Rate

CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps
TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
CVBS: PAL, NTSC

Shutter Time

PAL: 1/25s1/50000s，
NTSC: 1/30s1/50000s


Description

Exposure Mode

Four modes: Global(default), BLC, HLC, WDR

Day/Night

Three modes: Auto (default), Day, Night

Digital Noise Reduction

2D/3D

White Balance

Two modes: Auto (default), Manual

WDR

120dB WDR

Smart IR

Support

Flip

Supports 180°horizontal flip, 180°vertical flip

Digital Defog

N/A

Audio

Description

Built-in Mic

Support

Camera Audio

CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps

Interface

Description

Power Interface

5.5mm Power Interface

Video Output

BNC, supports TVI/AHD/CVI/CVBS

Operating Environment

Description

Temperature

30 ℃ ~ 60 ℃ (22 °F ~ 140 °F)

Humidity

≤95% RH (noncondensing)

Surge Protection

4kV for power&4kV for video output interfaces

General

Description

Power

DC12V±25%

Power Consumption

MAX 3.7W

Mount

Wall Mount, Pole Mount, Corner Mount, Pendant Mount

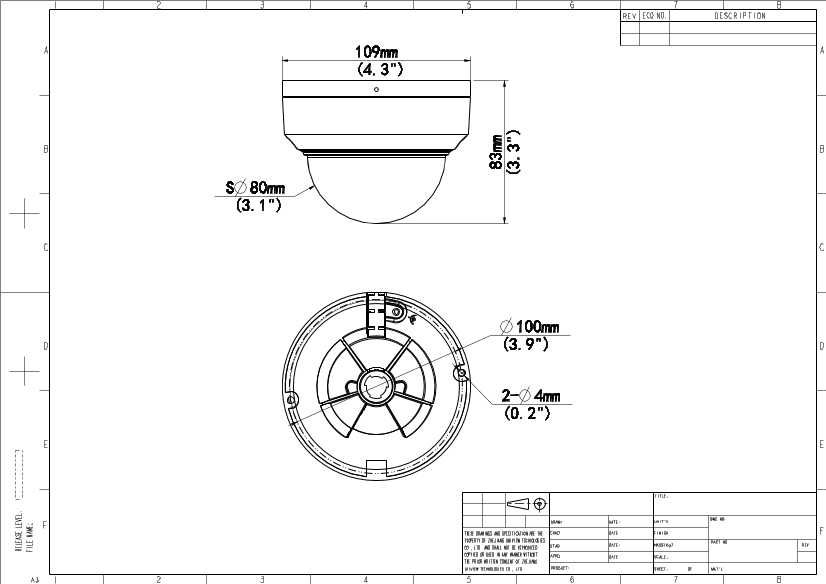

Dimensions

Φ109mm*83mm (diameter*height)

Material

Metal

Weight

395g(0.87lb)

OSD Menu Language

11 Languages English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish

Certification

Description

EMC

CEEMC (EN 55032, EN 6100033, EN IEC 6100032, EN 55035)FCC (FCC 47 CFR part15 B)

Safety

CELVD (EN 623681)

Environment

CERoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

Protection

IP67 (IEC 60529)
IK10 (IEC 62262)
