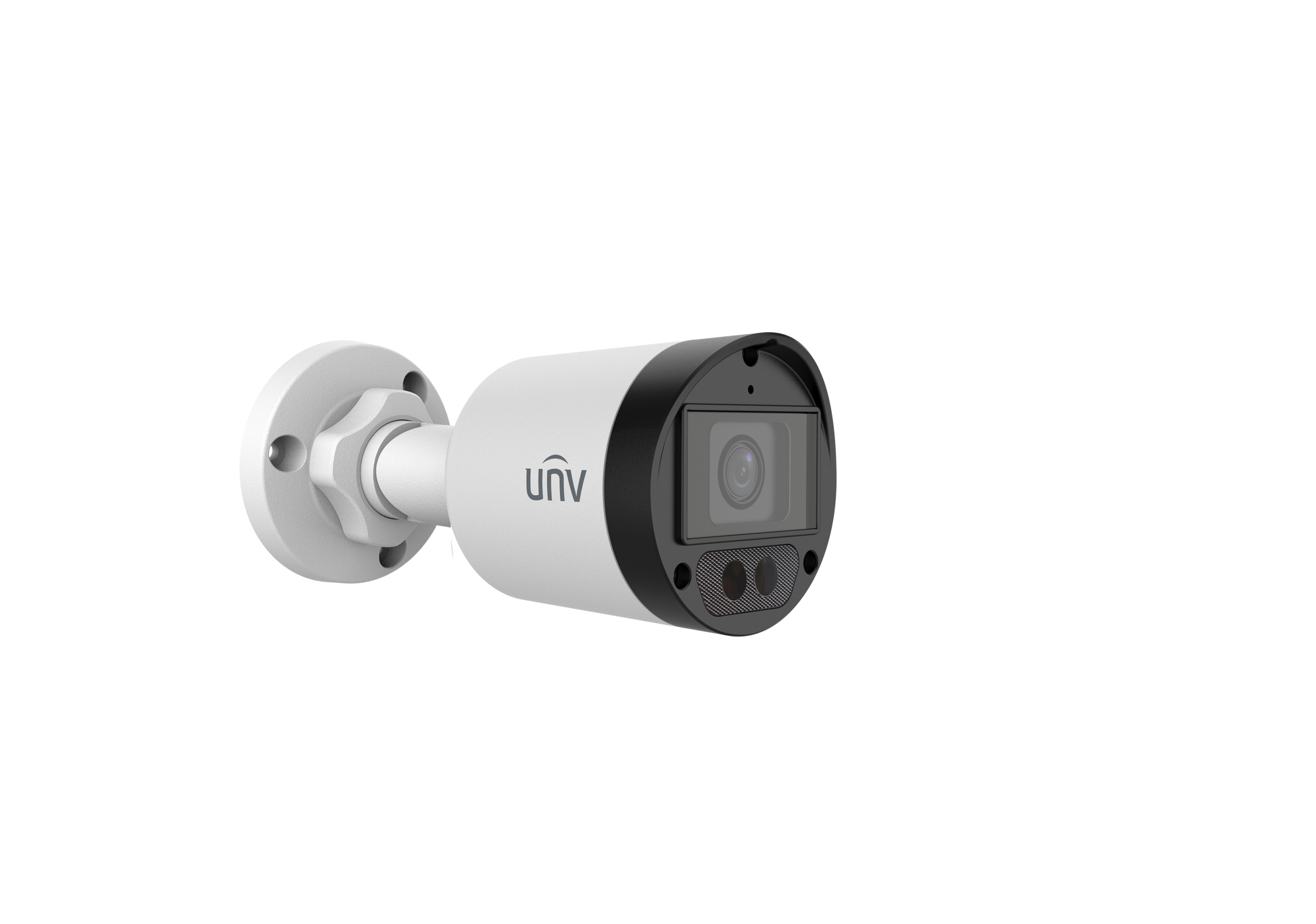

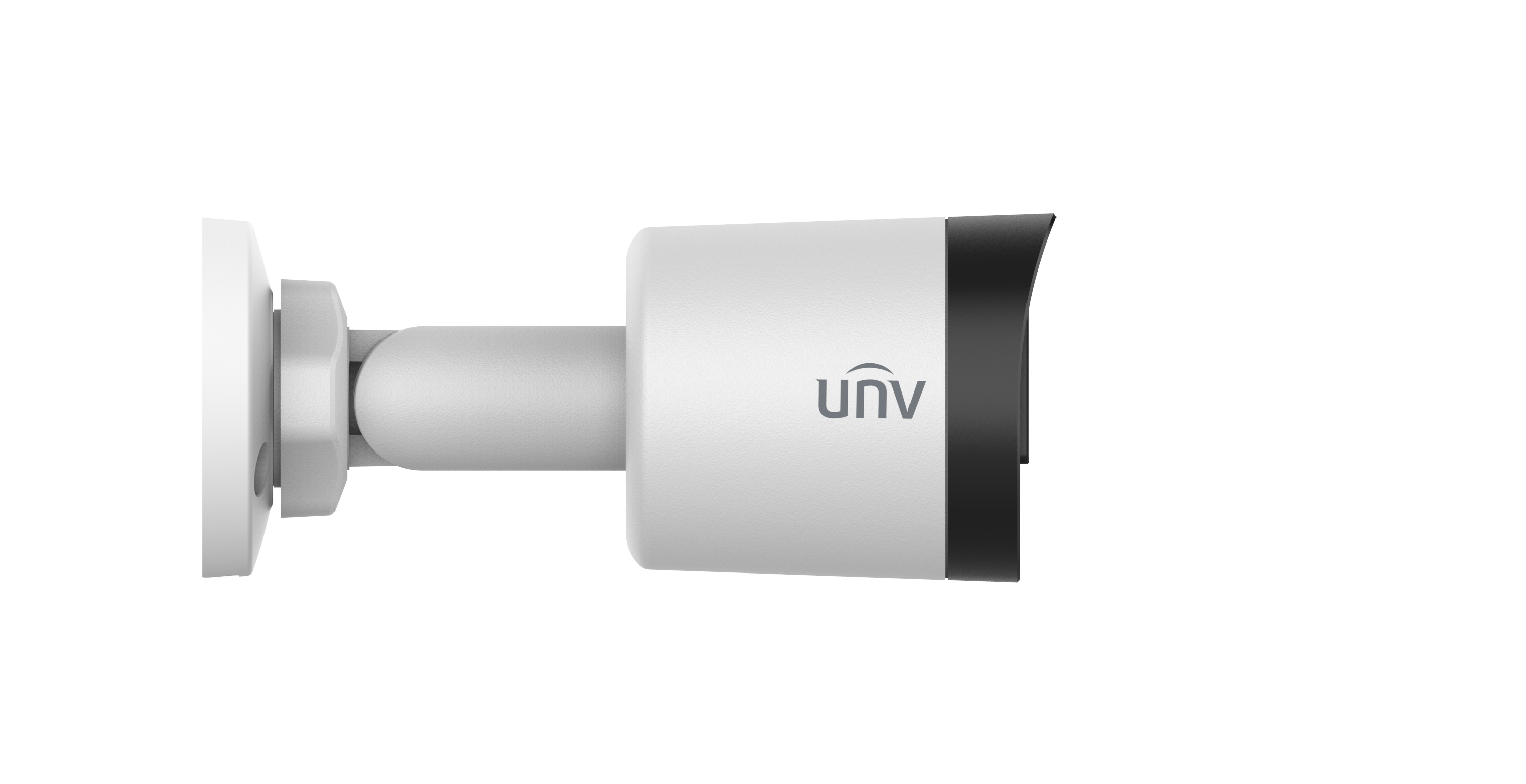

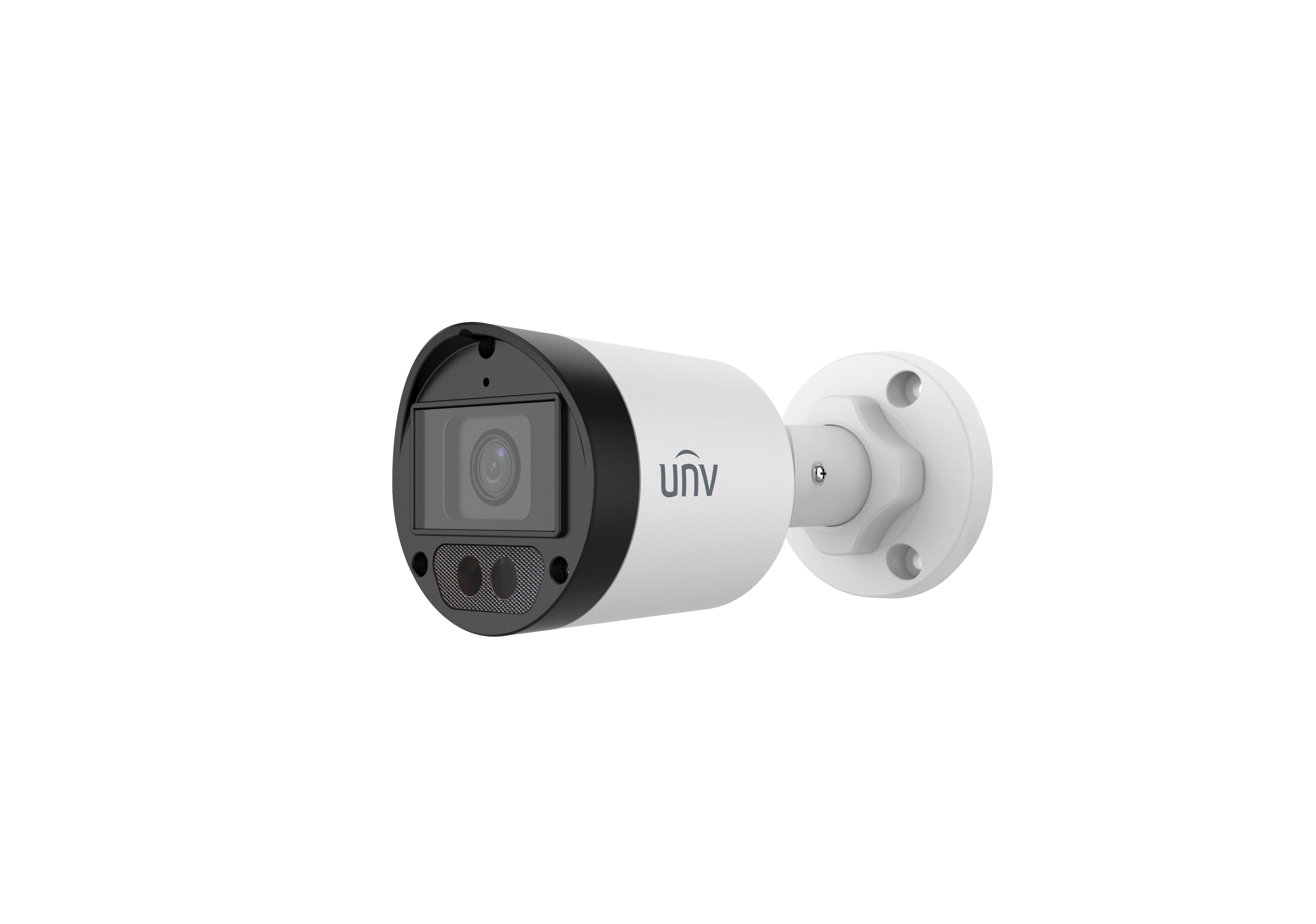

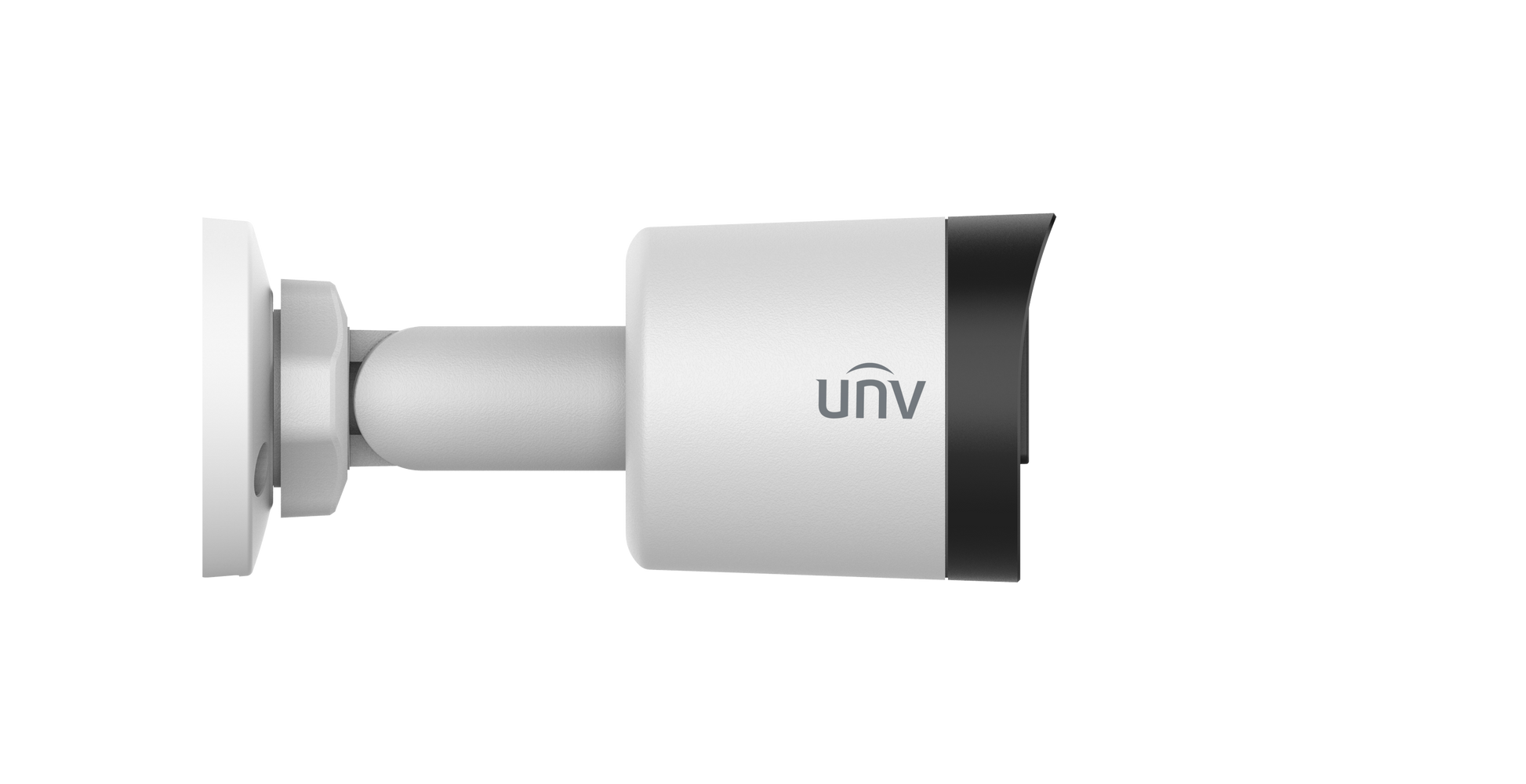

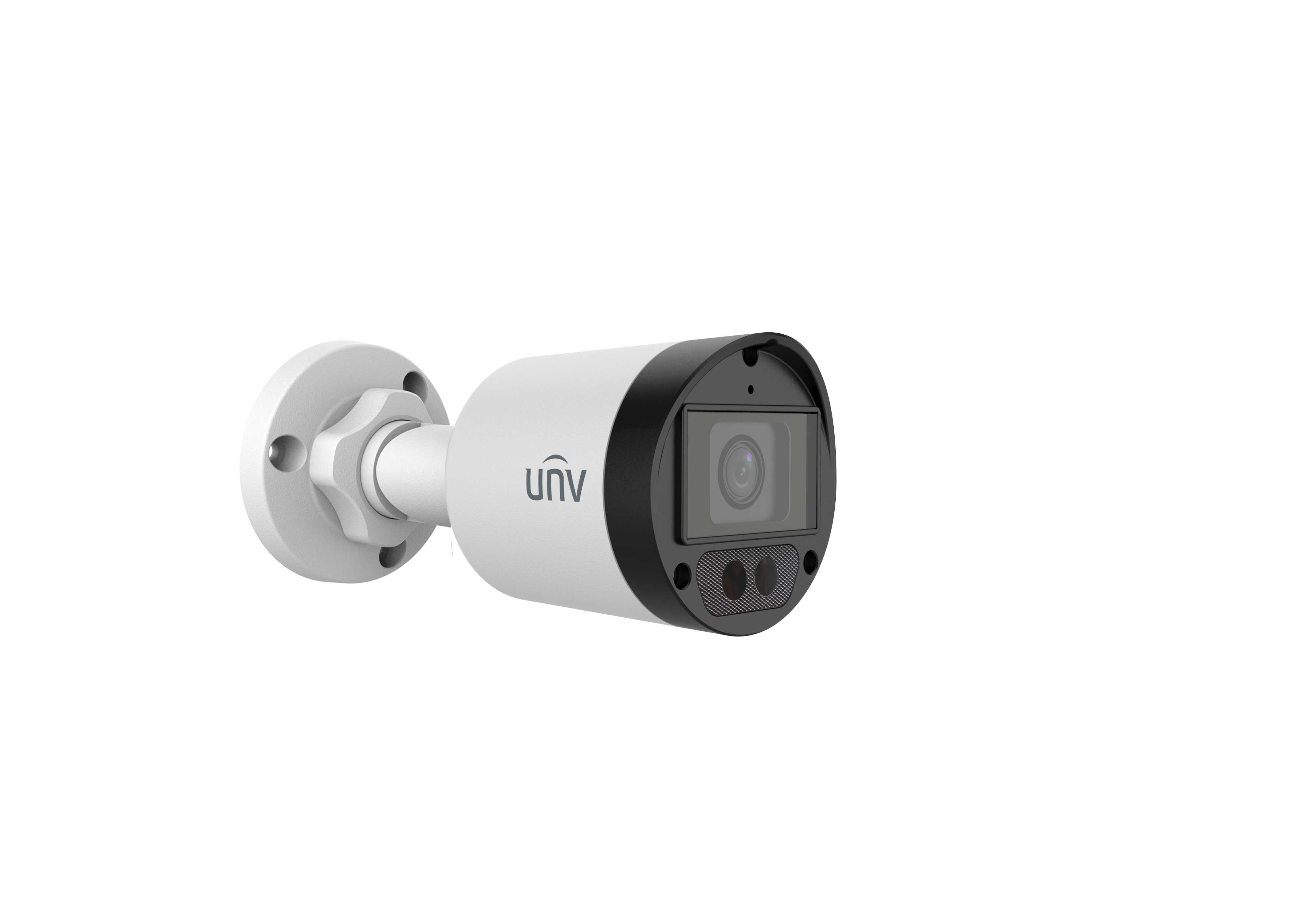

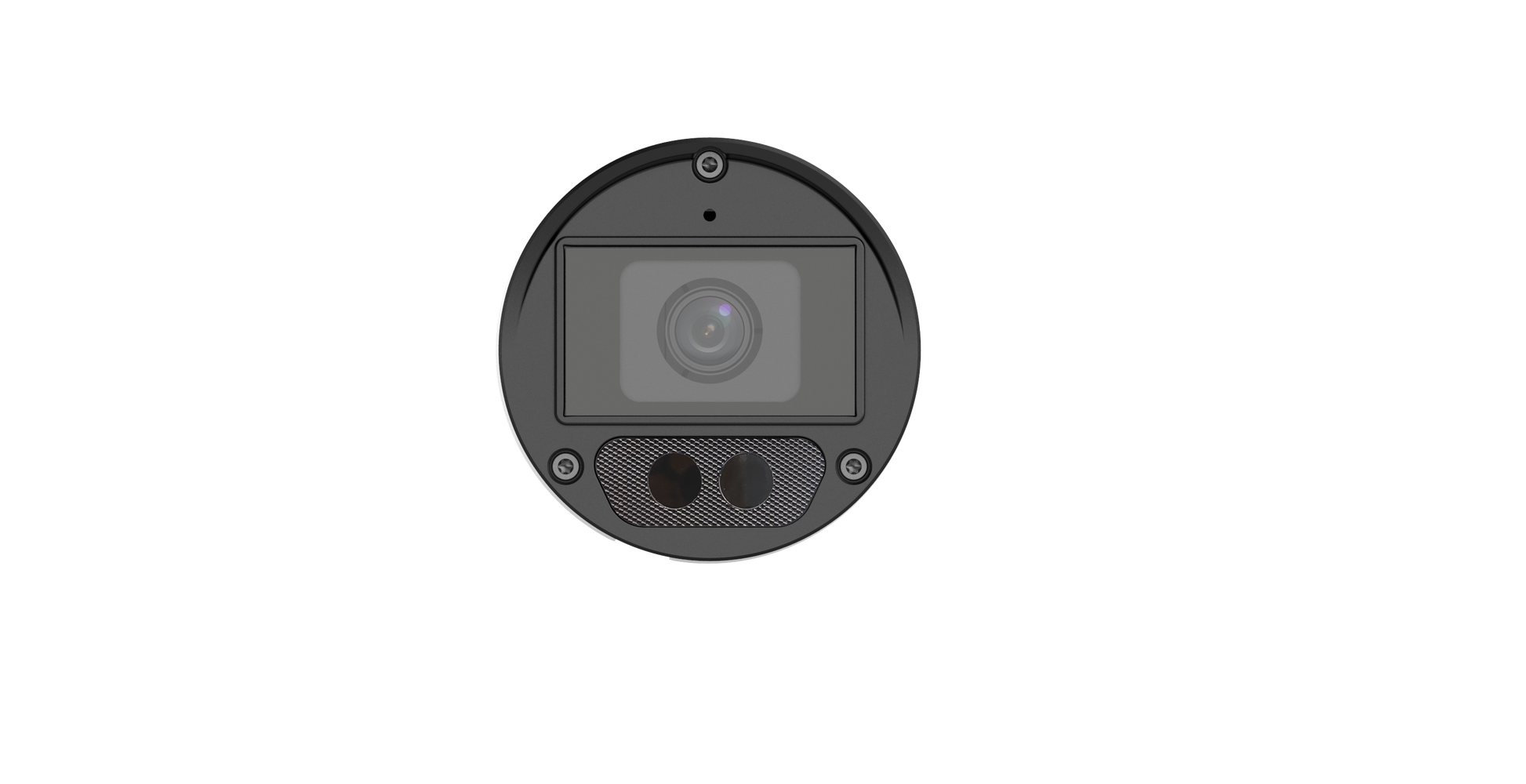

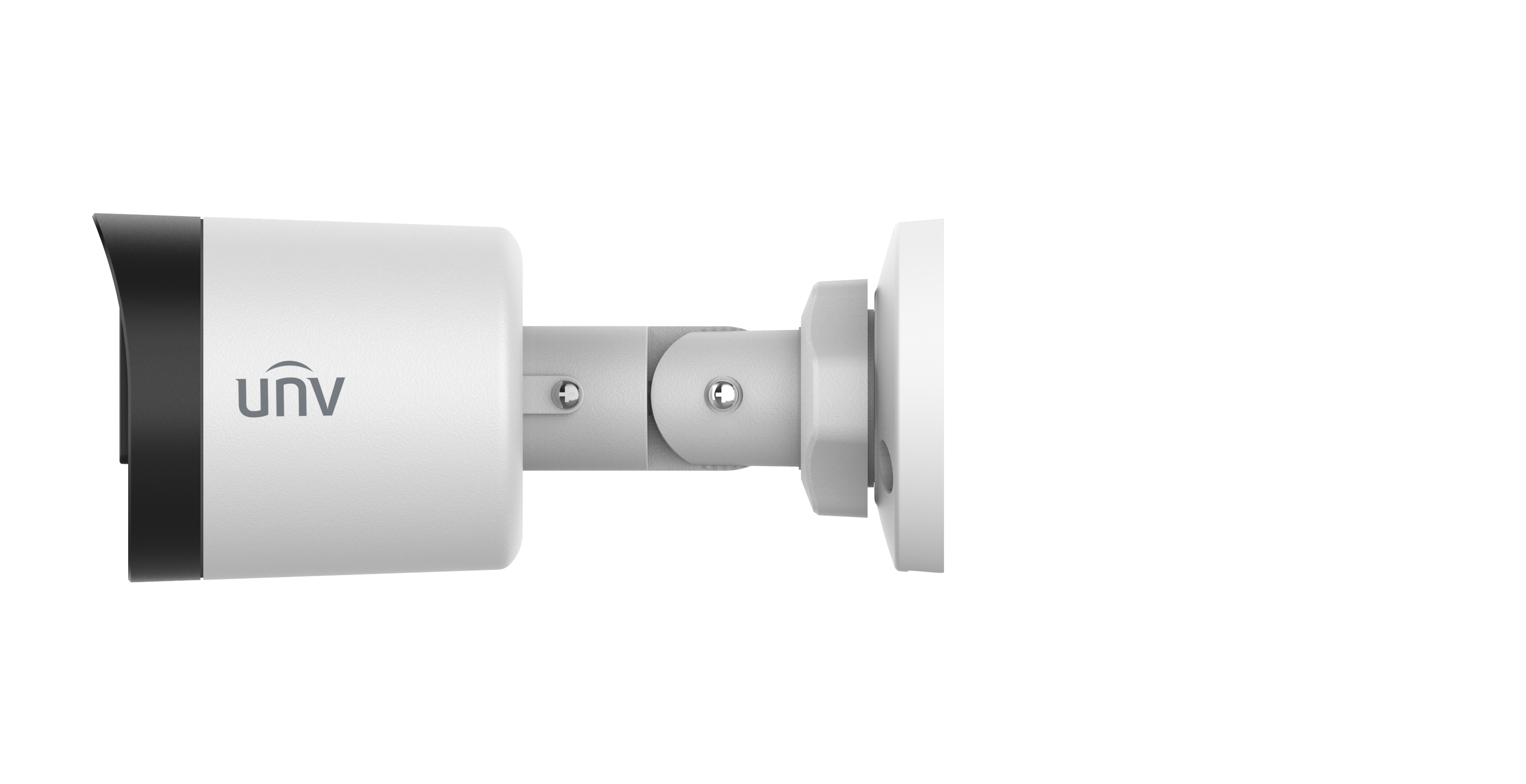

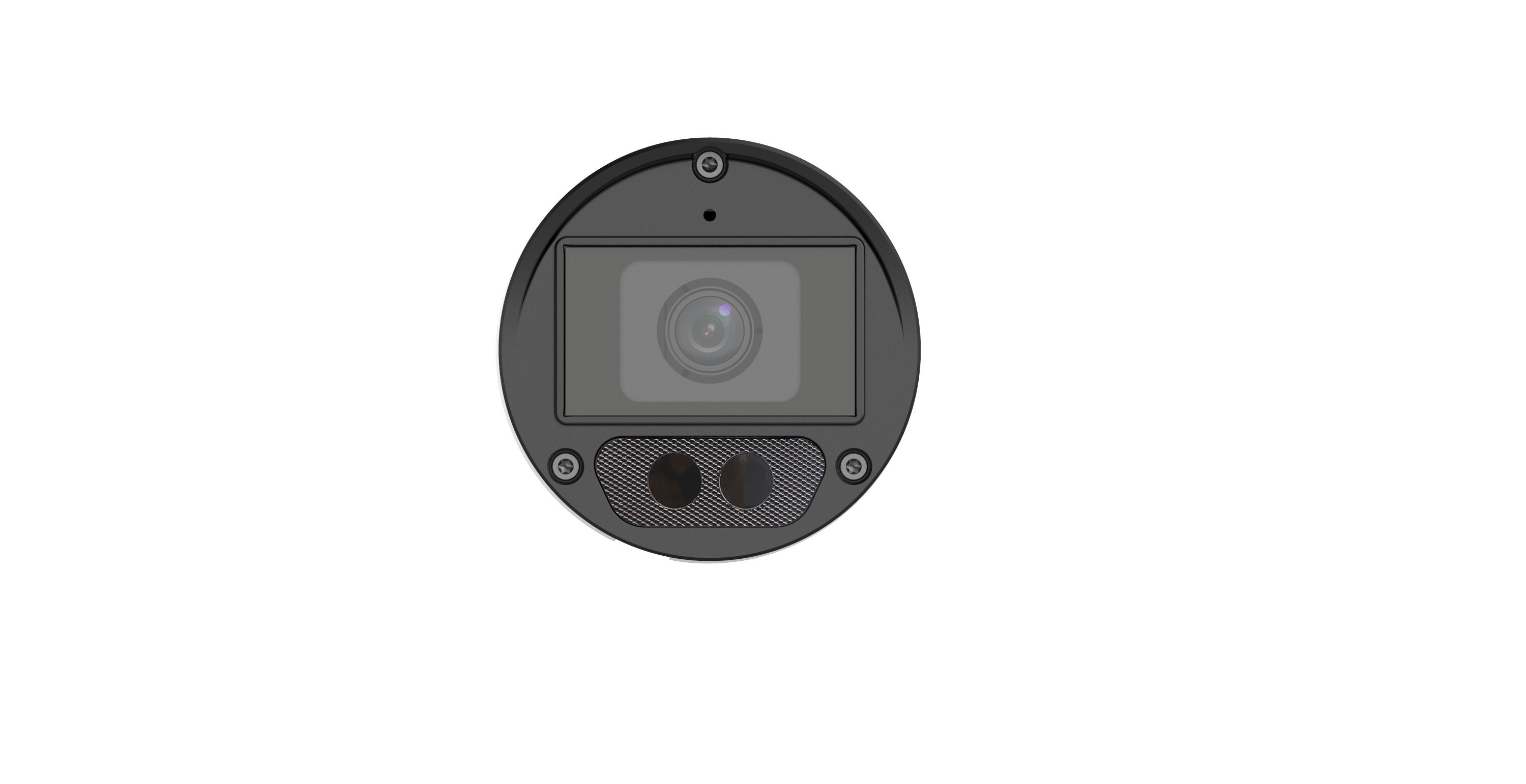

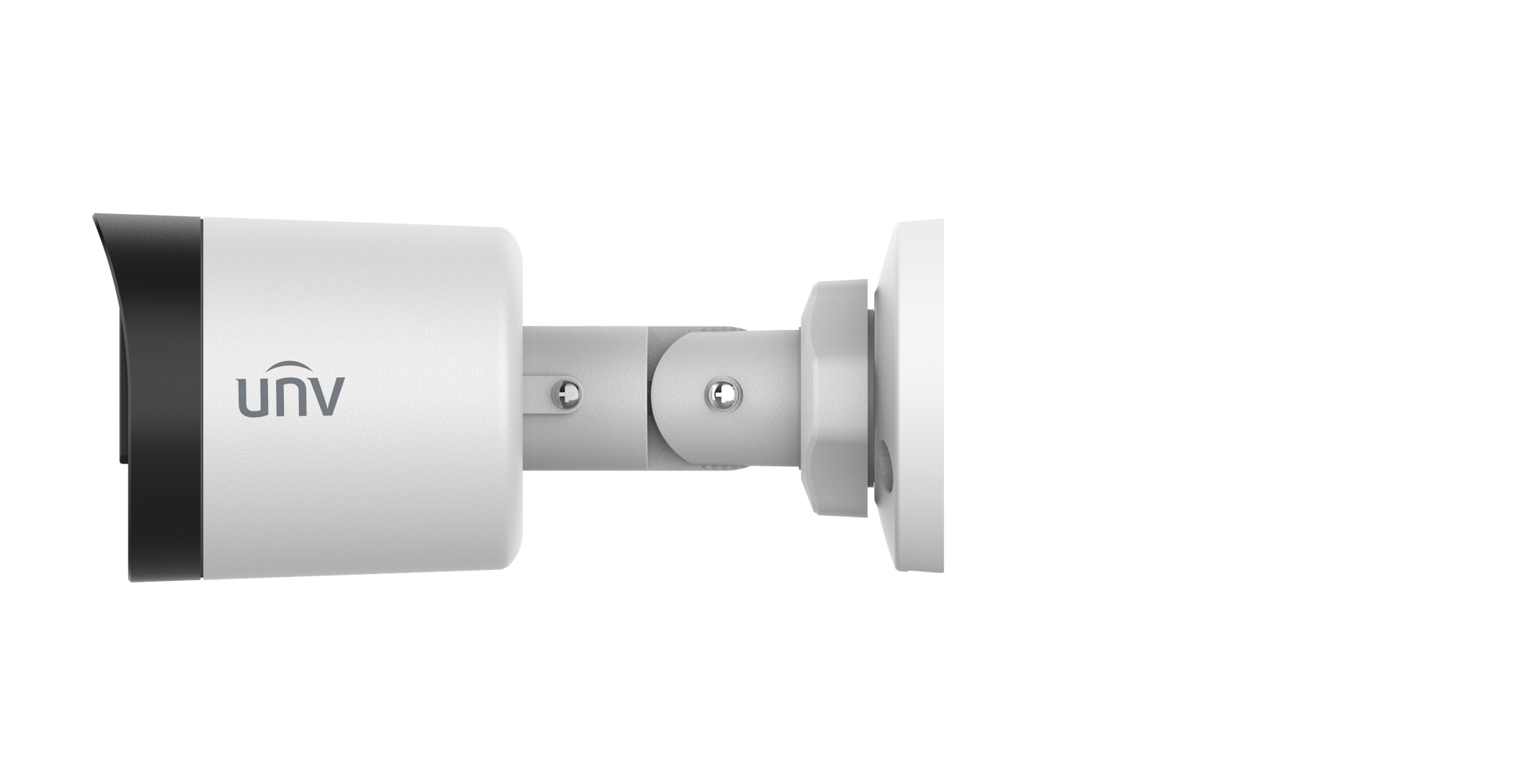

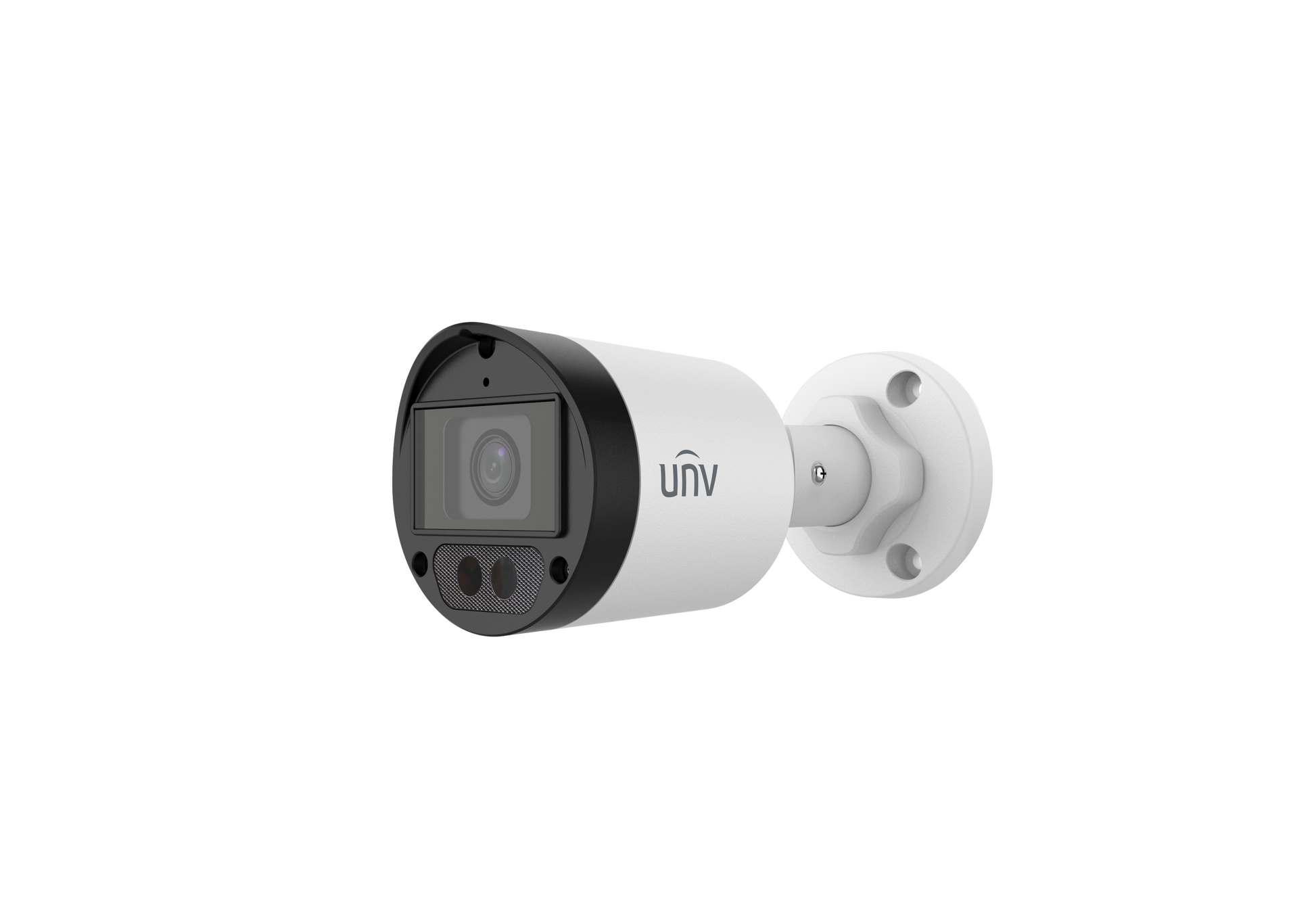

UNV 8MP IR Bullet HD Analog CameraPart Number: UAC-B128-ADF28MS
Resolution
8MP @ 15fps
Lens & Zoom
2.8mm Fixed Lens
Night Vision
131 ft (IR)
Power
DC12V (4.8W)
Feature Highlights
Sensor Type
1/2.7" CMOS (0.005Lux Low Light)
Field of View
109.1° (Horizontal)
WDR & Imaging
120dB True WDR
I/O & Audio
Built-in Microphone
SD Card Slot
N/A
NDAA Compliant
Yes
Warranty Period
3 Years
A Plus Guard (Cloud Compatible)
N/A
| Optics, Storage & Hardware | |
|---|---|
| Lens | |
| Focus | UACB128ADF28MS:2.8mm |
| Lens Mount | M12 |
| Angle of View (H) | UACB128ADF28MS:109.1° |
| Angle of View (V) | UACB128ADF28MS:61.0° |
| Angle of View (D) | UACB128ADF28MS:126.7° |
| Illuminator | |
| Illuminator Number | Two IR illuminators |
| Illumination Distance | 40m |
| Lifetime | ≥60000 hours |
| Video | |
| Resolution | 4K: 3840(H) × 2160(V) 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) |
| Frame Rate | CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25s1/50000s， NTSC: 1/30s1/50000s |
| Image | |
| Exposure Mode | Four modes: Global(default), BLC, HLC, WDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Digital Noise Reduction | 2D/3D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | 120dB WDR |
| Smart IR | Support |
| Flip | Supports 180°horizontal flip, 180°vertical flip |
| Digital Defog | N/A |
| Audio | |
| Built-in Mic | Support |
| Camera Audio | CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps |
| Interface | |
| Power Interface | 5.5mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Smart Features & General | |
|---|---|
| Sensor | |
| Pixel | 8MP |
| Sensor Size | 1/2.7" |
| Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR ON) |
| Operating Environment | |
| Temperature | 30 ℃ ~ 60 ℃ (22 °F ~ 140 °F) |
| Humidity | ≤95% RH (noncondensing) |
| Surge Protection | 4kV for power&4kV for video output interfaces |
| General | |
| Power | DC12V±25% |
| Power Consumption | MAX 4.8W |
| Mount | Corner Mount&Pole Mount |

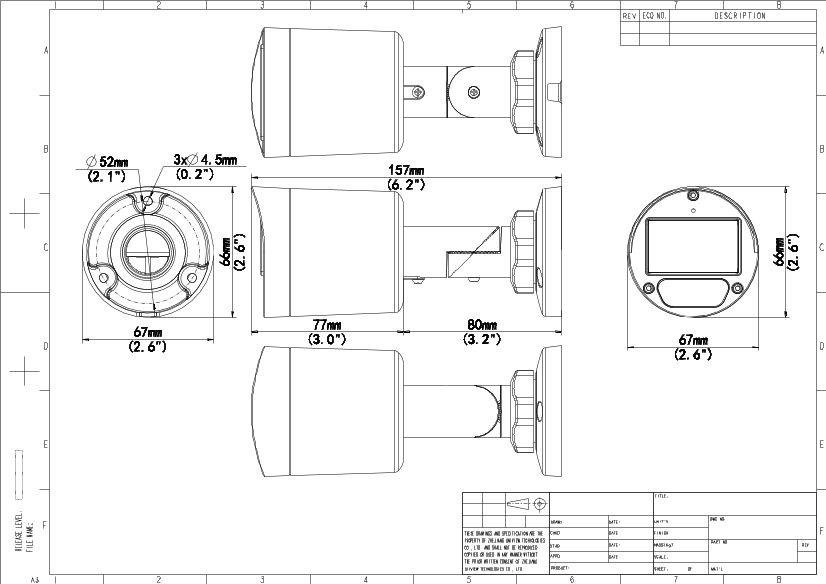

| Dimensions | 157mm*67mm*66mm (L*W*H) |
| Material | Metal |
| Weight | 300g(0.67lb) |
| OSD Menu Language | 11 Languages English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish |
| Certification | |
| EMC | CEEMC (EN 55032, EN 6100033, EN IEC 6100032, EN 55035)FCC (FCC 47 CFR part15 B) |
| Safety | CELVD (EN 623681) |
| Environment | CERoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
