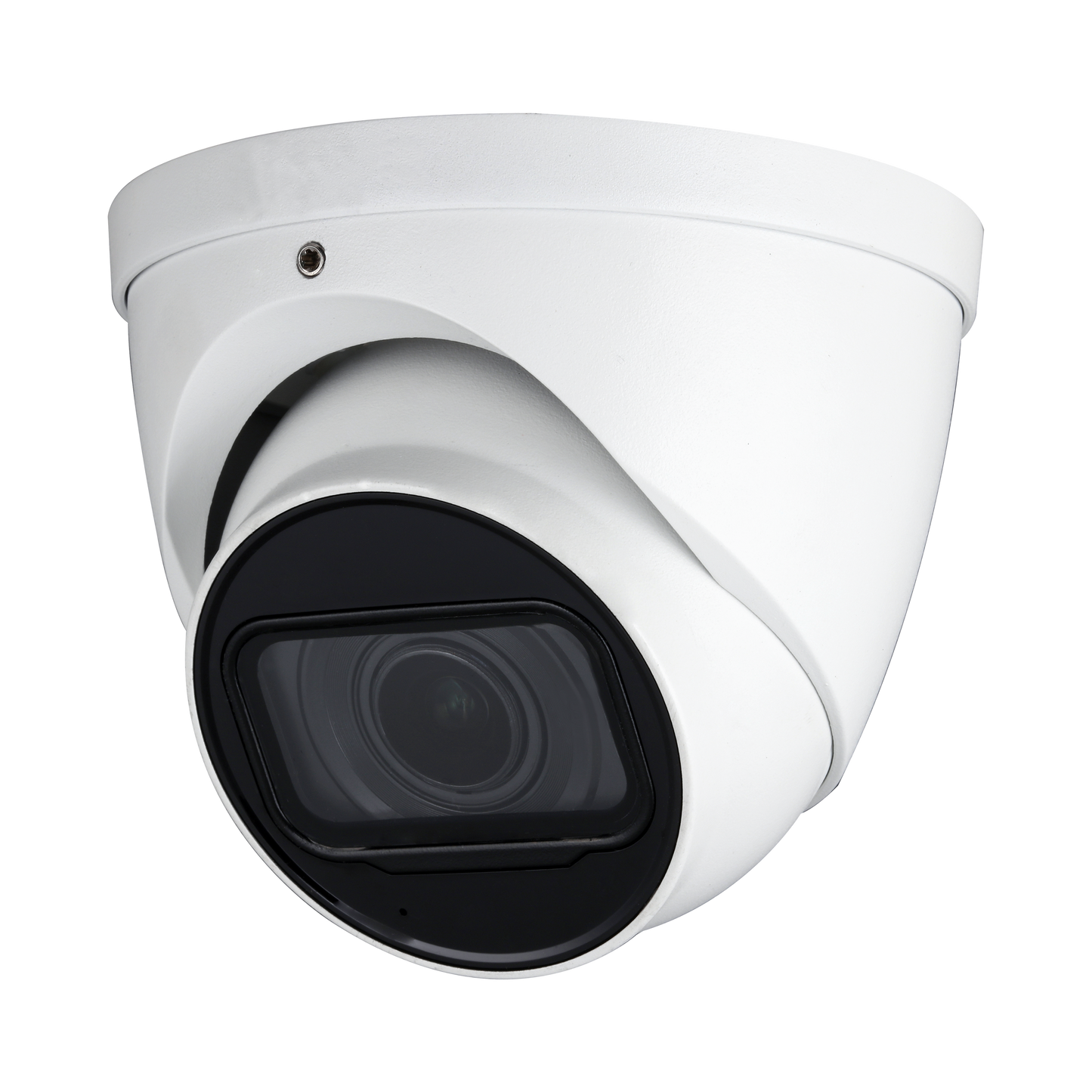

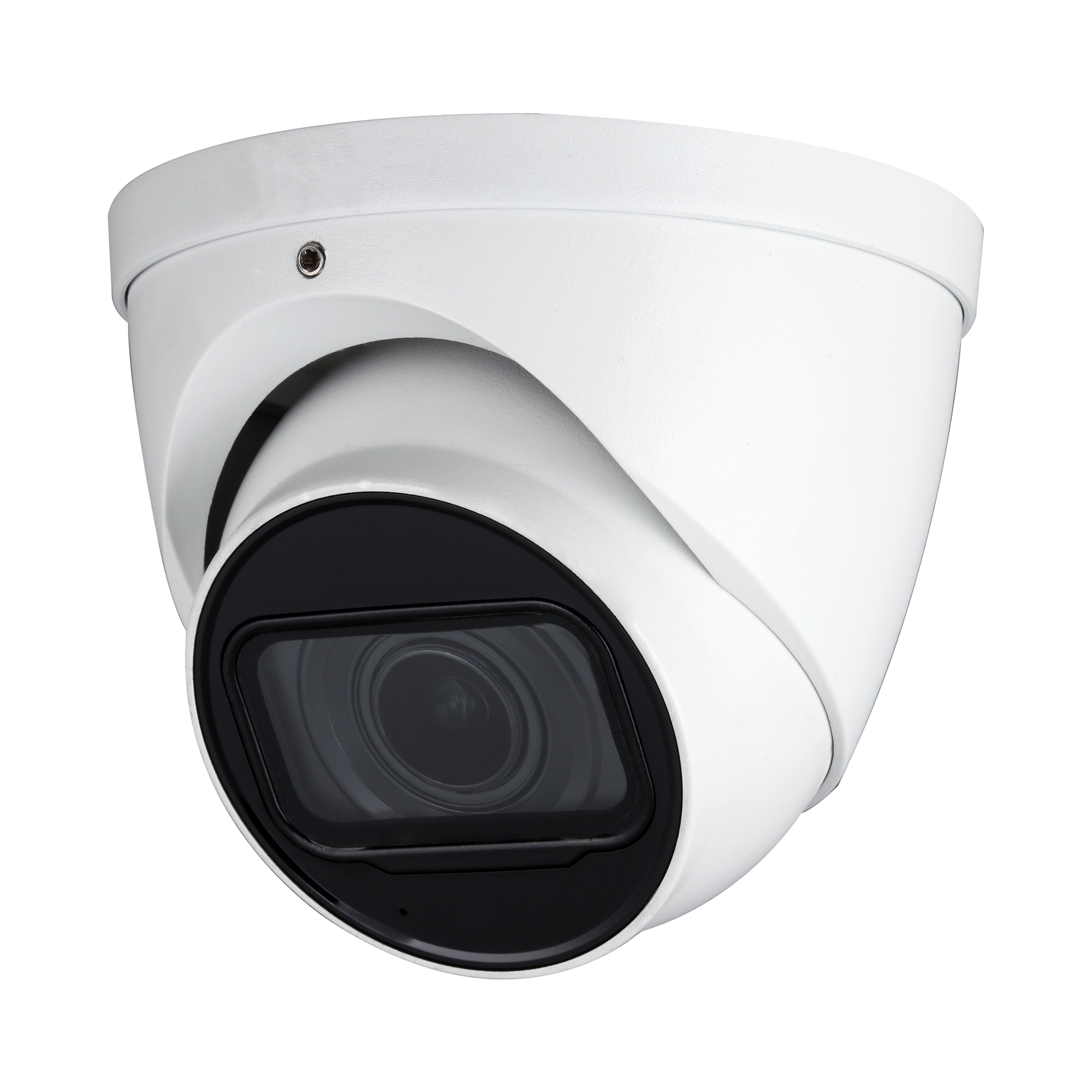

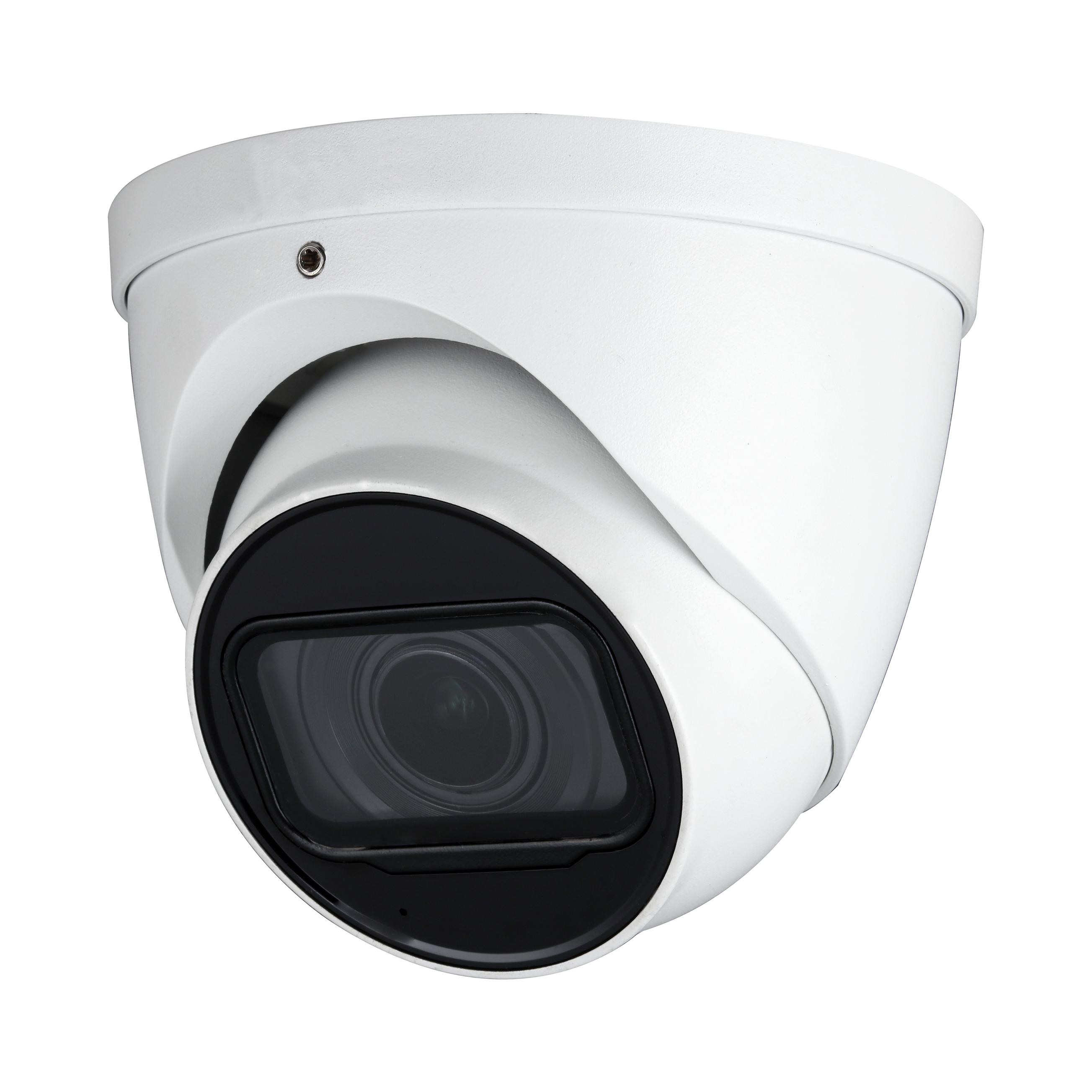

Part Number: HAC-DV18W-A-MZ
Lens Type: 2.7-13.5mm@F1.5, Motorized Zoom and Auto Focus
Video Format: CVI (4K@15fps), TVI (4K@15fps), AHD (4K@15fps), CVBS (960H)
Angle of View: 32°-114° (Horizontal)
Min. Illumination: Color 0.01Lux/F1.5; B/W 0lux (IR On)
Night Vision Distance: 196.85 Feet (IR)
WDR: 120dB
Audio: Built-in Microphone
Power: DC12V / Max 7.9W
NDAA Compliant: No
Warranty Period: 3 Years
|
Technical Specification |
|||||
|
Camera |
|||||
|
Pixel |
8 MP |
||||
|
Image Sensor |
4K CMOS |
||||
|
Max. Resolution |
3840 (H) × 2160 (V) |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
||||
|
Min. Illumination |
0.01 lux@F1.5 (Color, 30 IRE) 0.001 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
||||
|
S/N Ratio |
>65 dB |
||||
|
Illumination Distance |
60 m (196.85 ft) |
||||
|
Illuminator On/Off Control |
Auto/Manual |
||||
|
Illuminator Number |
2 (IR light) |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
||||
|
Lens |
|||||
|
Lens Type |
Motorized Vari-focal |
||||
|
Auto Focus |
Yes |
||||
|
Lens Mount |
φ14 |
||||
|
Focal Length |
2.7 mm–13.5 mm |
||||
|
Max. Aperture |
F1.5 |
||||
|
Field of View |
Horizontal: 114°–32° Vertical: 58°–17° Diagonal: 138°–36° |
||||
|
Iris Control |
Fixed |
||||
|
Close Focus Distance |
0.8m |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
W |
85.3 m (279.86 ft) |
34.1 m (111.88 ft) |
17.1 m (56.10 ft) |
8.5 m (27.89 ft) |
|
|
T |
280.0 m (918.64 ft) |
112.0 m (367.45 ft) |
56.0 m (183.73 ft) |
28.0 m (91.87 ft) |
|
|
Video |
|||||
|
Video Frame Rate |
CVI: PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps TVI: PAL: 4K@15 fps NTSC: 4K@15 fps AHD: PAL: 4K@15 fps NTSC: 4K@15 fps CVBS: PAL: 960H NTSC: 960H |
||||
|
Resolution |
4K (3840 x 2160); 5M (2880 x 1620); 4M (2560 x 1440); 1080P (1920 x 1080); 960H (960 x 576/960 x 480) |
||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||
|
BLC |
BLC; HLC; WDR; HLC-Pro |
||||
|
WDR |
120 dB |
||||
|
White Balance |
Auto;Area white balance |
||||
|
Gain Control |
Auto/Manual |
||||
|
Noise Reduction |
3D NR |
||||
|
Motion Detection |
Yes |
||||
|
Illumination Mode |
Smart IR |
||||
|
Defog |
Electronic defog |
||||
|
Digital Zoom |
4× |
||||
|
Mirror |
Yes |
||||
|
Privacy Masking |
Off/On (8 areas, rectangle) |
||||
|
Certification |
|||||
|
Certifications |
CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
||||
|
Port |
|||||
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
||||
|
Audio Input |
One channel built-in MIC |
||||
|
Power |
|||||
|
Power Supply |
12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera) |
||||
|
Power Consumption |
Max 7.9W (12 VDC, IR on) |
||||
|
Environment |
|||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||
|
Operating Humidity |
<95% (RH), non-condensing |
||||
|
Storage Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||
|
Protection |
IP67 |
||||
|
Structure |
|||||
|
Casing Material |
Metal |
||||
|

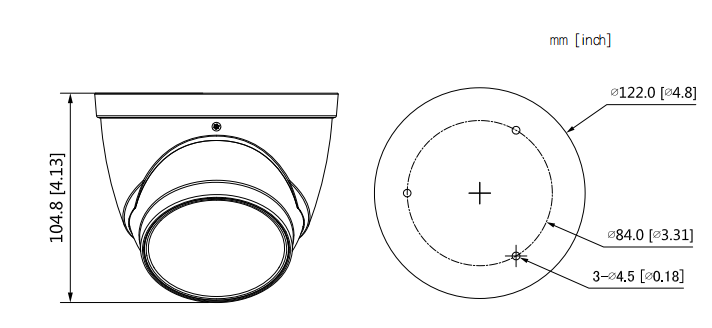

Product Dimensions |
Φ122.0 mm × 104.8 mm (Φ4.80" × 4.13") |
||||
|
Net Weight |
0.57 kg (1.26 lb) |
||||
|
Gross Weight |
0.74 kg (1.63 lb) |
||||
|
Installation |
Wall mount; ceiling mount; vertical pole mount |
||||
