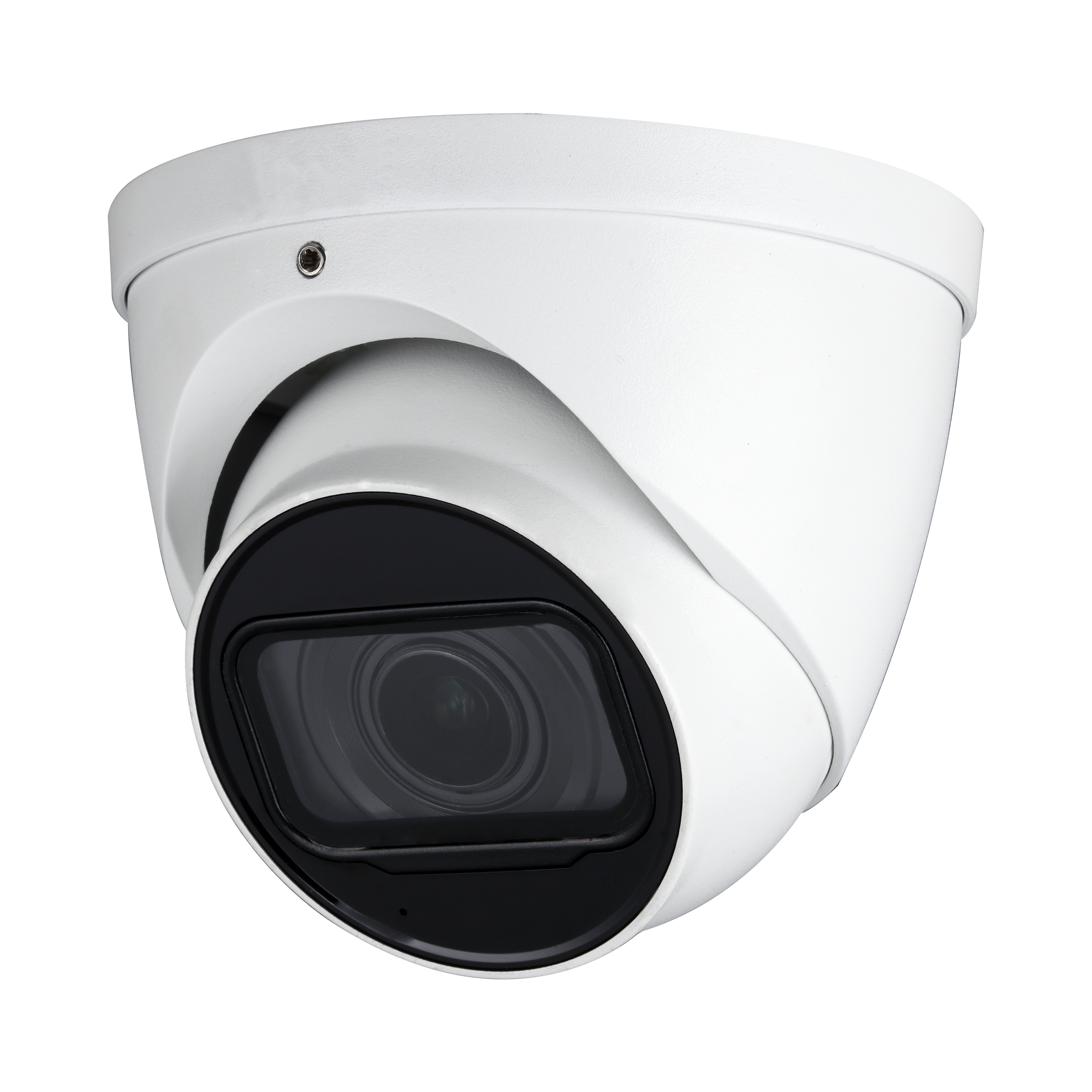

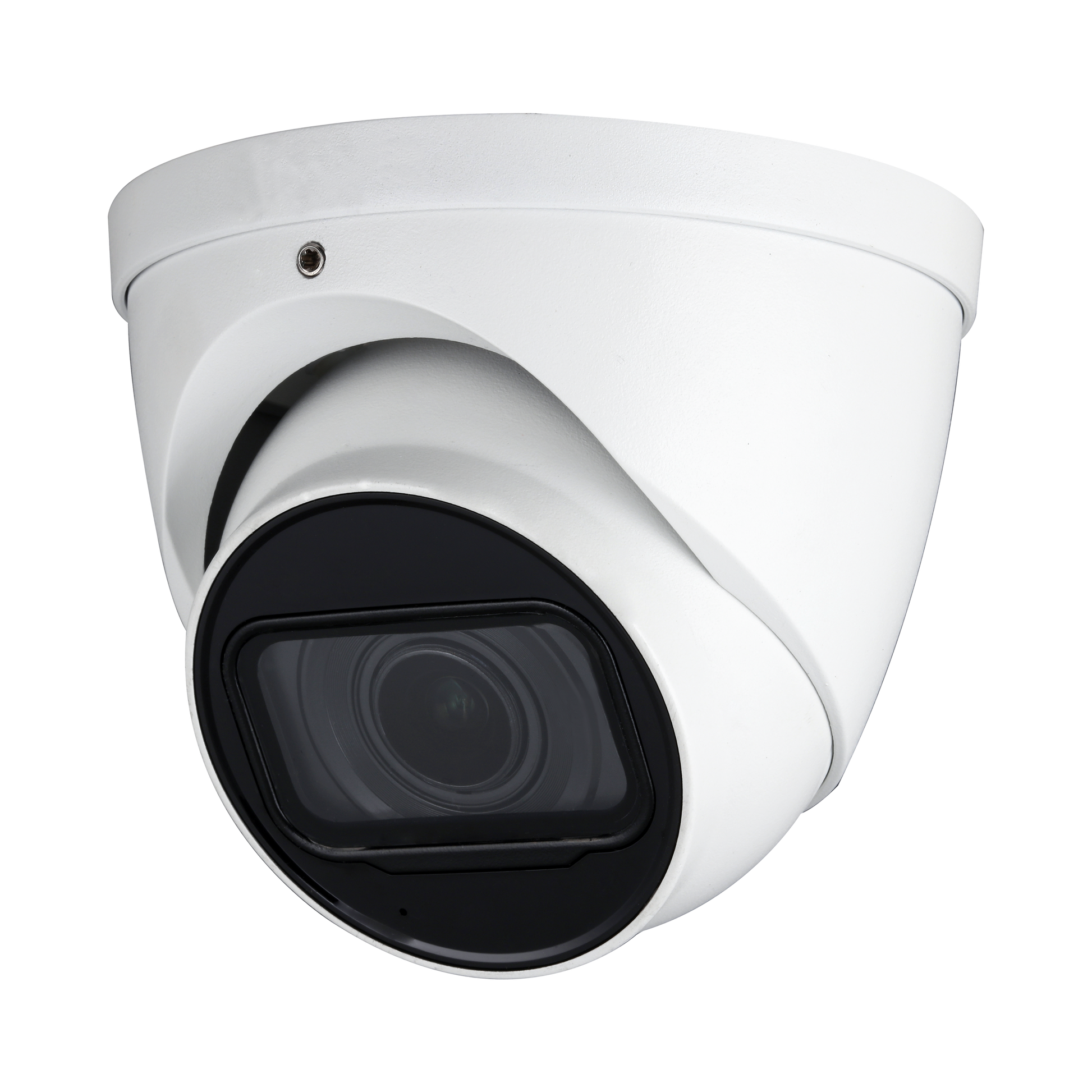

Part Number: HAC-DV15W-A-MZ
Lens Type: 2.7-12mm@F1.6, Motorized Zoom (Manual Focus)
Video Format: CVI (5MP@25fps), TVI (4MP@30fps), AHD (4MP@30fps), CVBS (960H)
Angle of View: 34°-107° (Horizontal)
Min. Illumination: Color 0.005Lux/F1.6; B/W 0lux (IR On)
Night Vision Distance: 196.9 Feet (IR)
WDR: DWDR
Audio: Built-in Microphone
Power: DC12V / Max 6.6W
NDAA Compliant: No
Warranty Period: 3 Years
|
Technical Specification |
|||||
|
Camera |
|||||
|
Image Sensor |
1/2.7 inch CMOS |
||||
|
Max. Resolution |
2880 (H) × 1620 (V) |
||||
|
Pixel |
5MP |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
||||
|
S/N Ratio |
> 65 dB |
||||
|
Min. Illumination |
0.01 Lux/F1.6, 30IRE, 0 Lux IR on |
||||
|
Illumination Distance |
60 m (196.9 ft) |
||||
|
Illuminator On/Off Control |
Auto; manual |
||||
|
Illuminator Number |
2 |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
||||
|
Lens |
|||||
|
Lens Type |
Motorized vari-focal |
||||
|
Auto Focus |
N/A |
||||
|
Mount Type |
φ14 |
||||
|
Focal Length |
2.7 mm–12 mm |
||||
|
Max. Aperture |
F1.6 |
||||
|
Field of View |
Diagonal: 39°–130° Horizontal: 34°–107° Vertical: 19°–55° |
||||
|
Iris Type |
Fixed iris |
||||
|
Close Focus Distance |
0.5 m (1.64 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.7 mm |
69 m (226.37 ft) |
27.6 m (90.55 ft) |
13.8 m (45.27 ft) |
6.9 m (22.63 ft) |
|
|
12 mm |
191.6 m (628.6 ft) |
76.64 m (251.44 ft) |
38.32 m (125.72 ft) |
19.16 m (62.86 ft) |
|
|
Video |
|||||
|
Frame Rate |
CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
||||
|
Resolution |
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
||||
|
Day/Night |
Auto switch by ICR |
||||
|
BLC |
BLC/HLC/DWDR |
||||
|
WDR |
DWDR |
||||
|
White Balance |
Auto; manual |
||||
|
Gain Control |
Auto; manual |
||||
|
Noise Reduction |
2D NR |
||||
|
Smart IR |
Yes |
||||
|
Mirror |
Off/On |
||||
|
Privacy Masking |
Off/On (8 area, rectangle) |
||||
|
Certifications |
|||||
|
Certifications |
CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
||||
|
Port |
|||||
|
Audio Output |
One channel built-in mic |
||||
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
||||
|
Power |
|||||
|
Power Supply |
DC 12V ±30% |
||||
|
Power Consumption |
Max 6.6W (12V DC, IR on) |
||||
|
Environment |
|||||
|
Operating Temperature |
–30°C to +60°C (–22°F to +140°F); <95% (non-condensation) |
||||
|
Storage Temperature |
–30°C to +60°C (–22°F to +140°F); <95% (non-condensation) |
||||
|
Protection Grade |
IP67 |
||||
|
Structure |
|||||
|
Casing |
Metal throughout the whole casing |
||||
|

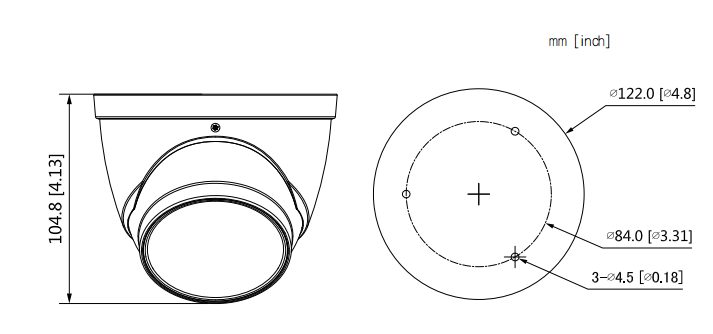

Camera Dimensions |
φ122 mm × 104.8 mm (φ4.80" × 4.13") |
||||
|
Net Weight |
0.57 kg (1.26 lb) |
||||
|
Gross Weight |
0.72 kg (1.59 lb) |
||||
