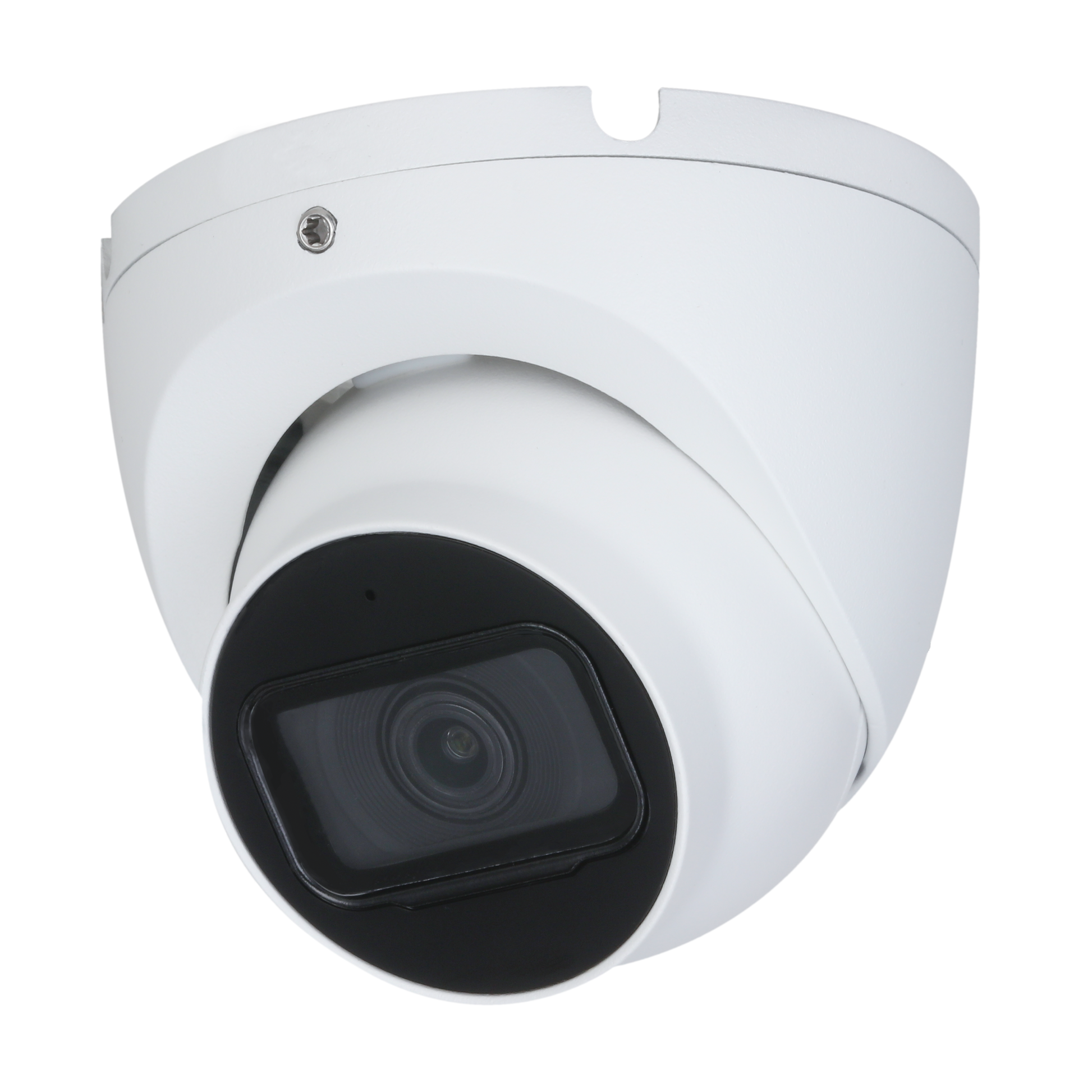

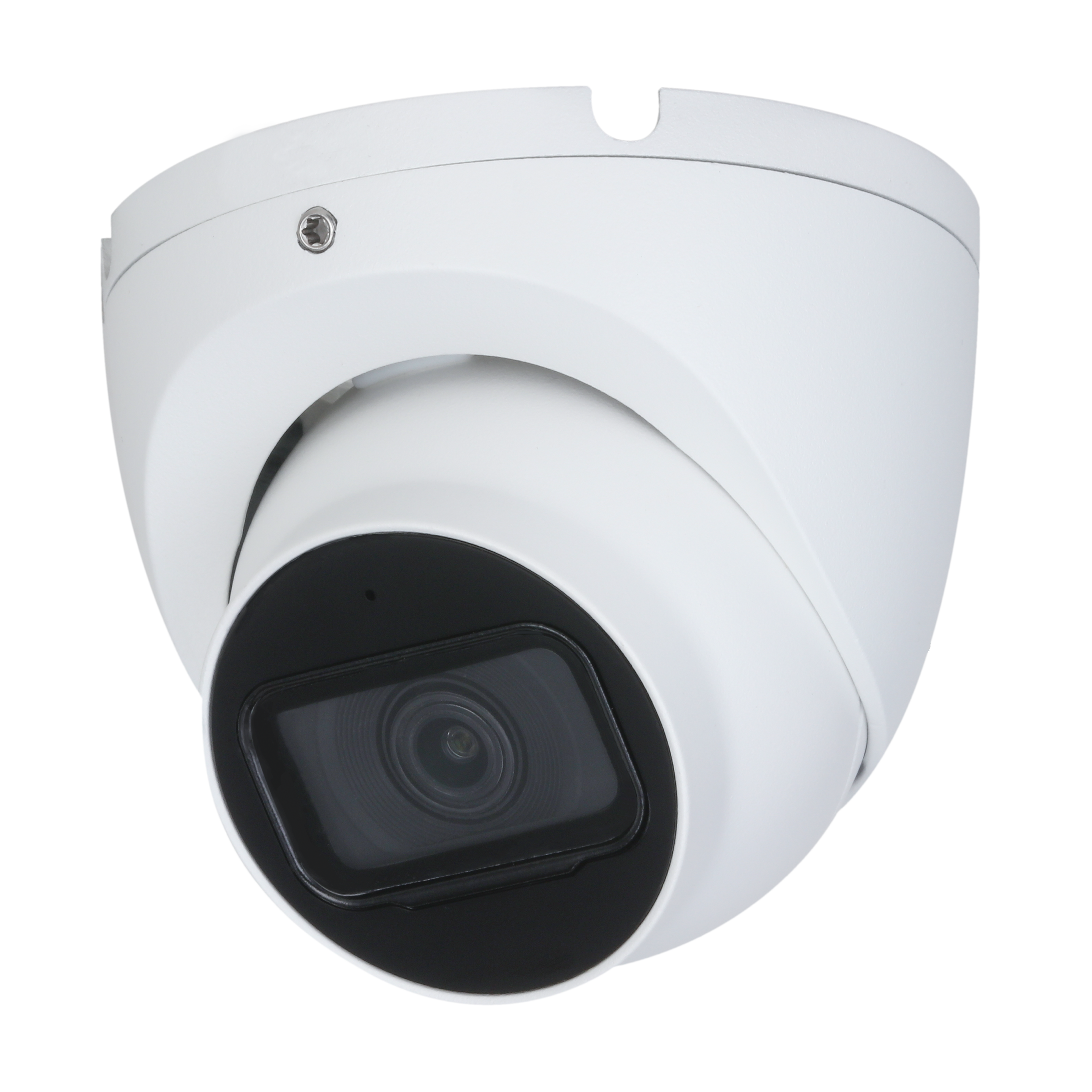

8MP 4-in-1 IR Fixed Turret Camera

Part Number: HAC-DF18W

Sensor Type: 4K CMOS
Lens Type: 2.8mm@F2.0
Video Format: CVI (4K@15fps), TVI (4K@15fps), AHD (4K@15fps), CVBS (960H)
Angle of View: 106° (Horizontal)
Min. Illumination: Color 0.01Lux/F2.0; B/W 0lux (IR On)
Night Vision Distance: 98.4 Feet (IR)
WDR: 120dB
Audio: N/A
Power: DC12V / Max 4.7W
NDAA Compliant: No
Warranty Period: 3 Years

Technical Specification

Camera

Image Sensor

4K CMOS

Max. Resolution

3840 (H) × 2160 (V)

Pixel

8MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.03Lux/F2.0, 30IRE, 0Lux IR on

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1 (IR light)



Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Lens

Lens Type

Fixed lens

Mount Type

M12

Focal Length

2.8 mm

Max. Aperture

F2.0

Field of View

2.8 mm:H:105° V:56° D:125°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1 m (3.3 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

75.0 m

(246.1 ft)

30.0 m (98.4 ft)

15.0 m

(49.2 ft)

8.0 m

(26.2ft)

Video

Video Frame Rate

CVI:

PAL: 4K@15fps; 5M@20fps; 4M@25fps; NTSC:4K@15fps; 5M@20fps; 4M@30fps; AHD:

PAL: 4K@15fps; 5M@20fps; 4M@25fps; NTSC:4K@15fps; 5M@20fps; 4M@30fps; TVI:

PAL: 4K@15fps; 5M@20fps; 4M@25fps; NTSC:4K@15fps; 5M@20fps; 4M@30fps; CVBS:

PAL: 960H; NTSC: 960H

Resolution

4K (3840×2160);

5M (2592×1944);

4M (2560×1440);

960H (960× 576/960×480);

Day/Night

Auto switch by ICR

BLC

BLC/HLC/WDR

WDR

120dB

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D NR

Smart Illumination

Yes

Defog

Electronic defog

Digital Zoom

Mirror

Off/On

Privacy Masking

Off/On (8area,rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4, EN62368-1)>

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one

BNC port

Audio Input

N/A

Power

Power Supply

12V ±30% DC

Power Consumption

Max 5.2W (12V DC, IR on)

Environment

Operating Temperature

–40°C to +60°C (-40°F to 140°F); < 95% (non-condensation)

Storage Temperature

–40°C to +60°C (-40°F to 140°F); < 95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

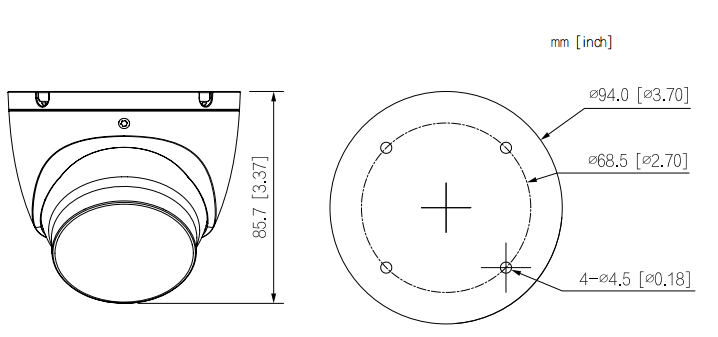

Camera Dimensions

φ94.0 mm × 85.7 mm (φ3.70" × 3.37")

Net Weight

0.33 kg (0.73 lb)

Gross Weight

0.47 kg (1.04 lb)
