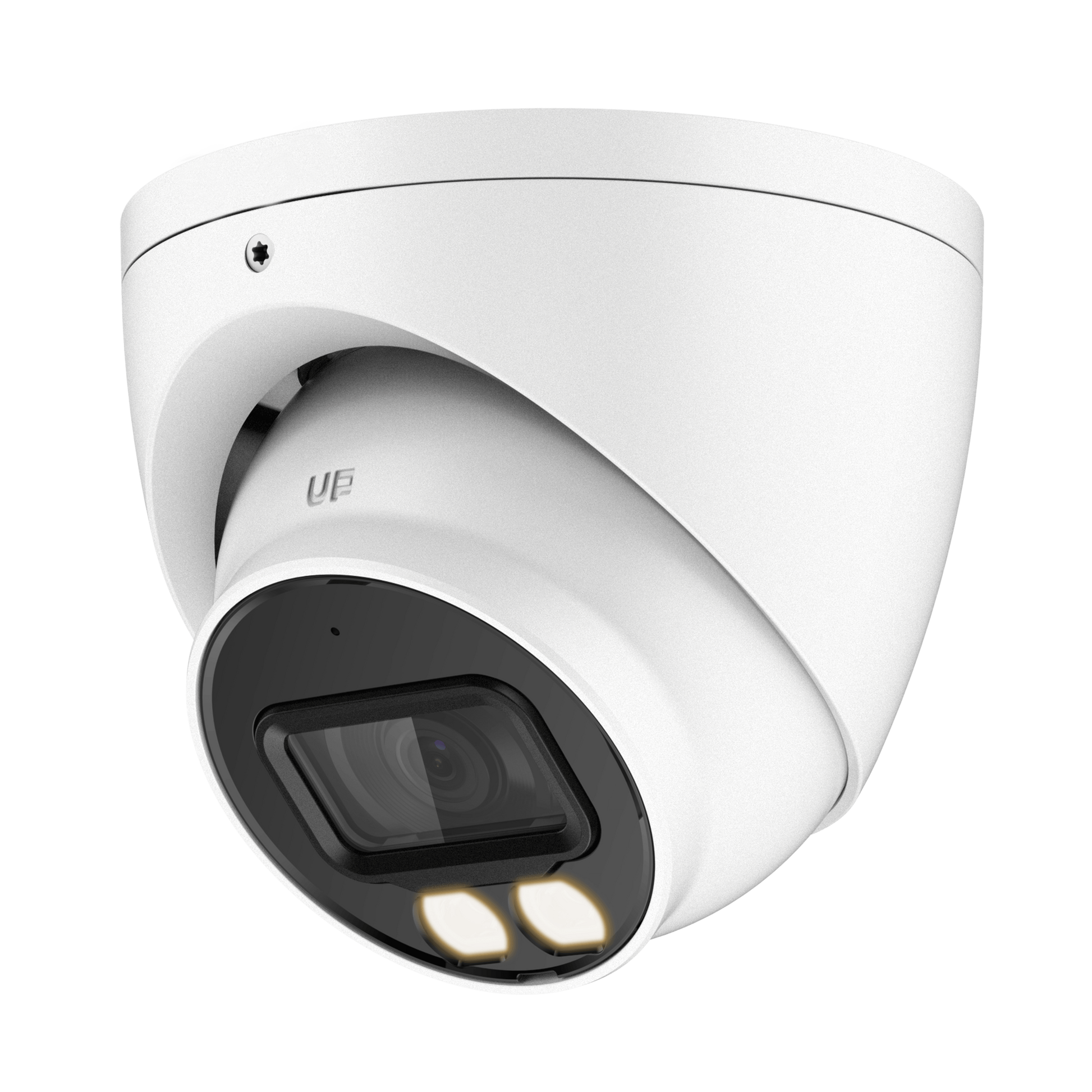

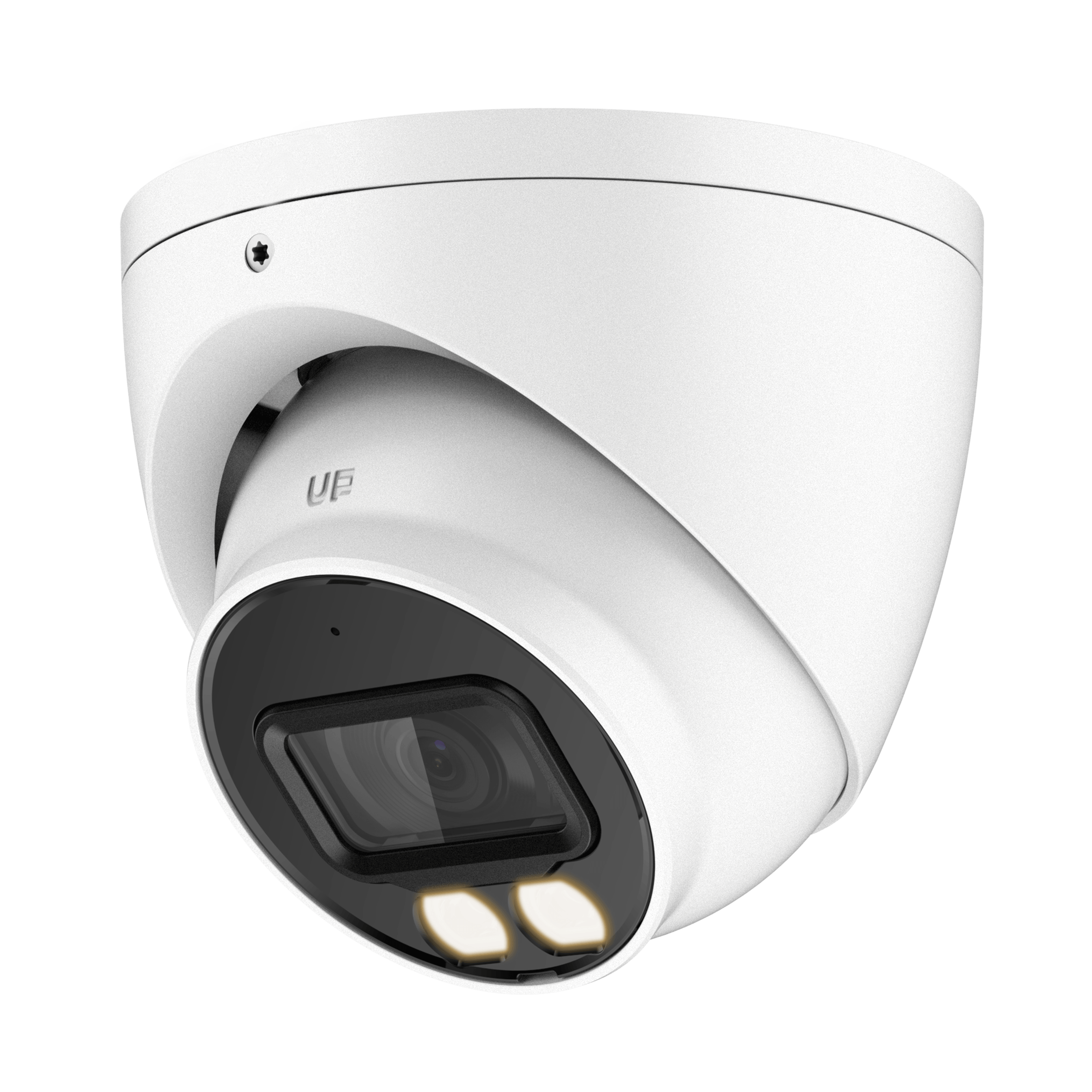

Part Number: HAC-DF15W-A-WL
Lens Type: 2.8mm@F1.0
Video Format: CVI (5M@25fps), TVI (4M@25fps), AHD (4M@25fps), CVBS (960H)
Angle of View: 112° (Horizontal)
Min. Illumination: Color 0.001Lux/F1.0; B/W 0lux (LED On)
Night Vision Distance: 131.2 Feet (LED)
WDR: 120dB
Audio: Built-in Microphone
Power: DC12V / Max 6.4W
NDAA Compliant: No
Warranty Period: 3 Years
|
Technical Specification |
|||||
|
Camera |
|||||
|
Image Sensor |
1/2.7 inch CMOS |
||||
|
Effective Pixels |
2592 (H) × 1944 (V), 5MP |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s |
||||
|
S/N Ratio |
>65dB |
||||
|
Minimum Illumination |
0.005Lux/F1.2, 0Lux White Light on |
||||
|
Fill Light (White Light) Distance |
Distance up to 40 m (131.23 ft) |
||||
|
Fill Light On/Off Control |
Auto; manual |
||||
|
Fill Light Number |
2 |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed-focal |
||||
|
Mount Type |
M12 |
||||
|
Focal Length |
2.8 mm |
||||
|
Max. Aperture |
F1.2 |
||||
|
Field of View |
2.8 mm: 129° × 98° × 71° (diagonal × horizontal × vertical) |
||||
|
Iris Type |
Fixed iris |
||||
|
Close Focus Distance |
2.8 mm: 1.6 m (5.25 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8 mm |
67.5 m (221.5 ft) |
27.0 m (88.6 ft) |
13.5 m (44.3 ft) |
6.7 m (22.0 ft) |
|
|
Video |
|||||
|
Frame Rate |
CVI: PAL: 5M@20fps, 4M@25fps, 1080P@25fps; NTSC: 5M@20fps, 4M@30fps, 1080P@30fps AHD: PAL: 5M@20fps, 4M@25fps; NTSC: 5M@20fps, 4M@30fps TVI: PAL: 5M@20fps, 4M@25fps; NTSC: 5M@20fps, 4M@30fps CVBS: PAL: 960H; NTSC: 960H |
||||
|
Resolution |
5M (2592 × 1944); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (704 × 576/704 × 480) |
||||
|
BLC |
BLC/HLC/DWDR |
||||
|
WDR |
DWDR |
||||
|
White Balance |
Auto; manual |
||||
|
Gain Control |
Auto; manual |
||||
|
Noise Reduction |
2D NR |
||||
|
Smart Light |
Yes |
||||
|
Mirror |
Off/On |
||||
|
Privacy Masking |
Off/On (8 area, rectangle) |
||||
|
Certifications |
|||||
|
Certifications |
CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
||||
|
Port |
|||||
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
||||
|
Audio Interface |
|||||
|
Audio Input |
Built-in mic |
||||
|
Power |
|||||
|
Power Supply |
12V ±30% DC |
||||
|
Power Consumption |
Max 5.0W (12V DC, white light on) |
||||
|
Environment |
|||||
|
Operating Temperature |
-40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
||||
|
Storage Temperature |
-40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
||||
|
Protection Grade |
IP67 |
||||
|
Structure |
|||||
|
Casing |
Metal throughout the whole casing |
||||
|

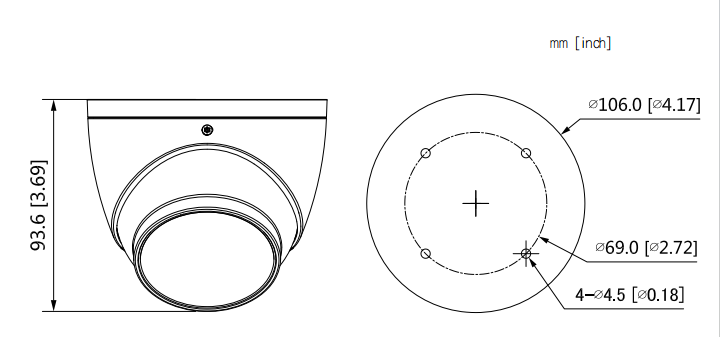

Camera Dimensions |
φ106.0 mm × 93.6 mm (φ4.17" × 3.69") |
||||
|
Net Weight |
0.46 Kg (1.01 lb) |
||||
|
Gross Weight |
0.61 Kg (1.34 lb) |
||||
