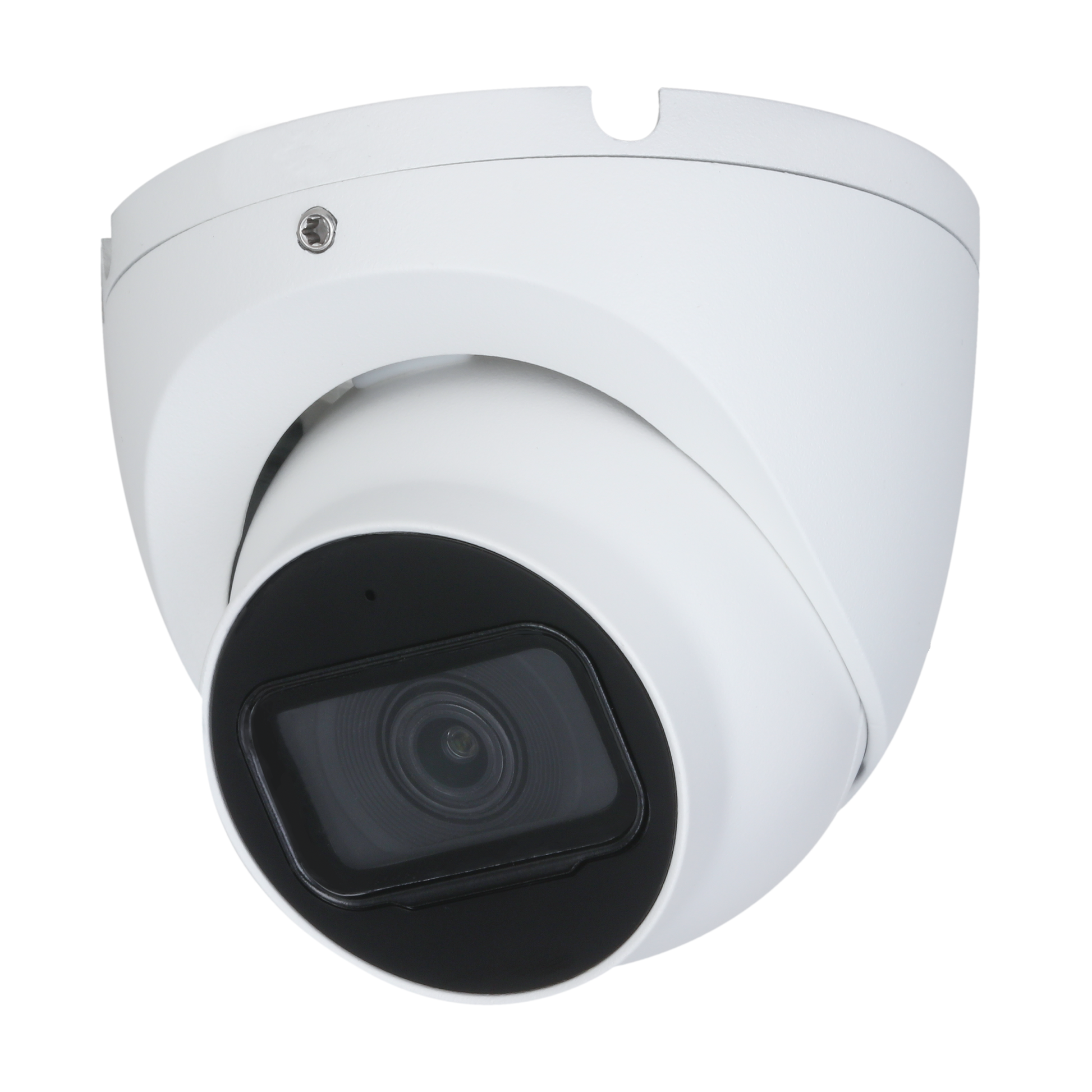

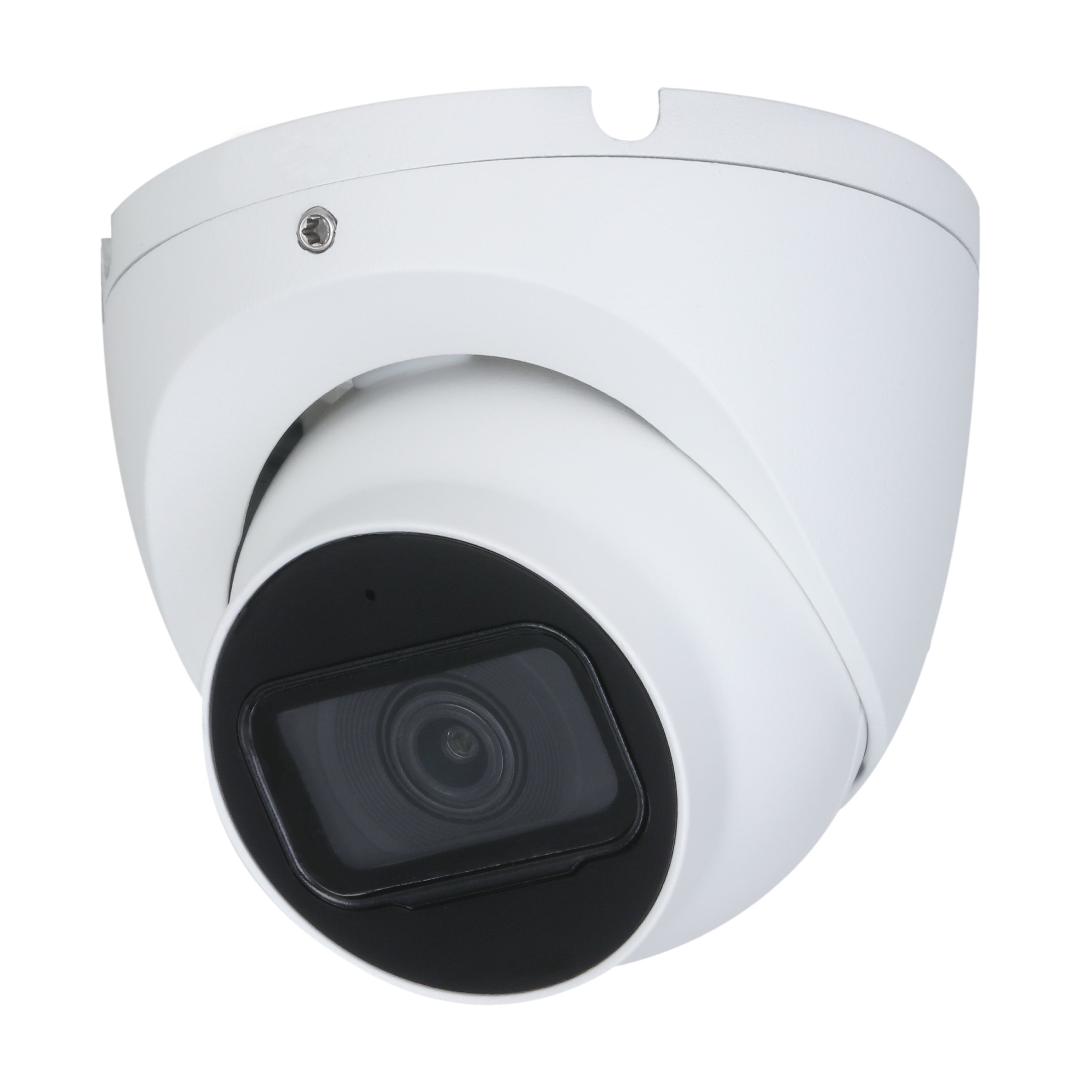

Part Number: HAC-DF15W
Lens Type: 2.8mm@F1.6
Video Format: CVI (5MP@25fps), TVI (4MP@30fps), AHD (4MP@30fps), CVBS (960H)
Angle of View: 111° (Horizontal)
Min. Illumination: Color 0.005Lux/F1.6; B/W 0lux (IR On)
Night Vision Distance: 98.4 Feet (IR)
WDR: DWDR
Audio: N/A
Power: DC12V / Max 3.2W
NDAA Compliant: No
Warranty Period: 3 Years
|
Technical Specification |
|||||
|
Camera |
|||||
|
Image Sensor |
5MP CMOS |
||||
|
Max. Resolution |
2880 (H) × 1620 (V) |
||||
|
Pixel |
5MP |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
||||
|
S/N Ratio |
> 65 dB |
||||
|
Min. Illumination |
0.005 Lux/F1.6, 30IRE, 0 Lux IR on |
||||
|
Illumination Distance |
30 m (98.4 ft) |
||||
|
Illuminator On/Off Control |
Auto; manual |
||||
|
Illuminator Number |
1 (IR light) |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed lens |
||||
|
Mount Type |
M12 |
||||
|
Focal Length |
2.8mm |
||||
|
Max. Aperture |
F1.6 |
||||
|
Field of View |
2.8mm:H:111° V:58° D:132° |
||||
|
Iris Type |
Fixed |
||||
|
Close Focus Distance |
2.8 mm: 0.9 m (3.0 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8 mm |
63.6 m (208.7 ft) |
25.4 m (83.3 ft) |
12.7 m (41.7 ft) |
6.4 m (21.0ft) |
|
|
Video |
|||||
|
Frame Rate |
CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
||||
|
Resolution |
5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 ×1080); 960 H (960 × 576/960 × 480) |
||||
|
Day/Night |
Auto switch by ICR |
||||
|
BLC |
BLC/HLC/DWDR |
||||
|
WDR |
DWDR |
||||
|
White Balance |
Auto; Area WB |
||||
|
Gain Control |
Auto/Manual |
||||
|
Noise Reduction |
2D NR |
||||
|
Smart IR |
Yes |
||||
|
Mirror |
Off/On |
||||
|
Privacy Masking |
Off/On (8 area, rectangle) |
||||
|
Certifications |
|||||
|
Certifications |
CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
||||
|
Port |
|||||
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
||||
|
Audio Input |
N/A |
||||
|
Power |
|||||
|
Power Supply |
12V ±30% DC |
||||
|
Power Consumption |
Max 3.2W (12V DC, IR on) |
||||
|
Environment |
|||||
|
Operating Temperature |
–40°C to +60°C (-40°F to 140°F); < 95% (non-condensation) |
||||
|
Storage Temperature |
–40°C to +60°C (-40°F to 140°F); < 95% (non-condensation) |
||||
|
Protection Grade |
IP67 |
||||
|
Structure |
|||||
|
Casing |
Metal throughout the whole casing |
||||
|

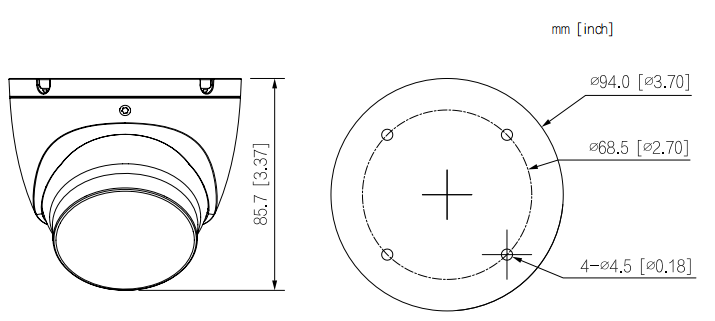

Camera Dimensions |
φ94.0 mm × 85.7 mm (φ3.70" × 3.37") |
||||
|
Net Weight |
0.33 kg (0.73 lb) |
||||
|
Gross Weight |
0.47 kg (1.04 lb) |
||||
