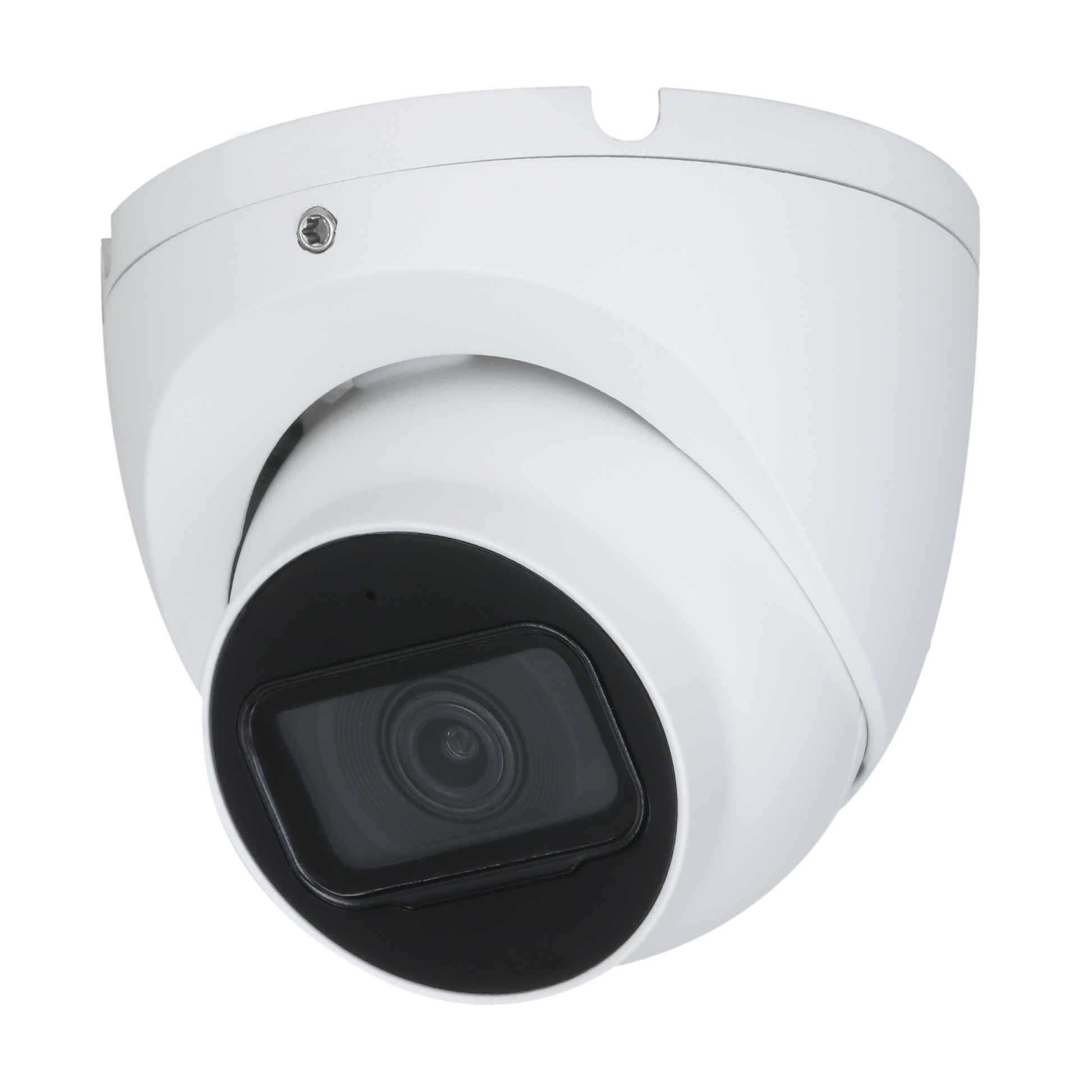

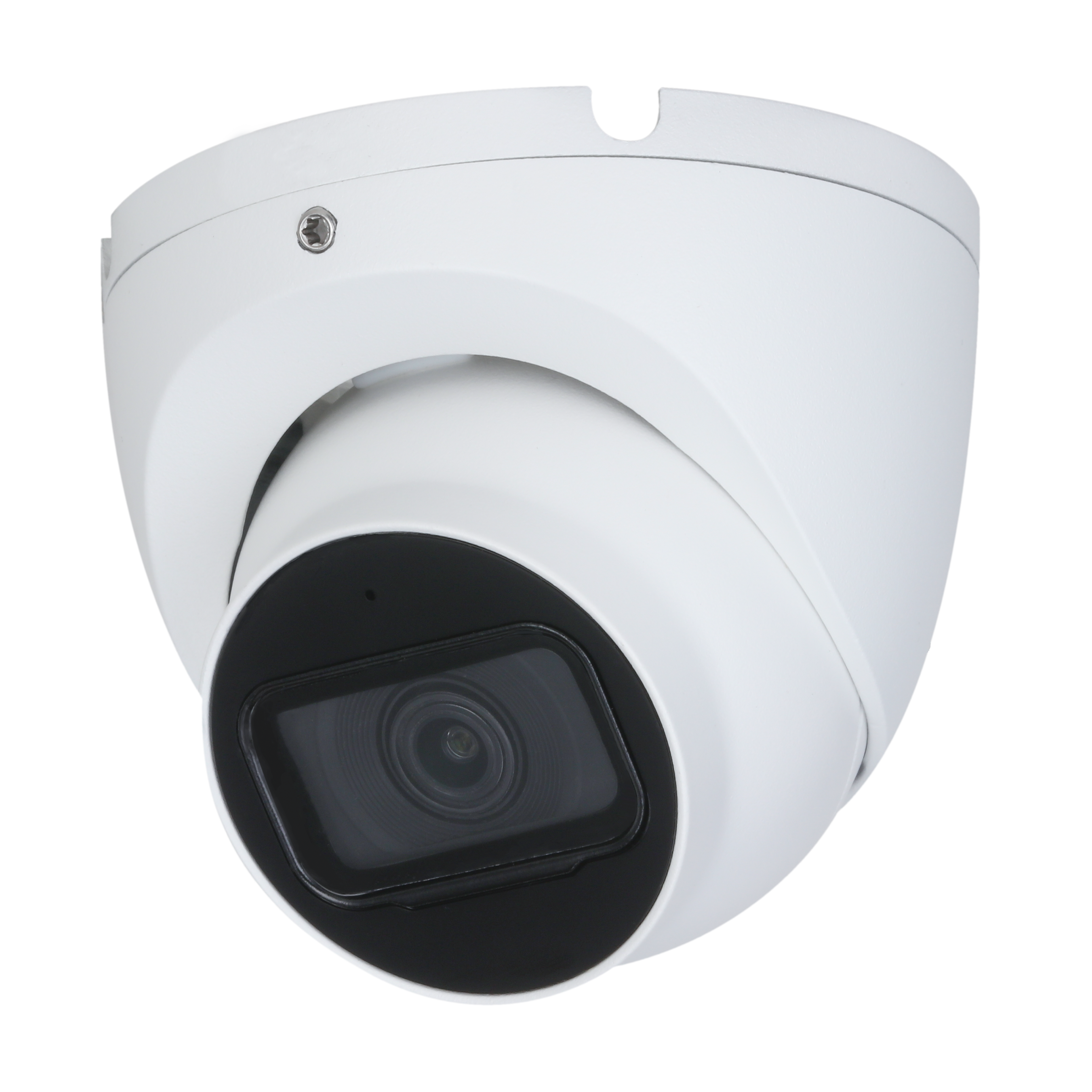

Part Number: HAC-DF12W
Lens Type: 2.8mm@F1.9
Video Format: CVI (1080P@30fps), TVI (1080P@30fps), AHD (1080P@30fps), CVBS (960H)
Angle of View: 101° (Horizontal)
Min. Illumination: Color 0.02Lux/F1.9; B/W 0lux (IR On)
Night Vision Distance: 98.4 Feet (IR)
WDR: DWDR
Audio: N/A
Power: DC12V / Max 3.1W
NDAA Compliant: No
Warranty Period: 3 Years
|
Image Sensor |
2 MP CMOS |
|
Max. Resolution |
1920 (H) × 1080 (V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
|
Min. Illumination |
0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
|
S/N Ratio |
>65 dB |
|
Illumination Distance |
30 m (98.43 ft) |
|
Illuminator On/Off Control |
Auto |
|
Illuminator Number |
1 (IR light) |
|
Angle Adjustment |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens
|
Lens Type |
Fixed-focal |
||||
|
Lens Mount |
M12 |
||||
|
Focal Length |
2.8 mm |
||||
|
Max. Aperture |
F2.0 |
||||
|
Field of View |
2.8 mm: H: 102°; V: 60°; D: 129° |
||||
|
Iris Control |
Fixed |
||||
|
Close Focus Distance |
2.8 mm: 0.5 m (1.64 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8 mm |
41.4 m (135.83 ft) |
16.5 m (42.13 ft) |
8.3 m ( 27.23 ft) |
4.1 m (13.45 ft) |
|
Video
|
Video Frame Rate |
CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
|
Resolution |
1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
BLC |
BLC; HLC; DWDR |
|
WDR |
DWDR |
|
White Balance |
Auto; Area white balance |
|
Gain Control |
Auto |
|
Noise Reduction |
3D NR |
|
Illumination Mode |
Smart IR |
|
Mirror |
Yes |
|
Privacy Masking |
Off/On (8 areas, rectangle) |
Certification
|
Certifications |
CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B |
Port
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
Audio Input |
N/A |
Power
|
Power Supply |
12 VDC ± 30% |
|
Power Consumption |
Max 3.2 W (12 VDC, IR on) |
Environment
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
<95% (RH), non-condensing |
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Storage Humidity |
<95% (RH), non-condensing |
|
Protection |
IP67 |
Structure
|
Casing Material |
Metal dome + metal enclosure + plastic mounting plate |
|
Product Dimensions |
Φ109.9 mm × 88.1 mm (Φ4.33" × 3.47") |
|
Net Weight |
0.33 kg (0.73 lb) |
|
Gross Weight |
0.44 kg (0.97 lb) |
|
Installation |
Wall mount; ceiling mount; vertical pole mount |
|
Ordering Information |
||
|
Type |
Model |
Description |
|
2MP Camera |
DH-HAC- HDW1200TLMQP-A |
2MP IR HDCVI Fixed-focal Eyeball Camera, PAL |
|
|
DH-HAC- HDW1200TLMQN-A |
2MP IR HDCVI Fixed-focal Eyeball Camera, NTSC |
|
Accessories (Optional) |
PFA13G |
Junction Box |
|
|
PFA109 |
Mount Adapter |
|
|
PFB220C |
Ceiling Mount Bracket |
|
|
PFB205W-E |
Wall Mount Bracket |
|
|
PFA152-E |
Pole Mount Bracket |
|
|
PFM800-E |
1 Channel Passive HDCVI Balun |
|
|
PFM321D |
12V 1A Power Adapter |
|
|
PFM904 |
Integrated Mount Tester |
