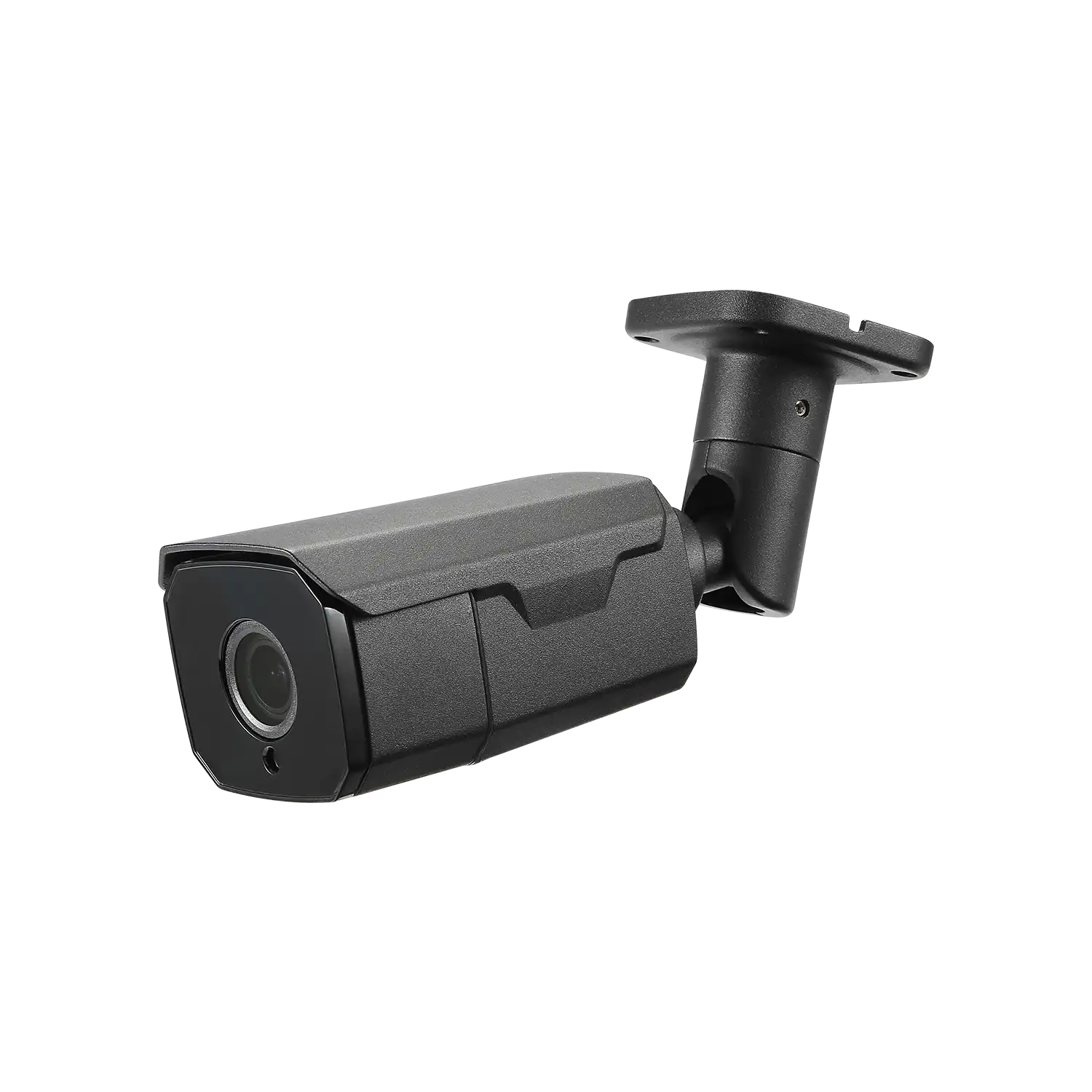

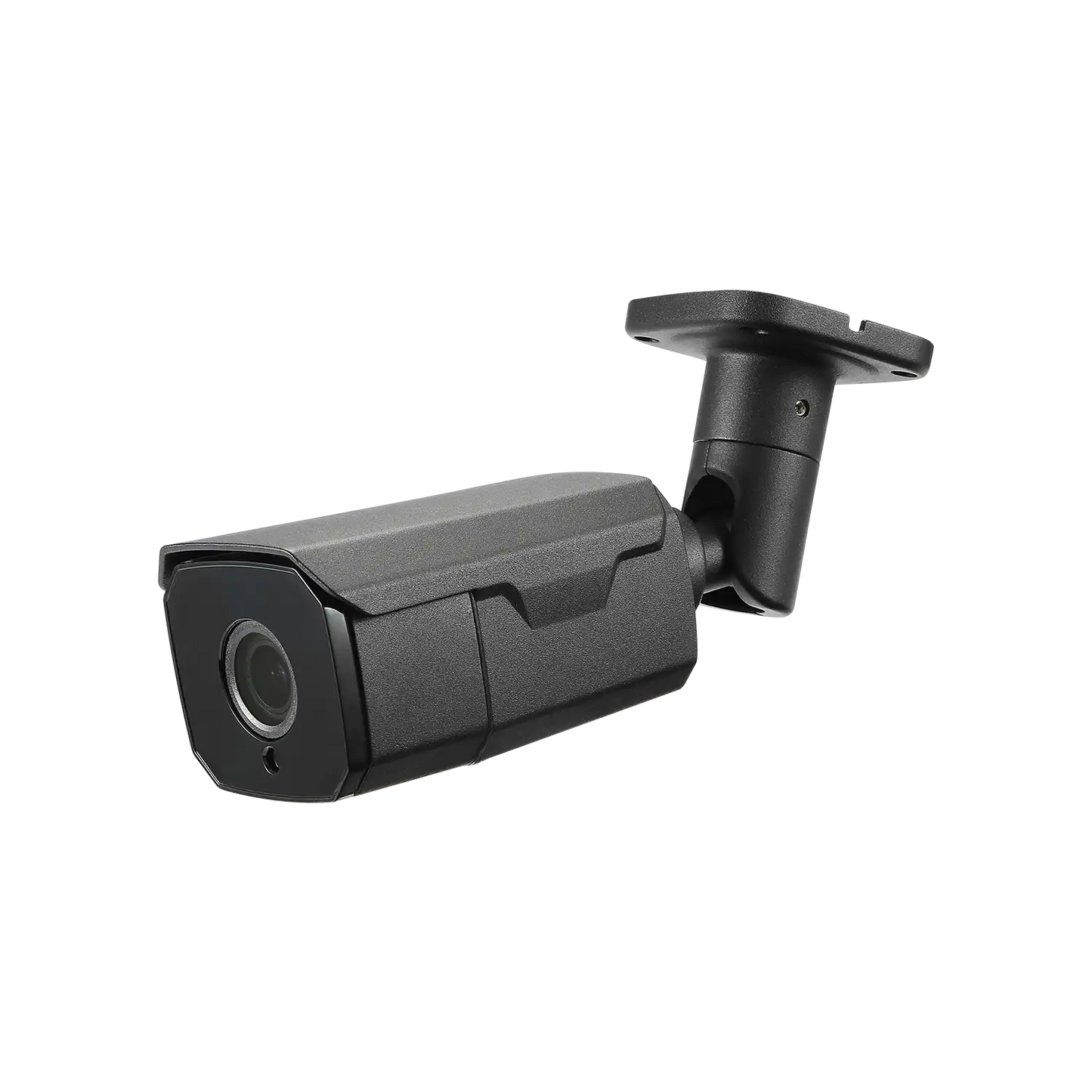

4/5MP 4-in-1 IR Motorized Varifocal Bullet Camera (Dark Gray)
Part Number: DH-UBVMZ7500B-V2S
Sensor Type: 1/2.7" CMOS
Lens Type: 2.8-12mm@F1.6, Motorized Zoom and Auto Focus
Video Format: CVI (4M@30fps), TVI (5M@20fps), AHD (5M@20fps), CVBS (960H)
Angle of View: 33°-101° (Horizontal)
Min. Illumination: Color 0.01Lux/F1.6; B/W 0lux (IR On)
Night Vision Distance: 150 Feet (IR)
WDR: 120dB
Power: DC12V / Max 4W
NDAA Compliant: No
Warranty Period: 3 Years
Lens Type: 2.8-12mm@F1.6, Motorized Zoom and Auto Focus
Video Format: CVI (4M@30fps), TVI (5M@20fps), AHD (5M@20fps), CVBS (960H)
Angle of View: 33°-101° (Horizontal)
Min. Illumination: Color 0.01Lux/F1.6; B/W 0lux (IR On)
Night Vision Distance: 150 Feet (IR)
WDR: 120dB
Power: DC12V / Max 4W
NDAA Compliant: No
Warranty Period: 3 Years
|
Model |
DH-UBVMZ7500B-V2S |
|
Image Sensor |
1/2.7” 5 Megapixel CMOS |
|
Horizontal Resolution |
NTSC: 2576(H)X1936(V) |
|
Frame Rate |
20fps@5MP, 30fps@4MP |
|
Minimum Illumination |
0 Lux (with IRs ON) |
|
Lens |
2.8-12mm Motorized Lens |
|
S/N Ratio |
MORE THAN 50dB |
|
IR LEDs |
14μm SMD, 30 LEDs |
|
IR Distance |
150ft Depending on Scene Reflectance |
|
Electronic Shutter |
Auto: 1/60 ~ 1/30,000s |
|
OSD Control |
On-Screen Display Menu (Languages, Privacy Area, Color, etc.) |
|
White Balance |
Auto / Manual |
|
Wide Dynamic Range |
120dB |
|
Video Output |
Single BNC Output with DIP Switch for TVI/CVI/AHD/CVBS |
|
Power Supply |
DC 12V, Max 4W |
|
IP Rating |
IP66 |
|
Operating Temperature |
-20℃ ~ 50℃ (-4℉ ~ 122℉) |
|

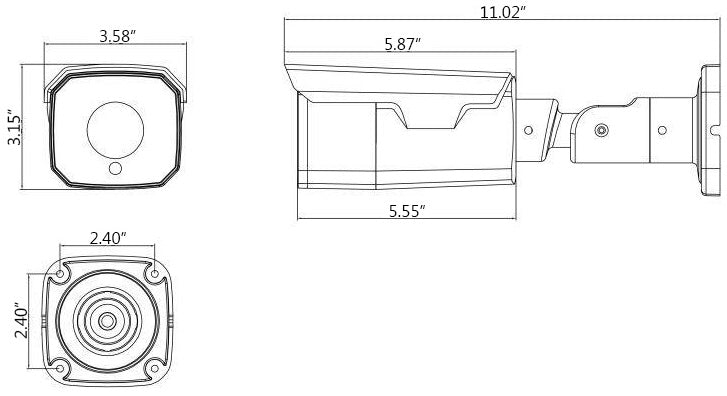

Dimensions, Weight |
11.1” (L) x 3.19” (H), 2.42 lbs. |
| Download | Type |
|---|
