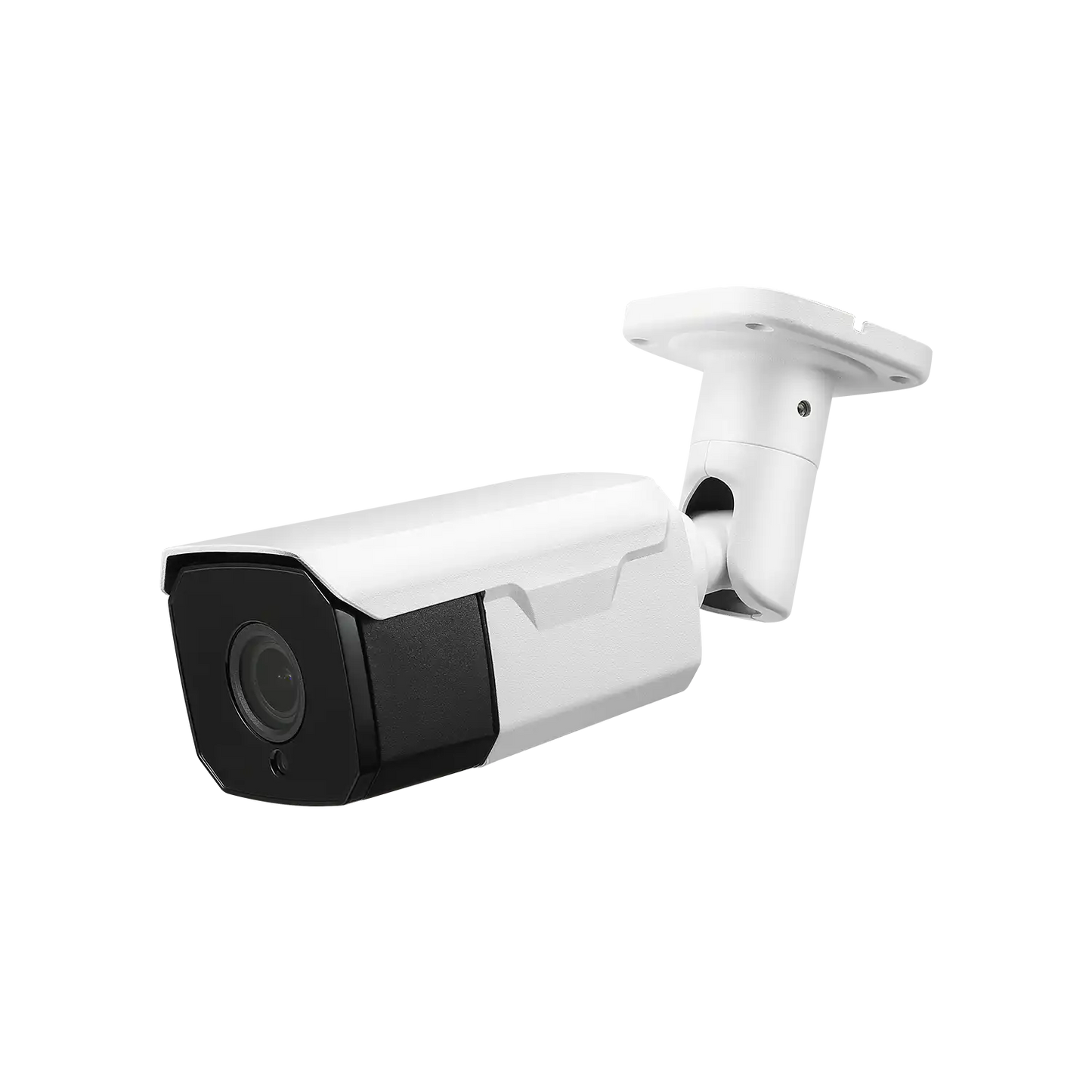

2MP 4-in-1 IR Manual Varifocal Bullet Camera (White)

Part Number: DH-UBV7200W-V2S

Sensor Type: 1/2.7" CMOS
Lens Type: 2.8-12mm@F1.6, Manual Zoom/Focus Adjustment
Video Format: CVI (1080P@30fps), TVI (1080P@30fps), AHD (1080P@30fps), CVBS (960H)
Angle of View: 33°-101° (Horizontal)
Min. Illumination: Color 0.01Lux/F1.6; B/W 0lux (IR On)
Night Vision Distance: 150 Feet (IR)
WDR: DWDR
Power: DC12V / Max 4W
NDAA Compliant: No
Warranty Period: 3 Years

Model

DH-UBV7200W-V2S

Image Sensor

1/2.7” 2 Megapixel CMOS

Horizontal Resolution

NTSC: 1920(H)X1080(V)

Frame Rate

30fps@1080P

Minimum Illumination

0 Lux (with IRs ON)

Lens

2.8-12mm Vari-focal Lens

S/N Ratio

MORE THAN 50dB

IR LEDs

14μm SMD, 30 LEDs

IR Distance

150ft Depending on Scene Reflectance

Electronic Shutter

Auto: 1/60 ~ 1/30,000s

OSD Control

On-Screen Display Menu (Languages, Privacy Area, Color, etc.)

White Balance

Auto / Manual

Wide Dynamic Range

DWDR

Video Output

Single BNC Output with DIP Switch for TVI/CVI/AHD/CVBS

Power Supply

DC 12V, Max 4W

IP Rating

IP66

Operating Temperature

-20℃ ~ 50℃ (-4℉ ~ 122℉)

Dimensions, Weight

11.1” (L) x 3.19” (H), 2.42 lbs.

DH-UBV7500-V2S dimensions
Download Type
Data Sheet

   pdf

User Manual

   pdf
