Model |
DH-UBV7200B-V2S |
Image Sensor |
1/2.7” 2 Megapixel CMOS |
Horizontal Resolution |
NTSC: 1920(H)X1080(V) |
Frame Rate |
30fps@1080P |
Minimum Illumination |
0 Lux (with IRs ON) |
Lens |
2.8-12mm Vari-focal Lens |
S/N Ratio |
MORE THAN 50dB |
IR LEDs |
14μm SMD, 30 LEDs |
IR Distance |
150ft Depending on Scene Reflectance |
Electronic Shutter |
Auto: 1/60 ~ 1/30,000s |
OSD Control |
On-Screen Display Menu (Languages, Privacy Area, Color, etc.) |
White Balance |
Auto / Manual |
Wide Dynamic Range |
DWDR |
Video Output |
Single BNC Output with DIP Switch for TVI/CVI/AHD/CVBS |
Power Supply |
DC 12V, Max 4W |
IP Rating |
IP66 |
Operating Temperature |
-20℃ ~ 50℃ (-4℉ ~ 122℉) |

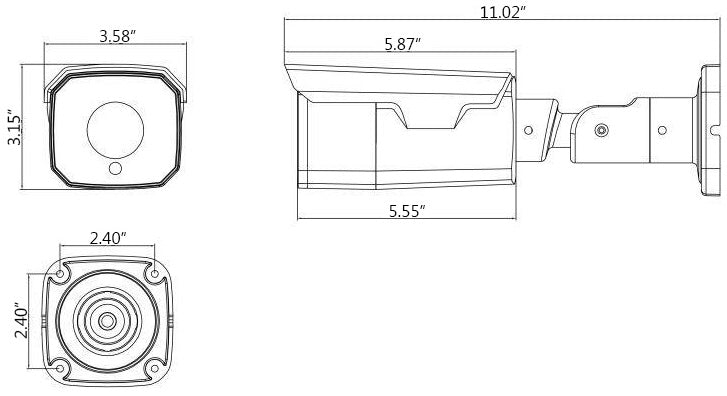

Dimensions, Weight |
11.1” (L) x 3.19” (H), 2.42 lbs. |
