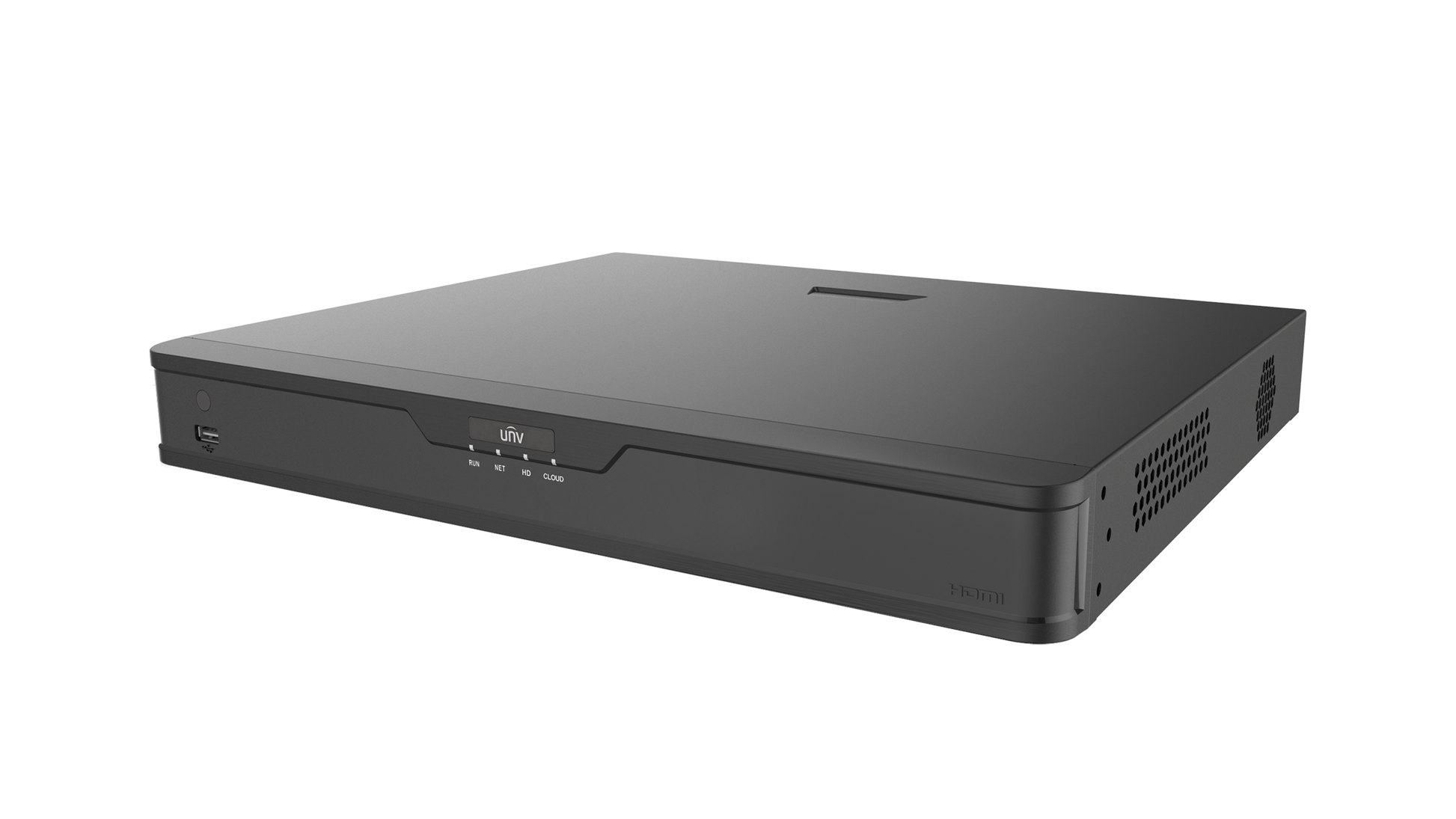

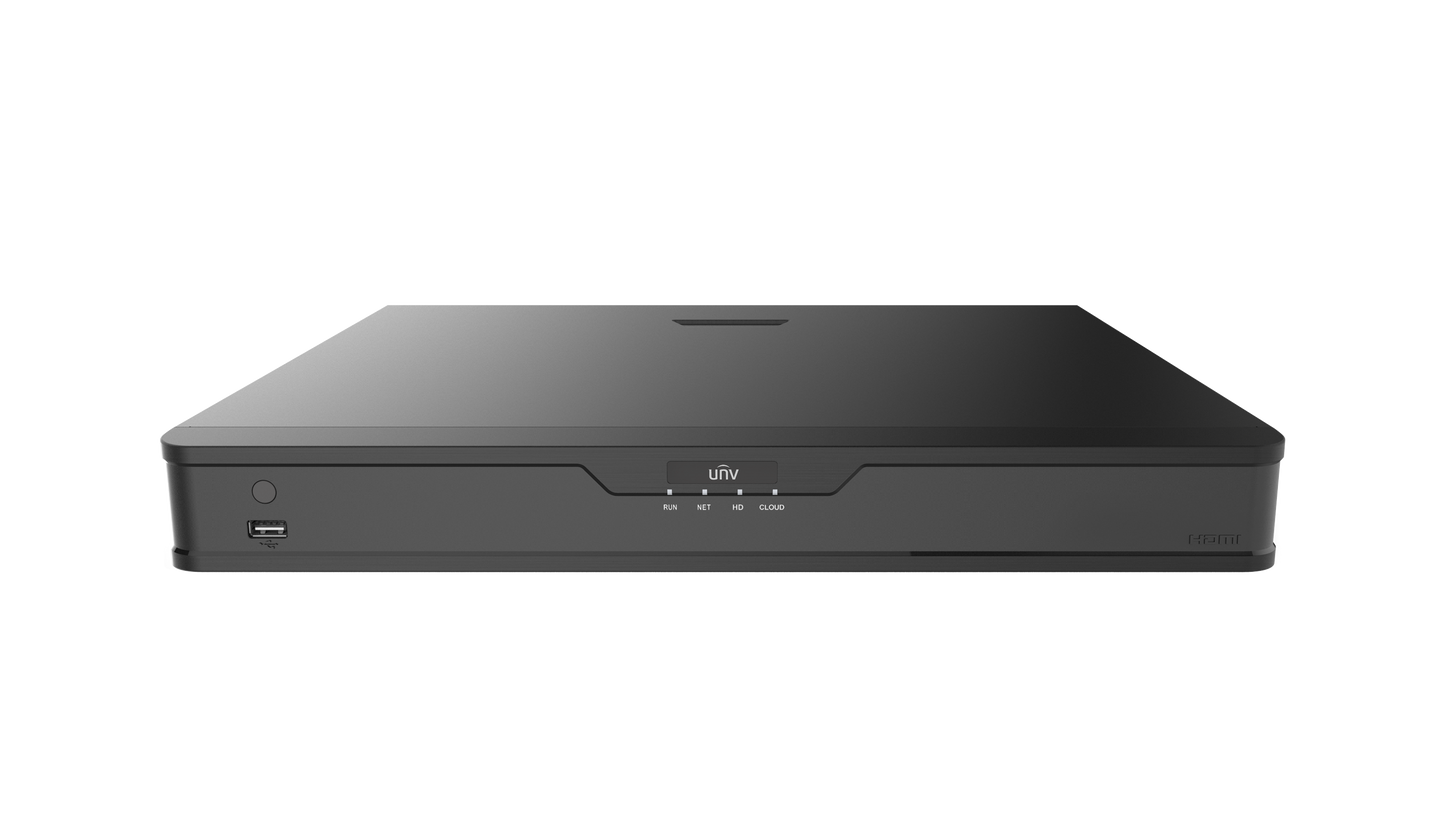

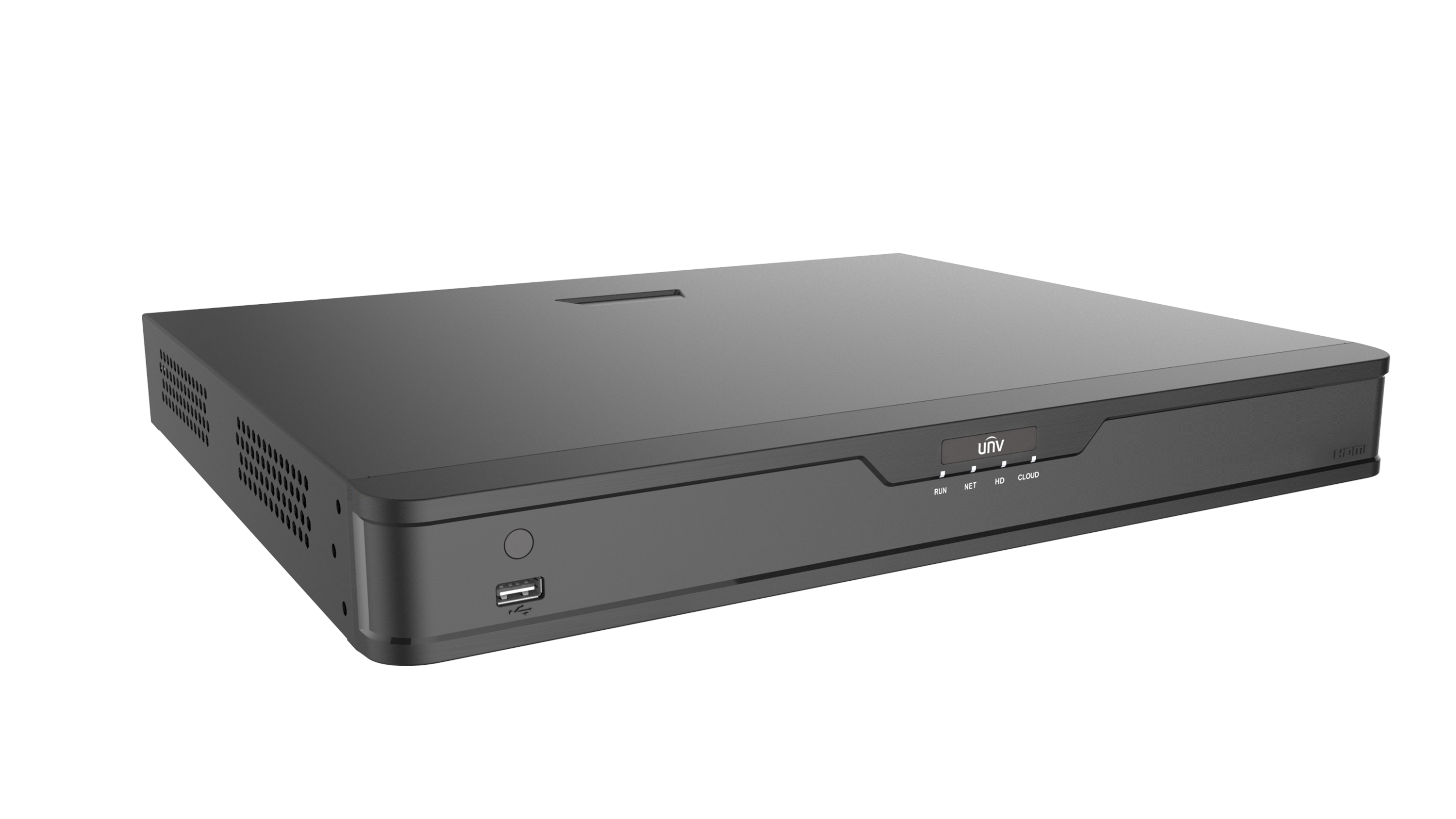

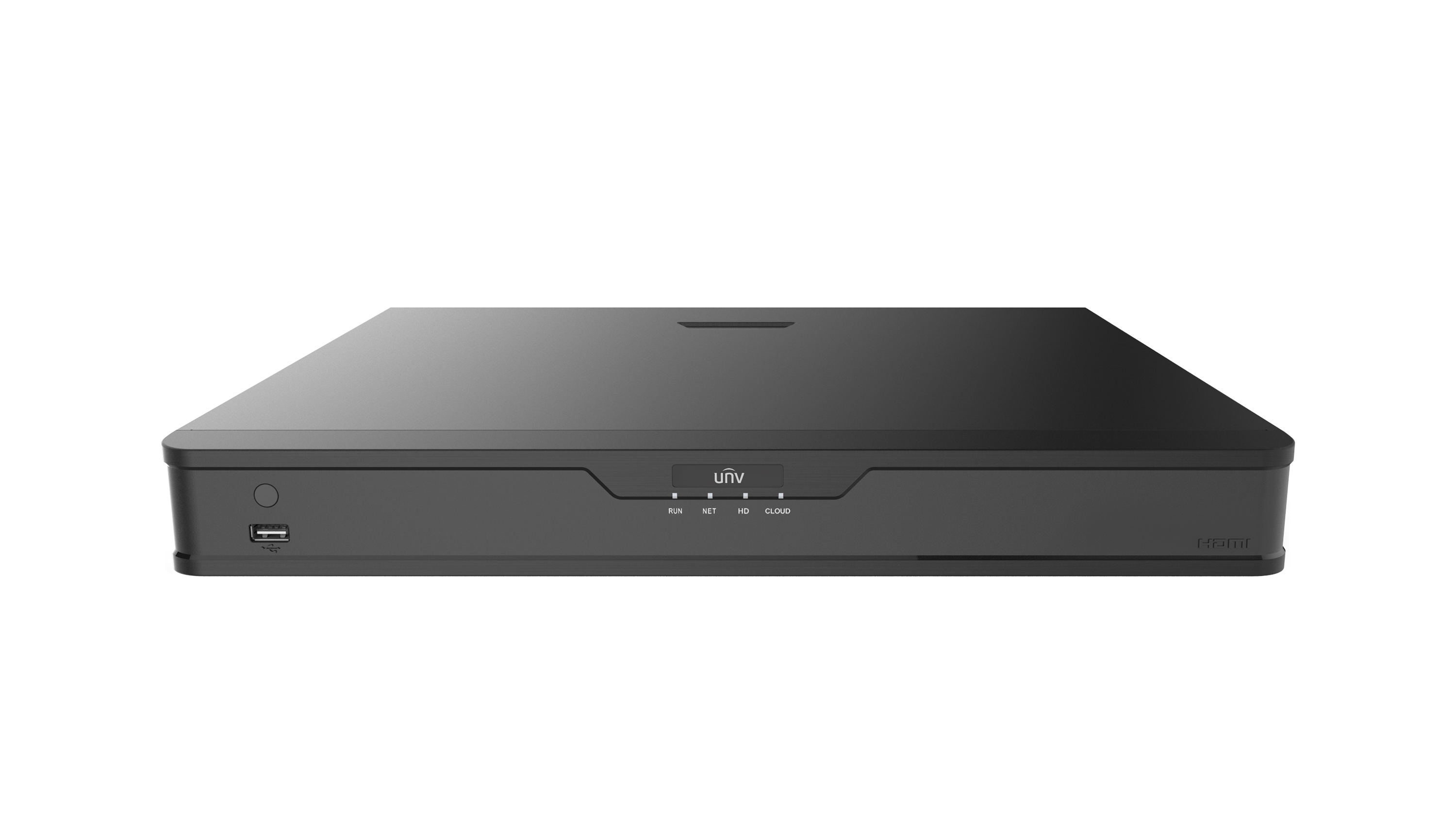

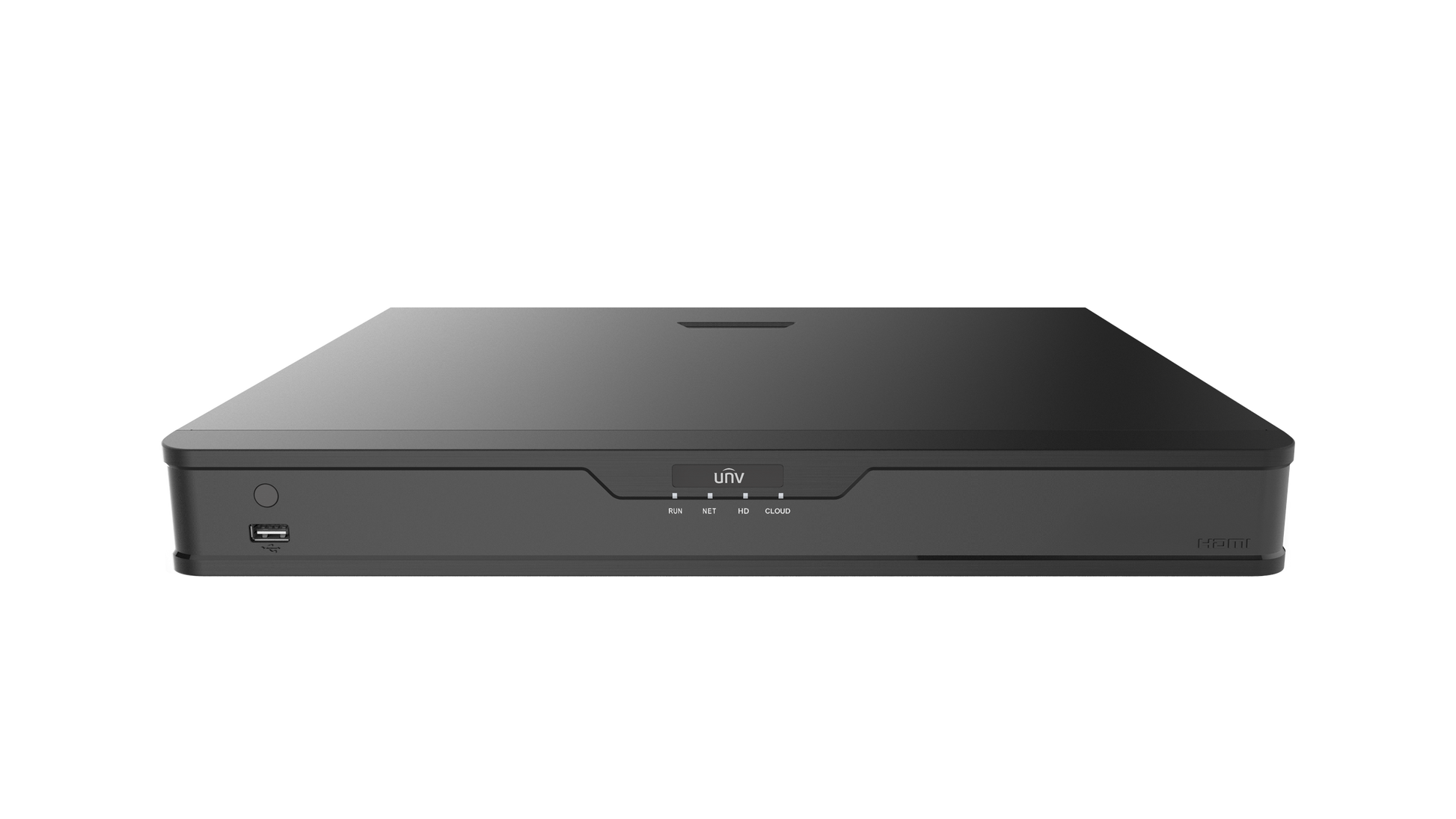

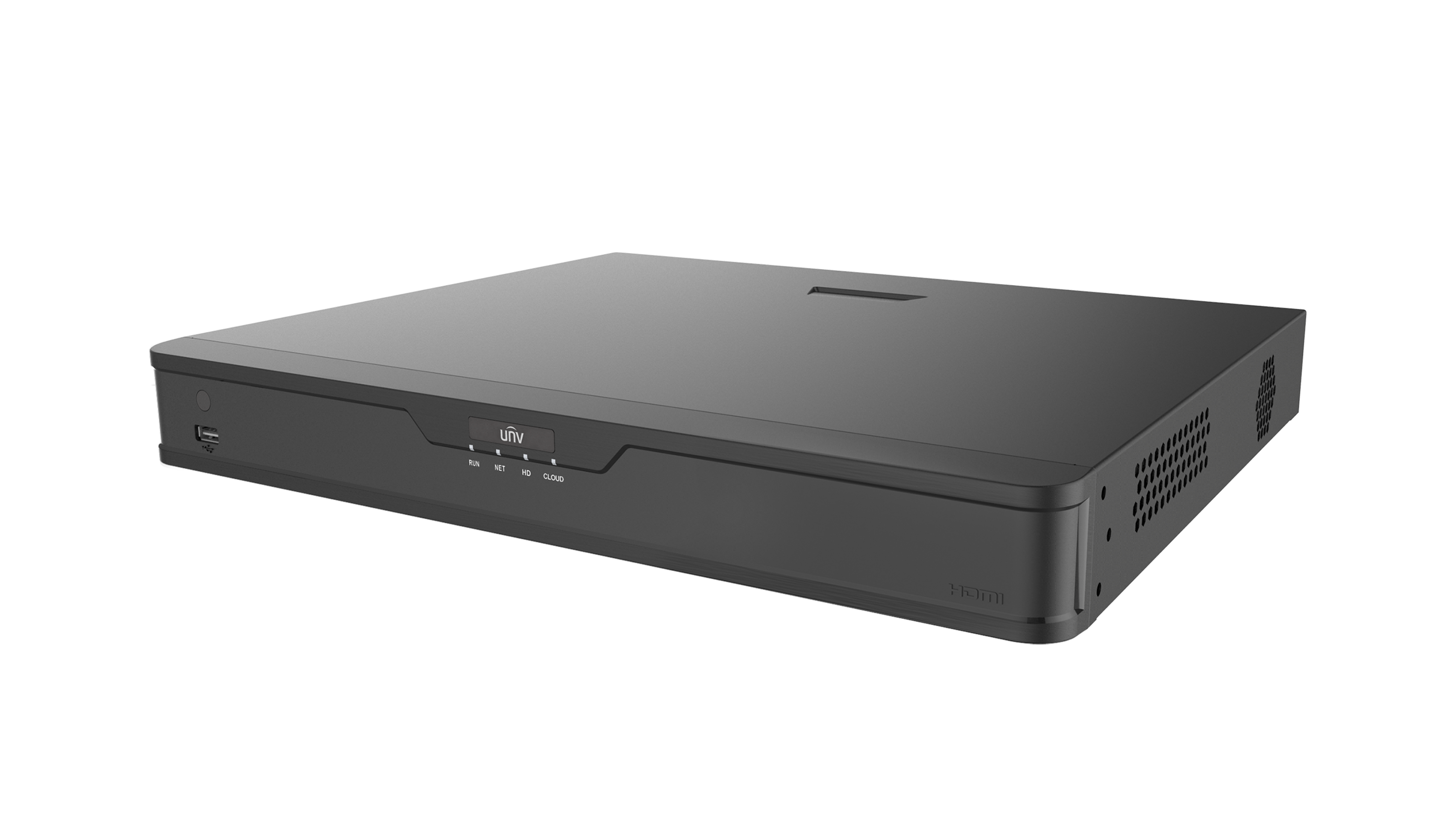

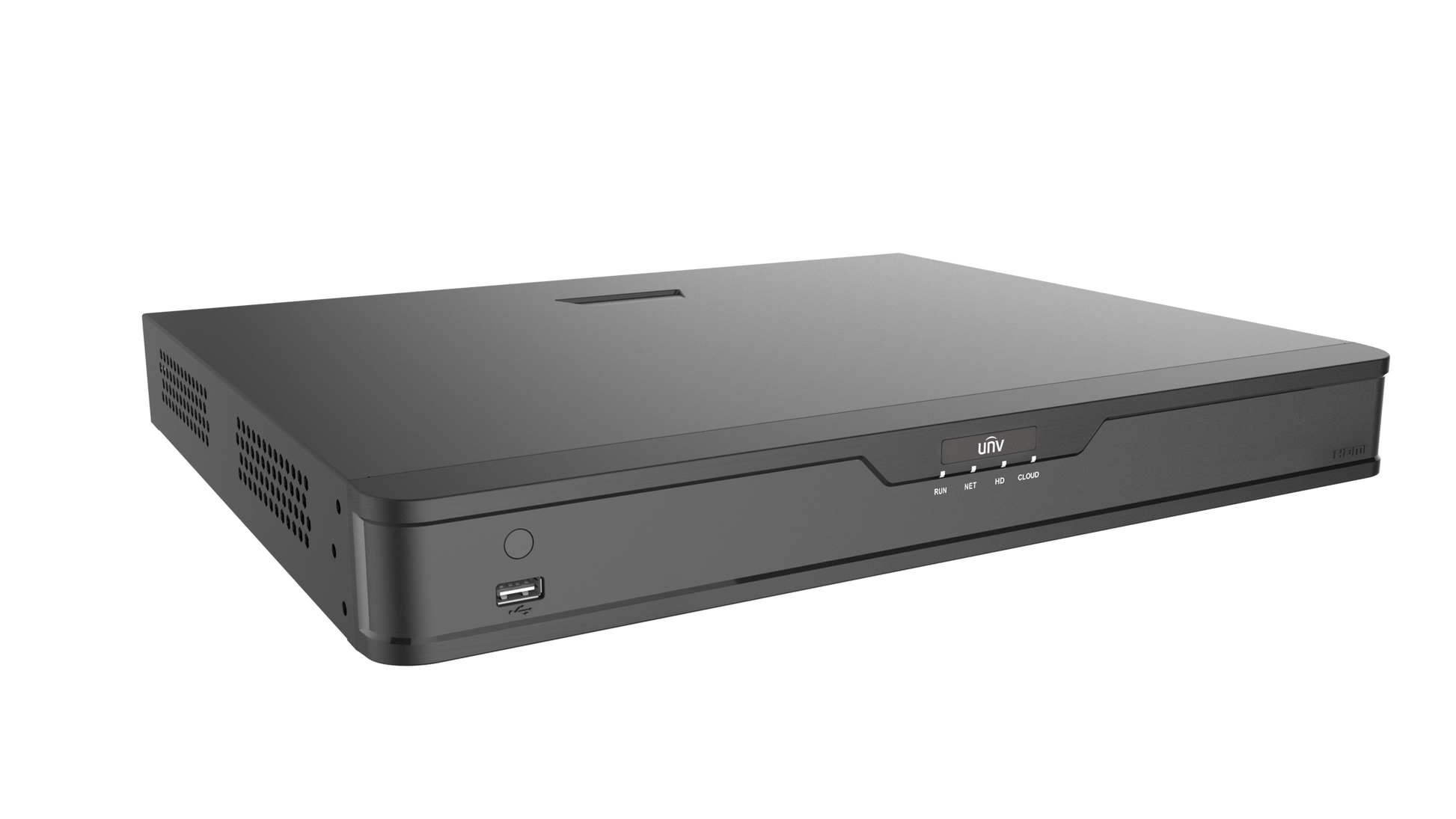

16 Channel 2-SATA 1U Pentabrid DVRPart Number: XVR302-16U3
Channels & Inputs
16 BNC / 32 IP Ch
Max Resolution
Up to 8MP(4K)
HDD Storage
2-SATA (Up to 16TB/disk)
Network & PoE
Gigabit NIC
Video Output
1-HDMI(4K), 1-VGA(1080P), 1-BNC(CVBS), Simultaneous Output
Bandwidth
80Mbps (In) / 160Mbps (Out)
HDD Storage
2-SATA up to 16TB each
Network Ports
Single 10M/100M/1000M NIC
Chassis Form Factor
1U, Rackmountable
NDAA Compliant
Yes
Warranty Period
3 Years
Cloud & Mobile Access
EZView & EZCloud Compatible
| Video, Decoding & Storage | |
|---|---|
| Video/Audio Input | |
| IP Video Input | 16ch |
| Analog Video Input | 16ch, BNC |
| Max IP Video Input | 32ch |
| Supported Analog Camera Types | Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
| BNC Audio Input | 16ch, channel audio |
| RCA Audio Input | 4ch |
| Video/Audio Output | |
| HDMI Output | HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| BNC Video Output | 1ch |
| RCA Audio Output | 1ch |
| Live View Display | HDMI/VGA: 1/4/6/8/9/25/32 |
| Encoding/Decoding | |
| Recording Resolution | 8MP/5MP/4MP/1080P/720P/D1 |
| Recording Frame Rate | Main stream: 8MP@8fps Sub stream: D1@8fps Main stream: 5MP@12fps Sub stream: D1@12fps Main stream: 4MP@15fps Sub stream: D1@15fps Main stream: 1080P@25fps Sub stream: D1@25fps Main stream: 720P@30fps Sub stream: D1@30fps |
| Audio Sample Rate | 8KHz, 16 bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Decoding Capability | Analog: 8 x 8MP@8, 8 x 5MP@12, 8 x 4MP@15, 8 x 1080P@25, 16 x 720@30 IP: 2 x 8MP@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 |
| Coaxial Cable | |
| Audio over Coaxial Cable(Form) | 16ch, Oneway Audio(TVI) |
| Two-way Audio | |
| Two-way Audio | 1ch, RCA(Using the audio input and output) |
| Analog Snapshot | |
| FTP/Schedule/Event Snapshot | Schedule/FTP/Event snapshot:16ch snapshot, up to 704*576 resolution |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature) |
| Smart Features, Network & General | |
|---|---|
| Network | |
| Incoming Bandwidth | 80 Mbps (Up to 112 Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP; P2P; UPnP; DHCP; HTTP; HTTPS; DNS; DDNS; SMTP |
| Browser(Plugin) | Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
| Smart | |
| Analog Smart by XVR | SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Face Detection; Ultra Motion Detection(UMD) |
| IP Smart by IPC | Face Detection; SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Defocus Detection; Scene Change Detection; Object Removed; Object Left Behind; Auto Tracking |
| VCA Search | Face Search; Behavior Search |
| Smart Functions by XVR | 16ch(UMD), 8ch(SIP), 2ch(Face Detection) |
| Alarm | |
| General Alarm | Motion |
| Alert Alarm | IP Conflict; Network Disconnected; Disk offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal |
| GUI Language | |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M/1000M selfadaptive Ethernet Interface |
| USB | Rear panel: 1 x USB3.0; Front panel: 1 x USB2.0 |
| RS485 | 1 |
| RS232 | NA |
| Alarm In | 8ch |
| Alarm Out | 4ch |
| Power Supply | DC 12V/5A |
| Working Environment | |
| Working Temperature | 10 °C ~ 55 °C (14 °F ~ 131 °F ) |
| Working Humidity | ≤ 90% RH(noncondensing) |
| Power Consumption (without HDD) | ≤ 38W |
| Dimensions | |
| Weight (without HDD) | ≤2.3 Kg ( 5.07lb ) |

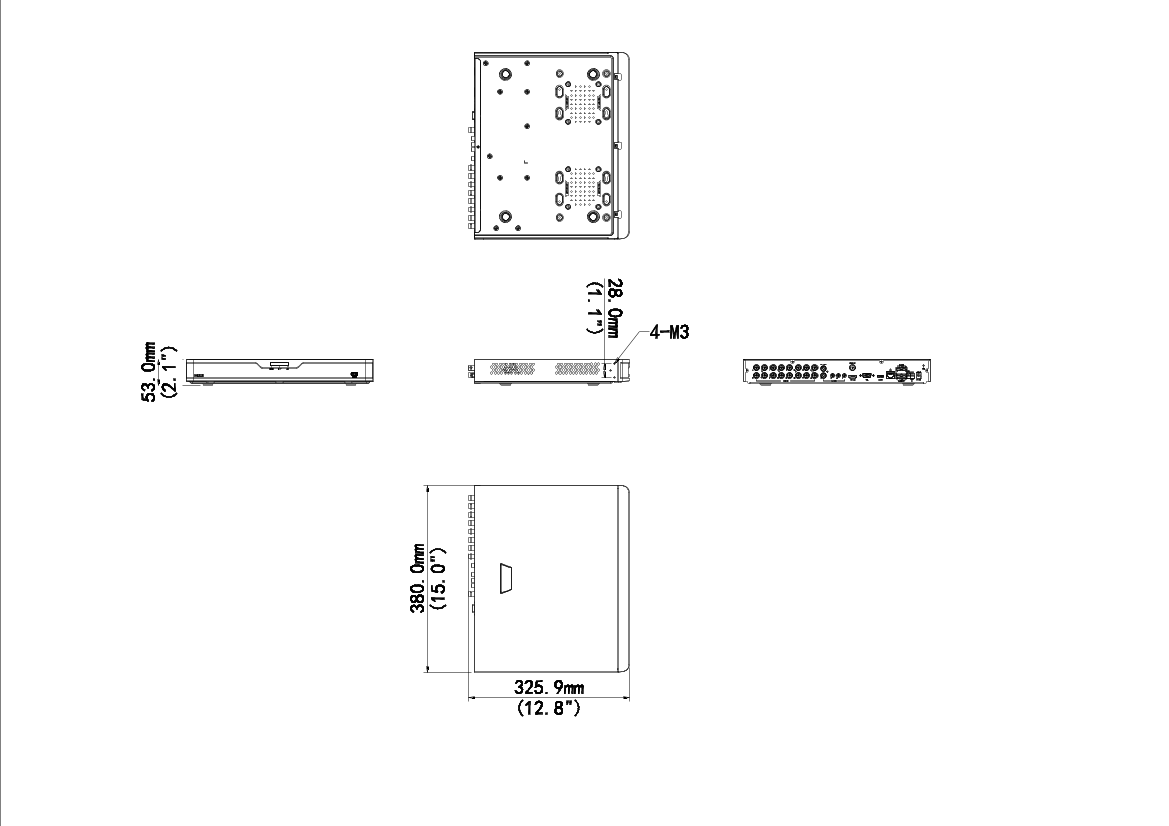

| Dimensions | 380mm × 326mm × 53mm (15.0" × 12.8"×2.1") |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 6100033, EN IEC 6100032, EN 50130 |
| FCC | Part15 Subpart B |
