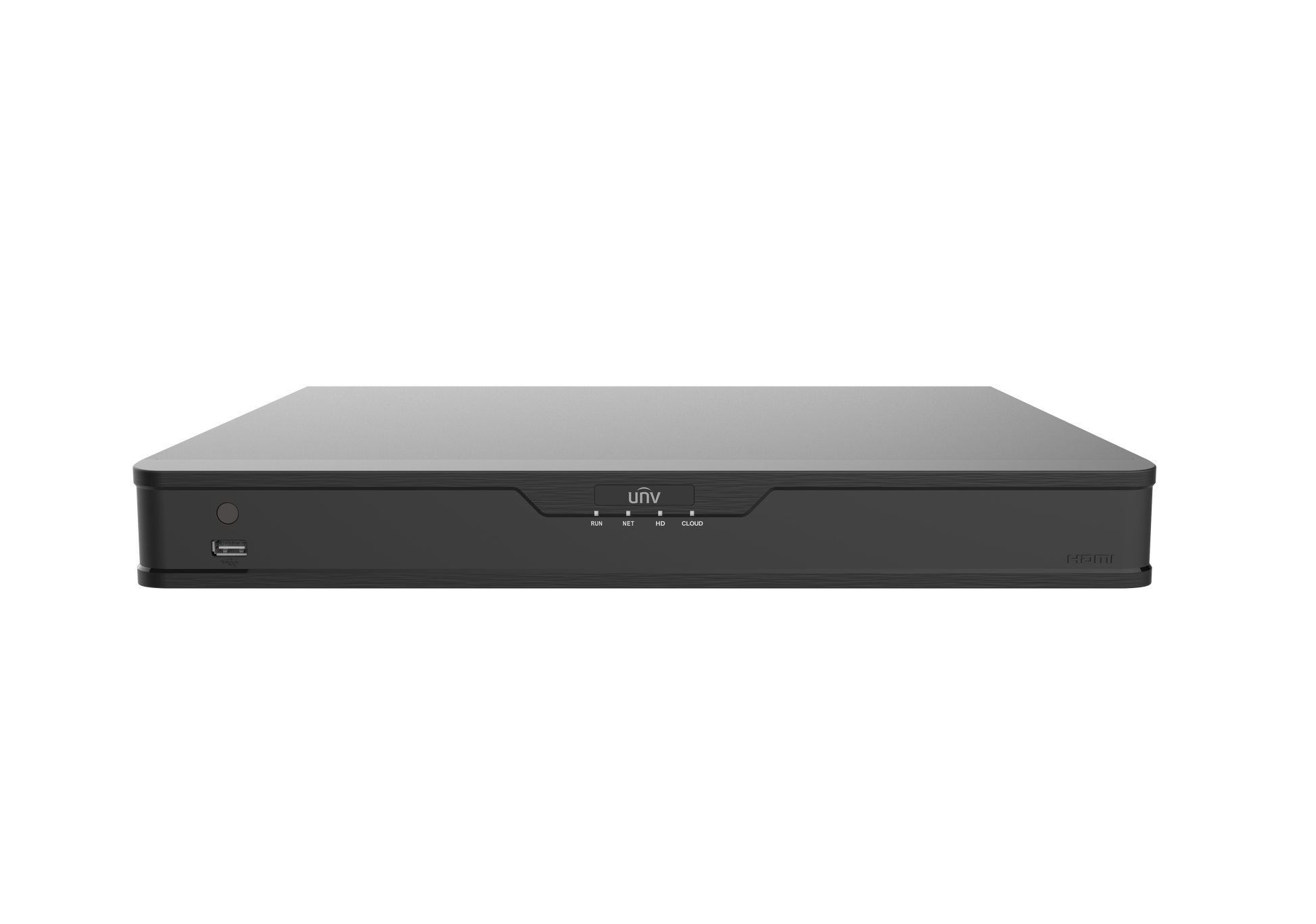

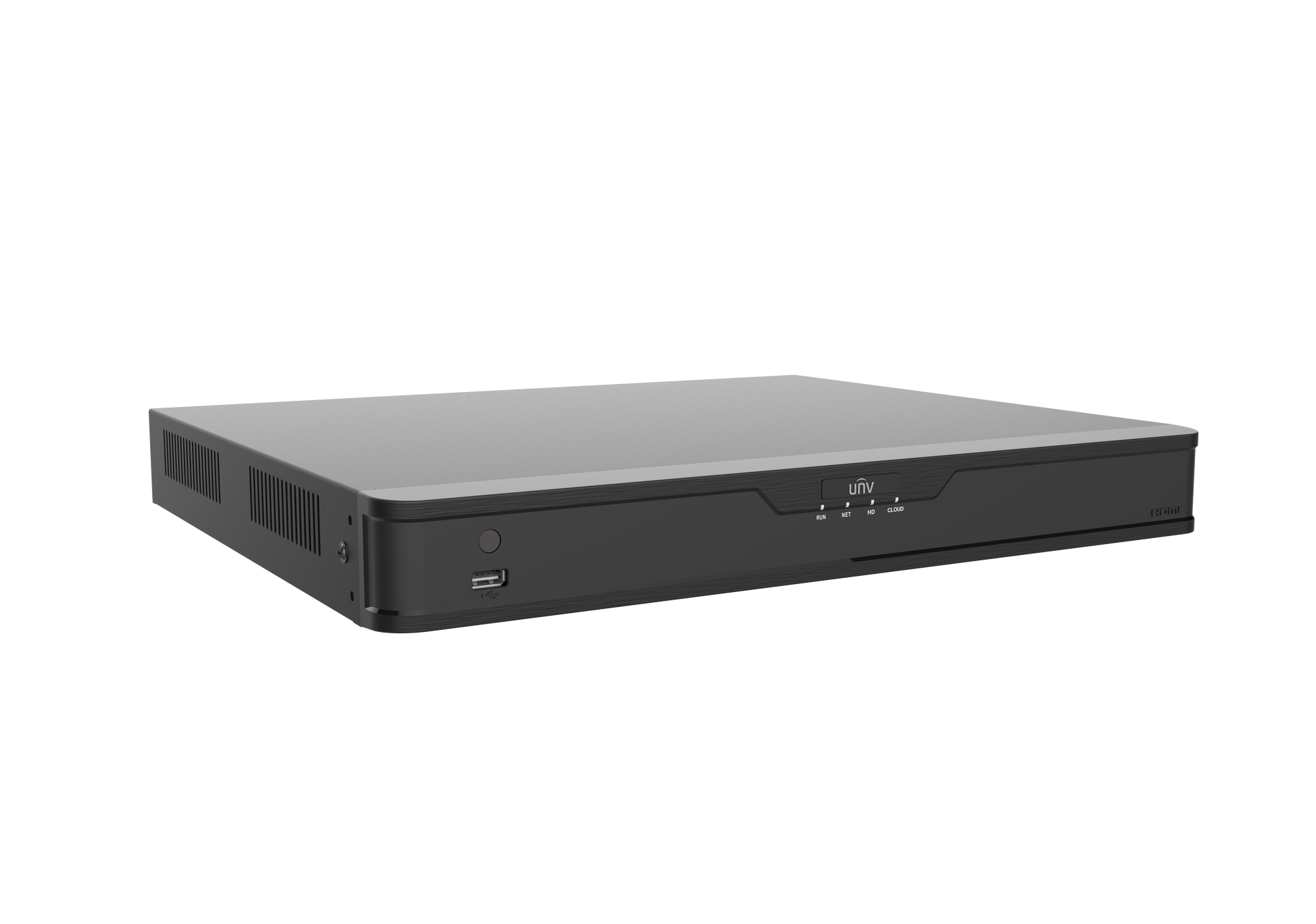

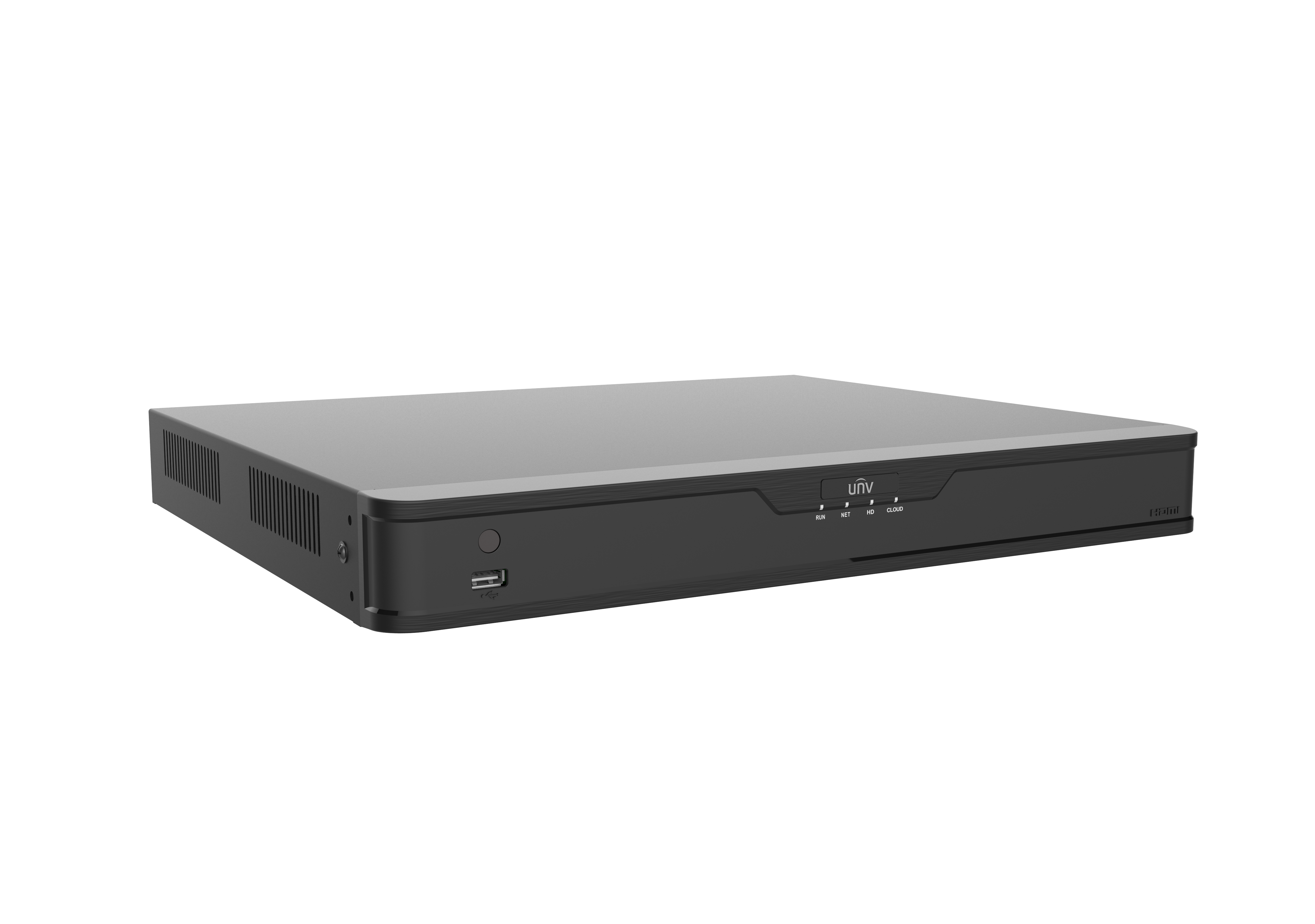

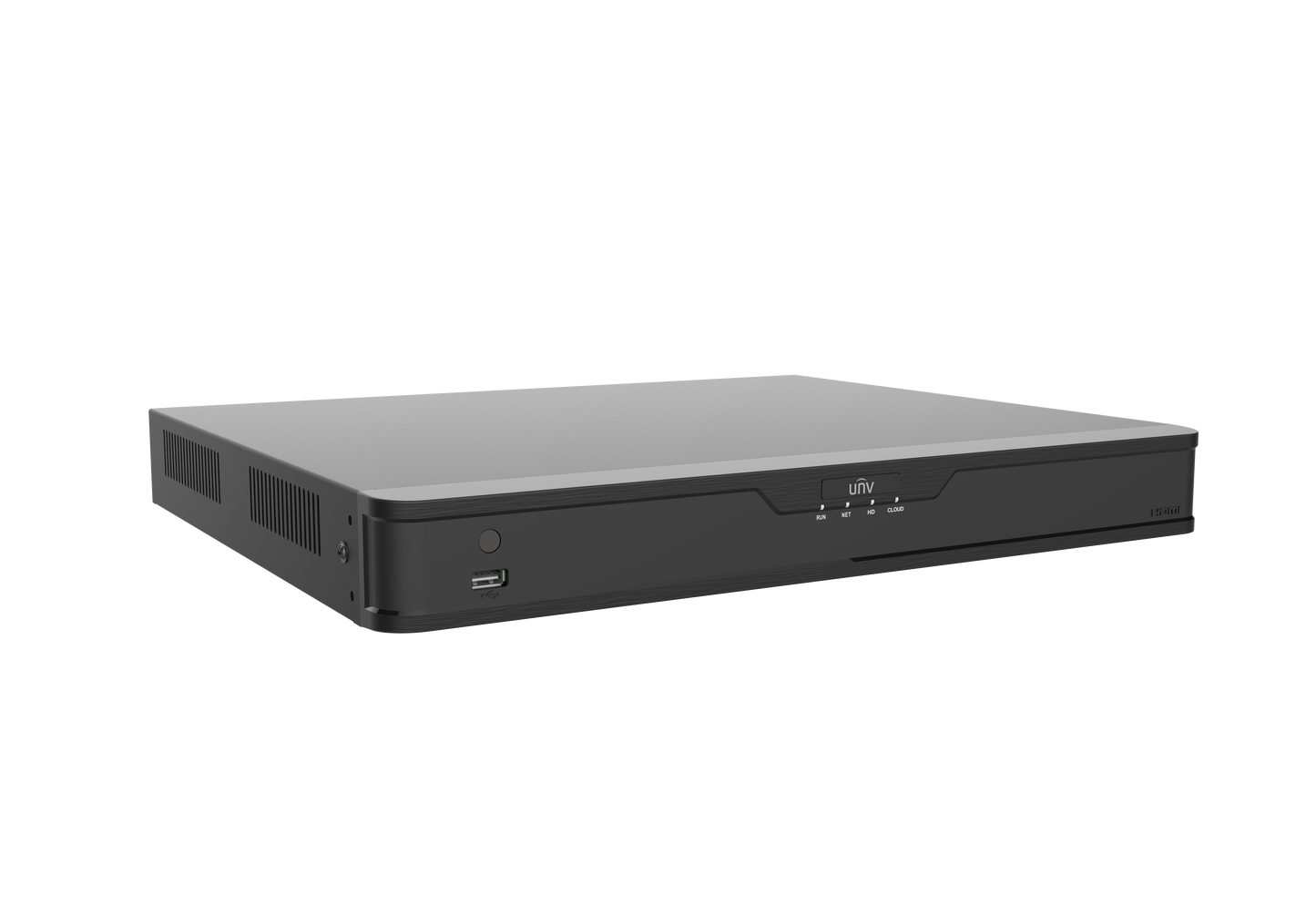

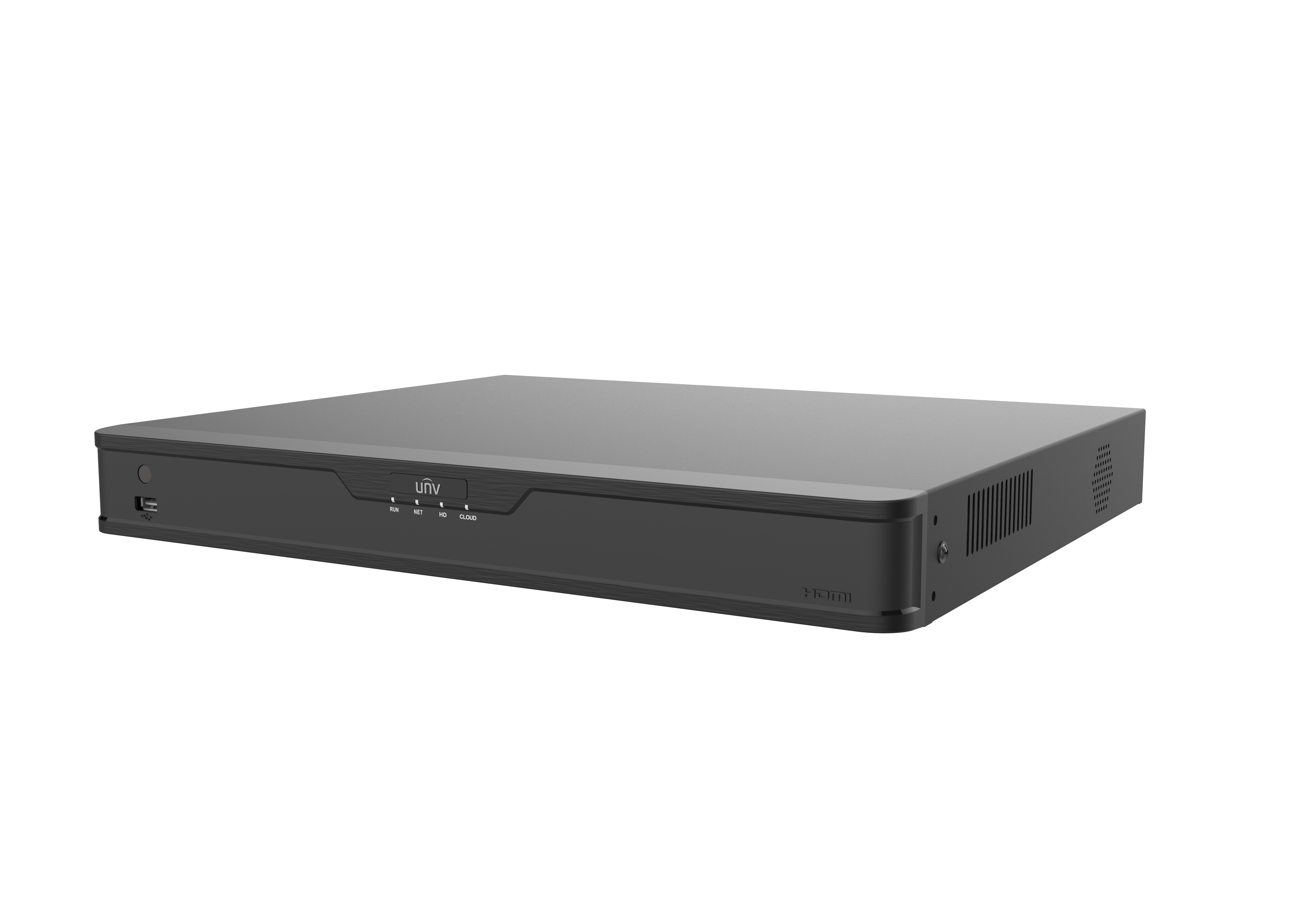

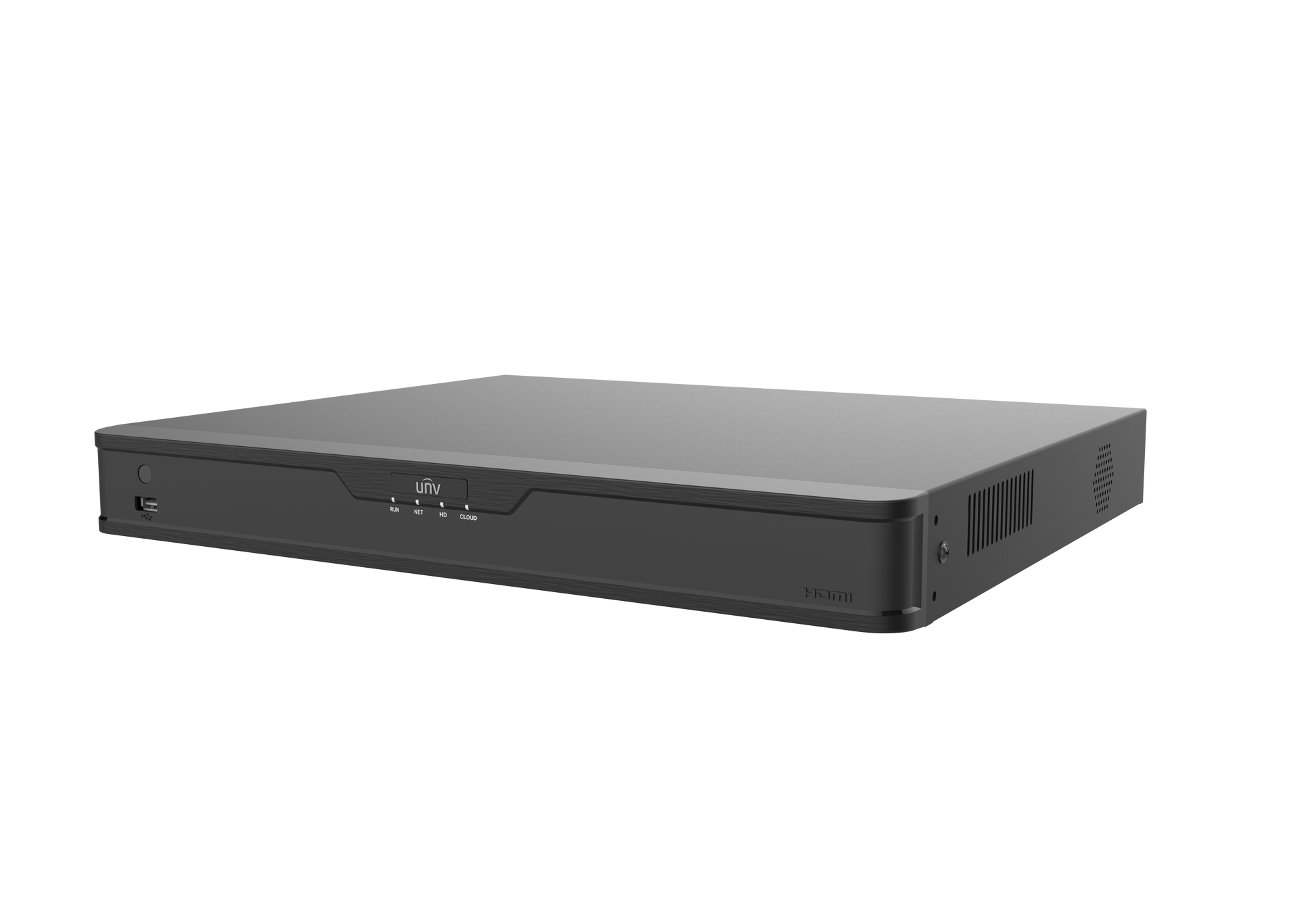

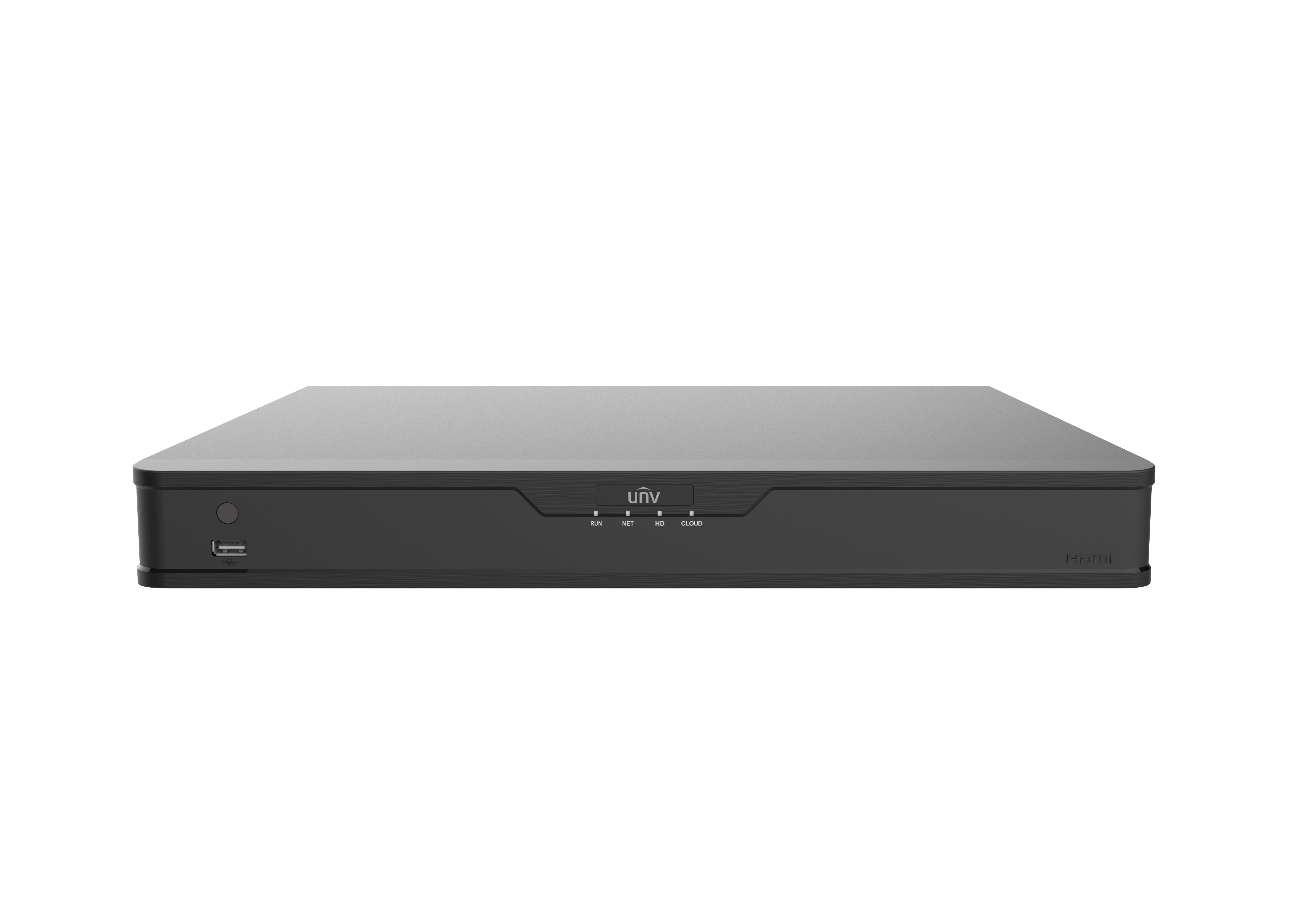

Part Number: XVR302-16Q3
Video Output: 1-HDMI(4K), 1-VGA(1080P), 1-BNC(CVBS), Simultaneous Output
Video Format: HD-CVI (8MP), HD-TVI (8MP), AHD (8MP), CVBS
Recording Resolutions: Analog Channels - 8MP Lite@8fps, 5MP Lite@12fps, 1080P@15fps; IP Channels - 8MP(4K)@30fps
Bandwidth: 80Mbps (In) / 160Mbps (Out)
HDD Storage: 2-SATA up to 8TB each
Network Ports: Single 10M/100M/1000M NIC
Chassis: 1U, Rackmountable (Rack ears not included in package)
NDAA Compliant: Yes
Warranty Period: 3 Years
|
Model |
XVR302-16Q3 |
|
|
Video/Audio Input |
||
|
Analog Video Input |
16-ch, BNC |
|
|
IP Video Input |
8-ch(only IP up to 24ch), each channel up to 8MP |
|
|
Supported Analog Camera Types |
Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@60fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@60fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
|
|
Audio Input |
1-ch, RCA |
|
|
Audio Compression |
G.711U |
|
|
Video/Audio Output |
||
|
CVBS Output |
1-ch, BNC |
|
|
VGA Output |
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
|
HDMI Output |
4K(3840X2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
|
Audio Output |
1-ch, RCA |
|
|
Synchronous Playback |
16 |
|
|
Live view display |
HDMI/VGA: 1/4/6/8/9/16/25 |
|
|
Two-way Audio |
1-ch, RCA |
|
|
Network |
||
|
Incoming Bandwidth |
80Mbps (Up to 112Mbps after all analog channel conversion) |
|
|
Outgoing Bandwidth |
160Mbps |
|
|
Remote Users |
128 |
|
|
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP |
|
|
Browser |
IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|
|
Encoding |
||
|
Recording Resolution |
8MP Lite/5MP Lite/4MP Lite /1080P/720P/D1 |
|
|
Recording Frame Rate |
Main stream |
Sub stream |
|
8MP Lite@8fps |
D1@8fps |
|
|
5MP Lite@12fps |
D1@12fps |
|
|
4MP Lite@15fps |
D1@12fps |
|
|
1080P@15fps |
D1@12fps |
|
|
720P@30fps |
D1@12fps |
|
|
Audio Sample Rate |
8KHz,16 bit per channel |
|
|
Audio Bit Rate |
64Kbps per channel |
|
|
Decoding |
||
|
Capability |
Analog: 16 x 8MP Lite@8, 16x 5MP Lite@12, 16x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30 IP: 24 x D1@30, 16 x 720P@30, 8 x 1080P@30 |
|
|
Hard Disk |
||
|
SATA |
2 SATA interfaces |
|
|
Capacity |
Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) |
|
|
General Alarm |
||
|
General Alarm |
Motion detection |
|
|
Alert Alarm |
IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|
|

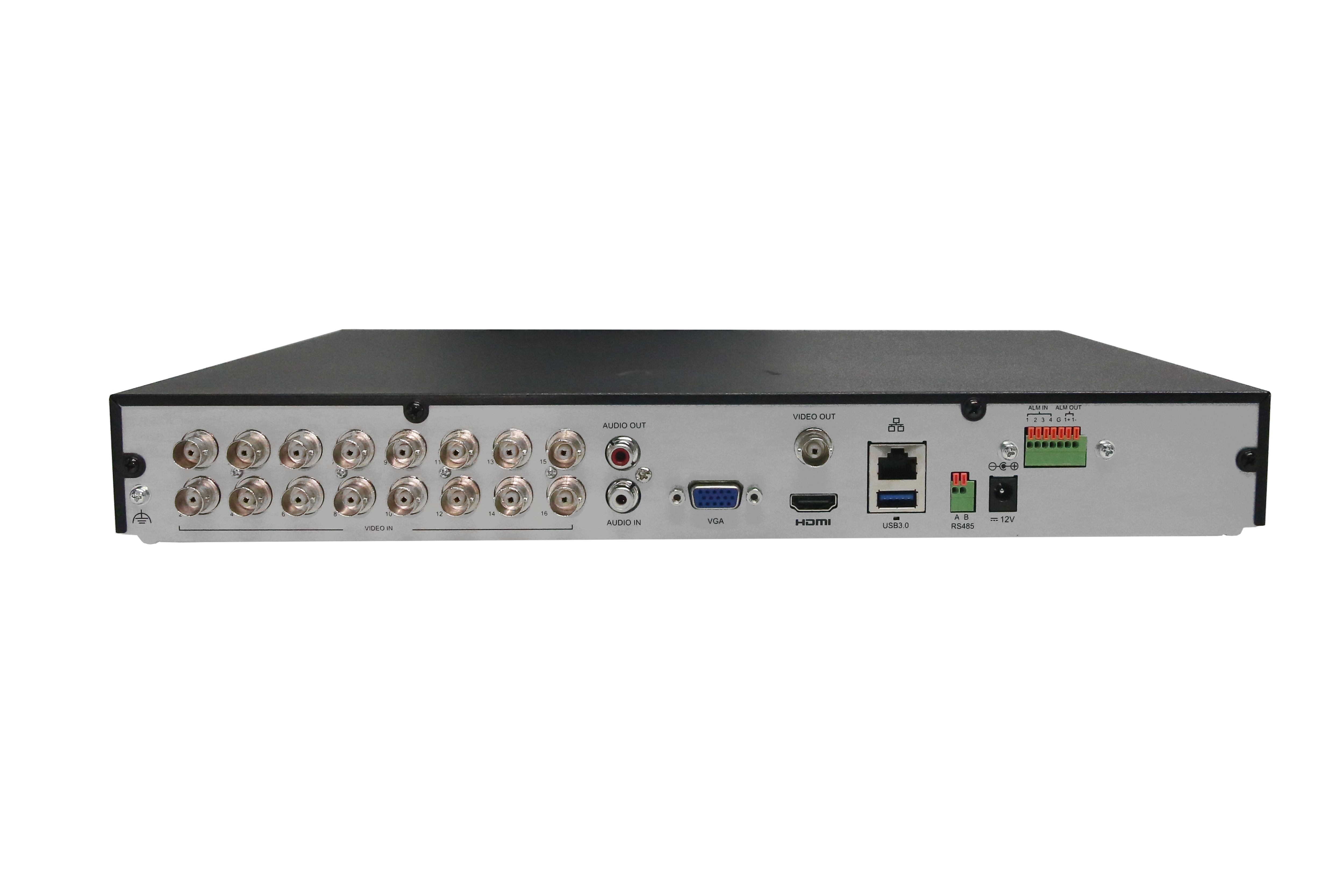

External Interface |
||
|
Network Interface |
1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
|
|
USB Interface |
Rear panel: 1 x USB3.0, Front panel: 1xUSB2.0 |
|
|
Serial Interface |
1 x RS485 |
|
|
Alarm In |
4 |
|
|
Alarm Out |
1 |
|
|
General |
||
|
Power Supply |
12V DC Power Consumption: ≤ 12 W( without HDD ) |
|
|
Working Environment |
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
|
|

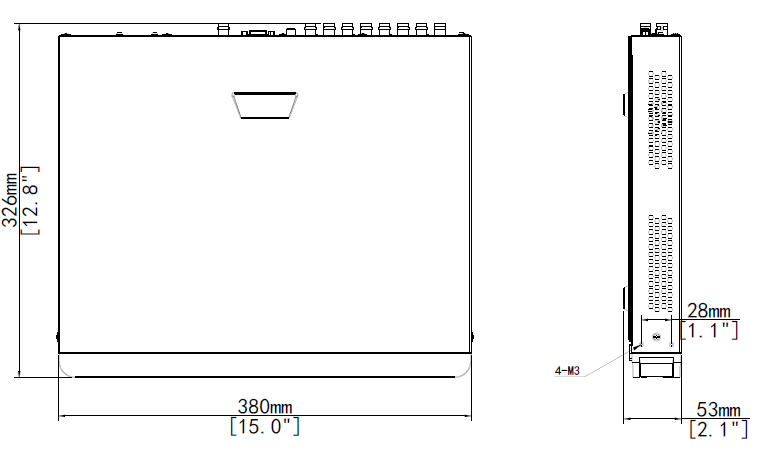

Dimensions(W×D×H) |
380mm ×326mm× 53mm (15.0" × 12.8"×2.1") |
|
|
Weight ( without HDD ) |
≤2.0 Kg ( 4.4lb ) |
|
|
Certification |
||
|
Certification |
UL /CE /FCC /RoHS /WEEE |
|
