Video/Audio Input

Description

IP Video Input

8ch

Analog Video Input

8ch, BNC

Max IP Video Input

16ch

Supported Analog Camera Types

Support AHD input:
8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support TVI input:
8MP@15fps
3K@20fps
5MP@20ps
4MP@30fps
1080P@30fps
720P@30fps
Support CVI input:
8MP@15fps
5MP@25ps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input

BNC Audio Input

8ch, channel audio

RCA Audio Input

4ch

Video/Audio Output

Description

HDMI Output

HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA Output

VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

BNC Video Output

1ch

RCA Audio Output

1ch

Live View Display

HDMI/VGA: 1/4/6/8/9/16

Encoding/Decoding

Description

Recording Resolution

8MP/5MP/4MP/1080P/720P/D1

Recording Frame Rate

Main stream: 8MP@8fps
Sub stream: D1@8fps
Main stream: 3K@12fps
Sub stream: D1@12fps
Main stream: 5MP@12fps
Sub stream: D1@12fps
Main stream: 4MP@15fps
Sub stream: D1@15fps
Main stream: 1080P@25fps
Sub stream: D1@25fps
Main stream: 720P@30fps
Sub stream: D1@30fps

Audio Sample Rate

8KHz, 16 bit per channel

Audio Bit Rate

64Kbps per channel

Decoding Capability

Analog: 8 x 8MP@8, 8 x 3K@12, 8 x 5MP@12, 8 x 4MP@15, 8 x 1080P@25, 8 x 720@30
IP: 2 x 8MP@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30

Coaxial Cable

Description

Audio over Coaxial Cable(Form)

8ch, Oneway Audio(TVI)

Two-way Audio

Description

Two-way Audio

1ch, RCA(Using the audio input and output)

Analog Snapshot

Description

FTP/Schedule/Event Snapshot

Schedule/FTP/Event snapshot:8ch snapshot, up to 704*576 resolution

Network

Description

Incoming Bandwidth

80 Mbps (Up to 96 Mbps after all analog channel conversion)

Outgoing Bandwidth

160Mbps

Remote Users

128

Protocols

TCP/IP; P2P; UPnP; DHCP; HTTP; HTTPS; DNS; DDNS; SMTP; NTP

Browser(Plugin)

Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)

Smart

Description

Analog Smart by XVR

SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection(UMD)

IP Smart by IPC

Face Detection; SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Defocus Detection; Scene Change Detection; Object Removed; Object Left Behind; Auto Tracking

VCA Search

Face Search; Behavior Search

Smart Functions by XVR

8ch(UMD), 4ch(SIP)

Alarm

Description

General Alarm

Motion

Alert Alarm

IP Conflict; Network Disconnected; Disk offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal

GUI Language

Description

GUI Language

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

Description

SATA

2 SATA interfaces

Capacity

Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)

External Interface

Description

Network Interface

1 RJ45 10M/100M/1000M  selfadaptive Ethernet Interface

USB

Rear panel: 1 x USB3.0; Front panel: 1 x USB2.0

RS485

1

RS232

NA

Alarm In

8ch

Alarm Out

4ch

Power Supply

DC 12V/3A

Working Environment

Description

Working Temperature

10 °C ~ 55 °C (14 °F ~ 131 °F )

Working Humidity

≤ 90% RH(noncondensing)

Power Consumption (without HDD)

≤ 12W

Dimensions

Description

Weight (without HDD)

≤2.0 Kg ( 4.4lb )

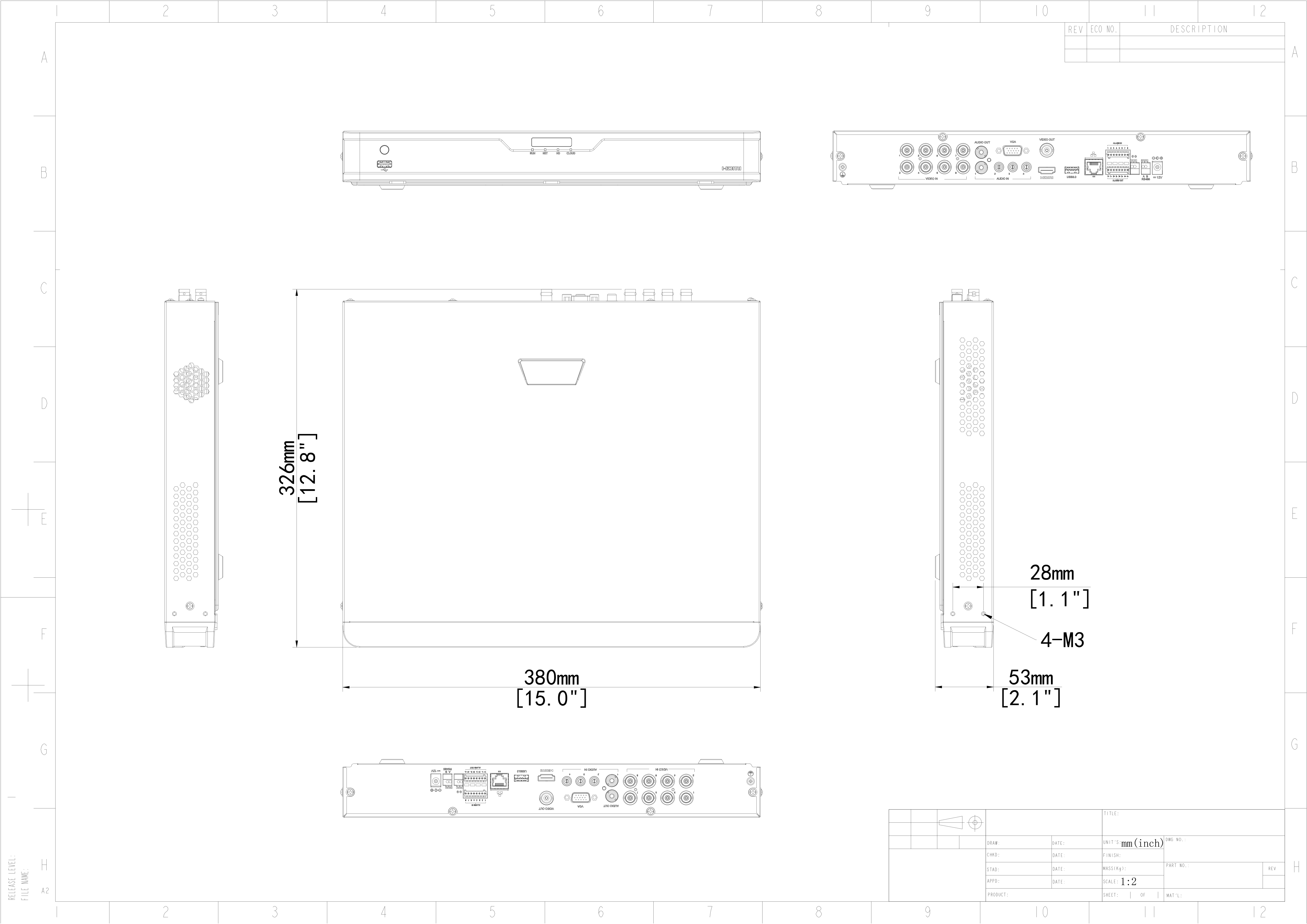

Dimensions

380mm × 326mm × 53mm (15.0" × 12.8"×2.1")

Certification

Description

Certification

CE, FCC, UL, RoHS, WEEE

CE

EN 55032, EN 6100033, EN IEC 6100032, EN 55035
