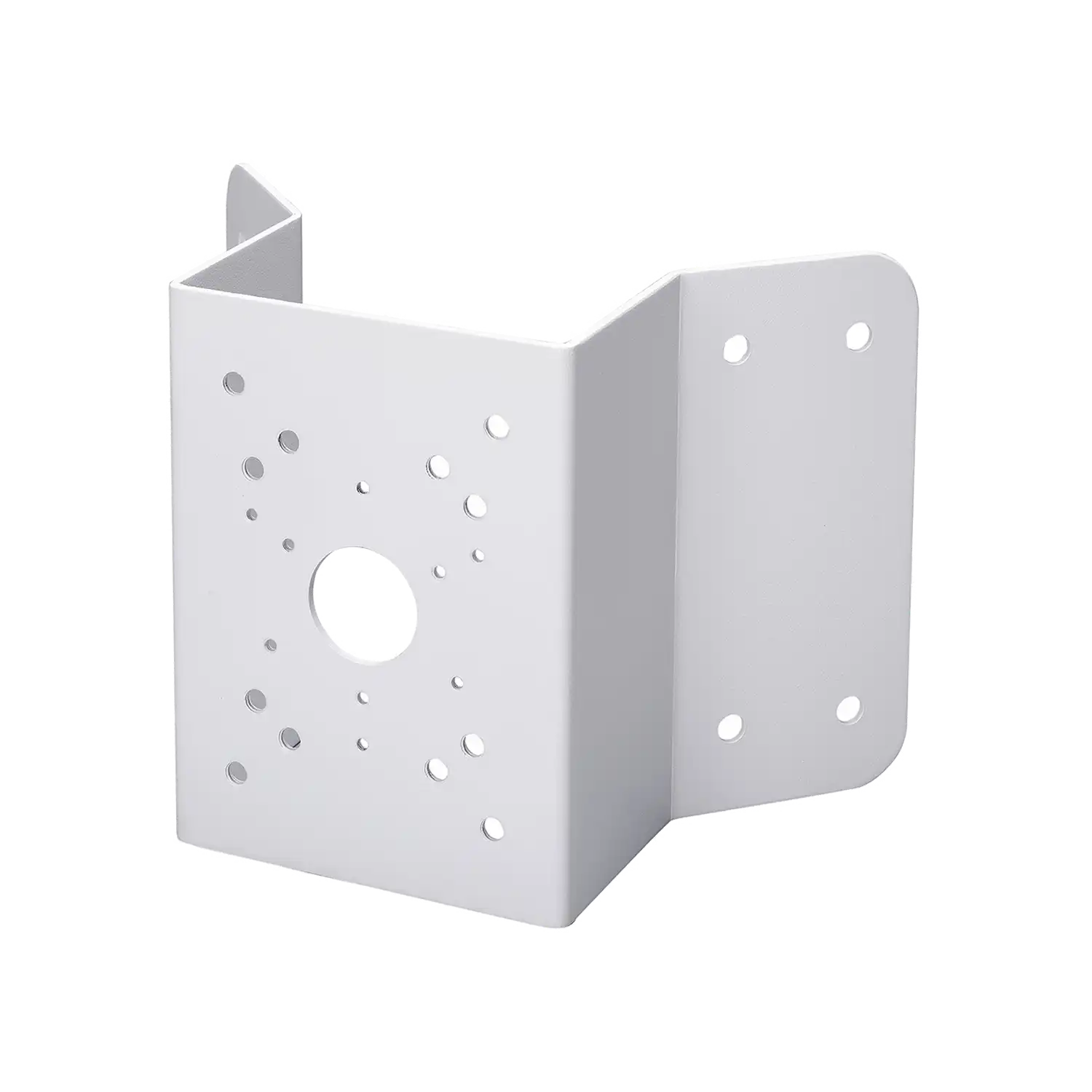

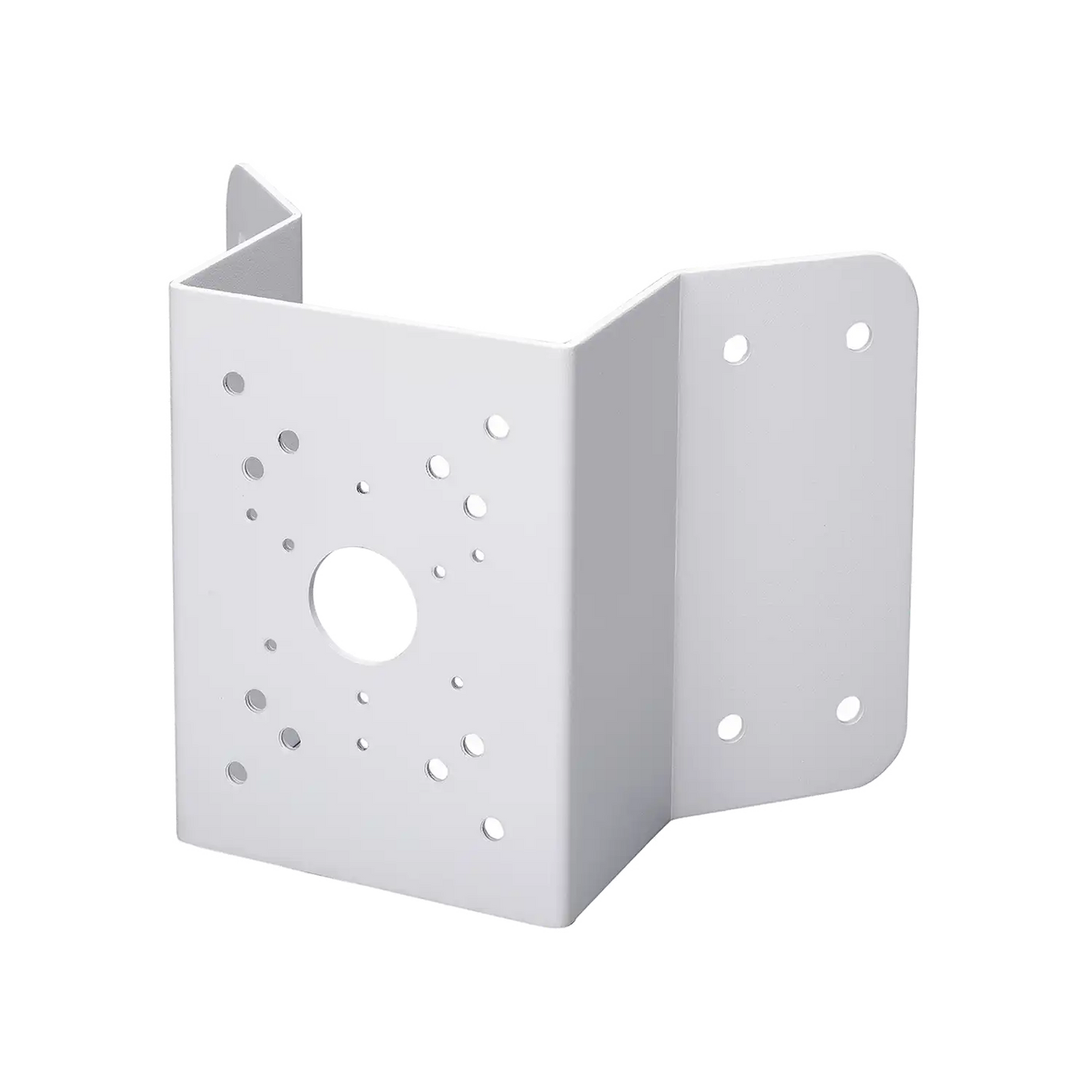

HD Analog PTZ Corner Mount

Part Number: PFA151

Product Specifications
Material SECC
Pipe Thread N/A
Load Bearing 10kg(22.05lb)
Weight 1.7kg(3.75lb)

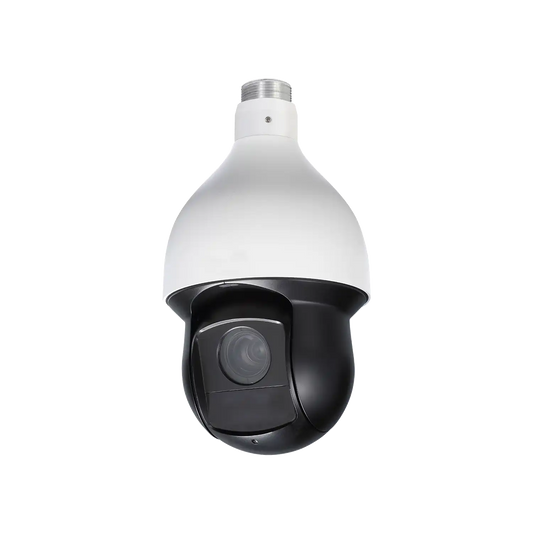

Applicable Model PDC59L225H
Application & Compatibility
Dimension (WxHxD) 243mmx170mmx138mm (9.57”x6.69”x5.43”)
Operating Temperature -40ºC~+60ºC(-40℉~+140℉)
Humidity 0~90% RH

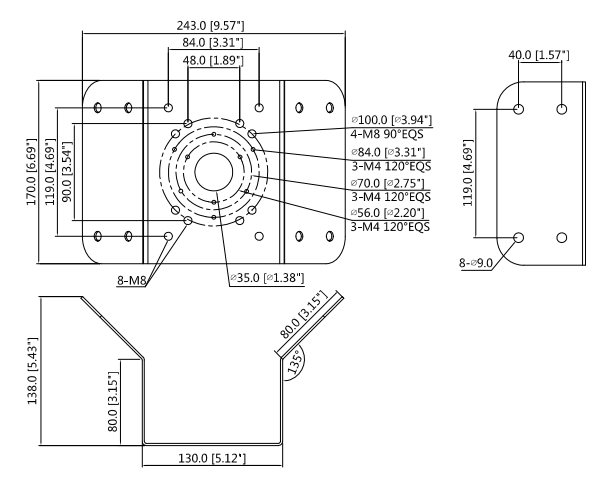

PFA151 DIMENSIONS
Download Type
Data Sheet

   pdf
