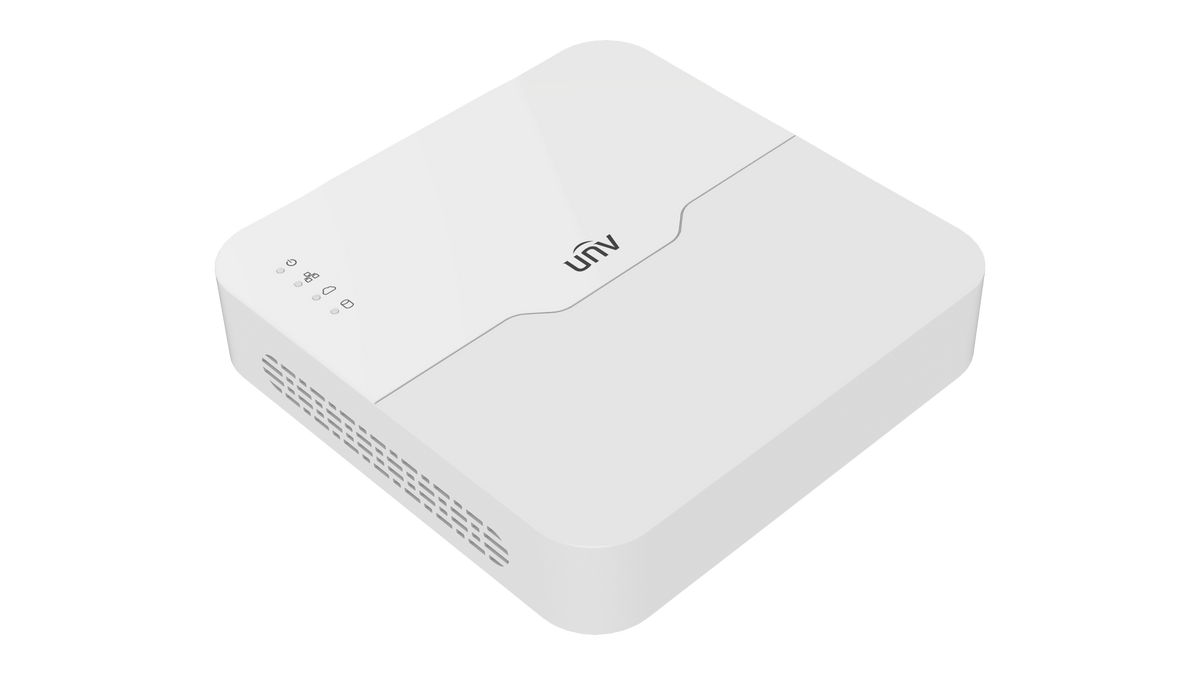

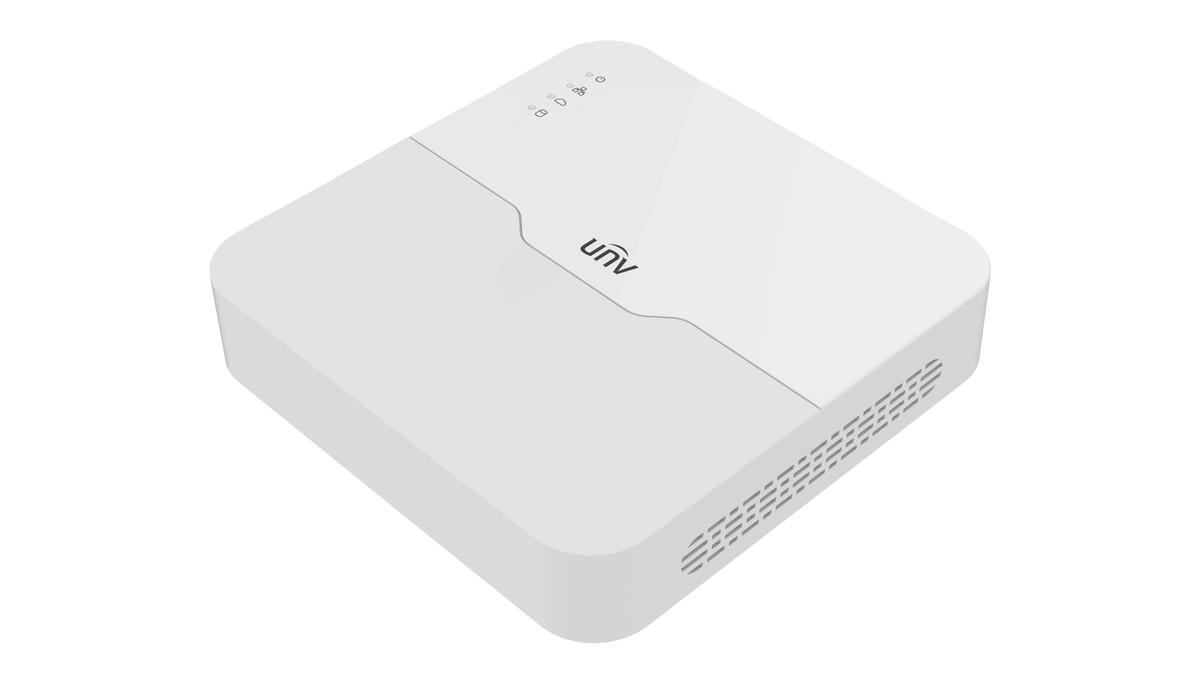

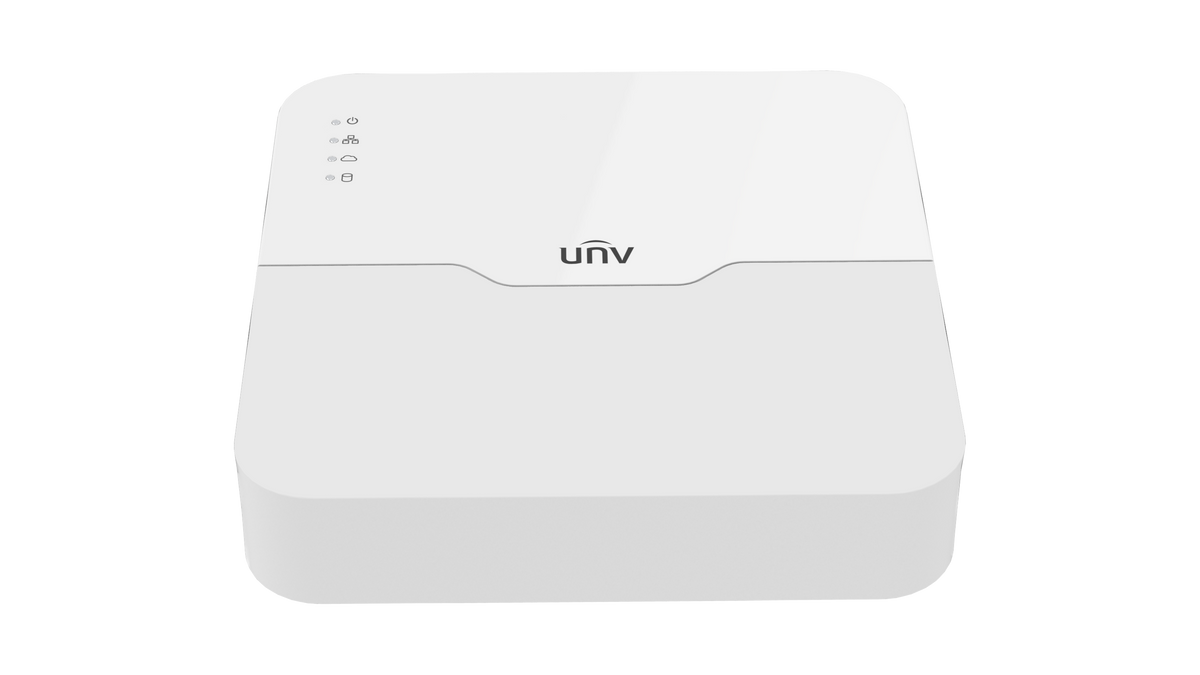

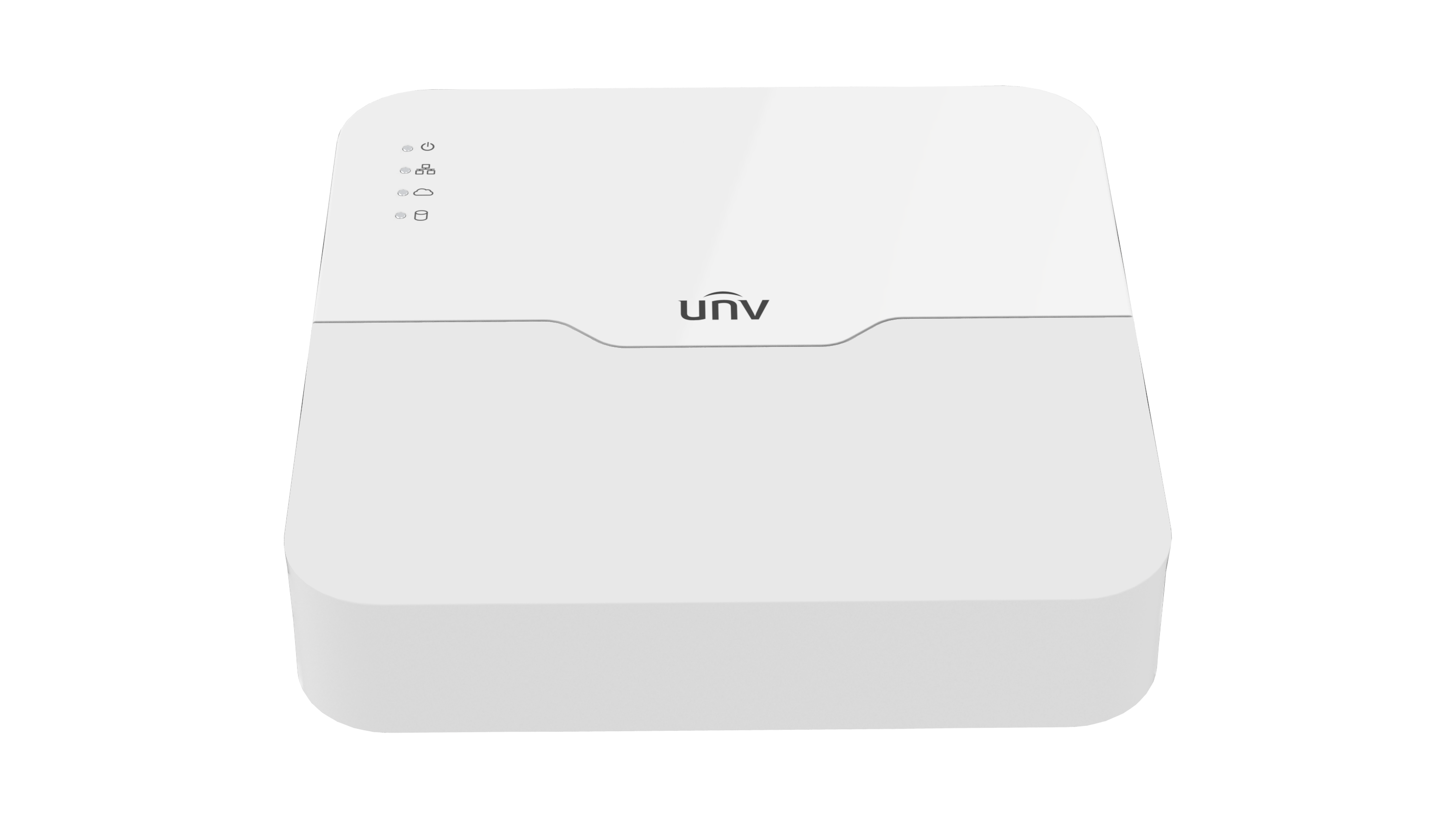

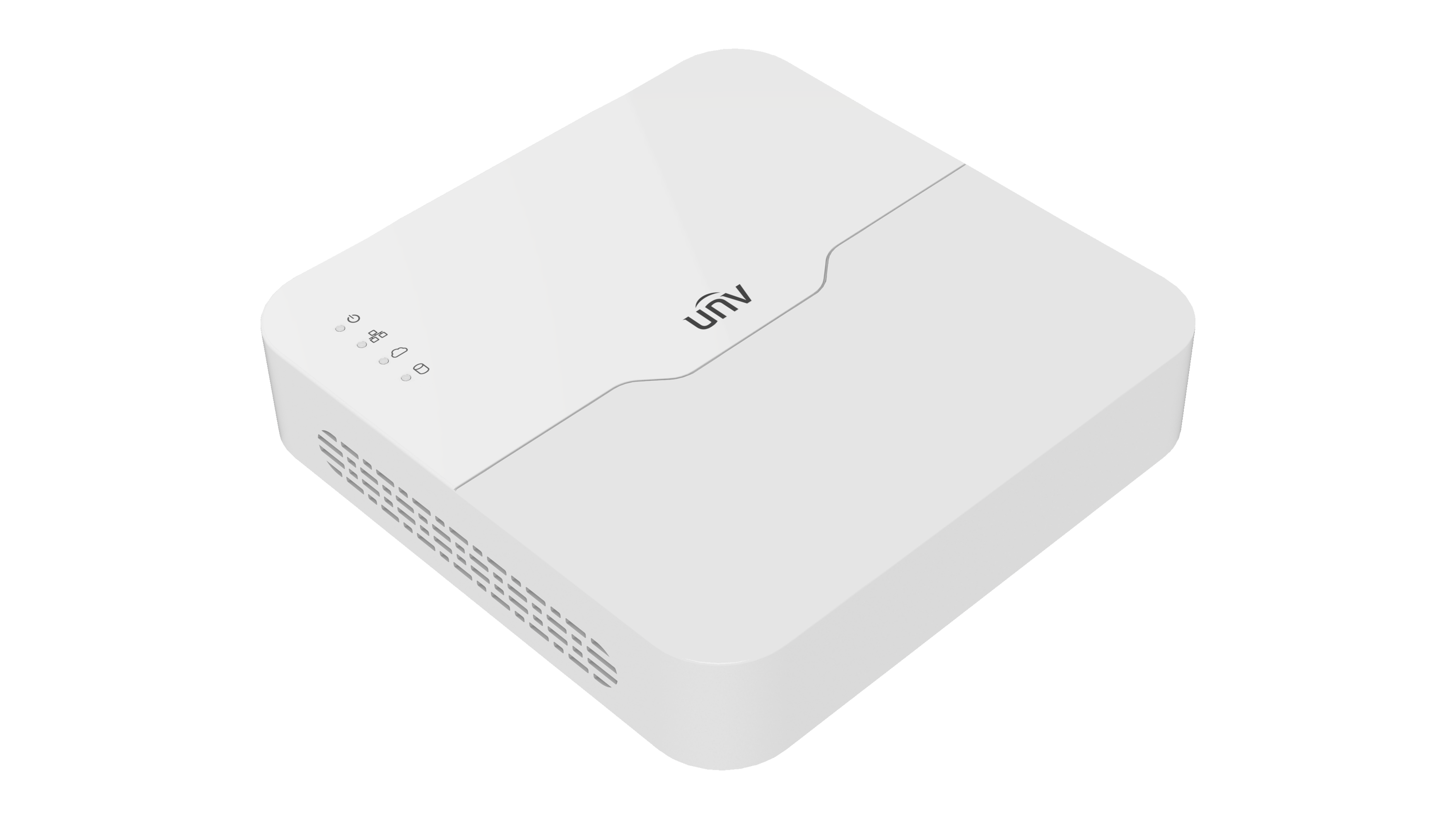

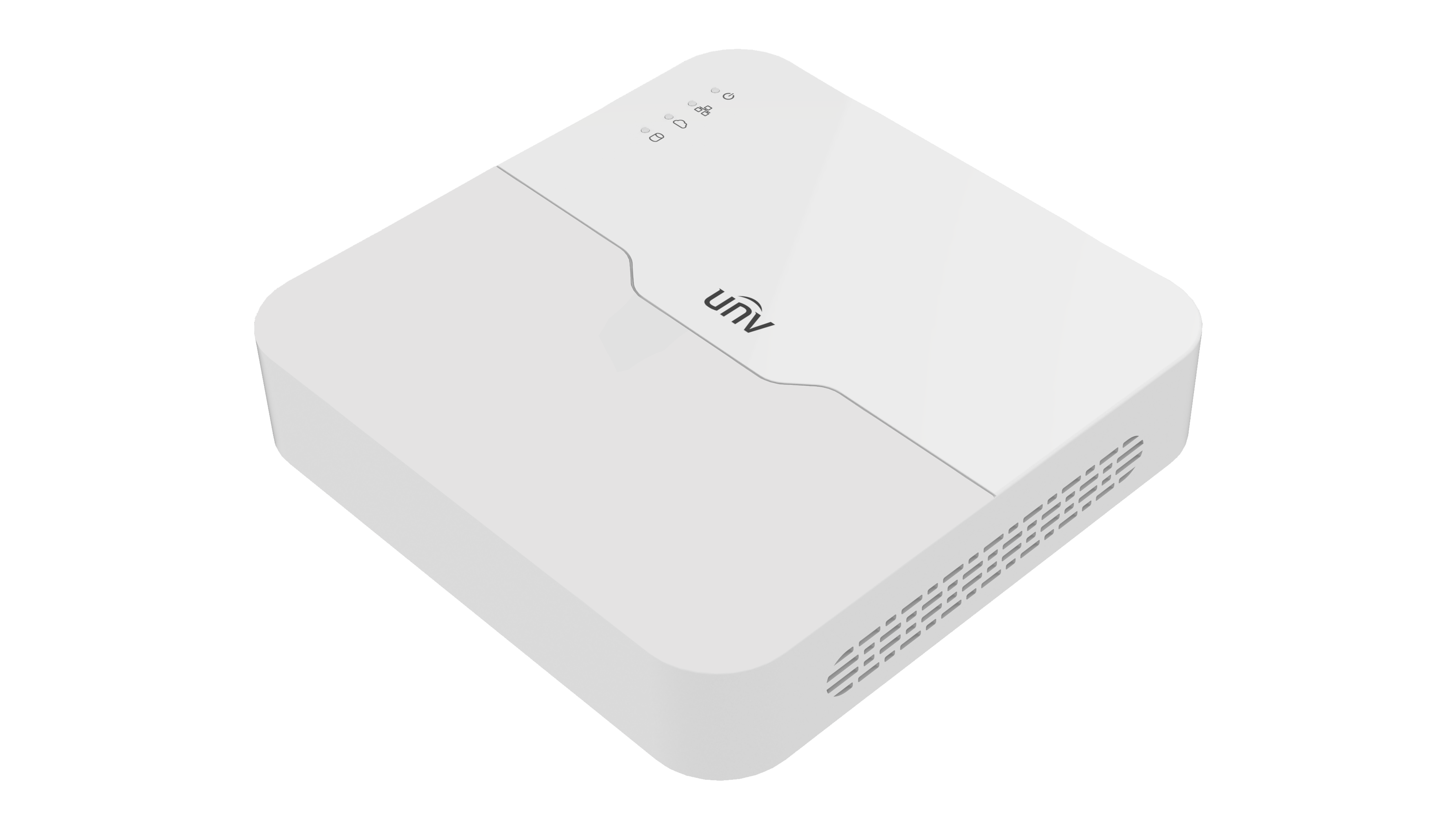

Part Number: NVR501-08B-LP8
Video Output: 1-HDMI(4K), 1-VGA(1080P), Simultaneous Output
Max Decoding Resolution: 8MP(4K)
Bandwidth: 80Mbps (In) / 64Mbps (Out)
HDD Storage: 1-SATA up to 6TB each
Network Ports: Single 10M/100M NIC
POE Power: Max 75W (Single port Max 30W)
Support 12 MP Fisheye: Limited (Recording / Remote View only)
Support LPR Camera: Not supported
Chassis: Smart 1U, Non-rackmountable
NDAA Compliant: Yes
Warranty Period: 3 Years
|
Model |
NVR301-08LX-P8 |
|
Video/Audio Input |
|
|
IP Video Input |
8-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
Network |
|
|
Incoming Bandwidth |
80Mbps |
|
Outgoing Bandwidth |
64Mbps |
|
Remote Users |
128 |
|
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
|
Browser |
IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|
Video/Audio Output |
|
|
HDMI/VGA Output |
HDMI: 3840x2160/30Hz ,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
Recording Resolution |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, RCA |
|
Audio Compression |
G.711A, G.711U |
|
Synchronous Playback |
8-ch |
|
Liveview display |
1/4/6/8/9 |
|
Corridor Mode Screen |
3/4/5/7/9 |
|
Snapshot |
|
|
FTP/Schedule/Event Snapshot |
4-ch snapshot, up to D1 resolution |
|
Decoding |
|
|
Decoding format |
Ultra 265/H.265/H.264 |
|
Liveview/Playback |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30 |
|
Hard Disk |
|
|
SATA |
1 SATA interface |
|
Capacity |
up to 6TB for each disk |
|
Smart |
|
|
VCA Detection by Camera |
Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking |
|
VCA Search |
Face Search, Behavior Search |
|
People counting |
People Flow Counting, Crowd Density Monitoring |
|
Smart Intrusion Prevention (SIP), Face Detection by Camera |
Total 8-ch |
|
General Alarm |
|
|
General Alarm |
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
|
Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|
External Interface |
|
|
Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet Interface |
|
USB Interface |
Rear panel: 1 x USB2.0,1 x USB3.0 |
|
RS232 |
NA |
|
RS485 |
NA |
|
Alarm In |
NA |
|
Alarm Out |
NA |
|
PoE |
|
|
Interface |
8 RJ45 10M/100M self-adaptive Ethernet Interface |
|
Max Power |
Max 30W for single port Max 75W in total |
|
Supported Standard |
IEEE 802.3at, IEEE 802.3af |
|
General |
|
|
Power Supply |
52V DC Power Consumption: ≤9 W (without HDD) |
|
Working Environment |
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
|

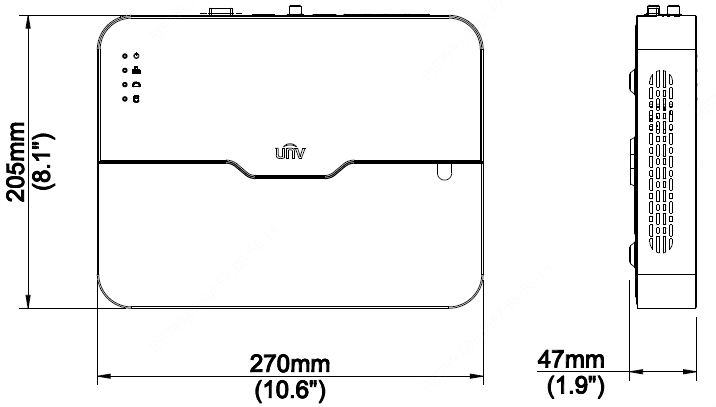

Dimensions (W×D×H) |
270mm × 205mm × 47mm (10.6"×8.1"×1.9") |
|
Weight (without HDD) |
≤0.8kg (1.76lb) |
|
Certification |
|
|
Certification |
CE, FCC, UL, RoHS, WEEE |
|
CE |
EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
|
FCC |
Part15 Subpart B, ANSI C63.4 |
