Part Number: NVR302-16S2-P16
Video Output: 1-HDMI(4K), 1-VGA(1080P), Simultaneous Output
Max Decoding Resolution: 8MP(4K)
Bandwidth: 160Mbps (In) / 64Mbps (Out)
HDD Storage: 2-SATA up to 10TB each
Network Ports: Single 10M/100M/1000M NIC
POE Power: Max 240W (Single port Max 30W)
Support 12MP Fisheye: Limited (Recording / Remote View only)
Support LPR Camera: Not supported
Chassis: 1U, Rackmountable (Rack ears not included in package)
NDAA Compliant: Yes
Warranty Period: 3 Years
|
Model |
NVR302-16S2-P16 |
|
Video/Audio Input |
|
|
IP Video Input |
16-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
Network |
|
|
Incoming Bandwidth |
160Mbps |
|
Outgoing Bandwidth |
64Mbps |
|
Remote Users |
128 |
|
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
|
Video/Audio Output |
|
|
HDMI/VGA Output |
HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 |
|
Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, RCA |
|
Synchronous Playback |
16-ch |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16 |
|
Decoding |
|
|
Decoding format |
Ultra265/H.265/H.264 |
|
Live view/Playback |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30 |
|
Hard Disk |
|
|
SATA |
2 SATA interfaces |
|
Capacity |
Up to 10TB for each disk |
|
External Interface |
|
|
Network Interface |
1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
|
USB Interface |
Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
|
Alarm In |
4-ch |
|
Alarm Out |
1-ch |
|
PoE |
|
|
Interface |
16 RJ-45 10M/100M self-adaptive Ethernet Interface |
|
Max Power |
Max 30W for single port Max 240W in total |
|
Supported Standard |
IEEE 802.3af/at |
|
General |
|
|
Power Supply |
100 ~ 240 V AC Power Consumption: ≤10W(without HDD) |
|
Working Environment |
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
|

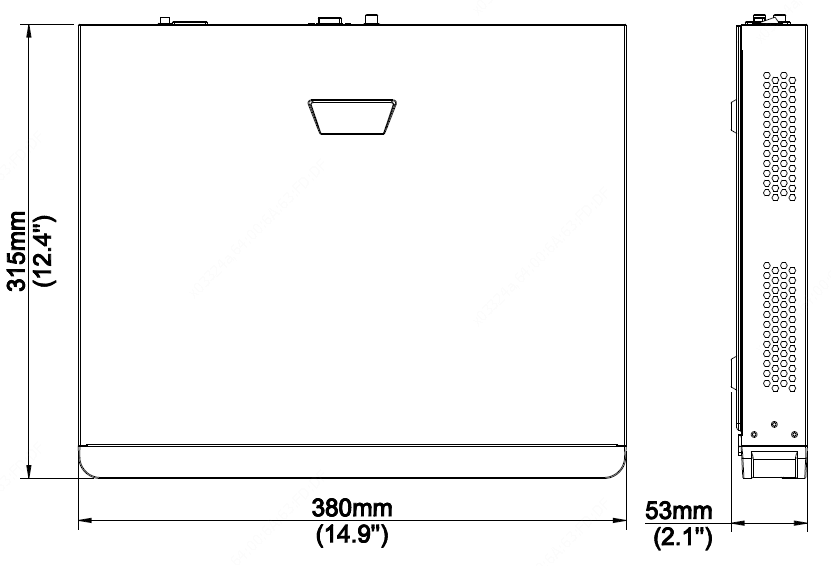

Dimensions (W×D×H) |
380mm ×315mm × 53mm (14.9" × 12.4" ×2.1") |
|
Weight (without HDD) |
≤2.6kg (5.73lb) |
