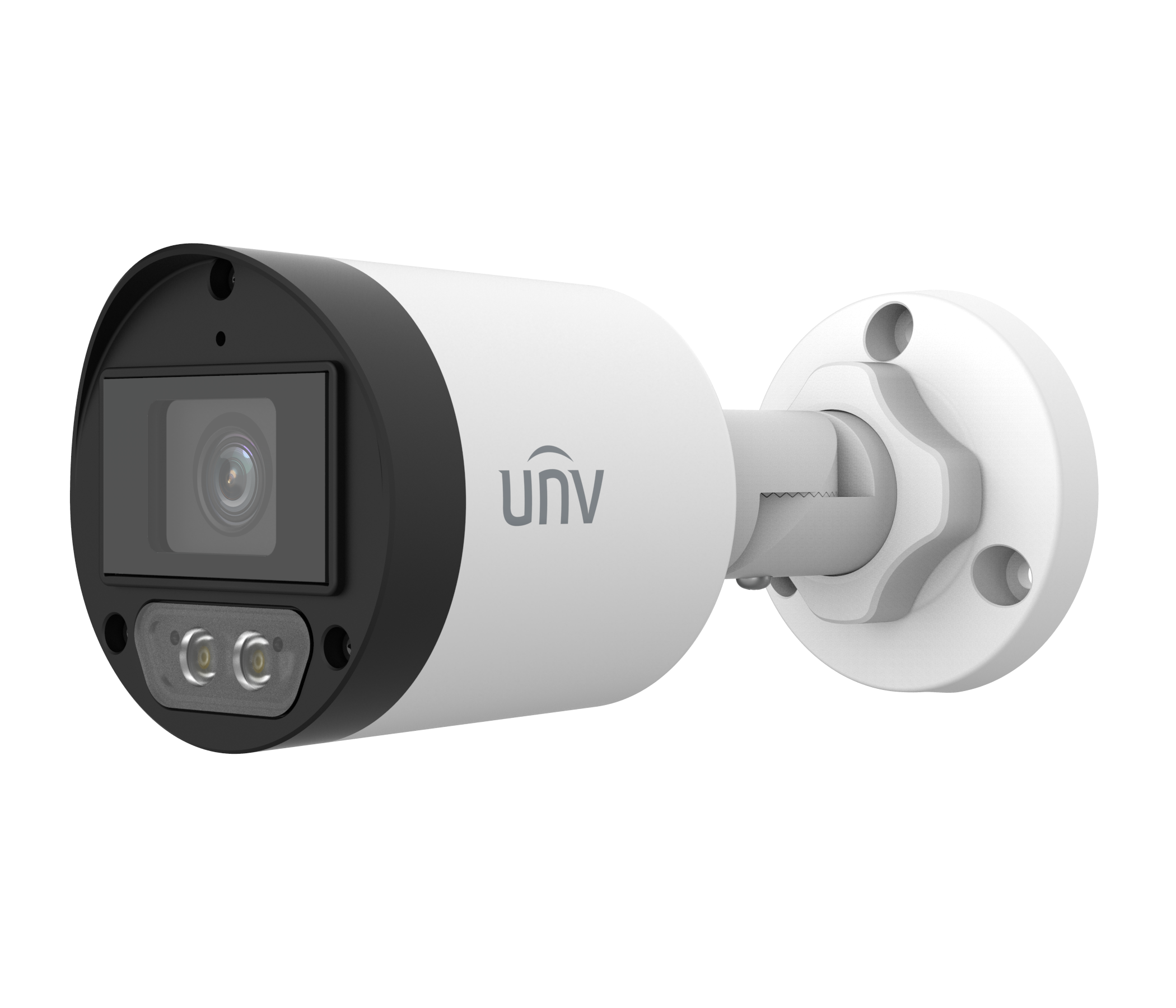

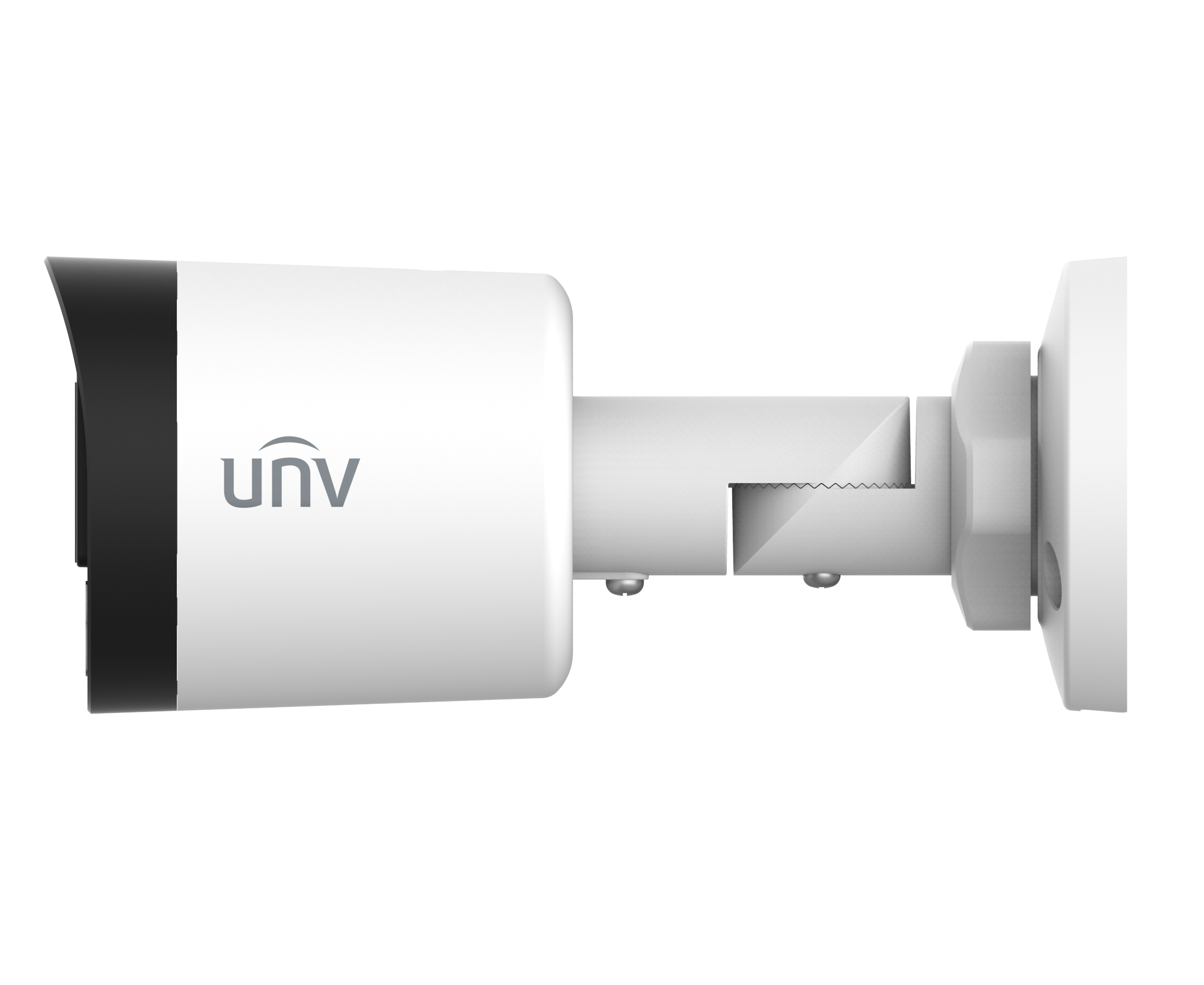

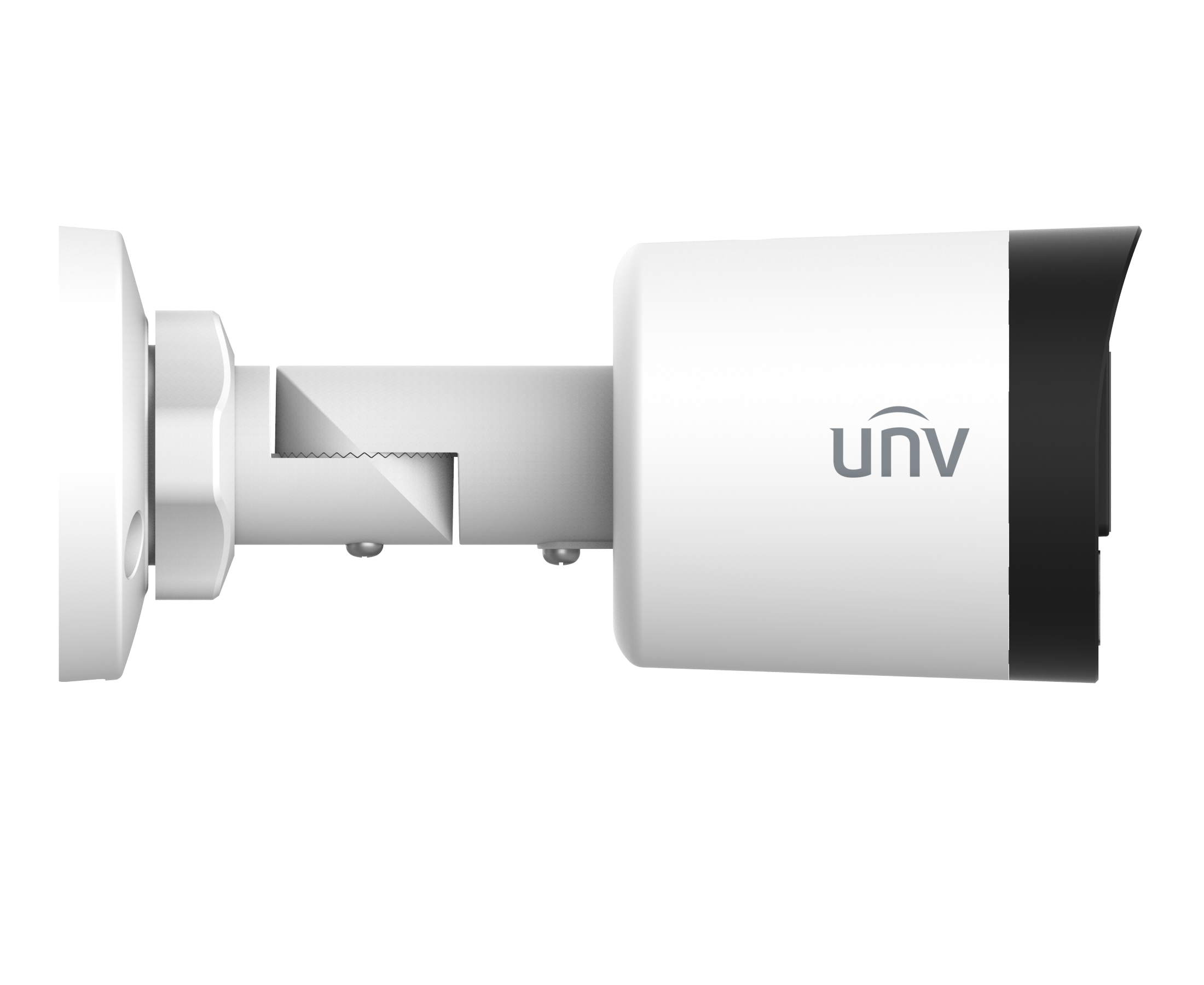

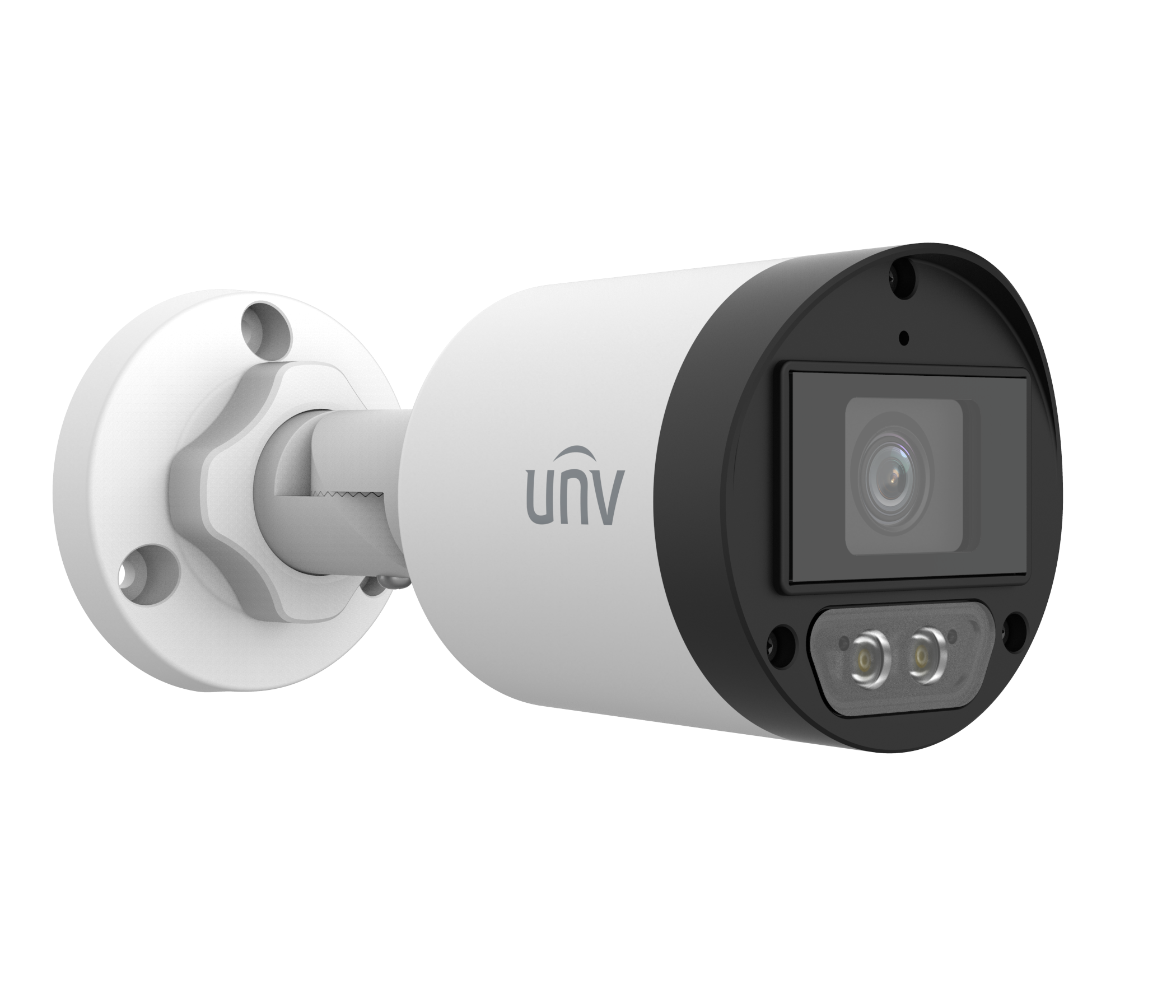

UNV 5MP ColorHunter IR Bullet HD Analog Camera

Part Number: UAC-B125-AF28M-W

Sensor Type: 1/2.7" CMOS
Lens Type: 2.8mm
Max Resolution/Frame Rate: 5MP(2880x1620)@25fps
Angle of View: 111.5° (Horizontal)
Min. Illumination: Color 0.005Lux (F1.4, AGC ON)
Night Vision Distance: 131 Feet (LED)
WDR: DWDR
Audio: Built-in Microphone
Special Features: Day/Night Full Color
Power: DC12V / Max 3.28W
NDAA Compliant: Yes
Warranty Period: 3 Years

Model

UAC-B125-AF28M-W

Sensor

Pixel

5MP

Size

1/2.7"

Minimum illumination

0.005 lux (F1.4, AGC ON)

0 lux (white light on)

Lens

Lens

2.8mm

Lens mount

M12

Angle of view

H: 111.5°  V: 58.9°  D: 134.8°

Illuminator

Illuminator

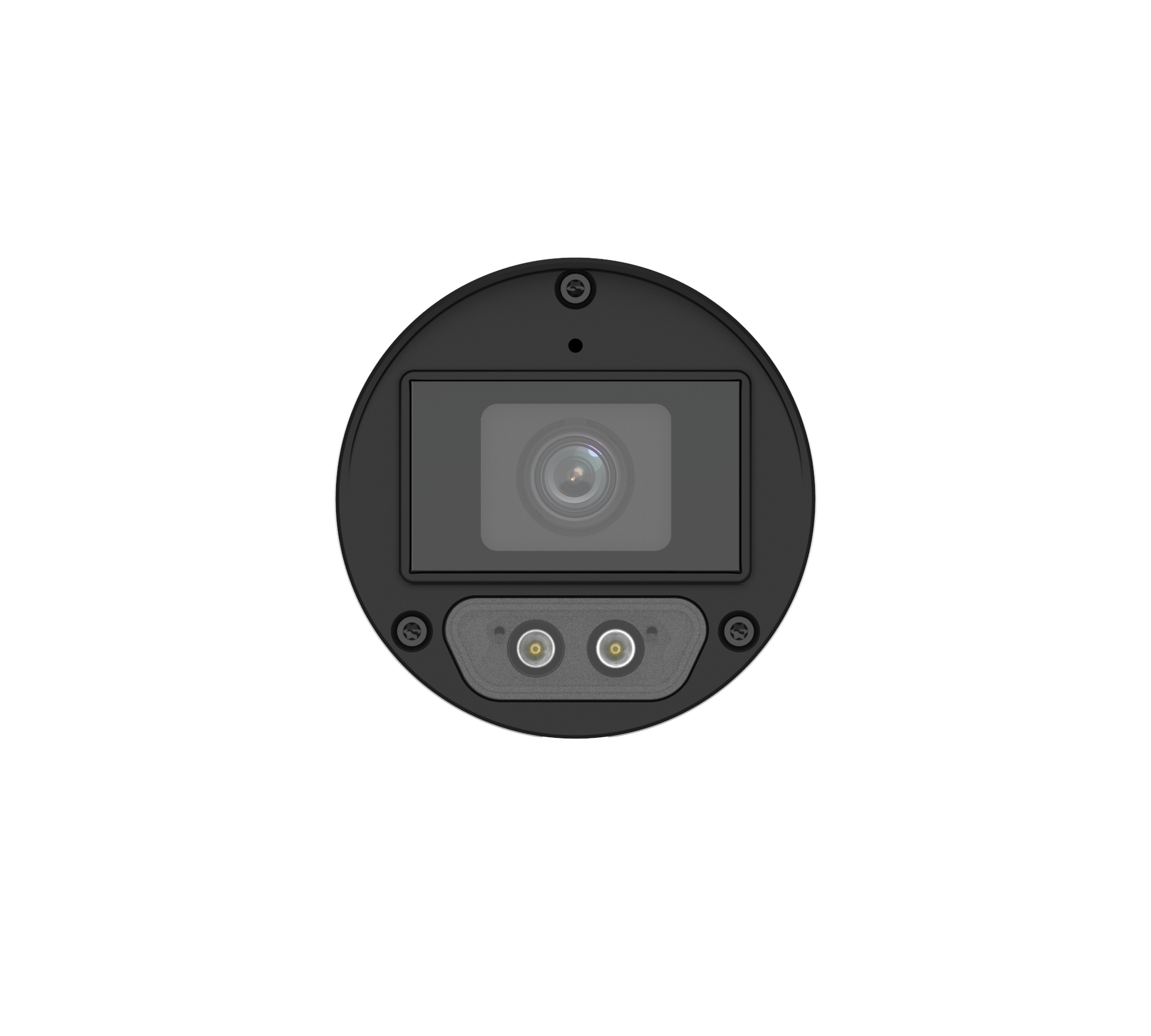

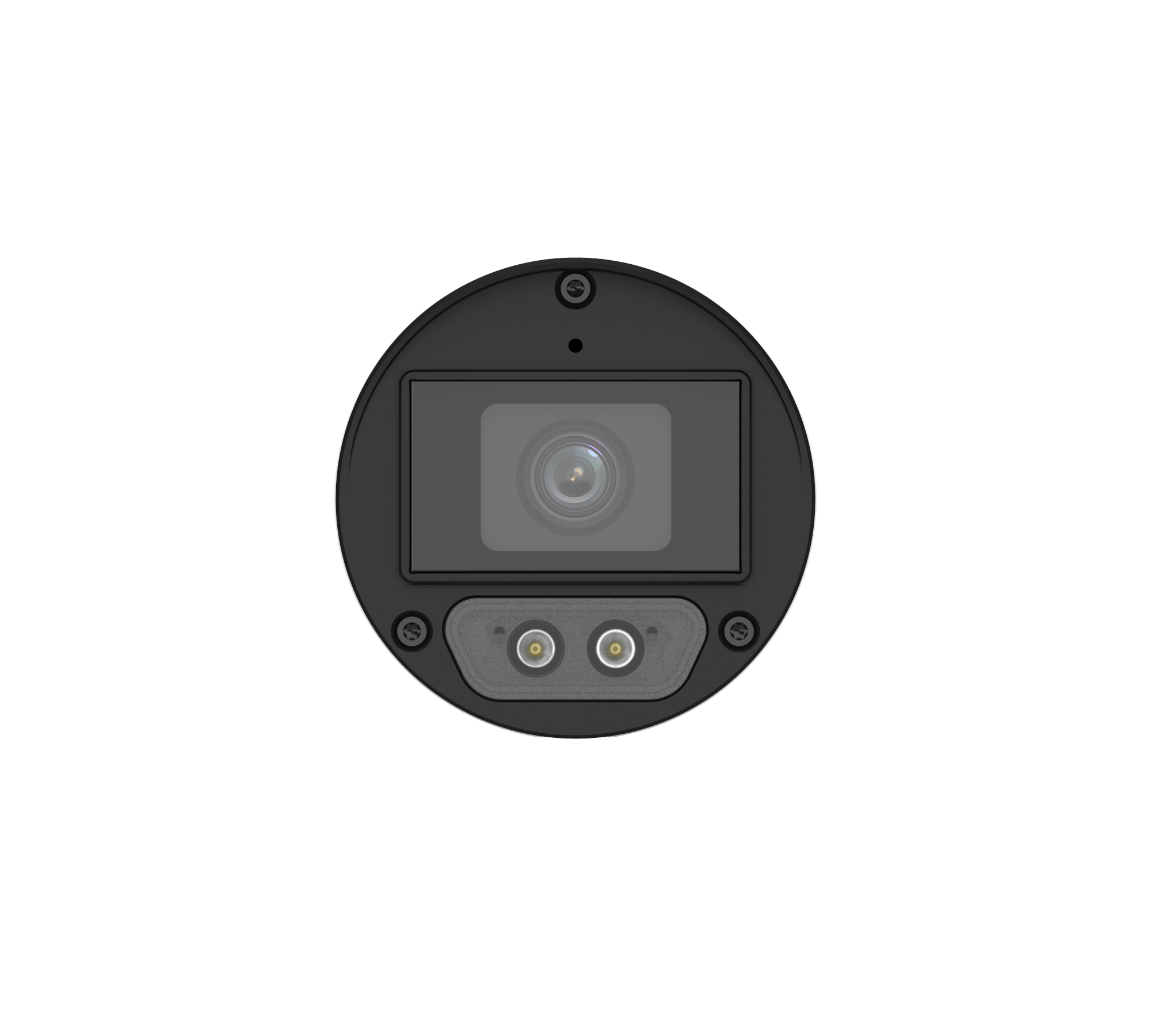

Two white-light illuminators

Illumination distance

40m

Lifetime

≥60,000 hours

Video

Resolution

5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)

4MP: 2560(H)×1440(V)

1080P: 1920(H)×1080(V)

Frame rate

TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVBS: PAL/NTSC

Shutter time

PAL: 1/25s-1/50000s

NTSC: 1/30s–1/50000s


Exposure mode

Four modes: Global (default), BLC, HLC, DWDR

Day/Night

24/7 color images

Digital noise reduction

2D

White balance

Two modes: Auto (default), Manual

WDR

DWDR

Flip

Supports 180° horizontal flip, 180° vertical flip

Audio

Microphone

Built-in Mic

Camera audio

TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps

Interface

Power

5.5mm power interface

Video output

BNC, supports TVI/AHD/CVI/CVBS

Operating environment

Temperature

-30°C to 60°C (-22°F to 140°F)

Humidity

≤95% (RH, non-condensing)

Surge protection

4kV

Ingress protection

IP67

General

Power

DC12V (±25%), with reverse polarity protection and surge protection. Max 3.28W

Mount

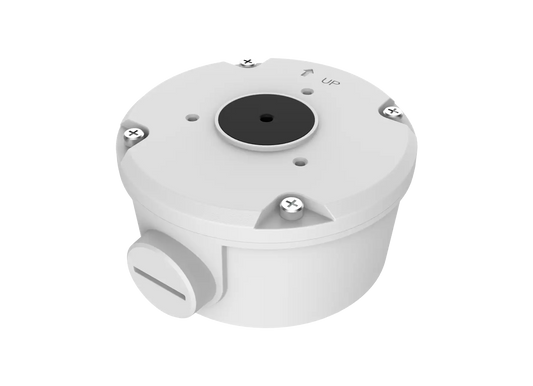

3D bracket supplied, surface mount (default), optional junction box

Dimensions

157.4mm*66.5mm*66.5mm (L*W*H)

Material

Metal

Weight

279g (0.62lb)

Certification

CB, CE, FCC, UL
