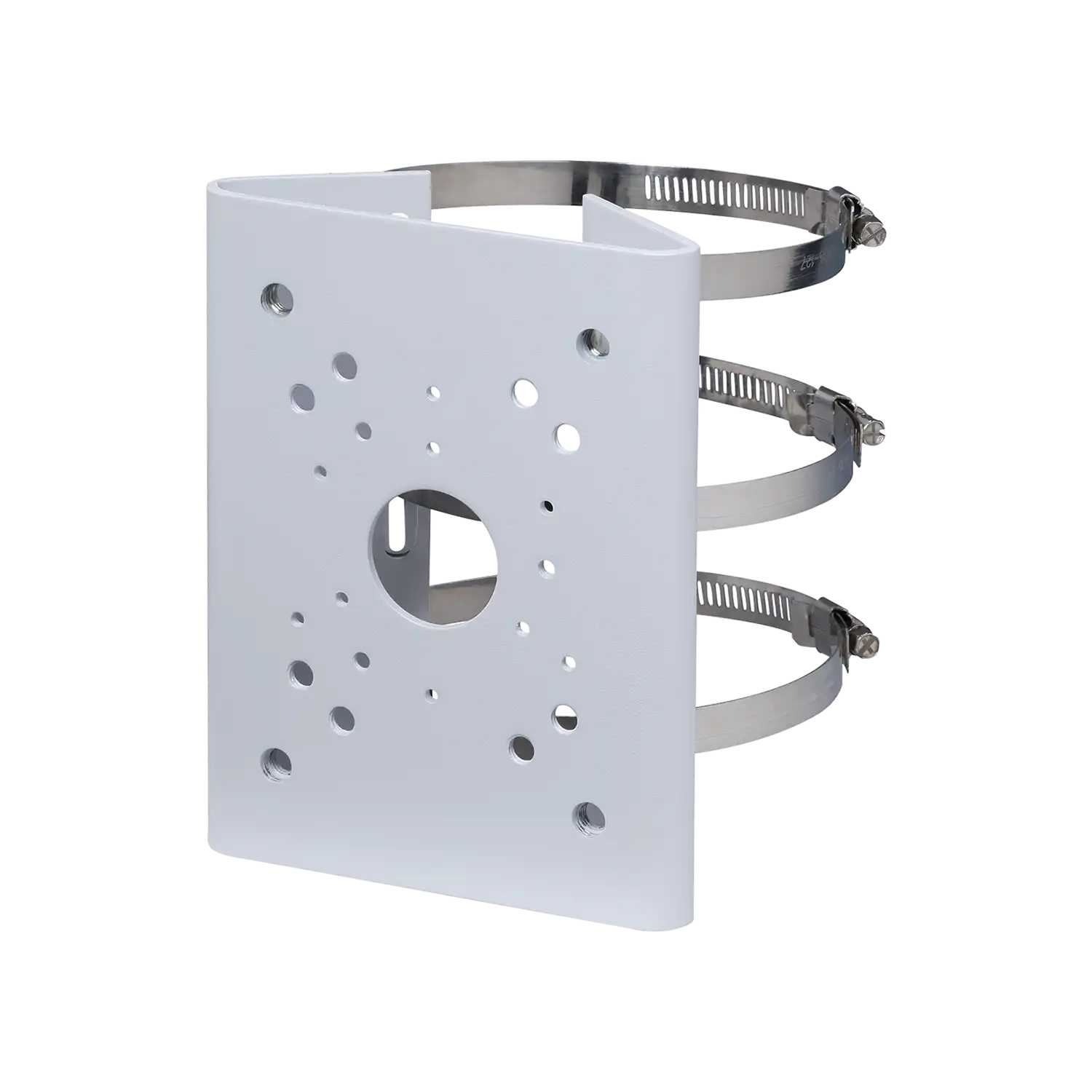

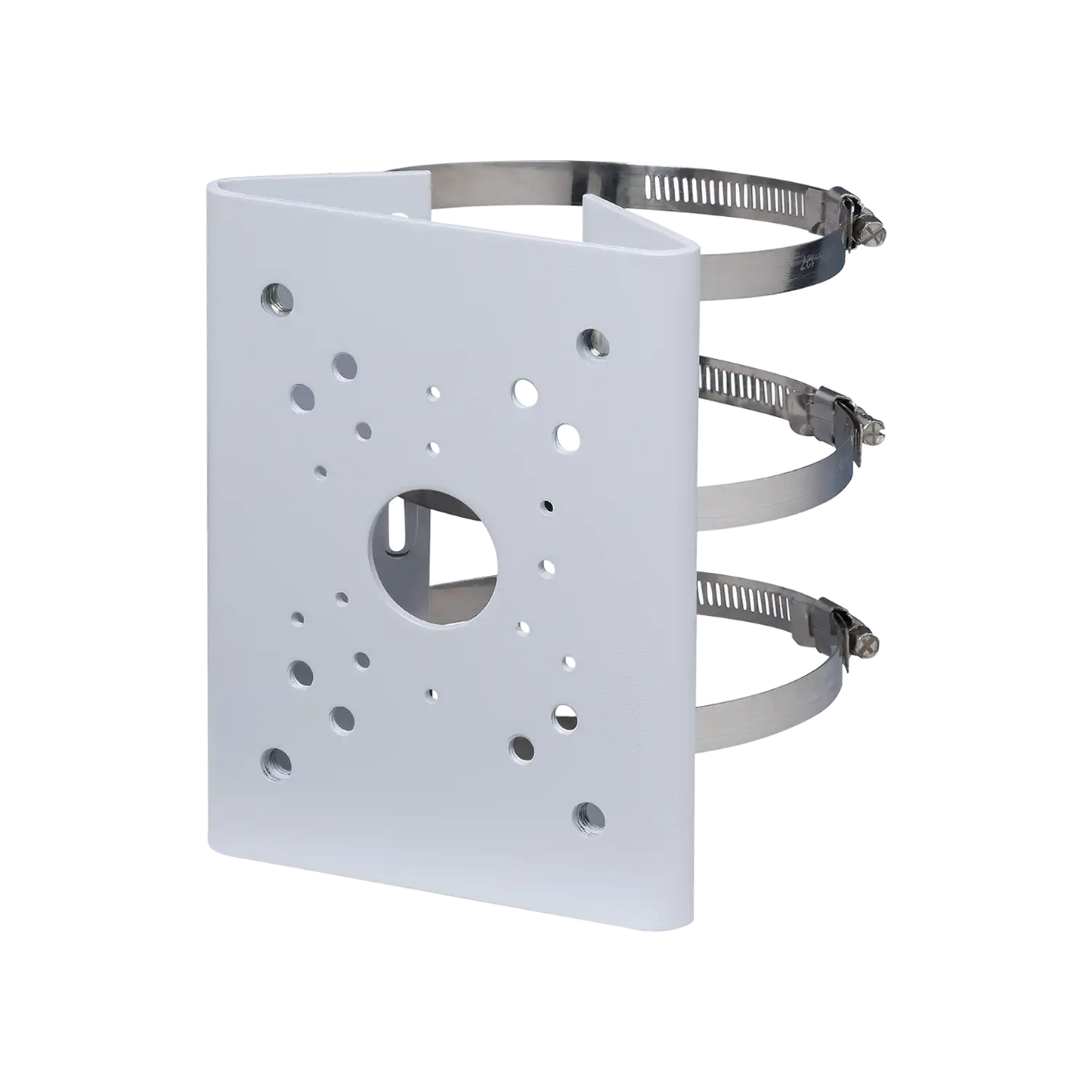

HD Analog PTZ Pole Mount
Part Number: PFA150
|
Model |
PFA150 |
|||
|
General |
||||
|
Material |
SECC & SUS304 |
|||
|

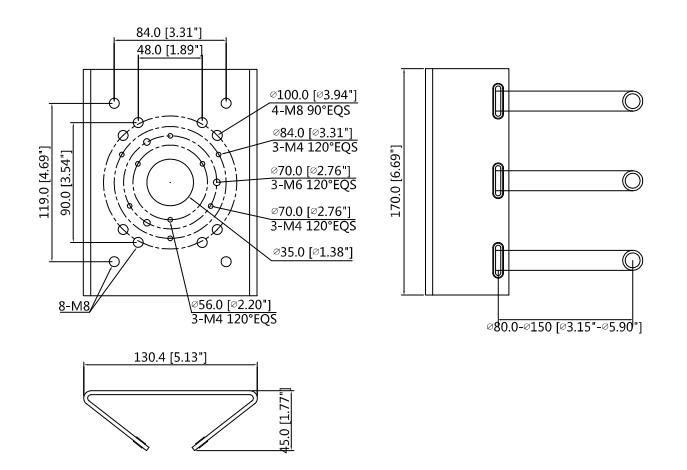

Dimension (WxHxD) |
130.4mmx170mmx45mm (5.13”x6.69”x1.77”) |
|||
|
Mast Diameter |
ɸ80~150mm(ɸ3.15”~5.91”) |
|||
|
Pipe Thread |
N/A |
|||
|
Operating Temperature |
-40ºC~+60ºC(-40℉~+140℉) |
|||
|
Humidity |
0~90% RH |
|||
|
Load Bearing |
10kg(22.05lb) |
|||
|
Weight |
1.1kg(2.43lb) |
|||
|
Applicable Model |
PDC59L225H |
|||
| Download | Type |
|---|---|
| Data Sheet |
