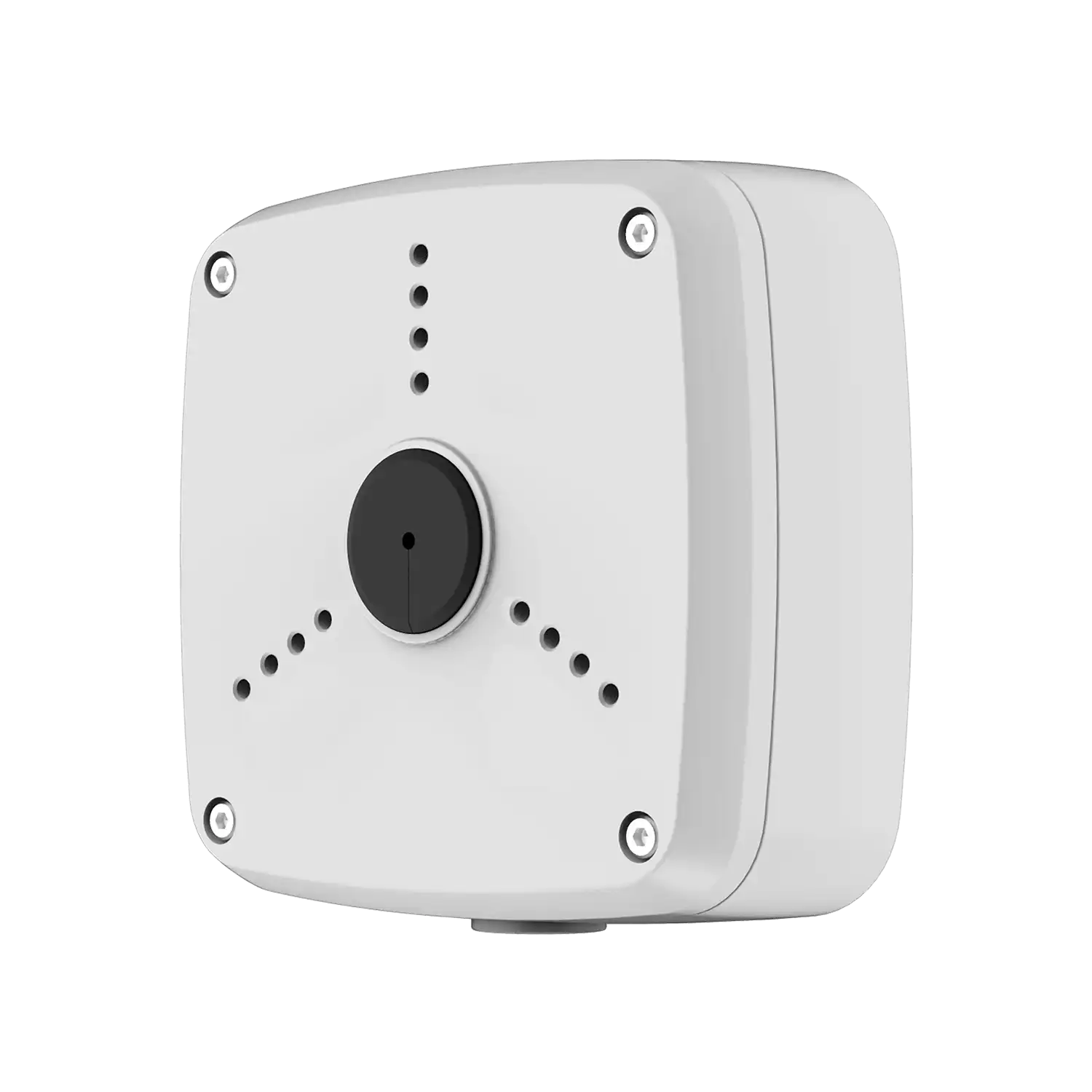

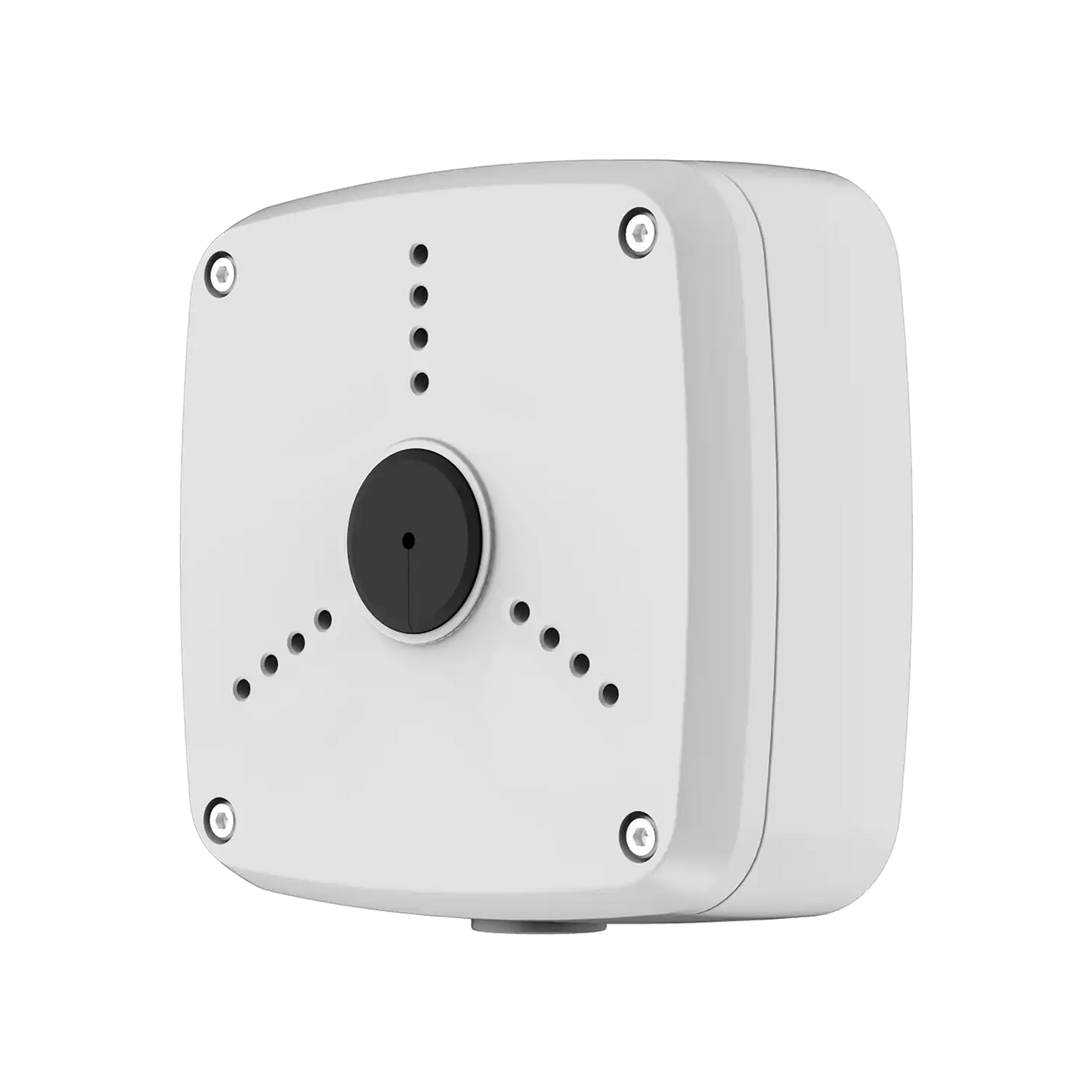

HD Analog Bullet Junction Box
Part Number: PFA122
|
Model |
PFA122 |
|||
|
General |
||||
|
Material |
Aluminum |
|||
|

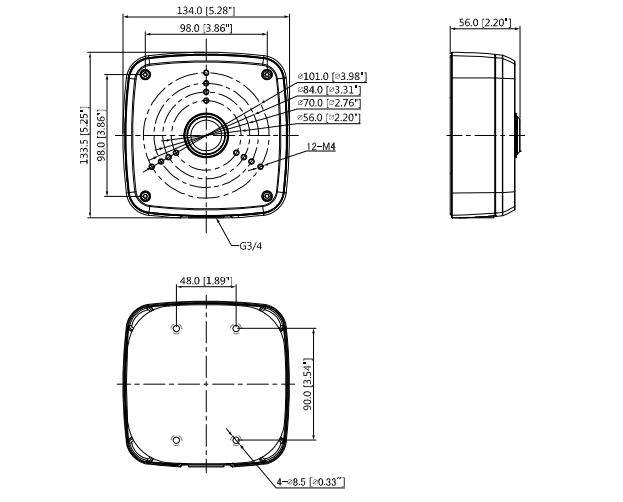

Dimension (WxHxD) |
134.0mmx133.5mmx56.0mm (5.28”x5.25”x2.20”) |
|||
|
Pipe Thread |
G3/4” |
|||
|
Weight |
0.54kg(1.19lb) |
|||
|
Load Bearing |
3.0kg(6.61lb) |
|||
|
Color |
White |
|||
|
Protection |
IP66 |
|||
|
Operating Temperature |
-40ºC~+60ºC(-40℉~+140℉) |
|||
|
Humidity |
<90% RH |
|||
|
Applicable Model |
HAC-VD15R-Z |
|||
| Download | Type |
|---|---|
| Data Sheet |
